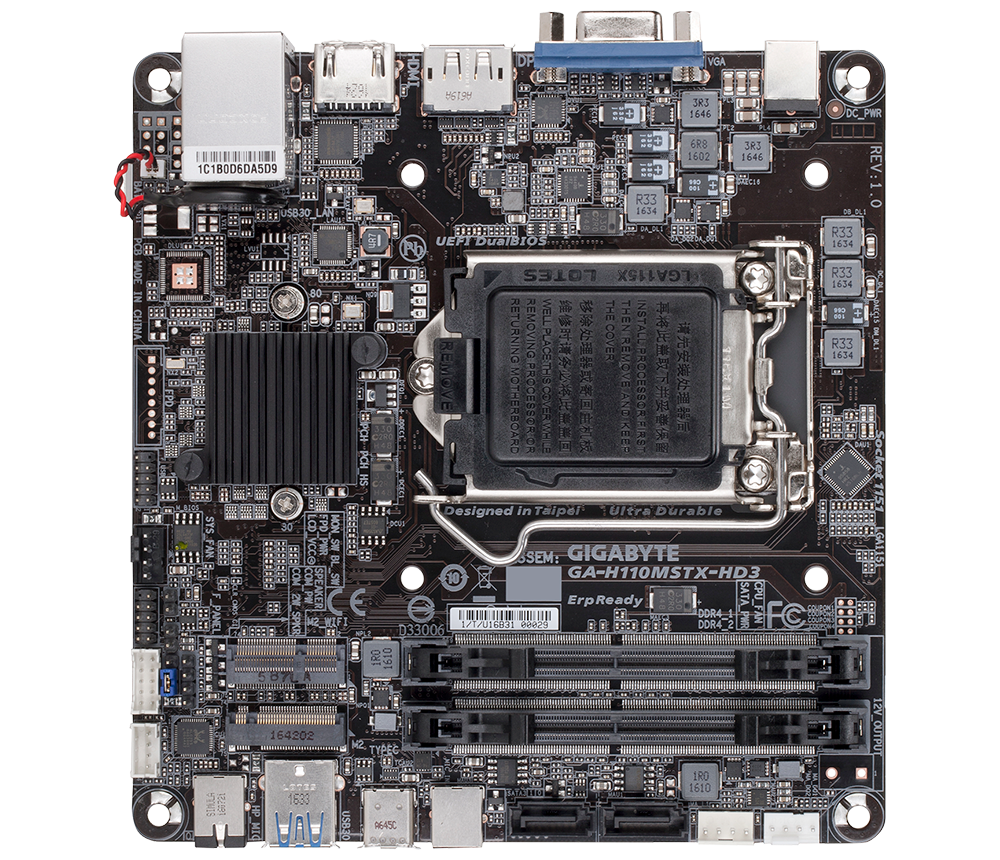

• Supports 7th / 6th Generation Intel® Core™ Processors
  • Dual Channel DDR4 SO-DIMM, 2 DIMMs
  • Features USB 3.0 with USB Type-C™ Support
  • 1 x RS232 COM Port Support
  • M.2 Socket 1 Interface for WIFI+BT Module Support
  • M.2 Socket 3 Interface for SATA Mode SSD Support
  • Rear Panel DisplayPort, HDMI 1.4, D-Sub Ports for Multi-Display Connection
  • Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
  • Intel® GbE LAN for WOL and PXE Support
  • GIGABYTE UEFI DualBIOS™ Technology
  • Mini-STX 147x140mm Form Factor with 12~19V DC-In Power Design
  • Support Intel® Small Business Basics
  • Compatible with GIGABYTE Mini STX Chassis
  • GIGABYTE Ultra Durable ™ Motherboards

    GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build.
    Ultra Durable™ Motherboards
  • Connecting the Future - USB Type-C™:
    The World's Next Universal Connector

    The USB Type-C™ port with USB 3.0 support is a robust and slim connector for all of your devices with reversible plug orientation.


    USB Type-C
  • Dual M.2 Technology for SSD Drive and WIFI Card
    Fast Data Transfer and Advanced WIFI Networking

    GIGABYTE H110MSTX-HD3 motherboard features Dual M.2 technology which for SATA mode SSD devices connectivity and also for 11ac WIFI & Bluetooth 4.0 card usage. GIGABYTE’s stacked design optimizes the PCB real-estate usage, allowing more components to be efficiently added without compromising any space.

  • High Definition Digital Outputs
    Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
     * Support for up to 2 displays at the same time.
    High Definition Digital Outputs
  • 4K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.



  • HDMI™-The Next Generation Multimedia Interface
    HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

  • Display Port Support
    Selected GIGABYTE motherboards feature DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths.
  • Intel® GbE LAN with WOL and PXE Support

    Intel® Gigabit LAN with WOL and PXE support, deliver better network responsiveness and conveniently user experience in crowded LAN environments, to offer hassle free and high speed network connectivity.
    Intel® GbE LAN with WOL and PXE Support

  • USB 3.0 Ports Onboard
    With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.

    * USB 3.0 10x performance is a maximum theoretical value.
    ** Actual performance may vary by system configuration.
    USB 3.0 Ports Onboard
  • INTEL® SMALL BUSINESS BASICS
    With 6th Generation Intel® Core™ Processor
    Security and Productivity Solution with built in IT
    New compelling usages in one intuitive Customizable UI
    INTEL® SMALL BUSINESS BASICS
  • Compatible with GIGABYTE Mini STX Chassis
    (Part number : 20EC5-01MS01-01R)
    (Size : 193 x 153 x 67 mm)
    Compatible with GIGABYTE Mini STX Chassis

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
