Real time data processing at the source is required for edge computing with reduced latency for Internet of Things (IoT) and 5G networks as they use cloud.
12+2 Phases Infineon Digital VRM Solution with 70A Power Stage
Advanced Thermal Design with Fins-Array Heatsink
Intel® GbE LAN with cFosSpeed Internet Accelerator
3 Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guards
Onboard Intel® WiFi 6 802.11ax 2T2R & BT 5
Realtek High-End HD Audio with WIMA Audio Capacitors
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Front & Rear USB 3.2 Gen 2 Type-C™ Header
Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card
Ultimate Power Design
Advanced Thermal Design
Ultimate Performance
Next Generation Connectivity
AORUS AESTHETICS
AORUS Audio
Ultra Durable

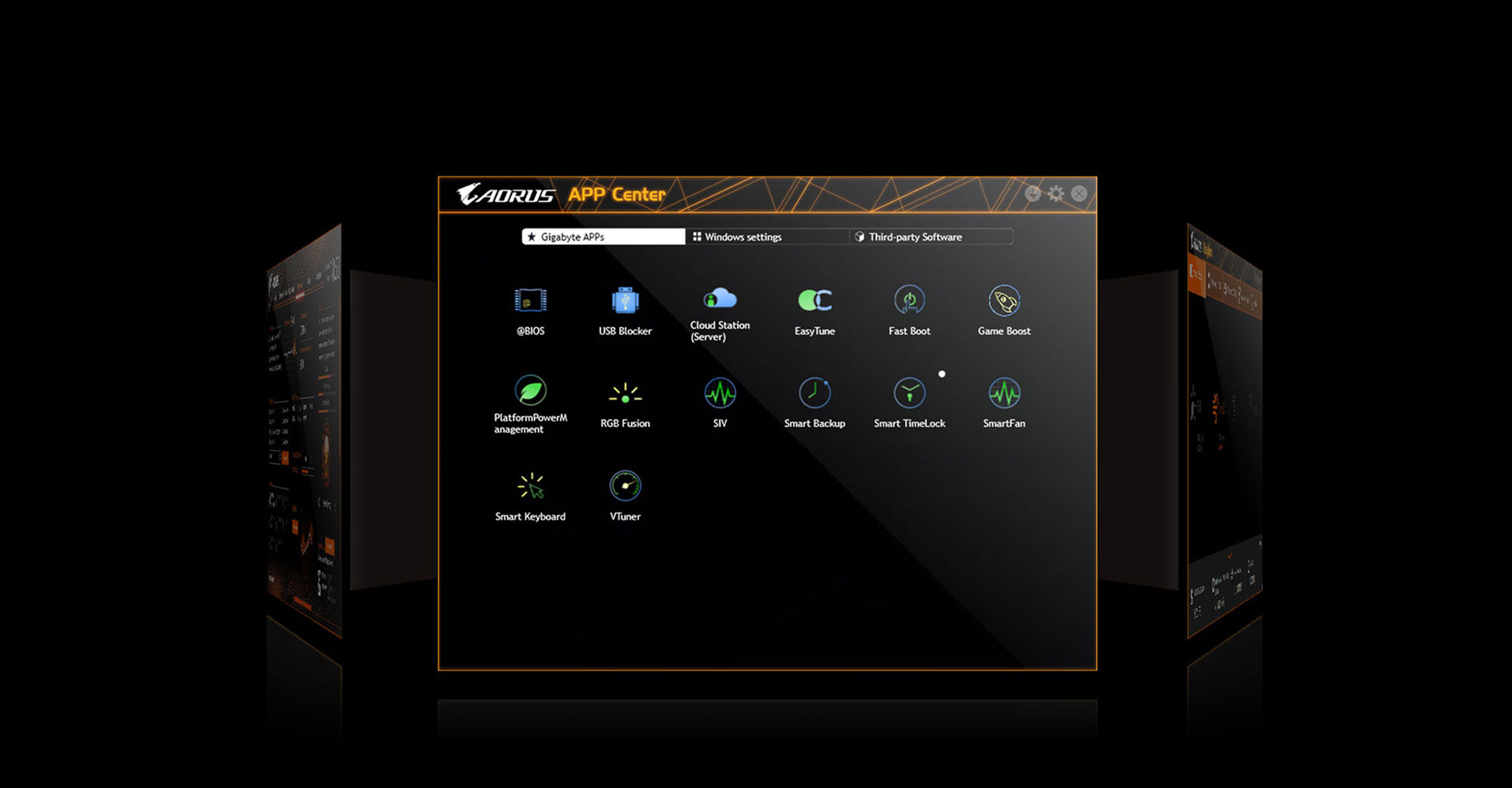

GIGABYTE BIOS & APP Center
Ultimate Power Design
Advanced Thermal Design
Ultimate Performance
Next Generation Connectivity
AORUS AESTHETICS
AORUS Audio
Ultra Durable
GIGABYTE BIOS & APP Center
DESIGN CONCEPT
Wings of Excellence
The falcon utilizes its powerful wings to soar through the skies and lock down its prey. The AORUS
Core takes inspiration from the falcon’s aerodynamic wings, incorporating a multi-layered design which
features wing shaped contours and also resembles the falcon’s high velocity ascension and dive through the
skies. With sleek and metallic armor, the AORUS Core symbolizes advancement in technology with its
futuristic style.
• 24 Pin ATX Power Connector
• 8+4 Pin CPU Power Connector
10
Front USB 3.2 Gen 2 Type-C™
11

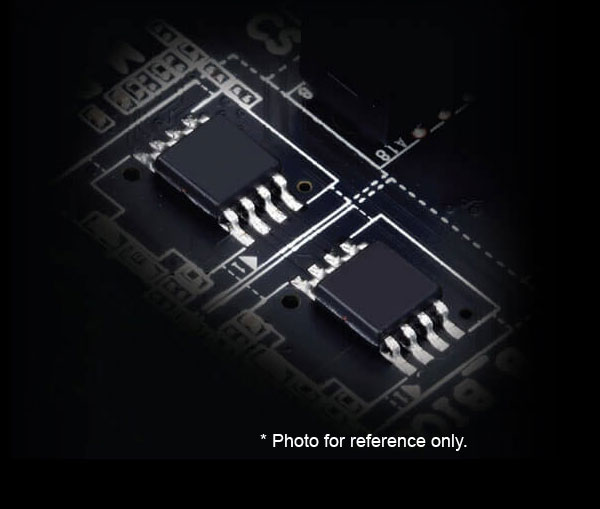

DualBIOS™ with Q-Flash Plus
12
PCIe 4.0 x16/x8/x16/x8

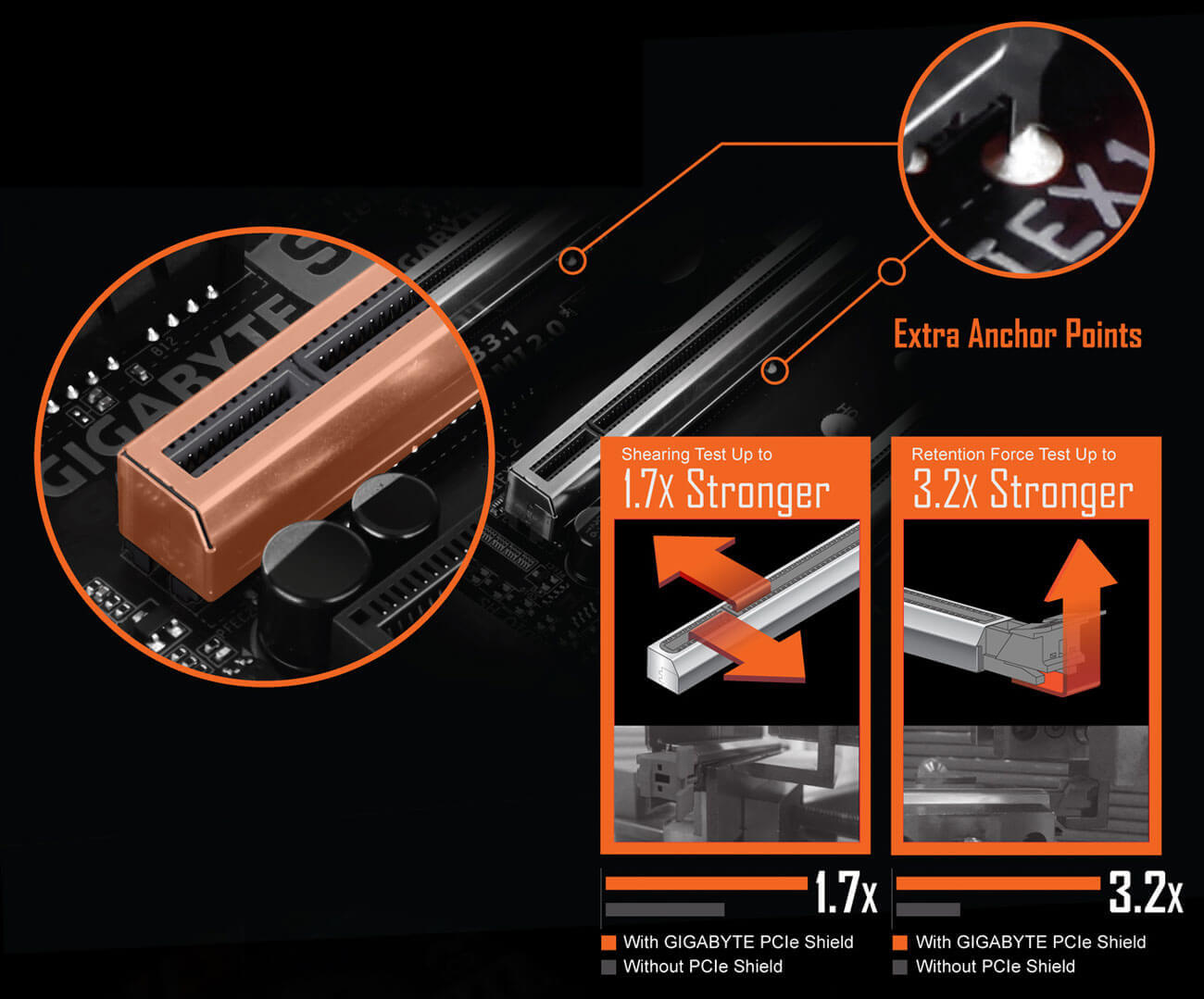

• 4 x Ultra Durable PCIe Armor
13
GIGABYTE Add-in Card Connector
Ultimate Power Design
To unleash the full potential of the 3rd Generation AMD Ryzen™ Threadripper™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, TRX40 AORUS PRO WIFI is a true beast among motherboards.
Ultimate Power Design
12+2 Direct Digital Power Design
Power Architecture
2X Copper PCB
12 Phase Power Design

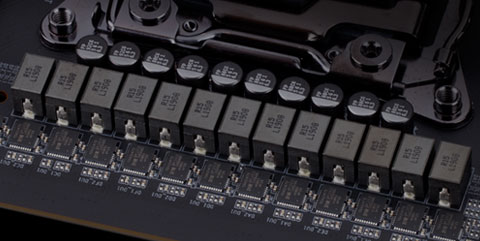

Direct 12+2 Phases Infineon Digital VRM Solution
TRX40 AORUS PRO WIFI motherboard uses latest new generation Infineon multiphase PWM controller, and a total 12+2 phase for vCore and SOC, all with Infineon TDA21472 Power Stage MOSFET which is capable of providing at least 70A of power from each phase, for a total of amazing 980A. Power design is no longer a bottleneck for this motherboard.
New Direct Multiphase Power Design
No Doubler / Not Parallel
Next-Gen Infineon PWM Controller
70A Power Stage
The Lowest Voltage Ripple
The Highest Efficiency

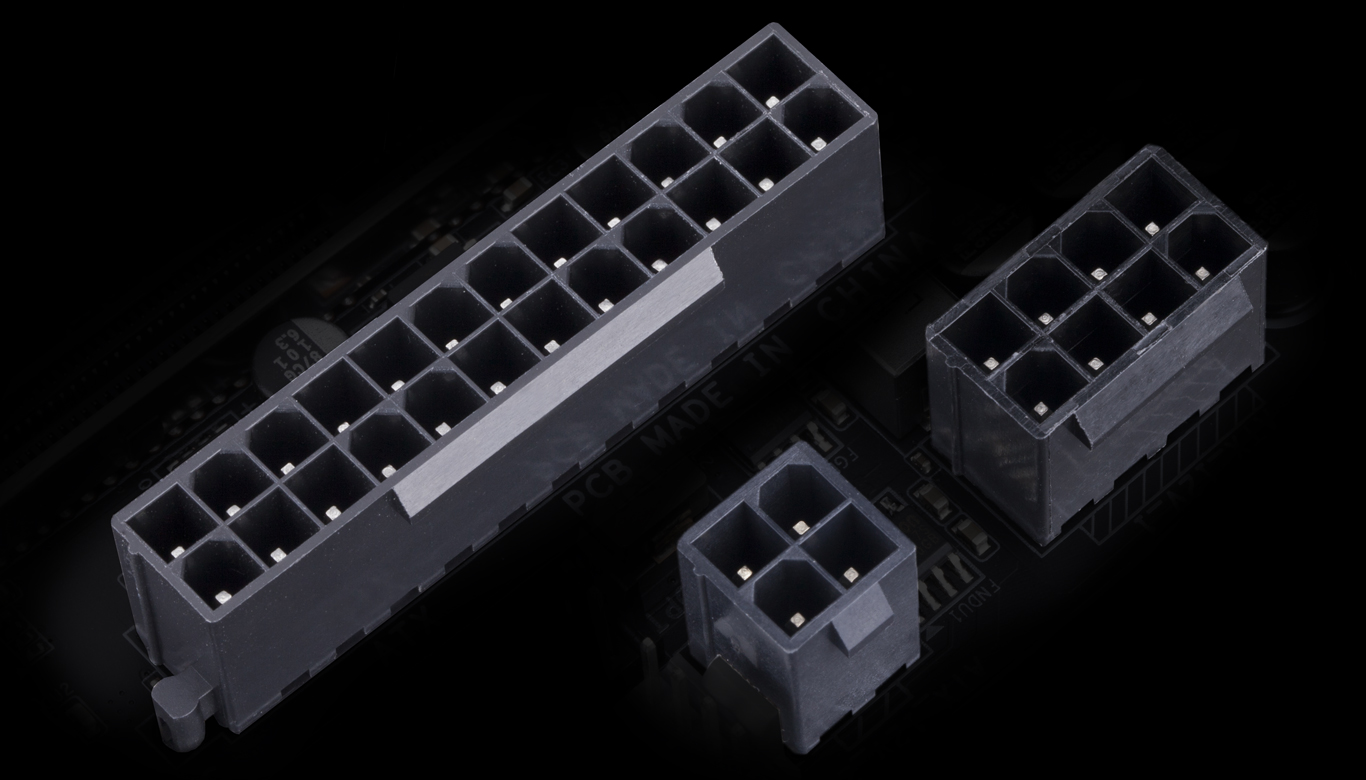

8+4 Solid Pin Connector

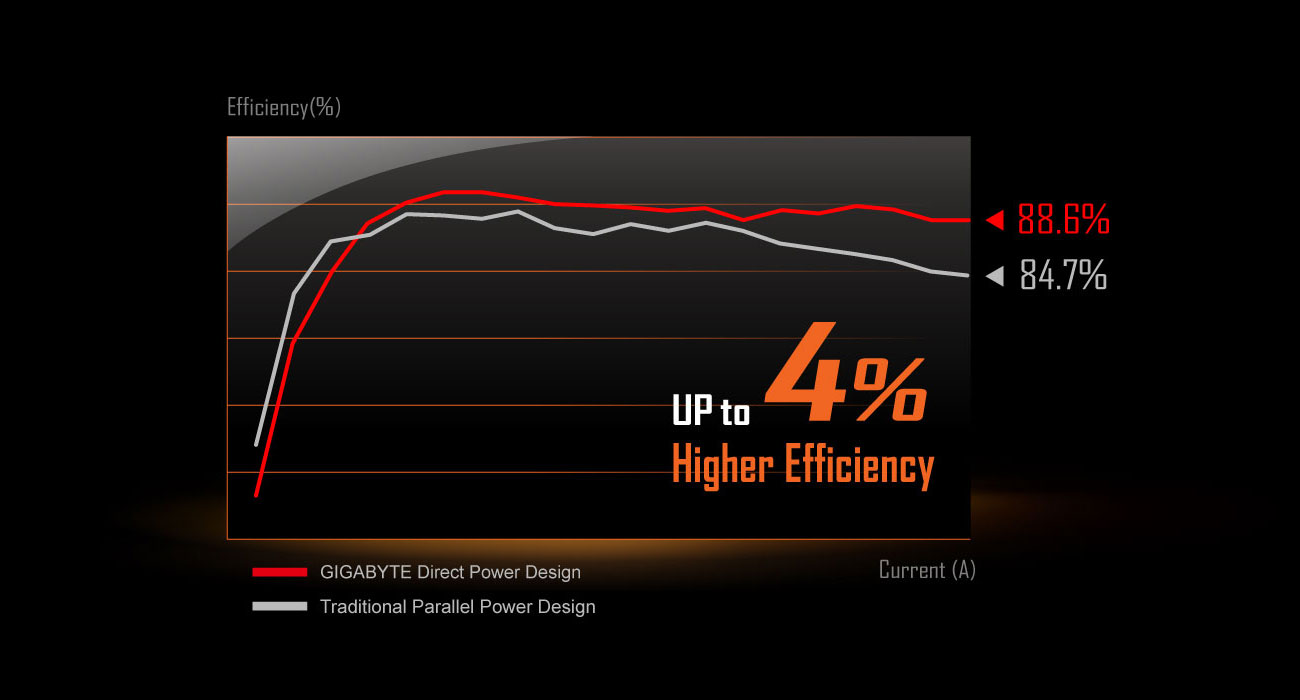

Power Efficiency & Voltage Ripple Graph
GIGABYTE's exclusive 2X copper PCIe 4.0 Ready PCBs design provides sufficient power
trace paths between components to handle greater than
normal power loads and to remove heat from the critical CPU power delivery area. This is
essential to ensure the motherboard is able to handle the increased power loading that
is
necessary when overclocking.
Advanced Thermal Design
TRX40 AORUS PRO WIFI reaches a perfect balance between style and performance by combining the media acclaimed Fins-Array heatsink with pipe to provide lower MOSFET temperatures for enthusiasts, overclockers and professional gamers.
Advanced Thermal Design
Thermal Design
8X Hybrid Fan Header
Advanced Thermal Solution

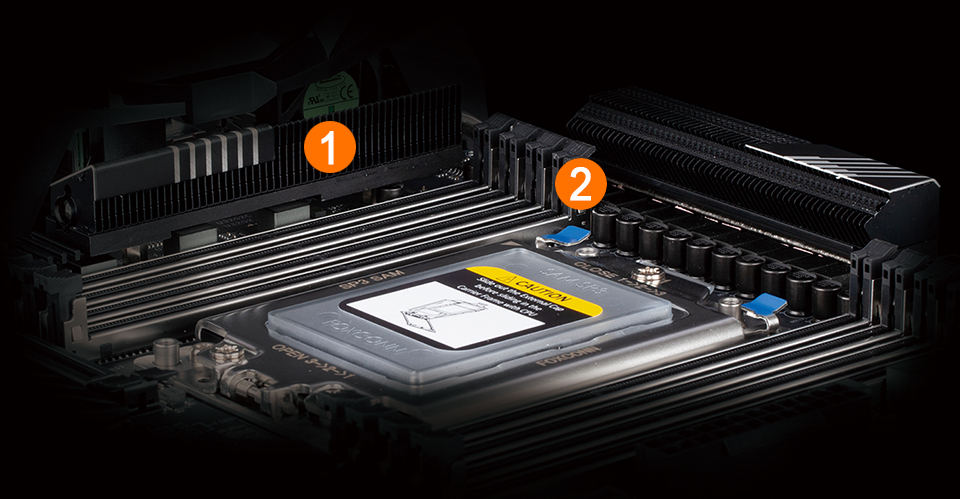

1. Fins-Array Heatsink with Heatpipe
Fins-Array increases the heat dissipation surface by 300% compared to traditional heatsinks of the same size.
2. 5 W/mK LAIRD Thermal
Pad
By using LAIRD 5W/mK high thermal conductivity pads, it can transfer 2.7x more heat.

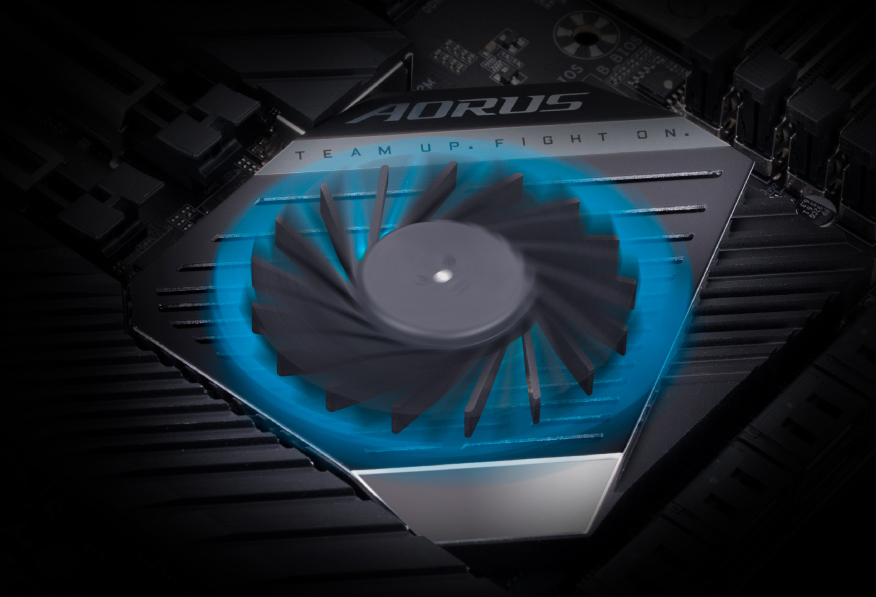

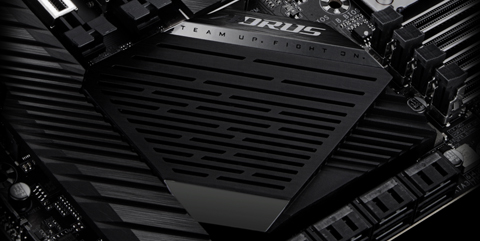

Smart Chipset Fan Heatsink
Smart Fan
Provides several different operating modes to minimize noise and extend the fan’s longevity. You can choose the mode that suits you the best in any situation.
High Durability
TRX40 motherboards built-in a 5cm ball bearing fan which guarantee 50,000* working hours to cool down the heat brought out by the TRX40 chipset.
* MTBF, A standard measurement that continuously operates under certain criteria with 90
% of confidence level.

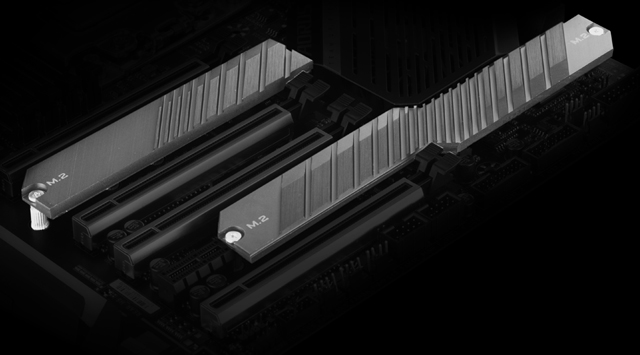

AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Thermal Throttling As Temperature Rises

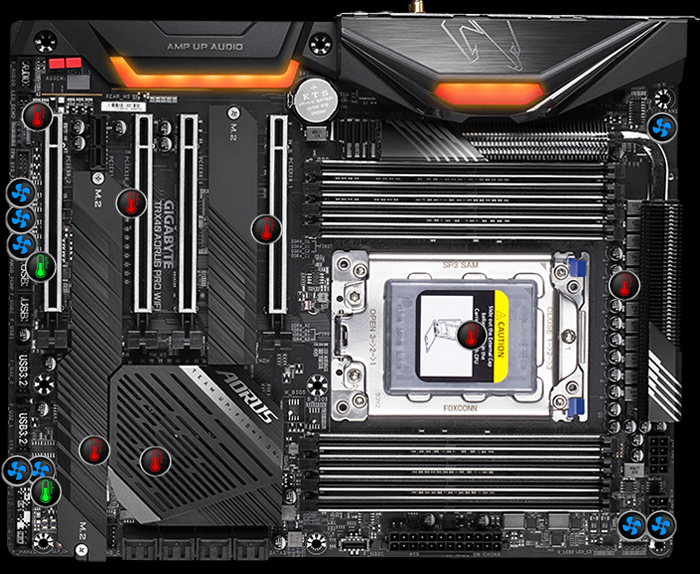

Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its
performance while staying
cool. Smart Fan 5 allows users to interchange their fan headers to
reflect different thermal
sensors at different locations on the motherboard. Not only that, with
Smart Fan 5 more hybrid
fan headers that support both PWM and Voltage mode fans have been
introduced to make the motherboard
more liquid cooling friendly.
Fan Headers
External
Temperature Sensors
Internal
Temperature Sensors
Temperature Sensors
Hybrid Fan Headers

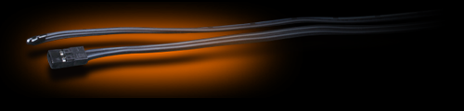

Temperature Sensor Cable x 1
■ 8 Fan / Water Pump Connectors
■ 7 Temperature Sensors
■ 2 External Temperature Sensors
■ All Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Supports High Current Fans up to 24W(2AX12V) with
Over-Current Protection
■ Intuitive UI for Fan Control
* Different models have a different number of fan pin headers and
temperature sensors. Smart Fan 5 function may vary by model.
Achieve fan silence. With Fan Stop, map any fan to
stop completely when temperatures
drop below a specified threshold. Which fan stops, based on readings
from which sensor, and at
what temperature—all of it can be customized to your liking.
Intelligent Fan Control Design

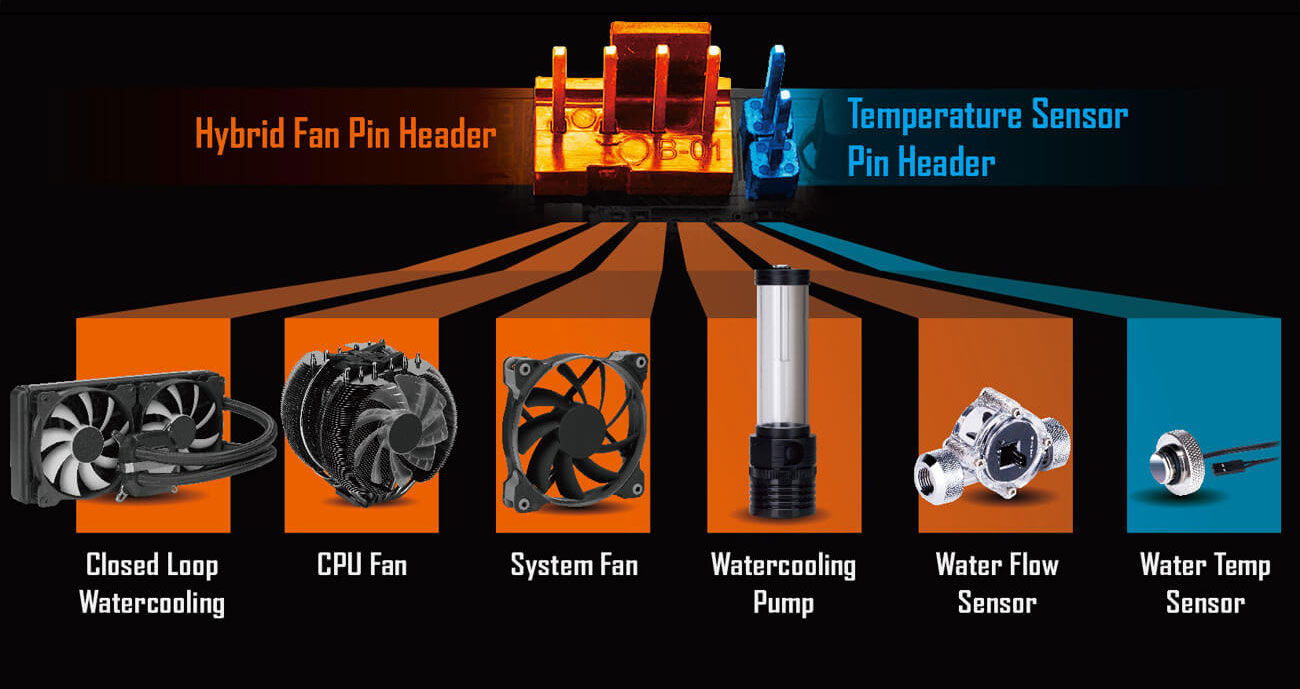

Hybrid Fan Pin Headers
Assume complete control over your liquid cooling setup! Smart Fan 5 receives
up-to-the-second information
on flow-rate and water-temperature through the Hybrid Fan Pin Headers or
external thermistor sensors—giving
you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling
device whether it be fan
or pump with different PWM or Voltage mode.

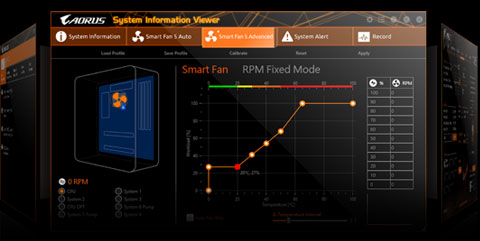

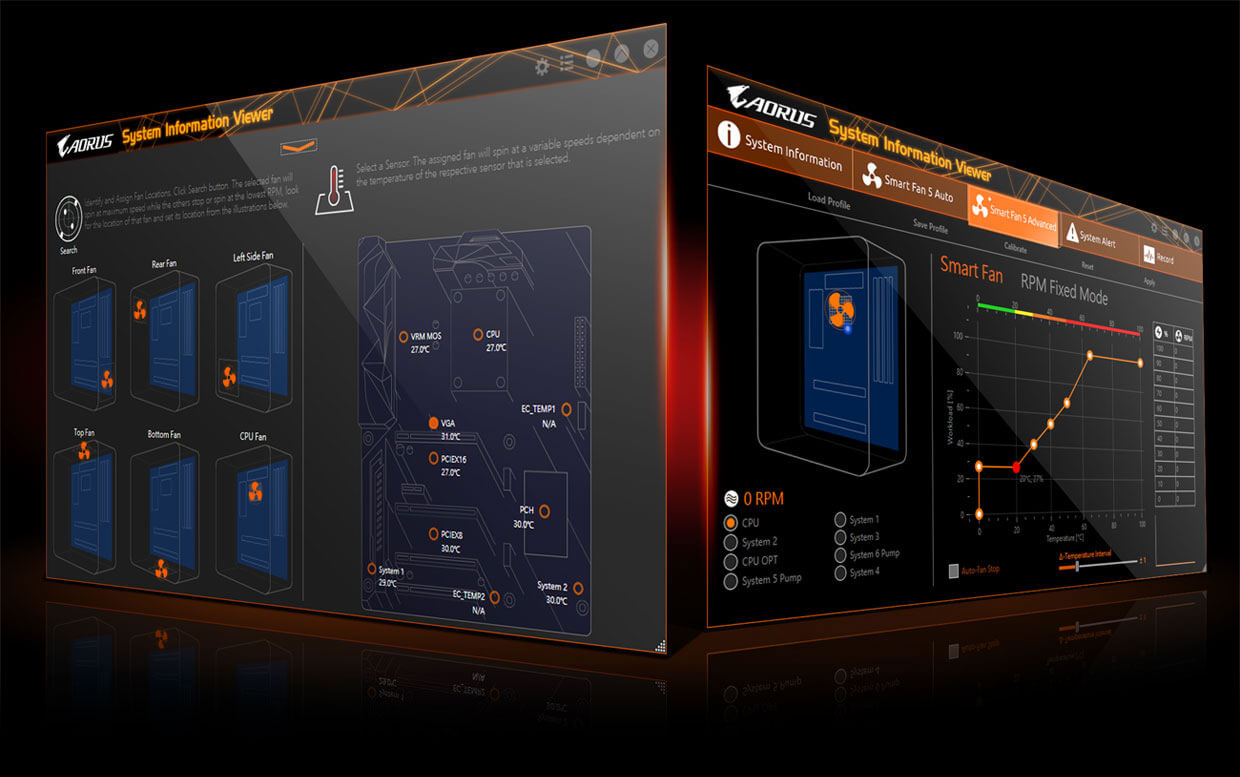

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage
preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger
thresholds and corresponding
fan speeds.
Ultimate Performance
TRX40 AORUS PRO WIFI pushes the envelope once again by featuring Full PCIe 4.0 Design, including PCIe 4.0 Ready PCB, PCIe 4.0 Slots, PCIe 4.0 M.2 Connectors and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts.
Ultimate Performance
PCIe 4.0 Design
XMP 4400+
3X M.2 PCIe 4.0 x4
TRX40 AORUS PRO WIFI equips several new components to ensure the best PCIe 4.0 signal quality, including PCB, PCIe Slots, M.2 Connectors, Re-drivers, Switches that are specifically designed for PCIe 4.0. There will be no compromised on PCIe 4.0 performance.
2X Theoretic Bandwidth vs. PCIe 3.0

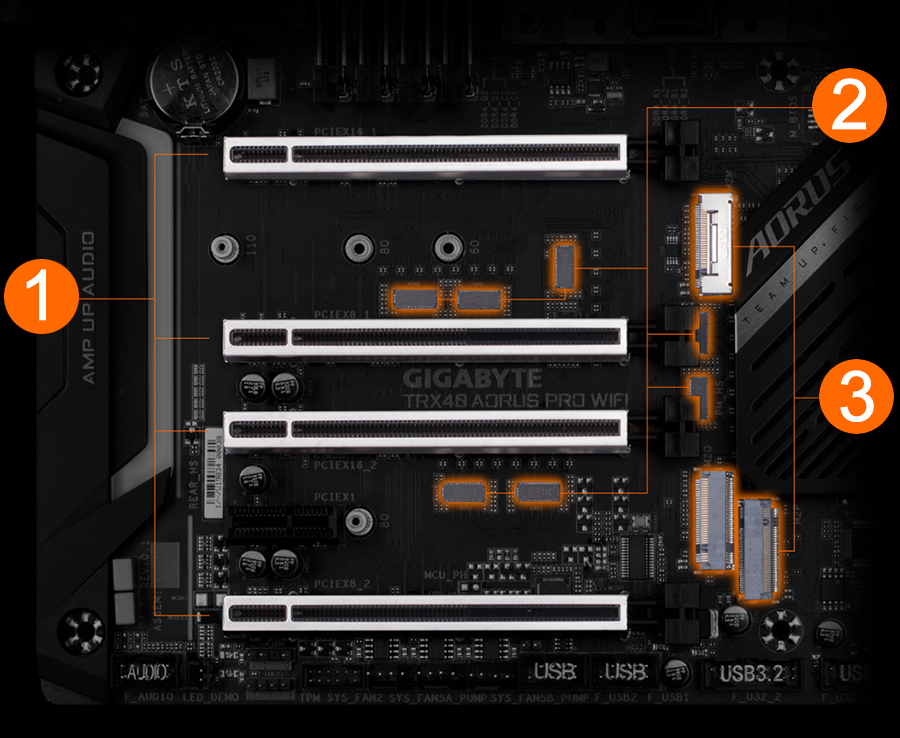

PCIe 4.0 Switch and Re-driver IC
New Low Impedance PCIe and M.2 Slot
PCIe 4.0 Ready 2X Copper PCB
The Best PCIe 4.0 Signal Quality

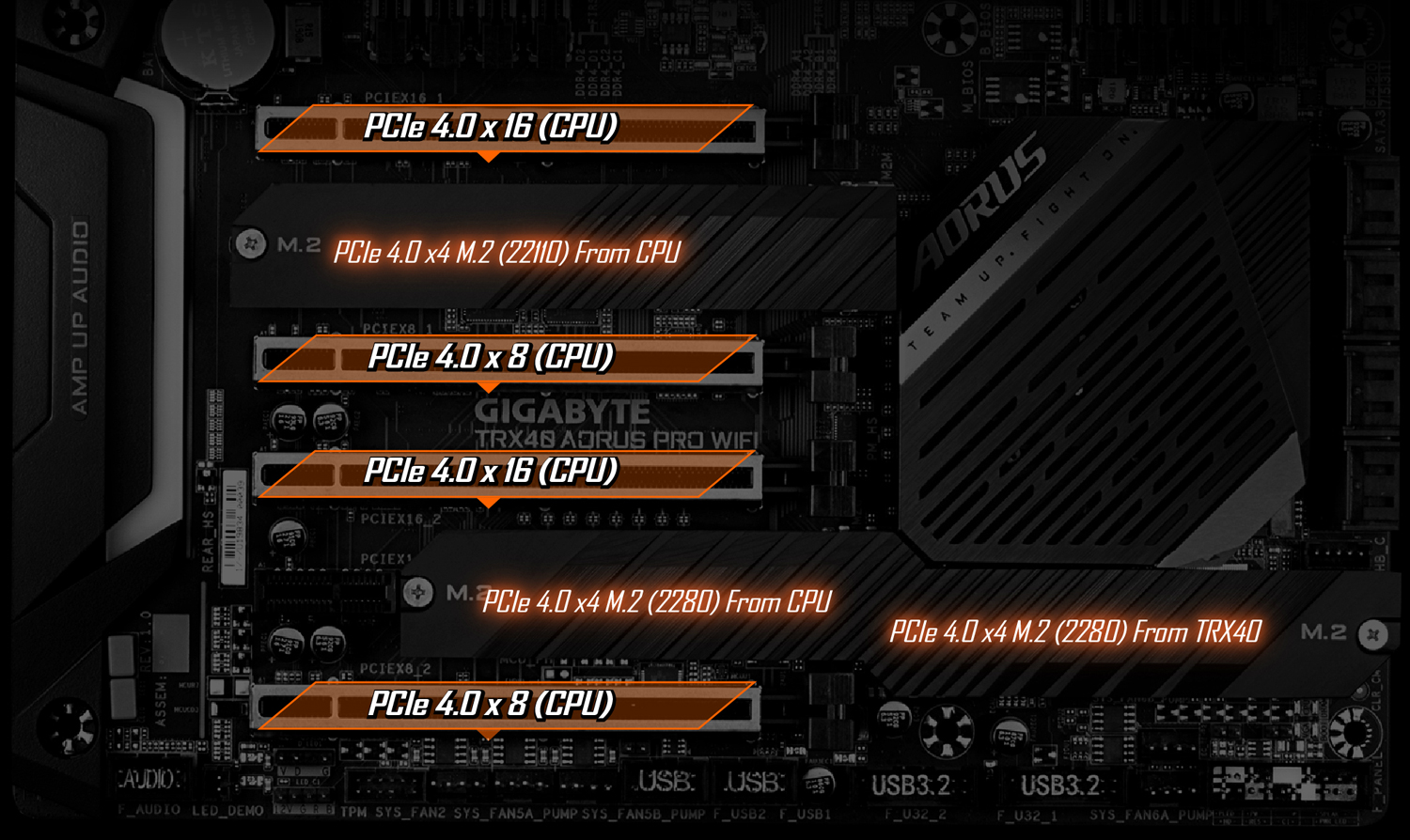

Reinforced PCIe 4.0 x16/x8/x16/x8 with lower impedance
2. PCIe 4.0 Re-driver
Boost & strengthen PCIe 4.0 signal to longer length
3. 3X M.2 PCIe 4.0 Connector
M.2 PCIe 4.0 x4 slot with lower impedance

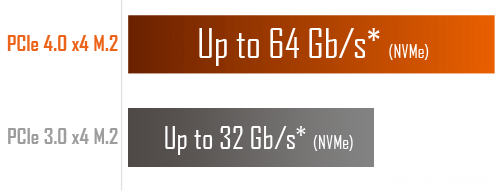

PCIe Bandwidth*
PCIe 4.0 x16
PCIe 3.0 x16
Transfer speed
* Theoretical bandwidth based on PCI Express specification
Up to 31.5GB/s*
Up to 15.8GB/s*
Slot Signal Stability*
PCIe 4.0 Slot
PCIe 3.0 Slot
Differential impedance
* Based on PCIe 4.0 differential impedance specification
Low Signal Loss PCB
PCIe 4.0 Low-Loss PCB
Regular PCB
Dissipation Factor
Support for DDR4 XMP Up to 4400MHz and Beyond*
AORUS is offering a tested and proven platform that ensures proper compatibility with profiles up to 4400MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.
Broad DDR4 Compatibility with Support List of 1000+ DDR4 Validated！
AORUS partners very closely with memory vendors from around the world to ensure that
modules offered
by popular memory brands are compatible with AORUS Motherboards. AORUS has verified
over 1000+ different
modules to ensure performance in a AORUS built system.

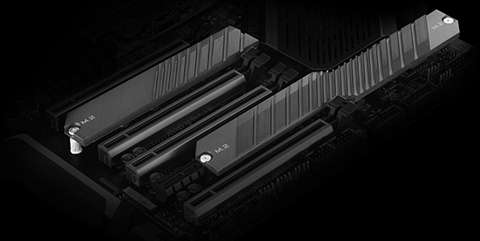

Triple PCIe 4.0 M.2 Connectors with Thermal Guards
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Triple NVMe M.2 PCIe SSDs in RAID 0 Support
Extreme Performance with PCIe 4.0 x4 NVMe PCIe SSDs
TRX40 AORUS motherboards offer the industry’s best compatibility in terms of NVMe storage for users
who demand high capacity and seek the best performance. AORUS' unique design can be configured
in RAID for record speeds of up to 12460 MB/s (Sequential Read), making AORUS the obvious choice
for the ultimate PC.
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. TRX40 AORUS PRO WIFI provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
Next Generation Connectivity
Intel® GbE LAN
WIFI 6 802.11ax
AORUS Antenna

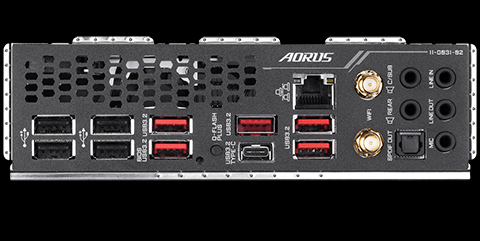

USB Type-C™
Intel® GbE LAN with cFosSpeed Internet
Accelerator
Networking
Intel® GbE LAN features cFosSpeed, a network traffic management
application which
helps to improve
network latency and maintain low ping times to deliver better responsiveness in crowded
LAN
environments.
New Introduce Intel® WiFi 6 802.11ax + BT 5 Module
Intel Wireless solution supports 802.11ax, enables gigabit wireless performance, provides
smooth video streaming, better
gaming experience, few dropped connections and speeds up to 2.4Gbps*. Moreover, Bluetooth 5
provides 4X range over BT
4.2 and with faster transmission.

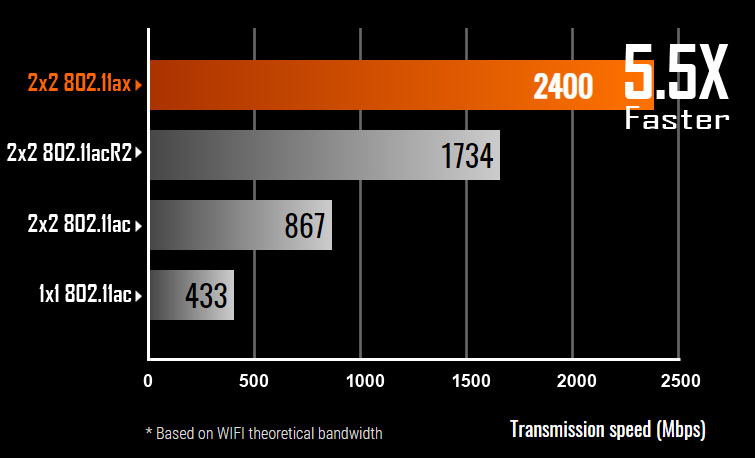

Benefit of WiFi 6:
5.5X throughput than 802.11ac 1x1*
4X better network capacity, no traffic jams especially in those dense area with lots
of devices
Network efficiency increase for better user experience
2400
1734
867
433
Transmission speed (Mbps)
* Based on WIFI theoretical bandwidth

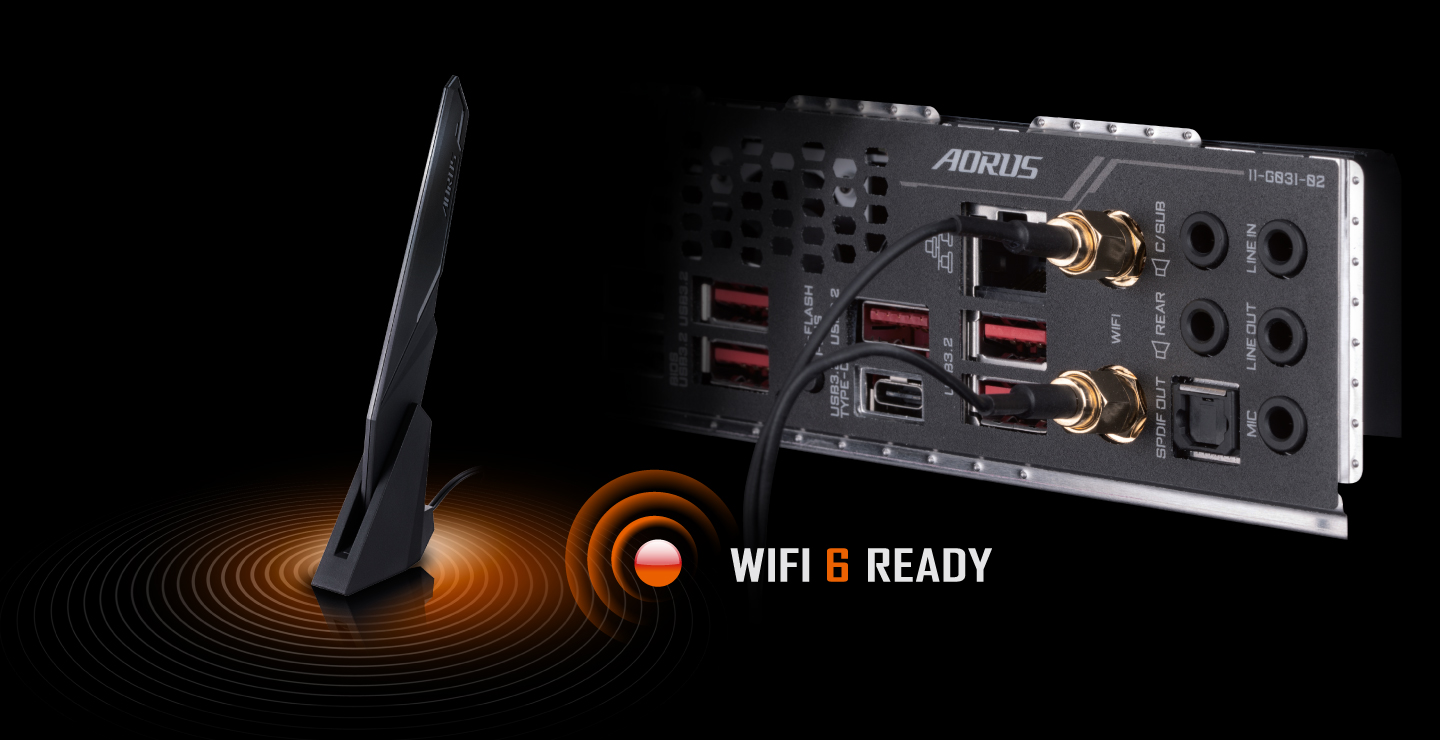

AORUS Antenna Supports Dual Band with Better WIFI Signal
All new antenna supported dual band 802.11ax/ac 2.4GHz & 5GHz.
better signal strength compared to traditional antenna design
AORUS Antenna with smart antenna function for the best WIFI signal transmitting
Multiple angle tilt and magnetic base for the best signal strength direction and
location
Native USB 3.2 Gen2
Connecting the Future - USB Type-C™

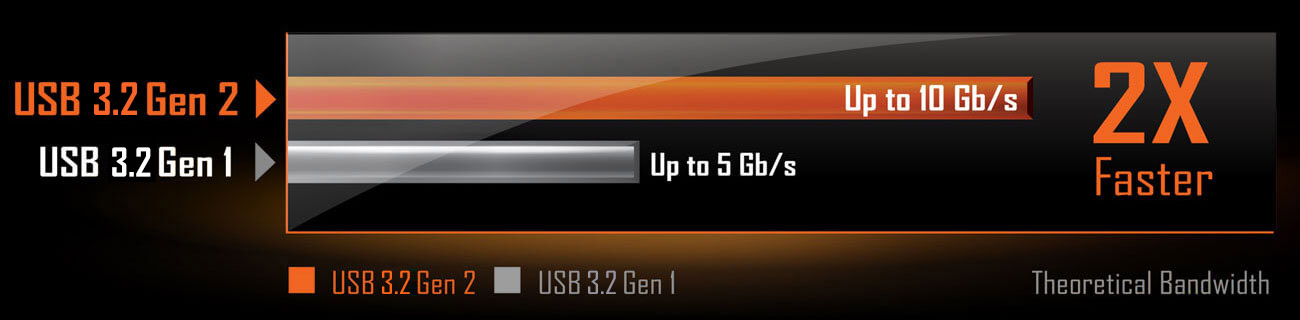

AMD's native USB 3.2 Gen2 provides USB 3.2 Gen2 ports with speeds up to 10Gbps.
With twice the
bandwidth compared to its
previous generation as well as backwards compatibility with USB 2.0 and USB 3.2
Gen1, the much
improved USB 3.2 Gen2
protocol is available over the new reversible USB Type-C™ and the traditional
USB Type-A connector
for better
compatibility over a wider range of devices.
USB Type-C™ Front Panel Connector
Equipped with next generation connectivity GIGABYTE Motherboards already support the chassis of the
future. The onboard USB Type-C™ header for USB 3.2 Gen2/ Gen1 makes access convenient when connecting a
USB 3.2 drive or charging your new mobile device.
AORUS AESTHETICS

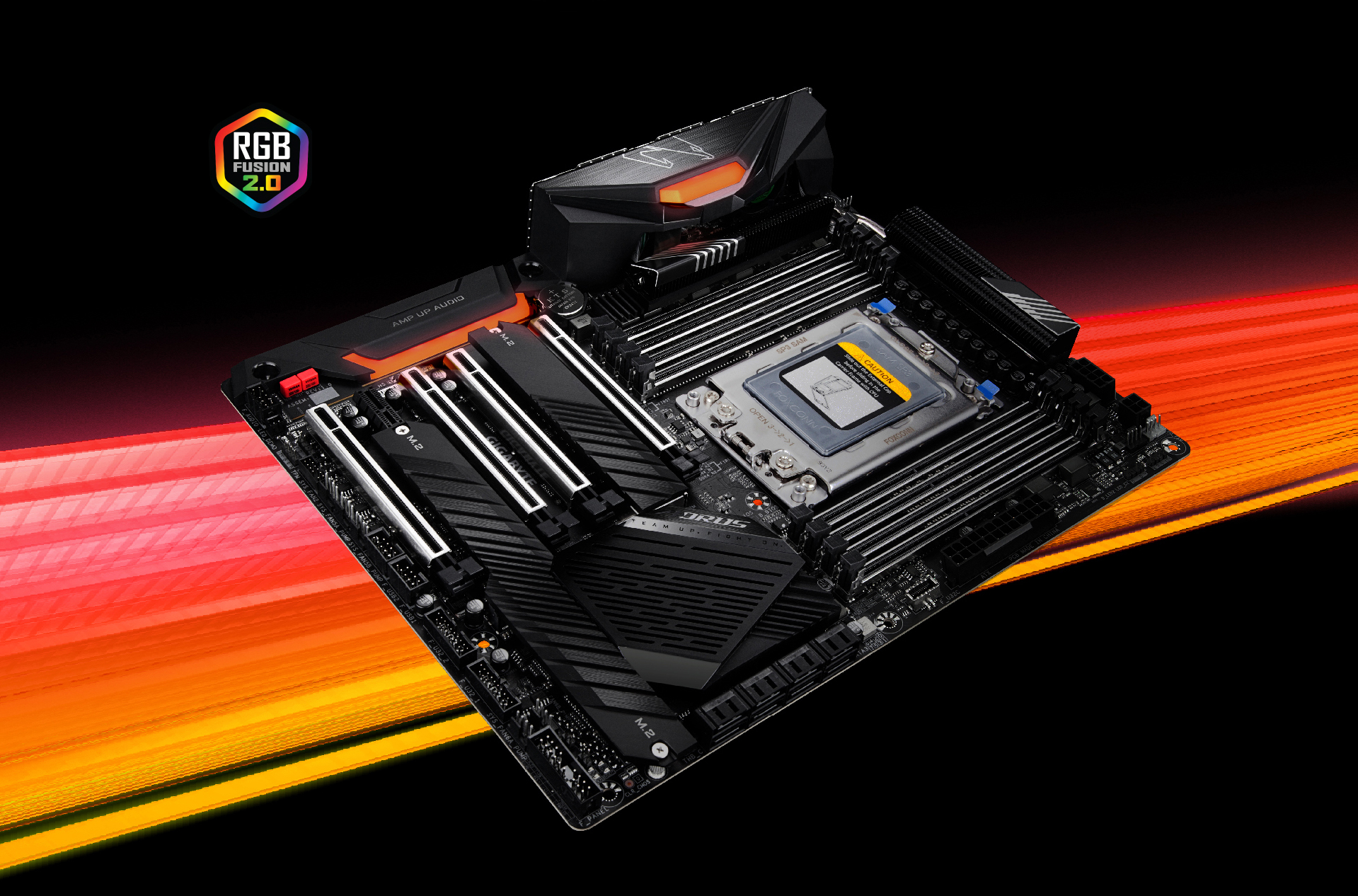

TRX40 AORUS PRO WIFI features RGB FUSION 2.0 and offers users the option to control onboard, external light strips, and/or AORUS devices with RGB/ Addressable RGB LEDs to make their PC more unique and stylish.
AORUS AESTHETICS

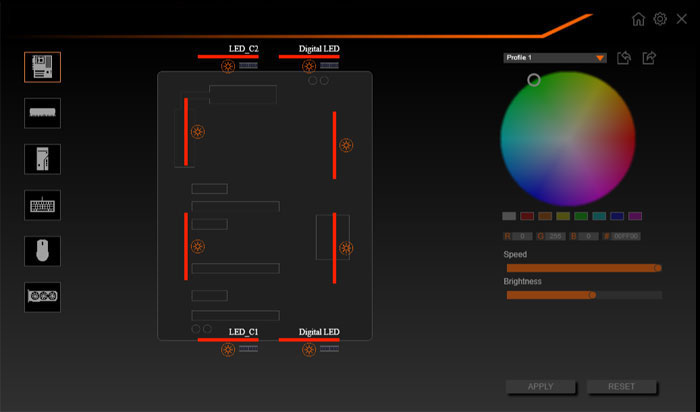

RGB FUSION 2.0
RGB FUSION Software
RGB FUSION APP
RGB FUSION 2.0
Now offering more LED customizations than ever, users can truly adapt their PC to represent their
lifestyle. With full RGB
support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs
which surround
the motherboard.
Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.
With an integrated intuitive user interface, the RGB Fusion 2.0 provides
you a better
solution for customizing the lighting effects across all supported
devices. From
motherboards, graphics cards to the peripheral products, you can
personalize your gaming
rig with your own style and show off your build by sharing the profiles.
In addition,
the new gaming mode makes the lighting effects interactive with selected
games to bring
you the most immersive gaming experience.
Sync with one click
Individual control as you wish
GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the
GIGABYTE RGB Fusion
mobile app users can watch as they control the lighting within their gaming PC. This
gives users
ease of access as they try and adjust colors and speeds for different modes, all
this
can be achieved
away from the keyboard and monitor of their PC.
AORUS Audio
Hi-Res Audio
Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to
40kHz
or above which ensures user with the best audio quality at all times.
Immersive Gaming
ViBes
Realtek High-End HD Audio Codec
• Supports audio format up to 32-bit/384KHz and output SNR up to Rear/Front 120dB 110dB.

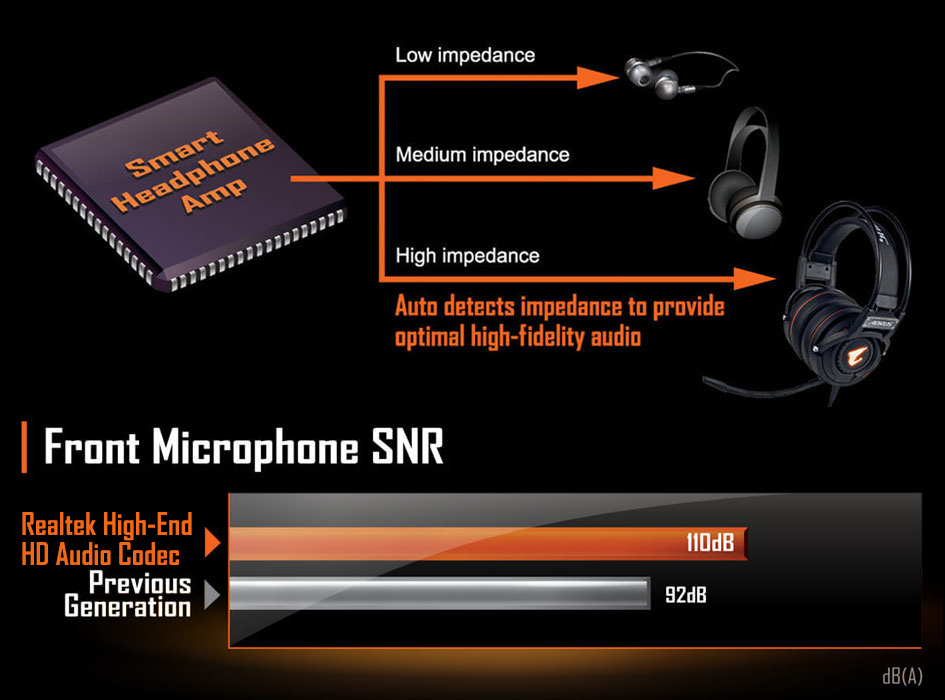

• Automatically detects impedance of audio device, preventing low volume and distortion.
• Stream voice with up to 110dB(A) SNR via microphone.
Hi-Fi Grade WIMA Audio Capacitors
TRX40 AORUS motherboards feature Hi-Fi grade WIMA FKP2 capacitors which are used as feedback signal processing to deliver crystal and balanced sound and are also being used widely in premium grade Hi-Fi systems. The addition of this to the exclusive AORUS AMP-UP Audio technology makes for the ideal onboard sound solution for the most demanding audiophiles.
DTS :X® Ultra
Recreates an authentic, spatially accurate 3D audio experience for
gaming
over any headphones or speakers. Supports
channel-based, scene based and object-based audio. Provides out-of-the-box
calibration
for a range of headphones and
speakers. Provides post-processing enhancements and device level tuning for DTS®
codecs.
DTS Sound Unbound* leverage Microsoft Spatial, enabling the the most believable, 3D
audio experience for games.
Immersion through DTS Headphone:X means in the sonic landscape, stationary and
moving
sounds can be heard from above,
below or around the listener. Sounds pass around the listener with amazing
externalization and accurate localization.
*DTS Sound Unbound needs the latest Windows fixes in the Windows 10, please upgrade
your Windows 10 OS to Win10 Build 18898 or later versions.
DTS:X Ultra Technology Video
DTS:X Ultra Experience Video
Ultra Durable
GIGABYTE is reputable for its durability and high quality manufacturing process. Needless to say, we use the best components we can find on TRX40 AORUS PRO WIFI and reinforce every slot to make each of them solid and durable.
Ultra Durable
4X PCIE Armor
8X Memory Armor
Solid Pin
Q-Flash Plus
More Features
Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from
GIGABYTE
reinforces
the PCIe connectors to provide the extra
strength required to support heavy graphics cards.
Ultra Durable™ Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against PCB
distortion/twisting
and plate bending, in addition to preventing any possible ESD interference
Solid Pin Power Connectors
TRX40 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power
connectors to offer a stable power supply
during CPU overloading.
Solid Pin Power connector
advantages
Larger contact area for electricity
More metal quantity to sustain higher power and generated heat
Ultra durable and longer lifespan
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and graphics card
nor enter the BIOS menu to flash
the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on the USB
flash drive, then press the
dedicated Q-Flash Plus button and you’re good to go!
GIGABYTE Patented Double Locking Bracket
GIGABYTE Patented
DualBIOS™ Design
GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology
from
GIGABYTE that protects arguably
one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your
motherboard has both a 'Main BIOS'
and a 'Backup BIOS', protecting users from BIOS failure due to virus, hardware
malfunction,
improper OC settings or power
failure during the update process.
Diagnostic LEDs
Hardware Troubleshooting at a Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring,
allowing
users to quickly diagnose which
major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.
* Photo for reference only.
Easy to Install "G Connector" Design
The tiny cables of the front panel connectors can be hard to manipulate as space is
restricted
and indicators
are tiny. With the G Connector, you can connect all the FP cables at once, simplifying
the
process
of building your next PC and saving you frustration.
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. TRX40 AORUS PRO WIFI
bundled several useful and
intuitive software to help users to control every aspect of motherboard.
GIGABYTE BIOS & APP CENTER
BIOS
APP CENTER
Easy Tune
System Information Viewer
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including CPU
clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings
modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you
can choose any utility you want to install from APP CENTER and keep updated with the
latest utilities and drivers version.
EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to
fine-tune their system settings or adjust
system and memory clocks and voltages in a Windows environment. With Smart Quick
Boost, one click
is all it takes to automatically overclock your system, giving an added performance
boost when
you need it the most.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to
your current system status. Monitor components
such as the clocks and processor, set your preferred fan speed profile, create
alerts when temperatures
get too high or record your system's behavior; these are the possibilities of the
System Information
Viewer.
XSplit Gamecaster + Broadcaster: Cast Your Game
Anytime, Anywhere
Now set up your stage and share the greatest gaming moments with XSplit
Gamecaster +
Broadcaster! Fully optimized social
media integration is ready for real-time chats—keeping you notified yet focused
in
the game. It takes
just one click to stream your gameplay to Twitch. Host your game like a pro!
* Free 14 days XSplit Gamecaster + Broadcaster Premium License.
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. * Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photographic variables and monitor settings so it may vary from images shown on this site. Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.
Fan Headers
External
Temperature Sensors
Internal
Temperature Sensors
