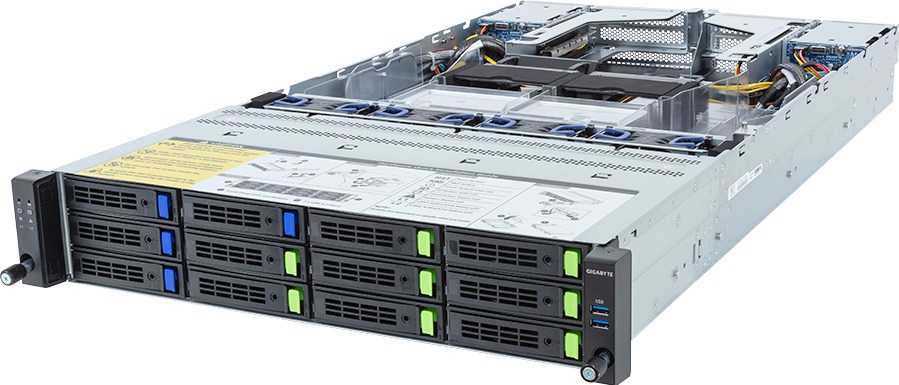

- R283-Z97-AAF1
Rack Server - AMD EPYC™ 9004 - 2U DP 12+4-Bay Gen5 NVMe/SATA/SAS-4 2400W
- Supports up to 2 x Dual slot Gen5 GPUs
- Dual AMD EPYC™ 9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 4 x 3.5"/2.5" SATA/SAS-4 hot-swap bays
- 4 x 2.5" SATA/SAS-4 hot-swap bays on the rear side
- 2 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x FHHL PCIe Gen5 x16 slots
- 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
- Compatible with SupremeRAID™ by Graid Technology
- 1+1 2400W 80 PLUS Platinum redundant power supplies
Quick Shipping
Streamline the Process
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 815
438 x 87.5 x 815
Motherboard
MZ93-FS1
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 240W [1]
[1] The EPYC 9005 series processors with a cTDP of 240W are supported only under ambient temperatures of 25°C.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 240W [1]
[1] The EPYC 9005 series processors with a cTDP of 240W are supported only under ambient temperatures of 25°C.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
LAN
Rear (G-SCM board - CDCR114):
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front hot-swap:
8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
4 x 3.5"/2.5" SATA/SAS-4 [1]
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (6 x SATA via CRS2810 from CPU_0)
- (6 x SATA via CRS2810 from CPU_1)
Rear hot-swap:
4 x 2.5" SATA/SAS-4 [1]
- (SATA via CRS2810 from CPU_1)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0, occupied for SATA
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1, occupied for SATA
1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1, occupied for SATA
[1] SAS card is required to support SAS drives.
[Note] SATA hotplug utility can be downloaded on support page.
8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
4 x 3.5"/2.5" SATA/SAS-4 [1]
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (6 x SATA via CRS2810 from CPU_0)
- (6 x SATA via CRS2810 from CPU_1)
Rear hot-swap:
4 x 2.5" SATA/SAS-4 [1]
- (SATA via CRS2810 from CPU_1)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0, occupied for SATA
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1, occupied for SATA
1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1, occupied for SATA
[1] SAS card is required to support SAS drives.
[Note] SATA hotplug utility can be downloaded on support page.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
Optional compatible RAID Cards:
NVMe RAID Cards with SupremeRAID™ by Graid Technology
RAID Card models: SR-1000-ED12
Support RAID 0/1/5/6/10
Optional compatible RAID Cards:
NVMe RAID Cards with SupremeRAID™ by Graid Technology
RAID Card models: SR-1000-ED12
Support RAID 0/1/5/6/10
PCIe Expansion Slots
PCIe Cable x 4:
- 1 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
- 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
- 1 x FHHL x16 (Gen5 x16), from CPU_0
- 1 x FHHL x16 (Gen5 x16), from CPU_1
1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function
1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function
- 1 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
- 1 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
- 1 x FHHL x16 (Gen5 x16), from CPU_0
- 1 x FHHL x16 (Gen5 x16), from CPU_1
1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function
1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
G-SCM board - CDCR114:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
Backplane Board
Speed and bandwidth:
Front side - CBP20C7: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s
Front side - CBP20C7: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 2400W 80 PLUS Platinum redundant power supplies [1]
AC Input:
- 100-127V~/ 12.5A, 47-63Hz
- 180-200V~/ 14.5A, 47-63Hz
- 200-240V~/ 14.5A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2200W/ 180-200V~
+12V/ 180A
+12Vsb/ 3A
- Max 2400W/ 200-240V~ or 240Vdc Input
+12V/ 197A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
AC Input:
- 100-127V~/ 12.5A, 47-63Hz
- 180-200V~/ 14.5A, 47-63Hz
- 200-240V~/ 14.5A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2200W/ 180-200V~
+12V/ 180A
+12Vsb/ 3A
- Max 2400W/ 200-240V~ or 240Vdc Input
+12V/ 197A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
4 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x R283-Z97-AAF1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
2 x GPU power cables (CPU 8pin, 350mm)
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
2 x GPU power cables (CPU 8pin, 350mm)
1 x 2-Section Rail kit
Part Numbers
- Barebone package (EPYC 9005/9004): 6NR283Z97DR000ABF1*
- Barebone package (EPYC 9004): 6NR283Z97DR000AAF1*
- Motherboard: 9MZ93FS1UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-553202-A0R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP20C7: 9CBP20C7NR-00*
- Backplane board - CBP2025: 9CBP2025NR-00*
- Fan module: 25ST2-88382T-S1R
- M.2 type SATA card - CRS2810: 9CRS2810NR-00*
- G-SCM board - CDCR114: 9CDCR114NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (CPU 8pin, 350mm): 25CRI-350100-Y4R
- Power supply: 25EP0-224000-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RAID card (SR-1000-ED12): 25FC1-SRBUN3-AFS
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283Z97SR-RMA-A100
- Barebone package (EPYC 9004): 6NR283Z97DR000AAF1*
- Motherboard: 9MZ93FS1UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-553202-A0R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP20C7: 9CBP20C7NR-00*
- Backplane board - CBP2025: 9CBP2025NR-00*
- Fan module: 25ST2-88382T-S1R
- M.2 type SATA card - CRS2810: 9CRS2810NR-00*
- G-SCM board - CDCR114: 9CDCR114NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (CPU 8pin, 350mm): 25CRI-350100-Y4R
- Power supply: 25EP0-224000-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RAID card (SR-1000-ED12): 25FC1-SRBUN3-AFS
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283Z97SR-RMA-A100
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SUPPORT
Controlador
BIOS
Utilidad
Firmware
OS
- All
- All
- Windows Server 2022
- Windows Server 2019
- Linux
Chipset
Chipset
Versión
Tamaño
Fecha
Chipset driver for AMD EPYC 9004 series processors
Version : 4.06.27.500
16.58 MB
Nov 11, 2022
S.O.: Windows Server 2019,Windows Server 2022
Chipset driver for AMD EPYC 9005/9004 series processors
Version : 6.10.07.747
2.82 MB
Oct 29, 2024
S.O.: Windows Server 2019,Windows Server 2022
AMD Chipset Windows Server PSHED Plug-in Device Driver
Version : 6.10.04.235
26.5 MB
Oct 29, 2024
S.O.: Windows Server 2019,Windows Server 2022
LAN
BIOS
Descripción
Versión
Tamaño
Fecha
Updated support for AMD EPYC™ 9005 series processors.
Version : R01_F18
44.41 MB
Oct 11, 2024
1) Fixed PKfail Vulnerability.
2) Optimized WebUI HDD & CX7 Invertory information.
2) Optimized WebUI HDD & CX7 Invertory information.
Version : F17
20.95 MB
Aug 26, 2024
1) Update to Genoa AGESA 1.0.0.C.
2) Security updates: CVE-2023-31315, CVE-2023-31355, CVE-2024-21978, CVE-2024-21980.
3) Multiple feature updates.
2) Security updates: CVE-2023-31315, CVE-2023-31355, CVE-2024-21978, CVE-2024-21980.
3) Multiple feature updates.
Version : F16
20.95 MB
Jul 11, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utilidad
Descripción
Versión
Tamaño
Fecha
GSM CLI
Version : 2.1.77
147.89 MB
Sep 27, 2024
S.O.: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
SATA hotplug utility
Version : 2.0
2.13 MB
Jun 27, 2023
S.O.: Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
S.O.: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
S.O.: Linux,Windows Server 2016 64bit,Windows Server 2019
Manual
Descripción
Versión
Tamaño
Fecha
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
English
Descripción
Versión
Tamaño
Fecha
Lista de Soporte para S.O.
Version : R1
0.06 MB
Oct 15, 2024
AMD EPYC™ 9005/9004 Series Processors OS Support List
RESOURCES
Others
Back to R283-Z97-AAF1
