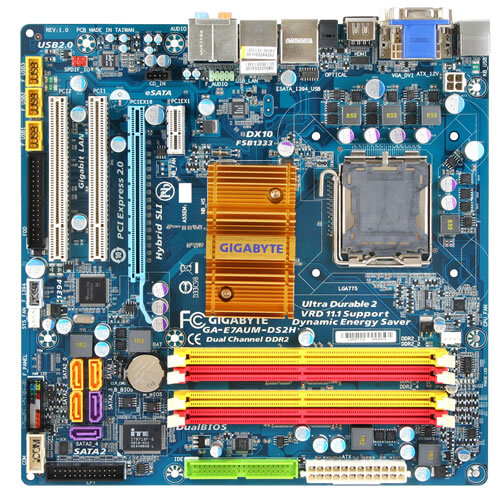

GA-E7AUM-DS2H (rev. 1.0)
NVIDIA GeForce 9400 chipset
- DES Advanced technology with VRD11.1 power design featuring hardware based Dynamic multi-Gear switching
- Supports Intel Core 2 multi-core processors and 45nm processors.
- 1333MHz FSB (Front Side Bus) and DDR 2 800 support
- Integrated NVIDIA GeForce 9400 graphics(DirectX10)
- Ultimate graphics performance with PCI-Ex16 interface with NVIDIA Hybrid SLI support.
- Integrated SATA 3Gb/s with RAID function
- Features high speed Gigabit Ethernet and IEEE1394
- Blu-ray playback supported by high quality 106dB SNR ALC889A HD audio
- Supports Dolby Home Theater audio to enjoy a rich surround sound experience
- Integrated HDMI/ DVI interface for Full HD 1080 Blu-ray playback with HDCP
- Patented DualBIOS with dual hardware BIOS protection
-
Intel® Core™ 2 multi-coreGA-EP41T-UD3L supports Intel latest high performance CPU delivers the most energy-efficient performance available today. Based on Intel's Micro Architecture, the Intel multi-core processors with 4 cores and two shared L2 caches provide the best capability-per-watt solutions and are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments. This cutting-edge processor offers significant performance boosts and provides an overall more energy efficient platform.
-
Dynamic Energy Saver AdvancedGIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world’s only motherboard energy saving technology with hardware-based Dynamic 4-Gear* Switching on GA-E7AUM-DS2H. With support for VRD 11.1, GIGABYTE’s DES Advanced allows the motherboard to switch to 2 Gear phase switching during idle, allowing for a dramatic increase in power savings.
GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance. -
NVIDIA® GeForce 9400 ChipsetGIGABYTE GA-E7AUM-DS2H, adapting brand new NVIDIA® GeForce 9400 MCP chipset (Media and Communications Processor) supporting Microsoft DirectX10 for Vista Premium. Featuring NVIDIA® Hybrid SLI® (GeForce Boost) 、PureVideo® HD technology、NVIDIA® CUDA™ and NVIDIA PhysX technology. GeForce 9400 also highly improves the realism of HD contents playback and graphics performance for mainstream 3D gaming. Through the supporting verity of video output, such as DVI and HDMI (with HDCP support), GIGABYTE GA-E7AUM-DS2H brings the ultimate rich multimedia experience.
-
NVIDIA® Hybrid SLI Support
- GeForce Boost™: Turbocharge the performance of your integrated GeForce GPU. Plug in an NVIDIA graphics card and enjoy the additive performance of GeForce Boost Technology, the easiest and most cost effective way to give your graphics performance an instant boost.
- Hybrid Power™: 2 Modes to deliver performance when you need it.
- Power Savings Mode: Delivers enhanced power savings with the ability to switch off the discrete graphics core when it’s not needed.
- Max Performance Mode: Turn on the juice for games or other graphics intensive applications.
** NVIDIA Hybrid SLI current only supports Windows Vista. -
World’s best 3D graphic UMA team up with Energy saving form Intel PlatformThe 3DMark 2006 and 3DMark Vantage is the benchmark software which is generally used on analyzing a PC performance of DirectX® 3D visualization, especially a valuable guideline for gaming users as reference.
- Hardware equipment required: [CPU] Intel Core2 Quad Q9300 CPU (2.5G), [Memory] DDR2 1066(1GBx2 OC), [OS] Windows Vista 32-bit.
- Software equipment required: [Benchmark] 3DMark 2006, [Resolution] 1280x1024x32 (no AA, no AF, 32bpp).
-
Dual Channel DDR2 800Experience the advanced technology of DDR2 800 memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
* Please refer "Memory Support List" for memory support information. -
PCI-E 2.0 Graphics InterfacePCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCI-E 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
-
HDMI InterfaceHDMI is latest High-Definition Multimedia Interface, which is able to provide up to 5Gb/s video transmitting bandwidth and also 8-channel high quality audio. Via transmitting uncompressed digital data, HDMI is able to reduce signal interference as transferring between digital and analog signal, seen and heard, direct from the source. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), which allowing playback of Blu-ray/ HD DVD and other protected contents.
-
Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound ExperienceDolby Home Theater® places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.
- Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
- Designed to automatically deliver the best possible listening experience
-
ALC889A Enables a Superior Audio Experience
Excellent Audio Performance
High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-Noise ratio playback quality, designed especially for Windows Vista Premium PCs.Blu-ray/HD DVD Full Rate Audio Support
The ALC889A enables high quality Full Rate Lossless Audio for content protected media and support for both Blu-ray and HD DVD formats for an exhilarating home theater entertainment experience.7.1+2 Channel High Definition Output
The ALC889A provides support for 7.1 sound playback, plus 2 channels of independent stereo output (multiple streaming) through the front panel stereo outputs. -
DualBIOS™ - Patented Dual Hardware BIOS ProtectionDualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
-
SATA 3Gb/s storage interfaceSATA 3Gb/s doubles bus bandwidth from 1.5Gb/s to 3Gb/s. SATA 3Gb/s facilitates bandwidth aggregation for multiple devices, enabling max through put as well as, higher cache through put performance in single drive configurations.
-
IEEE1394 motherboardThis motherboard with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video (A/V) appliances, and storage peripherals.
-
Gigabit LAN connectivityThe Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents
-
Ultra Durable 2 -Designed with Top Quality Highly Efficient Components
Ultra Cooling - Low RDS(on) MOSFET Design
Low RDS(on) MOSFETs specially designed to produce lower switching resistance for faster electric current charging and discharging...moreLow Power Loss - Ferrite Core Choke Design
Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency...moreLonger Life - All-Solid Capacitor Design
Solid capacitors contain a solid organic polymer, while electrolytic capacitors use a common liquid electrolyte, hence, the terms solid capacitor versus electrolytic capacitors...more
