• Supports 7th / 6th Generation Intel® Core™ Processors
  • Dual Channel DDR4, 4 DIMMs
  • Intel® USB 3.1 with USB Type-C™-The World's Next Universal Connector
  • 3-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
  • Dual PCIe Gen3 x4 M.2 Connectors with up to 32Gb/s Data Transfer (PCIe NVMe & SATA SSD support)
  • 3 SATA Express Connectors for up to 16Gb/s Data Transfer
  • 115dB SNR HD Audio with Built-in Rear Audio Amplifier
  • Killer™ E2400 and Intel® Gaming Networks
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • GIGABYTE UEFI DualBIOS™ Technology

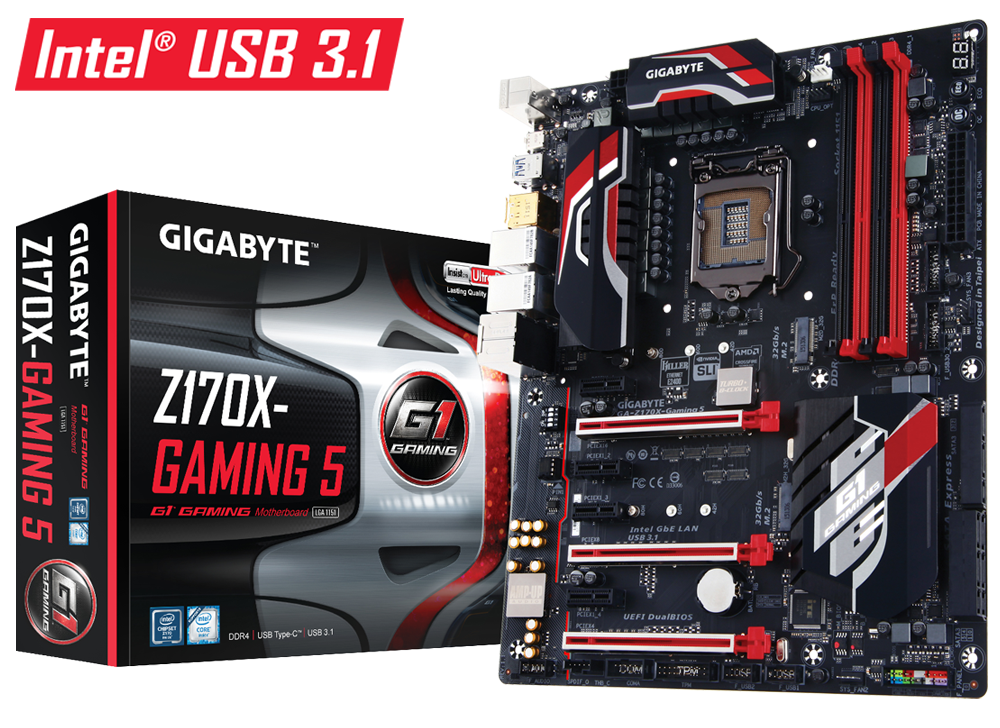

GIGABYTE Z170X-Gaming 5 Unboxing Video

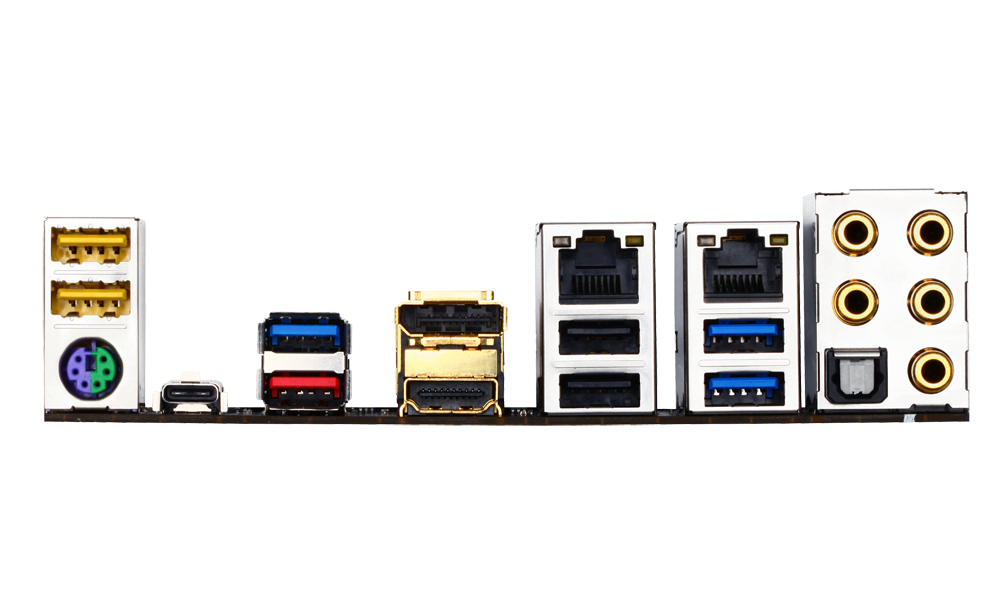

  • The Intel® USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16Gb/s, which means you have extra bandwidth to take full control of the 10Gb/s USB 3.1 ports. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.

  • Connecting the Future - USB Type-C™:
    The World's Next Universal Connector
    Reversible USB Type-C™ with USB 3.1
    The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-C™.

    * Display feature may vary by model.


  • Realtek ALC1150 115dB SNR HD Audio
    The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

    The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.


  • logicielle Sound Blaster X-Fi MB3

    Le logicielle audio Sound Blaster X-Fi MB3 offre de toutes nouvelles sensations pour une immersion totale et un réalisme sonore inégalé jusqu'à ce jour. Que cela soit lors de séances de jeux vidéos ou la lecture de films HD, SBX Pro Studio améliorera considérablement votre expérience multimédia.


  • Exclusivité GIGABYTE : OP-AMP modifiables
    Customisation
    + Choix de qualité audio en fonction de vos préférences personnelles.
    + De nombreux OP-AMPs disponibles sur le marché.

    La qualité audio à faible coût
    + Amélioration de la dynamique et qualité du son à moindre coût.
    +Aucun besoin d'enceintes haut de gamme ou équipements onéreux.


    Switch de gain embarqués
    + Choisissez entre un mode d'amplification 2.5 ou 6X.
    + 6x étant idéal pour enceintes à haute impédances et casques.
  • Condensateurs Audio Haut de gamme
    Les cartes mères GIGABYTE G1™ Gaming embarquent des condensateurs Nichicon haut de gamme. Ces condensateurs haut de gamme offrent une excellente qualité audio afin de créer des environnements sonores totalement immersifs.


  • USB DAC-UP


    The above photos are for reference only.

    Clean, low-noise power for your Digital-to-Analog Audio converter

    GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.

  • Killer™ E2400 Gaming Network / Intel® Gigabit LAN
    Killer™ E2400 is a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and media performance compared to standard solutions.
    Intel® Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.
    Killer™ E2400 Gaming Network
  • Killer Youtube Video
  • 2-Way SLI™/3-Way CrossFire™ Multi-GPU
    La Configuration multi-GPU offre de meilleures performances graphiques pour les amateurs de jeux qui exigent des taux de trame plus élevés sans compromettre la résolution.







  • Connecteurs PCIe Ultra Durable™ avec Protection Acier
    GIGABYTE assure la durabilité de ses connecteurs PCIe en les protégeant grâce à une couche d’acier inoxydable, permettant l’accueil des cartes graphiques les plus imposantes.





  • Dual PCIe Gen3 x4 M.2
    With two PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

    The above photos are for reference only.

  • Turbo B-Clock:
    Puce de tweaking intégrée

    Grâce à la puce TURBO B-Clock intégrée au cœur de nos cartes mères GIGABYTE, les overclockers auront la chance de pouvoir modifier les fréquences BCLK en toute tranquillité. Les choix de paliers de 90Mhz à 500Mhz sont maintenant accessibles, permettant toujours plus de finesse en éliminant les fameux bridages à 5%.
  • Next Generation SATA Express
    SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.


    The above photos are for reference only. Features may vary by model.


  • Toute nouvelle interface GIGABYTE APP Center incluant EasyTune™, Cloud Station™ et bien plus encore…

    GIGABYTE EasyTune™ est une interface simple et pratique d’utilisation permettant à tout utilisateur de customiser ses réglages systèmes, par exemple horloges mémoires et tensions, directement depuis Windows. Grâce à Smart Quick Boost, un seul clic sera nécessaire pour automatiquement overclocker votre système pour des performances accrues.


    APP Center

    GIGABYTE APP Center vous permet d’accéder à toutes vos Applications GIGABYTE en un clin d’œil. Grâce à une interface simple et claire, GIGABYTE APP Center vous facilitera l’ouverture de toutes vos applications favorites.




    Easy Tune™
    Boostez les performances de votre système PC grâce à notre utilitaire dédié à l’overclocking.
    Cloud Station™
    GIGABYTE Cloud Station™ associe plusieurs innovations GIGABYTE pour vous permettre de contrôler et communiquer avec votre système PC directement depuis votre smartphone ou tablette
  • Long Lifespan Durable Black™ Solid Caps
    GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.


    Long Lifespan Durable Black™ Solid Caps
  • 15 Gold Plated CPU Socket Design
    GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket*, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
    15μ Gold Plated CPU Socket Design
  • EKWB Water Cooling Ready
    Designed and engineered in co-operation with GIGABYTE®, this monoblock uses award winning EK-Supremacy EVO cooling engine to ensure best possible CPU cooling. This water block directly cools Intel LGA-1151 socket type CPU and power regulation (MOSFET) module as water flows directly over all critical areas. It is a very high flow water block that can be easily used with the system using weaker water pumps. Unlike other solution on the market, this is a true one-piece, sturdy and reliable liquid cooling product which requires only two connector fittings for proper operation.

    Note: EKWB water block and it’s accessories are not included with the motherboard and are not covered by the motherboard warranty. For more information about EK’s water block, please visit: https://shop.ekwb.com/ek-fb-ga-z170x-monoblock-nickel

  • Compatibilité 4K Ultra HD
    Les résolutions 4K sont le nouveau standard des configuration vidéo les plus performantes. Avec 4 000 pixels sur l'axe horizontal, soit 4 fois plus que les configurations HD traditionnelles, la technologie 4K est proposée avec nos cartes mères équipées notamment de la puce Intel® HD Graphics et d'une sortie HDMI.
  • HDMI™ - Interface multimédia nouvelle génération
    L'interface HDMI™ est une connectique permettant le traitement de signaux HD avec des bandes passantes de 5Gb/s ainsi que la compatibilité avec des signaux audio 8 canaux au travers d'un câble unique. La connectique HDMI™ permet le décodage des formats 1080p HDCP sans perte de qualité pour une lecture optimale des Blu-ray/HD DVD.

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
