• Supports 7th / 6th Generation Intel® Core™ Processors
  • Dual Channel DDR4, 2 DIMMs
  • Intel® USB 3.1 with USB Type-C™ - The World's Next Universal Connector
  • 11ac 867 Mbps dual band wireless connection + BLUETOOTH 4.2
  • Exclusive Ultra Durable Metal Shielding over the PCIe Slot
  • PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe & SATA SSD support)
  • 2 SATA Express Connectors for up to 16Gb/s Data Transfer
  • 115dB SNR HD Audio with Built-in Rear Audio Amplifier
  • Killer™ E2200 Gaming Networks
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • GIGABYTE UEFI DualBIOS™ Technology

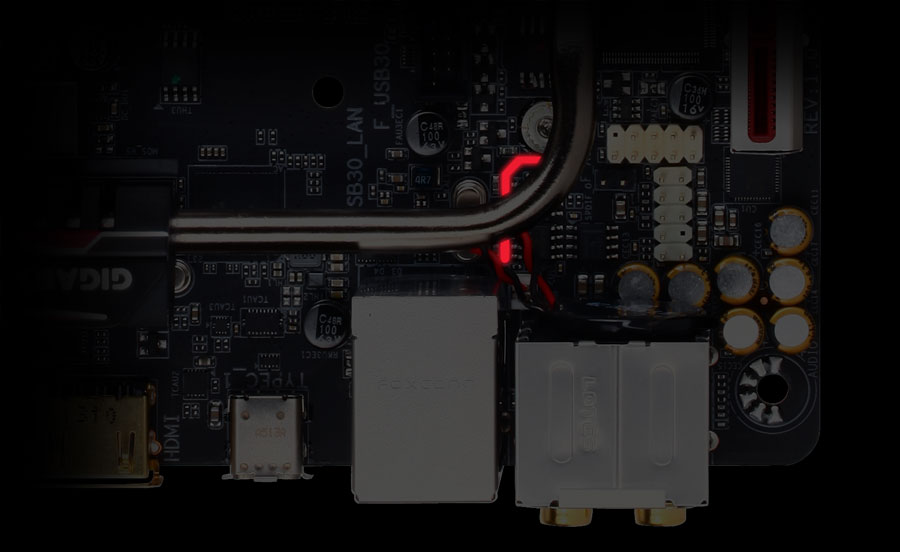

  • The Intel® USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16Gb/s, which means you have extra bandwidth to take full control of the 10Gb/s USB 3.1 ports. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.
    Intel USB 3.1

  • Connecting the Future - USB Type-C™:
    The World's Next Universal Connector
    Reversible USB Type-C™ with USB 3.1
    The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-C™.

    * Display feature may vary by model.

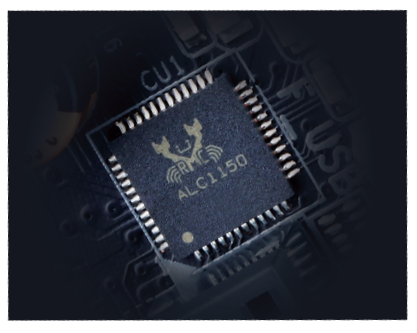

  • Realtek ALC1150 115dB SNR HD Audio
    The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

    The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.

    Realtek ALC1150 115dB SNR HD Audio

  • logicielle Sound Blaster X-Fi MB3

    Le logicielle audio Sound Blaster X-Fi MB3 offre de toutes nouvelles sensations pour une immersion totale et un réalisme sonore inégalé jusqu'à ce jour. Que cela soit lors de séances de jeux vidéos ou la lecture de films HD, SBX Pro Studio améliorera considérablement votre expérience multimédia.


    X-Fi MB3
  • Condensateurs Audio Haut de gamme
    Les cartes mères GIGABYTE G1™ Gaming embarquent des condensateurs Nichicon haut de gamme. Ces condensateurs haut de gamme offrent une excellente qualité audio afin de créer des environnements sonores totalement immersifs.

    High End Audio Capacitors

  • Killer™ E2200 Gaming Network
    GIGABYTE G1™ Gaming motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions.
  • Killer Youtube Video

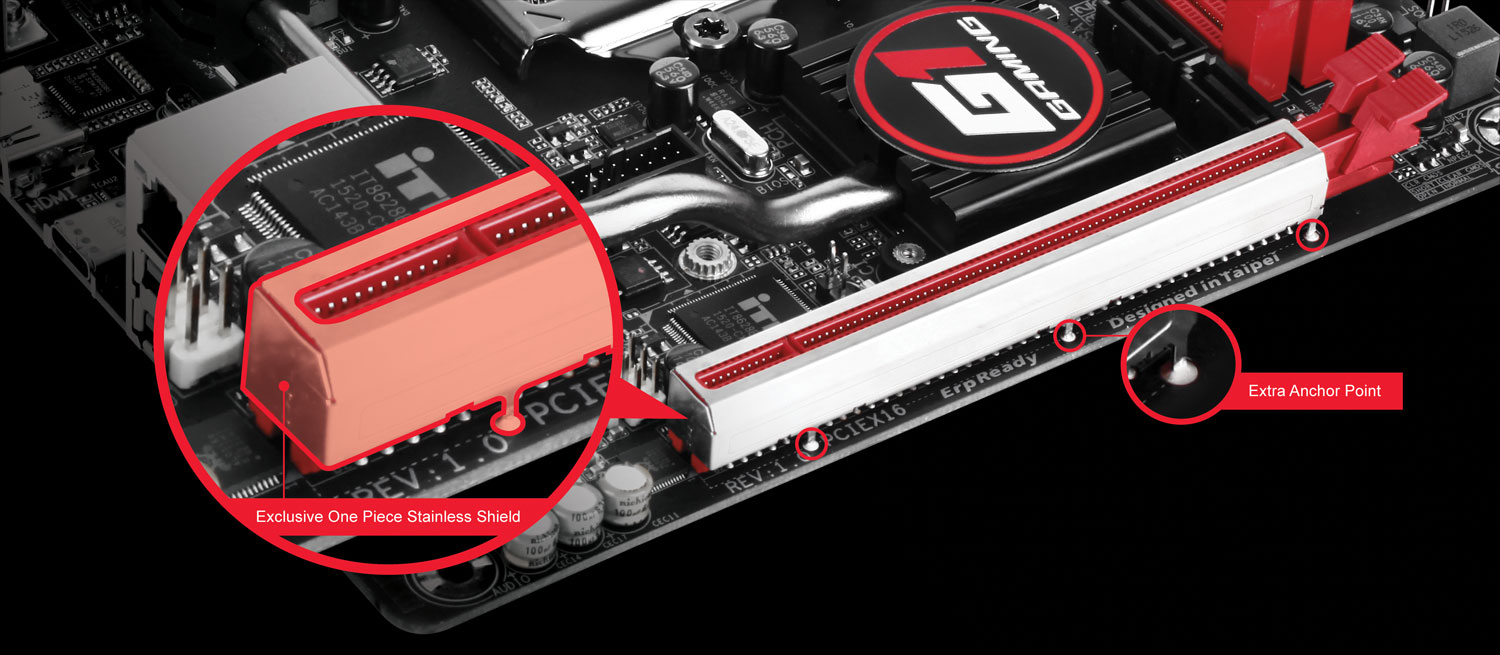

  • Industry Leading Ultra Durable™ PCIe Metal Shielding
    The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.


  • Ambient LED
    GIGABYTE motherboards feature LED lighting for the audio guard path, providing a cool, custom look to your rig. Not only does the Audio Noise Guard protect the board's sensitive analog audio components, but its LEDs can also be programed to beat at the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.



  • PCIe Gen3 x4 M.2

    With PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. The M.2 provides an ideal storage solution as it deliver up to 32 Gb/s data transfer speed.
    PCIe Gen3 x4 M.2
  • Faster and Better Coverage with Intel® Dual Band 802.11ac WIfI + BT4.2 Module
    The onboard 802.11ac WIFI module from Intel® supports up to 867 Mb/s wireless networks and BLUETOOTH 4.2. The bonded 2.4GHz/5GHz Dual Band and 2T2R antenna expands your coverage.



    Integrated 2x2 802.11ac 867 Mbps Dual Band WIFI + BLUETOOTH 4.2 module

  • Next Generation SATA Express
    SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.


    The above photos are for reference only. Features may vary by model.


  • Toute nouvelle interface GIGABYTE APP Center incluant EasyTune™, Cloud Station™ et bien plus encore…

    GIGABYTE EasyTune™ est une interface simple et pratique d’utilisation permettant à tout utilisateur de customiser ses réglages systèmes, par exemple horloges mémoires et tensions, directement depuis Windows. Grâce à Smart Quick Boost, un seul clic sera nécessaire pour automatiquement overclocker votre système pour des performances accrues.


    APP Center

    GIGABYTE APP Center vous permet d’accéder à toutes vos Applications GIGABYTE en un clin d’œil. Grâce à une interface simple et claire, GIGABYTE APP Center vous facilitera l’ouverture de toutes vos applications favorites.




    Easy Tune™
    Boostez les performances de votre système PC grâce à notre utilitaire dédié à l’overclocking.
    Cloud Station™
    GIGABYTE Cloud Station™ associe plusieurs innovations GIGABYTE pour vous permettre de contrôler et communiquer avec votre système PC directement depuis votre smartphone ou tablette
    App Center
  • Long Lifespan Durable Black™ Solid Caps
    GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.


    Long Lifespan Durable Black™ Solid Caps

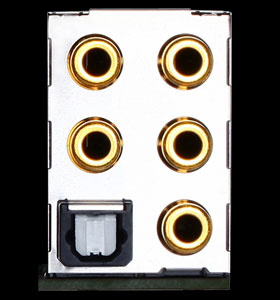

  • Gold Plated Audio Hardware
    GIGABYTE motherboards pack top quality gold plated audio and HDMI connectors for improved connectivity and long lasting durability. Gold has superb signal conductivity and will not tarnish over extended periods of use. The Audio controller is also shielded by a gold plated cover which eliminates electrostatic interference.

    Gold Plated Audio Hardware
  • 15 Gold Plated CPU Socket Design
    GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket*, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
    15μ Gold Plated CPU Socket Design

  • Compatibilité 4K Ultra HD
    Les résolutions 4K sont le nouveau standard des configuration vidéo les plus performantes. Avec 4 000 pixels sur l'axe horizontal, soit 4 fois plus que les configurations HD traditionnelles, la technologie 4K est proposée avec nos cartes mères équipées notamment de la puce Intel® HD Graphics et d'une sortie HDMI.
    4K Ultra HD Support
  • HDMI™ - Interface multimédia nouvelle génération
    L'interface HDMI™ est une connectique permettant le traitement de signaux HD avec des bandes passantes de 5Gb/s ainsi que la compatibilité avec des signaux audio 8 canaux au travers d'un câble unique. La connectique HDMI™ permet le décodage des formats 1080p HDCP sans perte de qualité pour une lecture optimale des Blu-ray/HD DVD.
    HDMI

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
