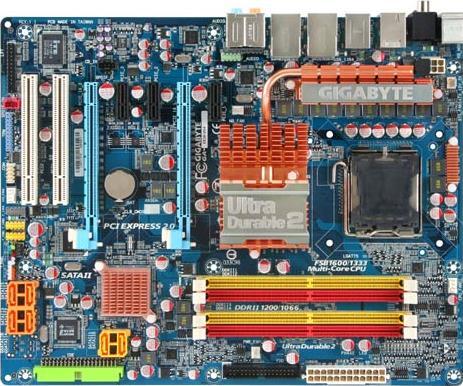

GA-EX38-DS4 (rev. 1.1)
Intel® X38 + ICH9R Chipset
- Supports Intel® Core™ 2 multi-core and 45nm processors.
- 1600 MHz FSB (Front Side Bus) support.
- DDR2 1200 memory with Intel® ECC technology featuring faster speeds and higher data bandwidth
- Revolution energy saving design with DES technology.
- High quality CPU power module with Ferrite Core Chokes, Lower RDS (on) MOSFETs and Lower ESR Solid Capacitors.
- Quad-Triple Phase Power Design for ultimate system stability.
- Supports ATI CrossFireX™ with Dual PCI-E 2.0 x16 graphics for extreme gaming performance.
- Integrated Dual LAN with Teaming function
- Features SATA 3Gb/s with eSATA 2 interface.
- ALC889A with DTS Connect enables high quality Full Rate Lossless Audio and support for Blu-ray.
-
IntroductionGIGABYTE’s GA-EX38-DS4 motherboard provides the ultimate dream machine for serious overclockers and enthusiasts. Making sure gamers have plenty of future CPU headroom, the GIGABYTE GA-EX38-DS4 supports Intel® Core 2™ multi-core processors as well as the all-new Intel 45nm CPUs. In addition to providing record setting support for 1600MHz Front Side Bus and up to 1200 MHz of DDR2 memory, the GA-EX38-DS4 is further equipped to support ATI CrossFireX™ with dual PCI Express x16 interfaces. The GA-EX38-DS4 also delivers several Unique GIGABYTE innovations including the latest edition to GIGABYTE’s technology arsenal, the Dynamic Energy Saver, providing extensive power savings with one simple click. Featuring the award-winning Durable 2 design, the GA-EX38-DS4 provides additional power savings, ultra cooling and extended system durability for even the most hardcore PC gamers
-
GIGABYTE Dynamic Energy Saver
GIGABYTE Dynamic Energy Saver is a revolutionary technology that delivers unparalleled power savings with the simple click of a button. Featuring an advanced proprietary hardware and software design, GIGABYTE Dynamic Energy Saver is able to provide exceptional power savings of up to 70% and up to 20% improved power efficiency without sacrificing computing performance...more -
Support processeurs Intel® Core™ 2 multi-core et 45nmCarte mère supportant les processeurs Intel® Core™ 2 multi-core et 45nm avec 2 caches L2 partagés. Processeurs permettant un meilleur contrôle énergétique sans réduire les performances générales tout en bénéficiant des atouts d'un environnement multi-tâche.
-
Chipset Intel® X38 ExpressThe Intel® X38 Express Chipsets support the latest multi-core processors with FSB 1600MHz, including the upcoming 45nm processors, with its record breaking performance and greater energy efficiency. Intel® X38 chipset, with optimized system memory capabilities, chipset over-speed protection removed for maximum overclocking, providing faster boot and application load times and additional power savings. Intel® X38 chipset also offer options for both DDR2 and DDR3 memory support, providing scalable options for users wanting to take advantage of higher memory performance with less power consumption to run next generation applications such as high-definition video and 3D visualization.
-
Qualified for Windows® 7The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
-
Smaller, Faster and More EfficientCarte mère pouvant être associée à un processeur Intel 45nm CPUs pour offrir des performances optimales et ce, au travers d'une gestion d'énergié contrôlée et optimisée.
-
Dual Channel DDR2 1200Bénéficiez de performances avancées grâce au support des mémoires DDR2 1200Mhz permettant le support des applications les plus gourmandes en mémoire
* Se référez à la liste de compatibilité mémoire pour en savoir plus -
Certification Windows Vista PremiumWindows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE AM2+/ AM2 solutions enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new....more
-
Interface graphique PCI-E 2.0L'interface PCI-E 2.0 double la bande passante de la norme PCI-Express standard, en passant de 2.5 Gbit/s à 5 Gbit/s, un connecteur x32 pouvant transférer jusqu'à 16 GB/s de données.
-
SATA 3Gb/sLa norme SATA 3Gb/s double la bande passante de 1.5Gb/S à 3Gb/s pour une parfaite gestion de plusieurs disques durs et ce, en maximisant les performances du cache.
-
IEEE1394Carte mère offrant la technologie IEEE1394 FireWire de Texas Instruments (TI). Grâce à des taux de transfert de 400Mb/s, votre système ne sera plus jamais le même et vous bénéficierez d'une réactivité sans faille !
-
ALC889A with DTS Connect Enables a Superior Audio Experience
Excellent Audio Performance
High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-Noise ratio playback quality, designed especially for Windows Vista Premium PCs.
Blu-ray Full Rate Audio Support
The ALC889A enables high quality Full Rate Lossless Audio for content protected media and support Blu-ray formats for an exhilarating home theater entertainment experience.
7.1+2 Channel High Definition Output
The ALC889A provides support for 7.1 sound playback, plus 2 channels of independent stereo output (multiple streaming) through the front panel stereo outputs. -
Technologie Intel® Matrix StorageIntel® Matrix Storage Technology, can deliver up to 80% faster storage performance with PCs equipped with two hard drives using RAID 0 data striping. Using RAID 1 data mirroring can protect against a hard drive failure by mirroring all data among two hard drives. In addition RAID 5 offers the fault-tolerant capability to automatically back up your most important files, while also providing faster disk access and adding storage capacity.
-
Doubles the bandwidthThe GA-X48-DS4 with Teaming functionality enabled allows the 2 single connections to act as a single connection for twice the bandwidth, improving overall throughput with lower CPU utilization.
Network fault tolerance
Prevents network downtime by transferring the workload from a failed port to a working port.
(Note) To enable Teaming or Bonding (IEEE 802.3ad Link Aggregation) feature, it is required the connected network switch or router device supports 802.3.ad LACP function.
Please refer to your network switch or router device manual for further details. -
ATI CrossFireXATI® CrossFireX™ delivers the ultimate graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
-
SpeedThe Speed compliant motherboards of GIGABYTE S-series provide intelligent over-clocking and over-voltage software settings through both hardware and software design...more
-
SmartLe package Smart proposé sur les cartes mères GIGABYTE de série S propose des utilitaires propriétaires tels que Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu et Smart Fan. Bénéficiez d'une gestion avancée et facilitée de votre BIOS et drivers !...En savoir plus
-
SafeSafe is the key feature of GIGABYTE S-series motherboards with the following elements: Excellent hardware design reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
-
Ultra Durable 2 -Designed with Top Quality Highly Efficient Components
Ultra Cooling - Low RDS(on) MOSFET Design
Low RDS(on) MOSFETs specially designed to produce lower switching resistance for faster electric current charging and discharging.
Low Power Loss - Ferrite Core Choke Design
Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency.
Longer Life - All-Solid Capacitor Design
Solid capacitors contain a solid organic polymer, while electrolytic capacitors use a common liquid electrolyte, hence, the terms solid capacitor versus electrolytic capacitors.
