1. Supports 800MHz FSB Pentium® 4 Processor with HT Technology
  2. Supports Dual Channel DDR400 architecture
  3. AGP 8X with AGP Pro interface for work-station graphics
  4. Gigabyte patented Dual Power System 2 (DPS 2 ) design
  5. Integrated Serial-ATA interface
  6. Integrated Intel® PRO/1000 CT Network Connection
  7. Integrated T.I. IEEE1394 interface
  8. Integrated GigaRAID IDE RAID interface
  • Introduction

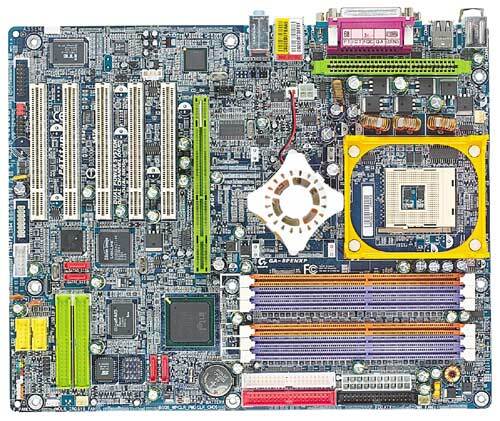

    GA-8KNXP Ultra-64 is the ultimate solution for the latest Intel® Pentium® 4 processor with 800MHZ FSB and Hyper-Threading Technology. Powered by the Intel highest performance 875P chipset and a variety of cutting edge technologies, GA-8KNXP Ultra-64 is designed to be the full function server-oriented solution with excellent performance. The architecture of 800MHz FSB, AGP 8x, Dual Channel DDR 400, and Performance Acceleration Technology (PAT) provides promising framework for excellent performance, while the innovative Dual Power System 2 (DPS 2) enhances the computing power and system stability. This platform features Intel® PRO/1000 CT Network Connection and delivers optimized network throughput & platform performance. The Ultra320 SCSI, and Serial ATA are integrated to provide superior I/O performance and data protection. GA-8KNXP Ultra-64 will definitely delivers the uppermost platform with unprecedented computing power and rock-solid stability
  • Supports 800MHz FSB Intel® Pentium® 4 Processor with HT Technology
    Leveraging the Intel® 865PE chipset to support P4 CPUs on 800MHz FSB, Intel Hyper-Threading Technology and advanced features, the GA-8IPE775-G (Rev 1.1) delivers a full-value, highest performance solution for today's most demanding tasks.
  • AGP 8X Graphics Interface
    AGP8X the new generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MHz, AGP8X is twice as fast as AGP4X.
  • GigaRAID IDE RAID Controller
    Supporting RAID (0, 1, 0+1), JBOD function and ATA133 interface, GigaRAID Controller delivers completely solution for storage interface to increase fault tolerance, improve data access performance and provides additional interface for more IDE devices.
  • GIGABYTE C.I.A. (CPU Intelligent Accelerator) Technology
    GIGABYTE C.I.A (CPU Intelligent Accelerator) is designed to detect CPU loading during software program's executing, and automatically adjust CPU computing power to maximize system performance. During loading high CPU resources consumption tasks, such as video and audio encoding programs or thrilling 3D games, the CPU requires more CPU computing power; when C.I.A is enabled, it will detect the current CPU loading and automatically accelerate the CPU computing performance, thus allow programs to execute faster and smoother. On the other hand, when the programs are terminated, the CPU will return back to its initial status.
  • GIGABYTE Patented Technology Dual Power System 2 (DPS 2)
    Featuring new VRM 10.0 specification with that supply a total of 6 phase power circuit design, delivers a high durable power design for the new generation Intel® platform
  • Intel® PRO/1000 CT Network Connection
    Integrated Intel® PRO/100 VE connection utilizes Intel® LAN for users who need straightforward high speed, high quality and high performance network connectivity.
  • GIGABYTE M.I.B. (Memory Intelligent Booster) Technology
    GIGABYTE M.I.B (Memory Intelligent Booster) technology is specially designed to maximize memory performance and boost memory bandwidth up to 10% by optimizing data transmission among CPU, north bridge chipset and memory. The innovative GIGABYTE M.I.B technology shortens memory latency time and enhances system performance without sacrificing stability.
  • Serial ATA Interface
    Serial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.
  • GIGABYTE Xpress3 Series Software
    The Xpress3 series software includes 3 unique software features, 1) Xpress Install for easier driver installation ,2) Xpress BIOS Rescue for restoring BIOS back to its original stage if the BIOS is crashed, 3) Xpress Recovery 2 a revolutionary software feature that backup or restore system files thru GIGABYTE driver CD or BIOS function.
  • Texas Instrument IEEE 1394 Firewire Interface
    The high performance IEEE1394 interface enhances PC connectivity with consumer electronics audio/video (A/V) appliances, and storage peripherals.
  • Dual Channel DDR 400 Memory Architecture
    With double the bandwidth of your system memory and hence boosts the system performance to out perform any memory existing solutions in the market. The GA-8IPE775-G (Rev 1.1) allows you to handle memory-intensive tasks with ease
  • High quality 6-channel AC'97 audio with S/P-DIF function
    Integrated ADI AD1888 AC'97 audio CODEC chip, enables users to experience the seamless high quality 6-channel audio while watching movies or gaming. With new Jack-Sensing feature users won't have to worry about how to install speakers correctly.
