1. Ultra Durable 3 Classic Technology with copper cooled quality for lower working temperature
  2. Revolution energy saving design with Easy Energy Saver technology
  3. Supports newest NEC SuperSpeed USB 3.0 with superfast transfer rates of up to 5 Gbps
  4. 3X USB power delivery for greater compatibility and extra power for USB devices
  5. Supports AMD AM3 Phenom II/ Athlon II processors
  6. Dual Channel DDR3 1800+ for remarkable system performance
  7. Integrated ATI Radeon HD 4200 graphics (DirectX10.1)
  8. PCI-E 2.0 x16 interface with ATI Hybrid CrossFireX support for ultimate graphics performance
  9. Blu-ray playback supported by high quality 108dB SNR ALC889 HD audio
  10. Supports Dolby Home Theater audio to enjoy a rich surround sound experience
  11. Integrated HDMI/ DVI interface for Full HD 1080 Blu-ray playback with HDCP
  12. Patented DualBIOS with dual hardware BIOS protection
  13. Compatible with Window 7 to deliver the best operation experience
  14. Meet European Union ErP(Energy-related Products) requirement
  • Toute la puissance des processeurs AMD 6-Core
    Carte mère GIGABYTE compatible avec les processeurs AMD Phenom™II X 6, assurant une plate-forme ultra stable, ultra performante et réactive pour applications vidéos-ludiques et multimédia.
  • Introduction

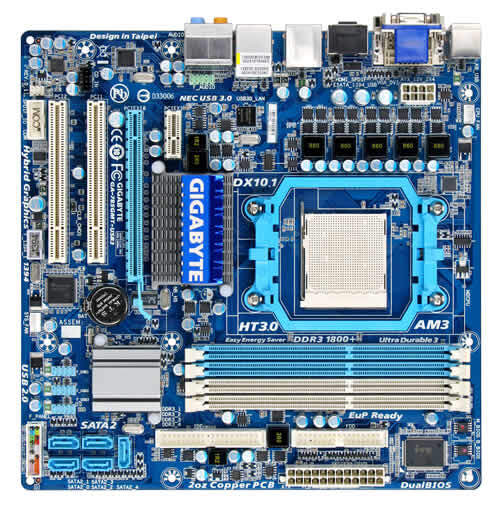

    The GA-785GMT-USB3 introduces revolutionary GIGABYTE Ultra Durable 3 technology on AMD platform with featuring 2 oz copper PCB and further helps to reduce the system temperature and dramatically enhance the performance. Based on AMD 785G chipset, GA-785GMT-USB3 is integrated ATI Radeon HD 4200 (DX10.1) graphics engine and supports AMD Phenom™ II quad-core processors, DDR3 memory modules, HyperTransport™ 3.0 technology links, PCI Express 2.0 graphics interface and so on. With the innovative GIGABYTE Easy Energy Saver technology, GA-785GMT-USB3 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.
  • Support USB 3.0
    The GIGABYTE motherboards support the latest generation SuperSpeed USB 3.0 technology made possible through an onboard USB3.0 host controller. With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. The onboard SuperSpeed USB 3.0 technology also provides new power management features that include increased maximum bus power and device current draw to better accommodate power-hungry devices.
  • 3x USB Power Boost
    L'emploi de 3x USB Power Boost permet d'assurer stabilité et compatibilité optimale avec des périphériques tels que HDDs externes ou lecteurs optiques en leur assurant des sources d'énergies nécessaires à leur bon fonctionnement.

    (note) Seuls les ports frontaux supportent la technologie 3X USB Power
  • Support processeur 45nm AMD AM3 CPU
    Carte mère proposant un design Split Power Plane, VRM 4+1 phases pour support les processeurs 45nm AM3 Phenom™I/ Athlon™II
  • AMD 785G 3D Graphics Performance Upgrade- up to 3DMark 2006 2700 marks!!
    The 3DMark 2006 is a benchmark software which is from Futuremark Corporation and generally used on analyzing a PC performance of DirectX® 3D visualization, especially a valuable guideline for gaming users as reference.

    3DMark06 2868 marks on 785G system configuration
    AMD AthlonII X2 440 (OC), GPU@ 1100MHz (OC), 4GB DDR3-1864(OC), Vista 32, 3DMark06 (1280x1024)

    * 2700+ marks in 3DMark06 was achieved by overclocking.
    * Please be aware that GIGABYTE's product warranty does not cover damages caused by overclocking.
  • Support ATI Hybrid Graphics
    La technologie ATI Hybrid Graphics associe les innovations Hybrid CrossFireX™, ATI SurroundView™, ATI PowerPlay™, etc. permettant à une plateforme à base de processeur AMD de proposer des performances multimédias uniques.
    * Merci d'utiliser à cet effet une solution graphique ATI Hybrid CrossFireX DX10.1 VGA (i.e., ATI Radeon HD 3400, etc.), Rendez-vous sur le site AMD pour en savoir plus.
  • Ultra Durable 3 – Classic

    GIGABYTE Ultra Durable 3 Classic motherboards once again lead the motherboard industry for the highest quality and most innovative motherboard design. Featuring the industry’s first consumer desktop motherboard design to introduce 2 ounces of copper for both the Power and Ground layers, delivering a dramatically lower system temperature, improved energy efficiency and enhanced stability for overclocking. GIGABYTE Ultra Durable 3 Classic motherboards are equipped with the GIGABYTE Ultra Durable signature features including Japanese Solid Capacitors boasting an operational life time of more than 50,000 hours, and GIGABYTE patented DualBIOS™ technology (providing dual hardware BIOS protection). GIGABYTE Ultra Durable 3 Classic motherboards promise to provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games.


  • Dual Channel DDR3 1800+ MHz
    Delivering native support for DDR3 memory up to 1800MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
  • EasyTune6
    Logiciel de gestion et de tweaking de votre système
  • DualBIOS™ - Protection Double Bios
    DualBIOS™ - Protection Double Bios
  • Dolby Home Theater® - Enjoy a Rich Home Theater Surround Sound Experience
    Technologie audio multimedia supportant de 2 à 8 enceintes HD
  • GIGABYTE innovative technology- Easy Energy Saver
    GIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with AMD’s highly efficient processors, the Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance.
  • HDMI-Interface multimédia de nouvelle génération
    La norme HDMI est la dernière génération d'interface multimédia proposant une bande passant de 5Gb/S pour la transmission de signaux vidéos et audio en haute définition. Cette norme supporte le standards 1080p sans perte de qualité et, est comaptible avec la technologie HDCP pour le décodage des formats Blu-Ray.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • Produit à la norme ErP
    l'ErP (Energy releated Products) est une directive faisant partie d'un ensemble de normes et régulations européennes visant à réduire l'impact négatif des composants electroniques sur l'environnement pendant leur cycle de vie. Chez GIGABYTE, nous dédions l'ensemble de notre travail à la cause environnementale et sommes fiers de faire partie des constructeurs leader dévelopant des technologies de pointe respectant la biosphère. En proposant des innovations telles que la solution DES, GIGABYTE vous offre d'ores et déjà un ensemble de produits bâtissant un avenir plus vert !

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
