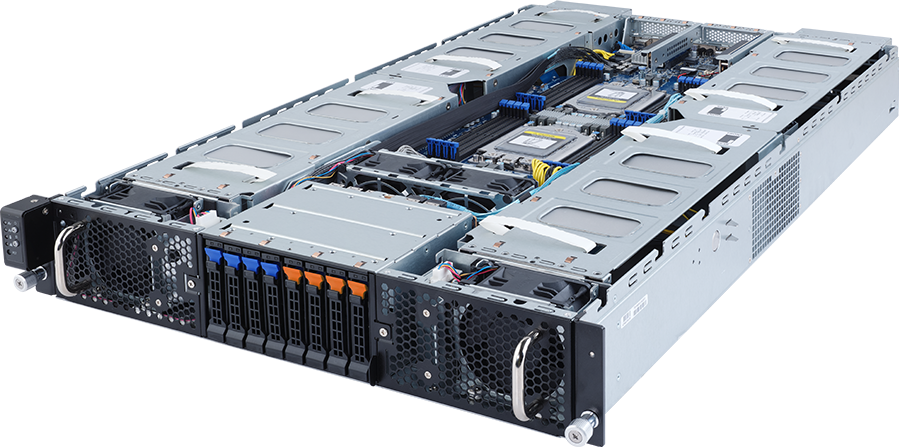

G292-Z44

HPC/AI Server - AMD EPYC™ 7003/7002 - 2U DP 8 x PCIe Gen4 GPUs (Broadcom solution)
  • NVIDIA-Certified Systems™ - Data Center Servers
  • NVIDIA-Certified Systems™ - High-Density VDI Servers
  • Supports up to 8 x Dual slot Gen4 GPUs
  • Dual AMD EPYC™ 7003 Series Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, total 16 x DIMMs
  • 2 x 10Gb/s LAN ports via Intel® X550-AT2
  • 4 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays
  • 8 x FHFL PCIe Gen4 x16 slots for GPUs
  • 2 x LP PCIe Gen4 x16 slots for add-in cards
  • Dual 2200W 80 PLUS Platinum redundant power supply (-A00)
  • Dual 2200W 80 PLUS Titanium redundant power supply (-AT0)
Get a Quote
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
448 x 87.5 x 800
Motherboard
MZ42-G20 Rev. 3.0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
cTDP up to 240W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4094
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200 MT/s
LAN
Rear side:
2 x 10Gb/s LAN ports (1 x Intel® X550-AT2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
Storage
Front side:
4 x 2.5" Gen3 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1, SATA from CPU_0)

SAS card is required for SAS devices support

Recommended 12Gb/s SAS cards:
CRA4448
CRA4548
SAS
Depends on SAS add-in cards
RAID
Depends on SAS add-in cards
Expansion Slots
8 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88048, for GPUs (Broadcom solution)
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_1

- Maximum limitation of GPU card: 285mm (L) x 111.5mm (W) x 39.5mm (H).
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
- For the latest GPU cards QVL, please contact your GIGABYTE representative.
- Some limitations may apply depends on OS or user application.
Internal I/O
1 x TPM header
Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
Backplane Board
Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 2200W 80 PLUS Platinum redundant power supply (-A00)

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Input: (Only for China)
- 240Vdc/ 12.6A

DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A

Dual 2200W 80 PLUS Titanium redundant power supply (-AT0)

AC Input:
- 100-127V~/ 15.5A, 50-60Hz
- 200-240V~/ 15.5A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 15.5A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 81A
+12Vsb/ 3A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.2V/ 180A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage/Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP/AD/RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
8 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Note: Please contact Technical Support for more information about optimized GPU operating temperature.
Packaging Dimensions
1133 x 724 x 261 mm
Packaging Content
1 x G292-Z44
2 x CPU heatsinks
6 x GPU power cables (2x PCIe 8pin, 220mm)
2 x GPU power cables (2x PCIe 8pin, 250mm)
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG292Z44MR-00-A*
- Motherboard: 9MZ42G20NR-00
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-44320N-A3R/25ST1-44320P-A3R
- Backplane board - CBPG083: 9CBPG083NR-00
- Fan module: 25ST2-883827-D0R
- Riser card - CRSG01A: 9CRSG01ANR-00
- Riser card for GPUs - CRSG620: 9CRSG620NR-00
- Riser card for GPUs - CRSG621: 9CRSG621NR-00
- GPU power cable (2x PCIe 8pin, 220mm): 25CRI-220304-Y4R
- GPU power cable (2x PCIe 8pin, 250mm): 25CRI-250903-Y4R
- Power supply (-A00): 25EP0-222008-D0S
- Power supply (-AT0): 25EP0-222008-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/15A (US): 25CP1-018300-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG292Z44SR-RMA-A100
