GA-Z77X-UP4 TH (rev. 1.0)

Intel® Certified Thunderbolt™ Motherboard

Intel® Certified Thunderbolt™ Device

GIGABYTE motherboards, the very first to offer fully certified dual onboard Thunderbolt™ ports. Capable of connecting up to 12 devices plus 3 digital displays simultaneously, with breathtaking data transfer speeds that can transfer 1TB of data in only five minutes, GIGABYTE Thunderbolt™ motherboards offer the fastest connection interface ever on the desktop PC.


Daisy Chain Technology - Up to 12 devices + 2 Display monitors

Compatibility may vary according to system configuration and device specifications. Requirement of 3 monitors output : Thunderbolt or display monitors plus 1 RGB or HDMI monitor.

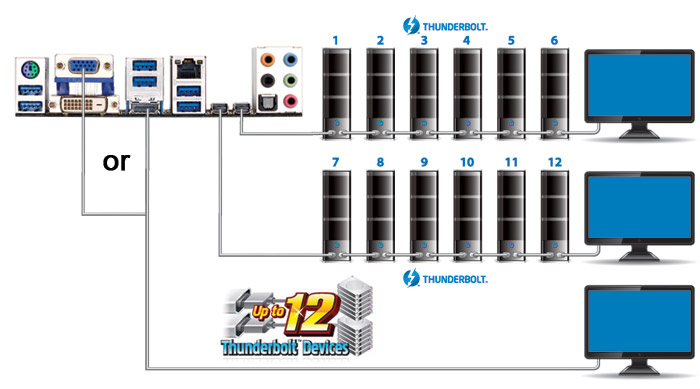

GIGABYTE Thunderbolt™ motherboards allow users to daisy chain up to 12 devices simultaneously via an incredible bi-directional 10Gbps data pipeline that includes both PCIe and DisplayPort traffic. GIGABYTE Thunderbolt™ motherboards redefine desktop PC connectivity to make it far easier to connect multiple high speed storage devices and HD displays to your PC than ever before.

Performance may vary according to system configuration and device specifications.

Dual Thunderbolt™ - Fast, Flexible and Simple Connectivity for your Motherboard

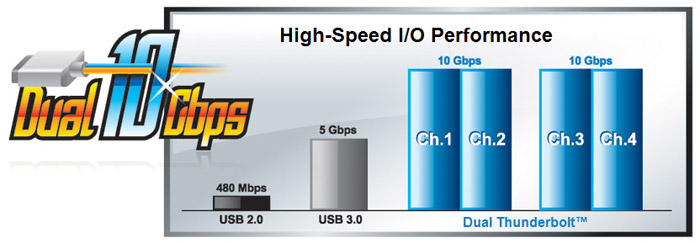

GIGABYTE Thunderbolt™ motherboards are the first to be certified by Intel featuring dual Thunderbolt™ ports directly on the motherboard back panel I/O, with each Thunderbolt™ port supporting a maximum data transfer speeds with simultaneous bi-directional data transfer at speeds of up to 10Gbps - this means you can transfer a full HD 1080p movie in under 30 seconds.

High Current, Low Heat CPU Power Zone Design Features IR Digital Power Controller and IR3550 PowIRstage^® Ics


The GIGABYTE motherboard employ award winning GIGABYTE Ultra Durable™ 5 technology that includes high current capable components for the CPU power zone including IR3550 PowIRstage^® ICs from International Rectifier, 2X Copper PCB and high current Ferrite Core Chokes rated up to 60A, which together are able to deliver up to 60°C* cooler temperatures than traditional motherboards. Featured on a range of new motherboards based the Intel^®X79 and Z77 Express Chipsets, GIGABYTE Ultra Durable™ 5 technology is the next evolution in quality motherboard design...more

GIGABYTE Z77 series motherboards take advantage of an exclusive All Digital PWM controller array, to deliver power to the board's 3rd generation Intel^® Core™ processor. Using entirely digital controllers means that more precise power delivery to the motherboard's most power hungry and energy sensitive components is possible. These components include the CPU, VTT, processor graphics and memory, without doubt the most important components on your motherboard. This All Digital Power system, with Precise Auto Voltage Compensation, provides you with exceptional control over the component power delivery on your GIGABYTE 7 series motherboard.


GIGABYTE 3D Power: Digital Voltage, Frequency and Phase Control
Utilizing an exclusive All Digital controller array, GIGABYTE's 3D Power features precise Auto Voltage Compensation to deliver a steady flow of power to the system, no matter the loading. With digital controllers for the CPU (Vcore), VTT, processor graphics and memory (DDR), users can make real-time adjustments with the exclusive GIGABYTE 3D Power Utility, that include settings such as OVP (Over Voltage Protection), Load-line Calibration and on-the-fly PWM frequency adjustment.

	Users can enjoy a fully interactive 3D utility that facilitates adjustment of the 3 dimensions that control the power delivery to your CPU and Memory: Voltage, Phase and Frequency. These parameters are crucial to how the digital PWM supplies power to critical areas of the motherboard and can help users quickly obtain the highest, most stable overclock.
	3D Power: Voltage Control Voltage parameters can be modified within 3D Power, including load line calibration of the CPU. By adjusting load line calibration, Vdroop can be avoided, maintaining optimal voltages levels despite increasing current levels. OVP (over voltage protection) can also be adjusted to change default protection range of the CPU, IGP, VTT and system memory.
	3D Power: Phase Control Users can calibrate OCP (Over Current Protection) for the CPU, integrated memory controller and system memory power levels. This allows the Phase control to deliver even more power to the system when needed.
	3D Power: Frequency Control GIGABYTE's all digital PWM allows for adjustable frequency control via the International Rectifier PWM controller. 3D Power frequency control allows users to change the PWM controller frequency so that the CPU VRM can adjust power delivery speeds more quickly. Users can also adjust the PWM spectrum or maximum and minimum overall frequencies.

The revolutionary GIGABYTE 3D BIOS application is based on GIGABYTE UEFI DualBIOS™ technology and is available to consumers in two exclusive modes of interaction, providing enthusiast and mainstream users with a choice of unique and powerful graphical interfaces.

UEFI DualBIOS™ Technology
At the heart of this exciting 3D BIOS technology is a pair of physical BIOS ROMs containing GIGABYTE's exclusive in-house designed UEFI BIOS technology. With a superior graphical interface capable of 32-bit color imaging and fluid user-friendly mouse navigation, UEFI DualBIOS™ makes BIOS configuration a new and exciting experience for novice and experienced users alike. UEFI BIOS also brings native support for large hard drives on 64-bit operating systems.

3D Mode
Designed to provide an extremely streamlined and user-friendly BIOS environment, GIGABYTE's exclusive 3D mode offers a fully interactive and illustrative GUI that allows users to easily and intuitively make key adjustments to the UEFI BIOS settings for optimum performance. 3D Mode allows novice or casual users to more clearly understand the areas of the motherboard that are being affected through the BIOS settings, gaining a clearer understanding of the BIOS functionality.

Advanced Mode
Advanced mode provides a more comprehensive UEFI BIOS environment that is designed specifically for overclockers and power users who want maximum control over their PC's hardware. GIGABTYE's signature M.I.T. tuning technology can be found alongside fully configurable parameters for GIGABTE's all new digital 3D Power engine. In short, advanced mode combines the signature GIGABYTE BIOS expertise you've come to expect, wrapped a slick, new and optimized graphical UEFI interface.

Os novos processadores da 3 ª geração Intel ^® Core ™ são baseados na nova arquitetura da 3 ª geração Intel ^® Core ™, fabricados com os processos mais recentes para criar uma plataforma de 22nm, visualmente otimizada. Com base no soquete LGA 1155, a 3 ª geração Intel ^® Core ™ apresenta até quatro núcleos de alto desempenho de 64 bits de processamento e 8MB do L3 Smart Cache, garantindo total performance quando você mais precisa.

Retorna rapidamente para onde o seu sistema estava, saindo da hibernação para totalmente ligado em um piscar de olhos.

Fique em dia com atualizações automáticas, sem espera em seu email e redes sociais, até quando o seu PC estiver dormindo.

GIGABYTE 7 series motherboards support Lucid Virtu GPU virtualization technologies - optimized virtualization software that improves your PC's visuals, with faster response times, improved video processing and smoother media playback, all within a low power environment.
Lucid Universal MVP also features Hyperformance, which eliminates redundant rendering tasks and predicts potential synchronization issues in the graphics delivery pipeline, producing faster frame rates, sharper visuals and reduced tearing.

The GIGABYTE EZ Smart Response utility is a simple application that allows users to quickly and easily configure their system for Intel^® Smart Response Technology. In the past, enabling Intel^® Smart Response meant users needed to enter the BIOS in order to configure their system for RAID mode, which then required a complete reinstall of the operating system. Once that processes was complete, users then needed to install the Intel^® Rapid Storage Utility as well as configure Intel's Smart Response Technology. GIGABYTE EZ Smart Response does all of this automatically, without users having to perform a complicated install process. This allows them to quickly and effortlessly enjoy a significant boost in system performance.

GIGABYTE EZ Setup is an exclusive application that allows GIGABYTE 7 series users to more easily configure and setup three important Intel Technologies on their new system; Intel^® Smart Response, Intel^® Rapid Start and Intel^® Smart Connect. GIGABYTE EZ Setup makes it far easier to enjoy these technologies by greatly reducing the number of steps involved to install setup and configure your system.

As placas-mãe GIGABYTE Série 7 caracterizam um slot mSATA onboard, que permite usuários facilmente desfrutarem das tecnologias avançadas baseadas em SSD como Intel® Smart Response e Intel® Rapid Start. Montar um mSATA SSD acessível e de baixa capacidade diretamente na sua placa-mãe pode aumentar o desempenho do seu PC com uma melhor resposta de desktop em geral, tempo de boot mais rápido e um resumo do sistema mais rápido

Download : Intel Smart Response SSD Available Vender List

GIGABYTE 7 series motherboards feature GIGABYTE 333 Onboard Acceleration , a range of the latest technologies that are designed help speed up data transfer, including SuperSpeed USB 3.0 technology, SATA Revision 3.0 (6Gbps) technology and an unprecedented 3x USB power boost on all USB ports for more power hungry USB devices.

GIGABYTE 7 series motherboards feature ON/OFF Charge, a unique GIGAYTE technology which allows you not only to charge your iPhone, iPad or iPod Touch, but also allows you to Quick Charge it. As an added bonus, it can even be charged when your PC is turned off, so even if you forget to plug it into your charger after you've synced up your music, it will be fully charged when you need it.

* Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non ON/OFF Charge USB ports.
Charging results may vary by model.

Como parte do seu kit, a placa-mãe dispõe de um conveniente painel de controle frontal que permite acesso rápido e fácil à 2 portas USB 3.0

Recursos Adicionais ao Painel Traseiro
Power eSATA para conectividade rápida a unidades externas. Botão Quick Boost que permite aos jogadores um overclock instantâneo de seu sistema com um simples apertar de botão.

Rápido desempenho para codificação de mídia Economize tempo ao criar e editar vídeos, sincronizá-lo a outros dispositivos e compartilhá-lo em casa e na internet. O Intel Quick Sync utiliza hardware de vídeo no processador em vez do software, acelerando a codificação de vídeo.
