GA-Z170MX-Gaming 5 (rev. 1.0)
Intel® Z170 Chipset
![](/FileUpload/Global/Other/2/Photo/3826.png)
- Suporte a processadoresde 7ª / 6ª Geração Intel® Core™
- Dupla canal DDR4, 4 DIMMs
- Intel®USB 3.1 com USB Type-C™ - O próximo conector universal do mundo
- Suporte a Gráficos 3-Way com Ultra Durable revestimento metálico exclusivo sobre slots PCIe
- Dupla conectores de PCIe Gen3 x4 M.2 com até 32Gb/s velocidade de transferência de dados (suporte de SSD PCIe & SATA)
- 3 conectores de SATA Express para até 16Gb/s velocidade de transferência de dados
- 115dB SNR HD Audio com Built-in Amplificador de áudio traseira
- Killer™ E2200 and Intel® Rede para jogos
- Capacitors de áudio em alta qualidade e Guarda de ruído de áudio com Traço de Caminho de Luzes LED
- Centro APP incluindo utilidades EasyTune™ e Cloud Station™
- Tecnologia UEFI DualBIOS™ da GIGABYTE
![](/FileUpload/Global/Other/2/Photo/5002.png)
-
The Intel® USB 3.1 controller utilizes 2 PCIe Gen3 lanes, offering a total of up to 16Gb/s, which means you have extra bandwidth to take full control of the 10Gb/s USB 3.1 ports. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.
-
The World's Next Universal Connector
Connecting the Future - USB Type-C™:
Reversible USB Type-C™ with USB 3.1
* Display feature may vary by model.
-
Realtek ALC1150 115dB SNR HD AudioThe ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.
The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.
-
Additional Sound Blaster X-Fi MB3
GIGABYTE G1™ Gaming motherboards also include Sound Blaster X-Fi MB3 software suite. Sound Blaster X-Fi MB3 software suite is a powerful audio platform offering premium audio quality, effects and features for gamers. It features SBX Pro Studio™ suite of technologies, which is designed to give you the fullest audio experience.
-
GIGABYTE Exclusive : Upgradable OP-AMPCustomizable+ Users can choose audio quality based on individual listening preferences.
+ Wide availability of additional OP-AMPs.
Low Cost way to dramatically improve audio quality+ Improve audio dynamics and overall sound-quality with little cost.
+ No need for expensive speakers or high-end audio equipment.
Exclusive onboard 'Gain Boost' selector switches+ Select either standard 2.5x or high-amplification 6x mode.
+ 6x mode is ideal for high impedance speakers and headphones
-
High End Audio CapacitorsGIGABYTE G1™ Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
-
USB DAC-UP
The above photos are for reference only.
Clean, low-noise power for your Digital-to-Analog Audio converter
GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.
-
GIGABYTE G1™ Gaming motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions.
Killer™ E2200 Gaming Network -
-
2-Way SLI™/3-Way CrossFire™ Multi-GraphicsMulti-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
-
Ambient LEDPlacas-mãe GIGABYTE apresenta iluminação LED para o caminho da guarda de áudio, fornecendo uma aparência interessante e feito sob encomenda para seu equipamento. Audio Noise Guard não somente protege os componentes de áudio analógicos sensíveis da placa, mas os seus LEDs também pode ser programado para bater no ritmo da música que você está ouvindo, ou pulso em um ritmo suave para criar uma grande atmosfera para melhorar o ambiente de seu jogo, filme ou música.
-

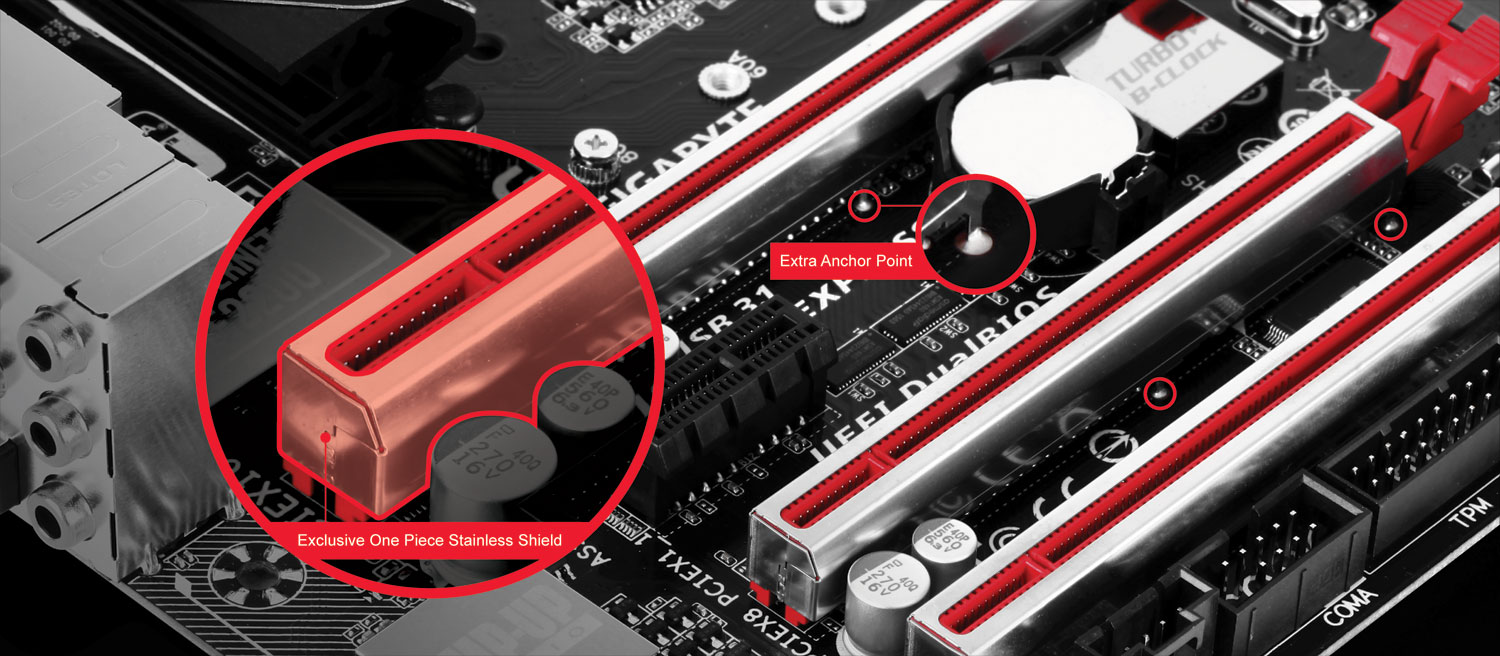

Líder da Indústria PCIe Ultra Durable™ Revestimento MetálicoO design inovado de escudo inoxidável de uma só peça da GIGABYTE reforça os conectores PCIe para fornecer uma força extra necessária para suportar placas gráficas pesadas.
-
PCIe Gen3 x4 M.2
With PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. The M.2 provides an ideal storage solution as it deliver up to 32 Gb/s data transfer speed.
-
Turbo B-Clock:Built-in Advanced Performance Tuning IC
Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK Frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 200MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps. -
Next Generation SATA ExpressSATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.
The above photos are for reference only. Features may vary by model.
-
All New GIGABYTE™ App Center Including EasyTune™, Cloud Station™ Utilities and More…
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.
Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.
Easy Tune™
Cloud Station™GIGABYTE™ Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.
-
15 Gold Plated CPU Socket DesignGIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket*, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
-
4K Suporte para Ultra HDResolução de 4K é o próximo marco tecnológico na produção de conteúdo de alta definição, utilizando aproximadamente 4.000 pixels no eixo horizontal, mais de quatro vezes de densidade de pixels HD no padrão de hoje. Mplacas-mãe GIGABYTE da suporte para nativo 4K com graáficos HD integrados da Intel® via HDMI.
-
