GA-X79S-UP5-WIFI (rev. 1.0)

For the first time DIY PC builders can now enjoy the benefits of enterprise-class hardware to build their own high-end workstation. The GIGABYTE X79S-UP5 WIFI provides performance, reliability and additional features that prosumers and professional content creators demand.
The X79S-UP5 WIFI reaches beyond standard PC technologies and features to offer the perfect platform to build a workstation that caters for needs of today's creative professionals:Computer Aided Design – Digital Content Creators – Prosumers.

GIGABYTE X79 series motherboards are the first to take advantage of the exclusive GIGABYTE 3D Power, an all new hardware and software-based Digital Power Engine for both the PWM and Memory that delivers unprecedented power delivery control.

All New Digital Power Control for the CPU and Memory
Utilizing a brand new Digital PWM controller, GIGABYTE's 3D Power features precise Auto Voltage Compensation to deliver a steady flow of power to the CPU and memory no matter the loading. This all new, all digital power system provides enthusiast users with exceptional control over the overclocking potential of their GIGABYTE X79 motherboard.
GIGABYTE is the first in the industry to utilize digital memory controllers for not only the Memory, but VTT and VSA, for real-time monitoring and adjusting. Digital memory control allows users to monitor and record DDR power and current in real-time while gaming, overclocking or at idle. Users can also set OVP (Over Voltage Protection) to safeguard your memory, adjust memory Load-line Calibration to fix memory vdrooping for a quicker response time and adjust memory PWM frequency on-the-fly.

	Users can now enjoy a fully interactive 3D utility that facilitates adjustment of the 3 dimensions that control the power delivery to your CPU and Memory: Voltage, Phase and Frequency. These parameters are crucial to how the digital PWM supplies power to critical areas of the motherboard and can help users quickly obtain the highest, most stable overclock.
	3D Power: Voltage Control Voltage parameters can be modified within 3D Power, including load line calibration the of CPU. By adjusting load line calibration, Vdrooping can be avoided, maintaining optimal voltages levels despite increasing current levels. OVP (over voltage protection) can also be adjusted to change default protection range of the CPU, memory controller, VTT and system memory.
	3D Power: Phase Control Users can calibrate OCP (Over Current Protection) for the CPU, integrated memory controller and system memory power levels. This allows the Phase control to deliver even more power to the system when needed.
	3D Power: Frequency Control GIGABYTE's digital PWM allows for adjustable frequency control via the International Rectifier (IR3567) PWM controller. 3D Power frequency control allows users to change the PWM controller frequency so that the CPU VRM can adjust power delivery speeds more quickly. Users can also adjust the PWM spectrum or maximum and minimum overall frequencies.

High Current, Low Heat CPU Power Zone Design Features IR Digital Power Controller and IR3550 PowIRstage^® Ics


The GIGABYTE motherboard employ award winning GIGABYTE Ultra Durable™ 5 technology that includes high current capable components for the CPU power zone including IR3550 PowIRstage^® ICs from International Rectifier, 2X Copper PCB and high current Ferrite Core Chokes rated up to 60A, which together are able to deliver up to 60°C* cooler temperatures than traditional motherboards. Featured on a range of new motherboards based the Intel^®X79 and Z77 Express Chipsets, GIGABYTE Ultra Durable™ 5 technology is the next evolution in quality motherboard design...more

Intel Xeon E5 2600/1600 processors bring the successful Sandy Bridge architecture to the Intel Xeon processor line-up in the form of Sandy Bridge EP. With up to 8 cores coupled with a larger 20MB L3 cache and clock speeds of up to 3.6GHz Intel Xeon processors offer unrivalled performance.

	SAS is currently the dominant storage technology used in server, workstation and professional class media creation computers.
	The Intel C606 Chipset provides SAS support for up to eight SAS drives Improved performance and long-term stability make SAS drives ideal for 24/7 intensive workstation and mission critical applications.
Faster read and writes – up 15,000rpm Faster data seek times – more responsive Better long term stability – up to 2 million hours MTBF i.e. Mean Time Between Failures Available in 3.5" and compact 2.5" form factors SCSI protocol offers improved data integrity

The GIGABYTE motherboard supports more robust and ultra reliable ECC (error-code correction) DDR3 memory modules. Designed to detect and eliminate all single-bit data errors to ensure virtually zero data corruption.

ECC Memory Brings:

• Error detection and correction
• Eliminates single-bit errors
• Greater data stability

(Note: ECC memory support requires an Intel^® Xeon^® processor)

With a potential data bandwidth of up to 25GB/Sec and 256 Bits memory addressing, the Intel^® X79 platform offers unrivalled memory performance. GIGABYTE X79 series motherboards give you the ultimate performance for today's memory-intensive applications.

As placas-mãe GIGABYTE estão totalmente configuradas com a mais recente tecnologia PCI Express Gen. 3, para proporcionar aos gamers uma maior largura de banda para os dados de futuras placas de vídeo.
* PCIe Gen.3 depende da compatibilidade da CPU e da placa de vídeo.

The GIGABYTE X79S-UP5 WIFI is equipped to help extreme gamers see the enemy from distance, regardless of how bloody the battlefield, offering the utmost graphics flexibility and upgradeability with multiple GPU support, that includes three PCI Express slots for both AMD CrossFire™ X and Nvidia SLI™ technologies in 3-way discrete card configurations. The GIGABYTE X79S-UP5 WIFI motherboard delivers maximum FPS, allowing gamers to see more clearly, aim faster, and move more quickly.

OC-Dual BIOS features a unique back-panel BIOS switcher and LED indicator, allowing users to select one BIOS for normal use, and another for specifically designated for overclocking. This means that if your overclocking configuration suffers from instability, you can easily revert to your stable settings if needed. With OC-Dual BIOS, users can also easily compare two different BIOS versions, a very useful feature when users want to update to a new BIOS, but don't want to lose their original settings.

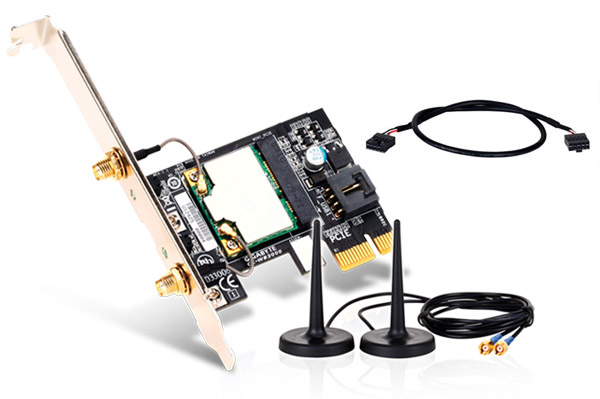

The motherboard also includes an exclusive PCIe expansion card that offers support for the latest Bluetooth 4.0 and IEEE 802.11 a/b/g/n Wi-Fi connectivity. The Bluetooth 4.0 standard includes Smart Ready technology that is debuting on mobile devices including the Apple® iPhone® 4s. This means that transferring important content from your smart phone or tablet is easier and faster than ever...more

Download : GC-WB300D Safety approval list

GIGABYTE X79 series motherboards feature GIGABYTE 333 Onboard Acceleration , a range of the latest technologies that are designed help speed up data transfer, including SuperSpeed USB 3.0 technology, SATA Revision 3.0 (6Gbps) technology and an unprecedented 3x USB power boost on all USB ports for more power hungry USB devices.

GIGABYTE X79 series motherboards feature ON/OFF Charge, a unique GIGAYTE technology which allows you not only to charge your iPhone, iPad or iPod Touch, but also allows you to Quick Charge it. As an added bonus, it can even be charged when your PC is turned off, so even if you forget to plug it into your charger after you've synced up your music, it will be fully charged when you need it.

* Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non ON/OFF Charge USB ports.
Charging results may vary by model.
