• Supports 9th and 8th Generation Intel® Core™ Processors up to 65W
  • Dual Channel DDR4 SO-DIMM, 2 DIMMs
  • 2 x RS232, Digital I/O 4-in/4-out
  • M.2 Socket 1 for PCIe WIFI co-lay with CNVI Hybird E key WIFI
  • M.2 Socket 2260/80 Storage support PCIe/SATA Mode
  • Mini-PCIe Slot Full size Support mSATA/PCIe mode
  • VGA Header for legacy Monitor
  • LVDS Header for System Integrated Flat Panel Display Support

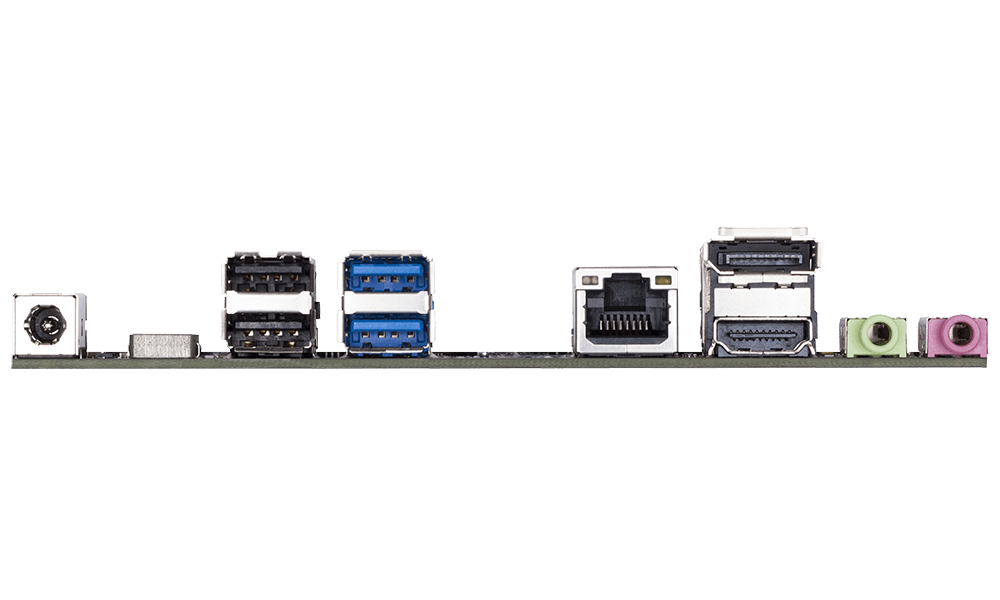

  • Rear Panel DisplayPort, HDMI 2.0 Ports & D-sub Header for Multi-Display Connection
  • Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
  • Intel® GbE LAN with WOL and PXE Support
  • 4 USB 3.0 and 4 USB 2.0 Ports, USB 3.0 support OTG function
  • OP 0~60 degree
  • Thin Mini-ITX 170x170mm Form Factor with 12/19~24V DC-In Power Design
  • Compatible with GIGABYTE Thin mini ITX Chassis
  • Placa Mãe GIGABYTE Ultra Durable Mini-ITX Fina
    GIGABYTE H310 Mini-ITX motherboards support the latest 7th/ 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build. Offering an All-in-One, small form factor and slim profile PC experience, GIGABYTE H110 Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. Complying with the latest Mini-ITX guidelines, GIGABYTE motherboards offer additional flexibility making them suited to broad range of innovative PC designs.
  • Intel® GbE LAN with WOL and PXE Support
    The Intel® Gigabit LAN with WOL and PXE support, deliver better network responsiveness and conveniently user experience in crowded LAN environments, to offer hassle free and high speed network connectivity.
    Intel® GbE LAN with WOL and PXE Support

  • High Definition Digital Outputs
    Desfrute de uma verdadeira capacidade de exibição em HD usando as tecnologias de saídas digitais mais comumente integradas nas telas HD e TV atuais.
     * Suporta até 2 monitores ao mesmo tempo.
    High Definition Digital Outputs
  • Suporte para 4K Ultra HD
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.



  • Kit de atualização Intel CNVi WIFI

    The Intel CNVi WIFI Upgrade kit offers an easy way to upgrade Intel CNVi WIFI Upgradeable motherboards with new and faster Gigabit WIFI connectivity without having to upgrade to a whole new system.

    Intel ® CNVi WIFI kit must be purchased separately.
    Photo for demonstration only.


  • HDMI™ 2.0-A interface multimídia da próxima geração
    HDMI™ 2.0 is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ 2.0 ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ 2.0 is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • Suporte para DisplayPort
    Selected GIGABYTE motherboards feature DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths.
  • USB 3.0 Ports Onboard
    Com taxas de transferência rápidas de até 5 Gbps, os usuários podem experimentar uma melhoria de quase 10x em relação ao USB 2.0. Além disso, a compatibilidade com o USB 2.0 assegura aos usuários que os dispositivos USB 2.0 legados ainda funcionarão.


    * USB 3.0 10x performance is a maximum theoretical value.
    Actual performance may vary by system configuration.
    USB 3.0 Ports Onboard
  • Bobinas com núcleo de ferrite são constituídas por um composto de óxido de ferro e outros elementos metálicos cujas propriedades possuem capacidade de manter a energia por mais tempo do que as com núcleo de ferro comum quando em altas freqüências.

    Low Power Loss

    Low Power Loss - Ferrite Core Choke Design
  • GIGABYTE Patented DualBIOS™ (UEFI) Design (Optional)
    GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
    DualBIOS™ (UEFI) Design
  • 2x Copper PCB Design (2 oz Copper PCB)
    GIGABYTE’s exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.


    2x Copper PCB Design (2 oz Copper PCB)
  • A Indústria líder na principal proteção LAN contra eletricidade estática e sobretensão
    GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
  • Long Lifespan Durable Black™ Solid Caps
    GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.


    Long Lifespan Durable Black™ Solid Caps
  • Digital I/O
    Digital I/O is a flexible parallel interface that allows a variety of custom connections. Each digital I/O port can be individually configured through software as either an input or output. It allows users to monitor the level of signal input or set the output status to switch on/off a device.
    Digital I/O
  • Product Longevity
    Our embedded motherboards have a long product life cycle of 3~5 years.
    Long lifecycle meets industry needs.
    Product Longevity
  • Wide Voltage Support
    Support for wide voltage ranges provides increased stability and reliability — perfect for industrial use. GIGABYTE embedded motherboards have Over Voltage and Over Current protection.
    Wide Voltage Support
  • Compatible with GIGABYTE Thin mini ITX Chassis
    (Part Number: 24EC5-1TM10A-01R)
    (Size :204.6 x 205 x 45 mm)
    Compatible with GIGABYTE Thin mini ITX Chassis
