GA-H170-Gaming 3 (rev. 1.1)
Intel® H170 Chipset
![](/FileUpload/Global/Other/2/Photo/3826.png)
- Suporte para processadores de 7ª / 6ª Geração Intel® Core™
- Dual Channel DDR4, 4 DIMMs
- Suporte Gráfico 2-Way com revestimento metálico Ultra Durable no PCIe
- Dual PCIe Gen3 x4 conectores M.2 com taxa de transferência de até 32Gb/s (suporte a PCIe NVMe & SATA SSD)
- 2 conectores SATA Express com velocidade de transferência de dados de até 16Gb/s
- Amplificador de áudio de 115dB SNR HD Audio Built-in
- Rede Killer™ E2400 para jogos
- Capacitores de áudio de alta qualidade com Audio Noise Guard e Caminho de LED
- Portas USB DAC-UP
- APP Center incluindo o EasyTune™ e o Cloud Station™
- Tecnologia UEFI DualBIOS™ da GIGABYTE
-
Realtek ALC1150 115dB SNR HD AudioThe ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.
The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.
-
Additional Sound Blaster X-Fi MB3
GIGABYTE G1™ Gaming motherboards also include Sound Blaster X-Fi MB3 software suite. Sound Blaster X-Fi MB3 software suite is a powerful audio platform offering premium audio quality, effects and features for gamers. It features SBX Pro Studio™ suite of technologies, which is designed to give you the fullest audio experience.
-
GIGABYTE Exclusive : Upgradable OP-AMPCustomizable+ Users can choose audio quality based on individual listening preferences.
+ Wide availability of additional OP-AMPs.
Low Cost way to dramatically improve audio quality+ Improve audio dynamics and overall sound-quality with little cost.
+ No need for expensive speakers or high-end audio equipment.
Exclusive onboard 'Gain Boost' selector switches+ Select either standard 2.5x or high-amplification 6x mode.
+ 6x mode is ideal for high impedance speakers and headphones
-
High End Audio CapacitorsGIGABYTE G1™ Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
-
USB DAC-UP
The above photos are for reference only.
Clean, low-noise power for your Digital-to-Analog Audio converter
GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.
-
2-Way CrossFire™ Multi-GraphicsMulti-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
-
GIGABYTE G1™ Gaming motherboards feature the Killer™ E2400, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions.
Killer™ E2400 Gaming Network -
Revestimento Metálico Ultra Durable™ no PCIe que é Líder de MercadoO inovador revestimento metálico da GIGABYTE reforça os conectores PCIe fornecendo maior suporte para as placas gráficas mais pesadas.
-
With two PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.
Dual PCIe Gen3 x4 M.2
The above photos are for reference only.
-
Next Generation SATA ExpressSATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.
The above photos are for reference only. Features may vary by model.
-

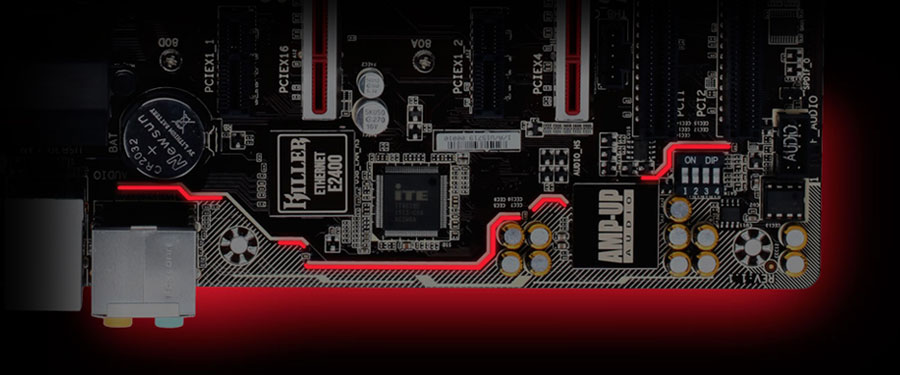

Ambient LEDAs placas-mãe GIGABYTE apresentam iluminação LED no caminho por onde o áudio passa, oferecendo uma aparência diferenciada para seu equipamento. Estas iluminações agora são programáveis para que você possa entrar no ritmo da música que você está ouvindo, ou pulsar em um ritmo mais suave para criar o clima mais adequado para o ambiente de seu jogo, filme ou música.
-
15 Gold Plated CPU Socket DesignGIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket*, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
-
All New GIGABYTE™ App Center Including EasyTune™, Cloud Station™ Utilities and More…
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.
Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.
Easy Tune™
Cloud Station™GIGABYTE™ Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.
-
Suporte 4K Ultra HDResolução 4K é a próximo marco tecnológico quando se trata de conteúdo de alta definição, utilizando aproximadamente 4.000 pixels no eixo horizontal, o que representa uma densidade 4x vezes maior do que é utilizado atualmente. As placas-mãe GIGABYTE proporcionam suporte 4K com Intel® HD Graphics via HDMI integrado.®
![](/FileUpload/global/Other/11/Photo/hdmi_logo.png)
* Os termos e expressões “HDMI”, “HDMI High-Definition Multimedia Interface” e “Trade dress da HDMI”, e os Logotipos da HDMI são marcas comerciais ou marcas registradas da HDMI Licensing Administrator, Inc.
* Todos os materiais disponíveis são para simples referência. A GIGABYTE reserva o direito de modificar ou revisar o conteúdo a qualquer momento sem aviso prévio.
* Todas as marcas e logotipos são de propriedade de suas respectivas proprietárias.
* Devido a arquitetura padrão PC, uma quantia de memória é reservada para uso do sistema, portanto o tamanho da memória é menor do que a quantia exibida.
