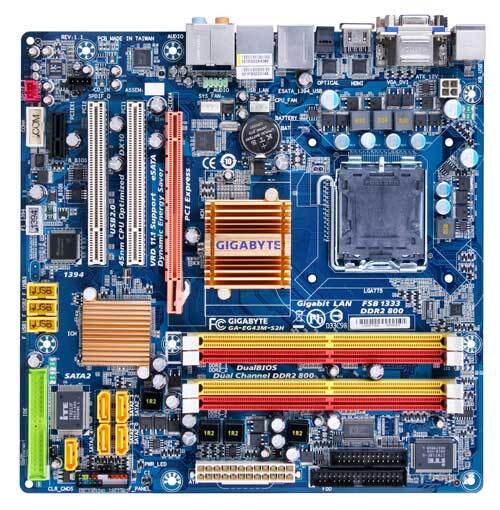

GA-EG43M-S2H (rev. 1.1)
Intel®G43 + ICH10 Chipset
- Revolution energy saving design with DES technology featuring hardware based Dynamic switching.
- Supports 45nm Intel® Core™ 2 multi-core processors with FSB 1333 MHz
- Dual channel DDR2 800 for remarkable system performance
- Integrated Intel Graphics Media Accelerator X4500 (Intel GMA X4500)
- Features high speed Gigabit Ethernet and IEEE1394
- 8 channel High definition audio
- Features smoother HD video playback and Blu-ray/ HD DVD support
- Integrated HDMI interface for high Definition video (1080) playback with HDCP support
- DualBIOS solution gives a multiple security to the system
* To avoid the system being unable to start or the memory being incorrectly detected, if only one memory module is to be installed, we suggest that you install it on the DDR2_1 or DDR2_3 socket; to install two memory modules, we suggest that you install them on the DDR2_1 and DDR2_3 sockets.
* Do not populate both DIMM sockets of the same channel (e.g. DDR and DDR2), or populate 4 DIMM sockets with double-sided memory modules to prevent system's failure to start or incorrect detection of memory modules. Please refer to the user manual for the memory configurations table.
-
Introduction
The GA-EG43M-S2H based on the Intel G43 chipset supports the latest Intel 45nm CPUs and integrates support for HDMI, DVI and HDCP, creating a powerful multi-media platform which allows users to do more at once. At the heart of the Intel G43 Express chipset is the Intel X4500 graphics media accelerator, which features several unique innovations including more Execution Units for enhanced 3D performance and Intel Clear Video Technology for sharper images and precise color control. The G43 chipset also supports smoother HD video playback, and includes support for Blu-ray and HD-DVD formats. -
Qualified for Windows® 7The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
-
Smaller, Faster and More EfficientGA-G41MT-ES2H motherboards paired with Intel 45nm CPUs deliver the very best platform for multitasking, multimedia and high performance gaming. Not only do GIGABYTE's latest motherboards based on Intel Eaglelake chipsets all support Intel's new generation, 45nm multi-core processors.
-
Dual Channel DDR2 800Experience the advanced technology of DDR2 800 memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
* Please refer "Memory Support List" for memory support information. -
Dynamic Energy Saver AdvancedGIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world's only motherboard energy saving technology with hardware-based Dynamic Switching on GA-EG41MF-US2H. With support for VRD 11.1, GIGABYTE’s DES Advanced allows the motherboard to switch to 2 Gear phase switching during idle, allowing for a dramatic increase in power savings.
GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance. -
Intel GMA X4500Intel Graphics Media Accelerator X4500 support Microsoft DirectX10, Intel® Clear Video Technology, which enable smoother HD playback. The 3D enhancement of GMA X4500 also highly improves the realism and graphics performance for mainstream gaming. Through the support of DVI and HDMI (with HDCP), Intel GMA X4500 brings the ultimate multimedia experience.
-
Intel® Clear Video TechnologyIntel® Clear Video Technology delivers enhanced video playback, sharper images, and precise color control for a premium visual experience...more
-
HDMI™ - The Next Generation Multimedia InterfaceHDMI is the latest High-Definition Multimedia Interface able to provide up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
-
Adjusts power consumption automatically according to your LAN cable lengths, up to 10% power savings.
-
EasyTune6GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.
-
DualBIOS™ - Patented Dual Hardware BIOS ProtectionDualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
![](/FileUpload/global/Other/11/Photo/hdmi_logo_b.png)
* Термините HDMI, HDMI High-Definition Multimedia Interface, Търговски облик HDMI и логотипите на HDMI са търговски или регистрирани марки на HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
