• 3X USB power delivery for greater compatibility and extra power for USB devices
  • Unique On/Off Charge delivers the best recharging capability to iPad, iPhone and iPod Touch
  • Supports new generation of AMD Phenom™ II X6 processors
  • All 50,000 hours Japanese solid capacitors design
  • Supports AMD AM3 Phenom™ II/ Athlon™ II processors
  • Dual Channel DDR3 8718+ for remarkable system performance
  • Integrated ATI Radeon HD 4250 graphics (DirectX10.1)
  • Innovative Turbo 3D technology to unleash extra levels of 2D/3D graphics performance
  • PCI-E 2.0 x16 interface with ATI Hybrid CrossFireX support for ultimate graphics performance
  • Home theater quality 6/8-channel High Definition Audio
  • Integrated HDMI/ DVI interface for Full HD 1080 Blu-ray playback with HDCP
  • Compatible with Window 7 to deliver the best operation experience
  • Meet European Union ErP(Energy-related-Products) requirement
  • 3x USB Power Boost
    GIGABYTE motherboards feature a 3x USB power boost, delivering greater compatibility and extra power for USB devices. GIGABYTE’s unique USB power design is also able to efficiently regulate output over the full voltage range, which greatly enhances USB device compatibility. In addition, dedicated lower resistance fuses ensure lower voltage drops, and provide more stable and plentiful power delivery.
  • On/Off Charge Technology
    GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
    *Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
    *Whether to support 3X USB power design, it may vary by models.
    On/Off Charge Driver download
  • Core Boost Support
    GIGABYTE’s Core Boost technology provides an easy way for users unlocking the CPU’s hidden cores via the EasyTune6 utility. Without any complicated setting needed in BIOS, users can experience a phenomenal performance upgrade right away.
    *The ability of unlocking the hidden CPU cores might vary by different processors.
  • Introduction

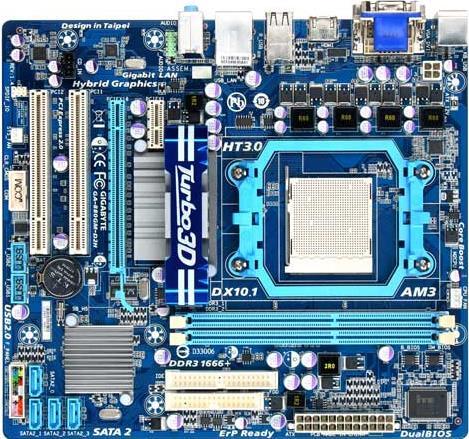

    The GA-880GM-D2H introduces revolutionary GIGABYTE Ultra Durable 3 Classic technology on AMD platform with featuring 2 oz copper PCB and further helps to reduce the system temperature and dramatically enhance the performance. Based on AMD 880G chipset, GA-880GM-D2H is integrated ATI Radeon HD 4250 (DX10.1) graphics engine and supports AMD Phenom™ II quad-core processors, DDR3 memory modules, HyperTransport™ 3.0 technology links, PCI Express 2.0 graphics interface and so on. With the innovative GIGABYTE Easy Energy Saver technology, GA-880GM-D2H is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.
  • Supports next generation of 45nm AMD AM3 CPU
    This motherboard designs with Split Power Plane, 3+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
  • EC AOD-ACC Support
    EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked through BIOS setting or AMD OverDrive™ utility further than it was previously possible.
    * Please apply sufficient cooling to CPU VRM zone when ACC function is enabled.
    * Please be noticed that GIGABYTE’s product warranty does not cover damages caused by overclocking.
  • 50,000 Hours Japanese Solid Capacitors
    GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games...more


    * 50000 hours of work time is calculated at 85℃ ambient temperature.
  • AMD 880G 3D Graphics Performance Upgrade- up to 3DMark 2006 3000 marks!!
    The 3DMark 2006 is a benchmark software which is from Futuremark Corporation and generally used on analyzing a PC performance of DirectX® 3D visualization, especially a valuable guideline for gaming users as reference.
    3DMark06 2868 marks on 880G system configuration
    AMD PhenomII X4 965 (OC), GPU OC 1124MHz, 4GB DDR3-1600(OC), Win7-32bit, 3DMark06 (1280x1024)

    * 3000+ marks in 3DMark06 was achieved by overclocking.
    * Please be aware that GIGABYTE's product warranty does not cover damages caused by overclocking.
  • ATI Hybrid Graphics Technology support
    ATI Hybrid Graphics is a technology umbrella brand encompassing several technologies, such as ATI Hybrid CrossFireX™, ATI SurroundView™, ATI PowerPlay™, etc. that allow both an AMD integrated graphics processor and a discrete graphics processor to work co-operatively on an AMD based system to provide enhanced gaming performance, productivity and platform efficiency to the mainstream PC.
    * Please use ATI Hybrid CrossFireX certified DX11 VGA card (i.e., ATI Radeon HD 5450, etc.), detail information please refer to AMD website.


  • Dual Channel DDR3 1666+ MHz
    Delivering native support for DDR3 memory up to 1666MHz, GIGABYTE Ultra Durable 3 motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
    * DDR3 1666+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
  • EasyTune6
    GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system.
  • DualBIOS™ - Patented Dual Hardware BIOS Protection
    DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
  • HDMI 1.3* certification, support Full HD 1080P
    HDMI is able to provide up to 5Gb/s video transmitting bandwidth and multi-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. GIGABYTE motherboard has obtained the latest HDMI 1.3* certification, able to support Full HD 1080p multi-media and HDCP (High-bandwidth Digital Content Protection) which allowing Blu-ray/ HD DVD and other protected contents playback.
    * HDMI 1.3 certified in video spec only.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • ErP Lot 6 support
    The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.

* Термините HDMI, HDMI High-Definition Multimedia Interface, Търговски облик HDMI и логотипите на HDMI са търговски или регистрирани марки на HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
