- Digital PWM Controller to deliver appropriate voltage to the CPU.
- Direct 6+2 Phases Low RDS(on) MOSFETs without PWM Doublers, each power phase connects directly to the CPU.
- All-solid capacitors to improve transient response and minimize oscillation.
- 8-pin Solid Pin CPU Power Connector.

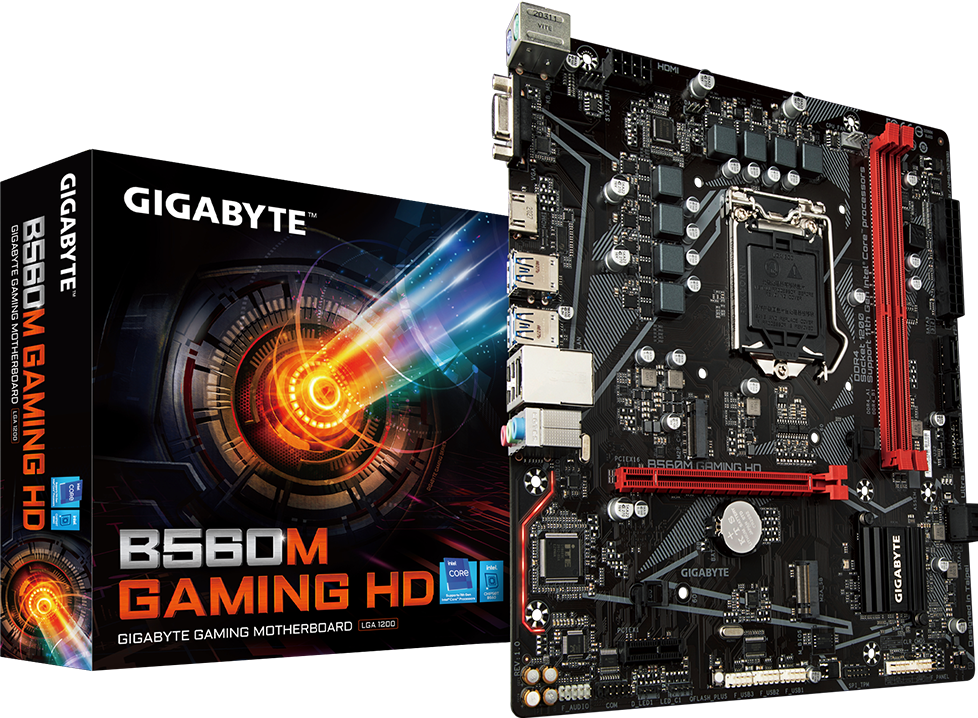

B560M GAMING HD (rev. 1.x)
Чипсет Intel® B560
Геймърска дънна платка Intel® B560 с директни 6+2 фази от цифров VRM, цялостен дизайн PCIe 4.0*, два конектора PCIe x4 M.2, геймърски LAN чип GIGABYTE 8118, RGB FUSION 2.0, Q-Flash Plus
- Поддръжка на процесори от 11-о и 10-о поколение Intel® Core™
- Двуканална небуферирана памет Non-ECC тип DDR4, 2 слота DIMM
- Директни 6+2 фази от цифрово VRM решение с транзистори Low RDS(on) MOSFET
- Два ултрабързи слота NVMe PCIe 4.0/3.0* x4 M.2
- Ексклузивен геймърски LAN чип GIGABYTE 8118 с управление на пропусквателния капацитет
- Висококачествени аудио кондензатори и Audio Noise Guard с технологията LED Trace Path
- RGB FUSION 2.0 поддържа адресируеми LED и RGB LED ленти
- Smart Fan 6 разполага с многобройни температурни сензори, хибридни вентилаторни конектори с FAN STOP
- Q-Flash Plus обновява BIOS без да се инсталира процесор, памет и графична карта
* Действителната поддръжка може да варира според процесора.
OVERVIEW
POWER
PERFORMANCE
CONNECTIVITY
LIGHTING
ULTRA DURABLE
SOFTWARE
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/specsmall.jpg)
1
D-Sub
2
HDMI 2.0
3
USB 3.2 Gen1 Type-A
4
Gaming GbE LAN
5
2* M.2 Connectors
- 1*PCIe 4.0 x4 M.2
- 1*PCIe 3.0 x4 M.2
6
RGB FUSION 2.0
- Addressable LED Header*1
- RGB LED Header*1
7
Solid Pin Power Connector
8
Direct 6+2 Phases Digital Power Design
- Low RDS(on) MOSFETs
- Premium Choke and Capacitor
- 4 Layer PCB
- PCIe 4.0 Ready Mid-Loss PCB
9
Supports 11th Gen. Intel® Core™ Processors
10
Full PCI Express 4.0 Design
- 1*PCIe 4.0 x16 slot
- 1*PCIe 4.0 x4 M.2
11
Q-FLASH Onboard Button
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/spec.jpg)
POWER
6+2 Phases Digital Power Design
Power Architecture
Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/powerdesign.jpg)
Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/power-architecture.jpg)
PERFORMANCE
Smart Fan 6
XMP 4600+
PCIe 4.0 Hardware Design
Hi-End Audio
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/pcie4slotdesign.jpg)
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/pcie4slotdesignsmall.jpg)
Full PCIe 4.0* Design
1. PCIe 4.0 M.2 Slot
M.2 PCIe 4.0 x4 slot with lower impedance.
2. 1 x PCIe 4.0 Slot
Reinforced PCIe 4.0 x16.
3. PCIe 4.0 Ready PCB
Low signal Loss PCB.
* PCIe 4.0 support varies by processor installed, refer product spec for further details.
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/audio.jpg)
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
CONNECTIVITY
2X PCIe 4.0/3.0 M.2 Slots
GIGABYTE Gaming GbE LAN
Dual PCIe 4.0/3.0 x4 M.2 Connectors
GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.
* PCIe 4.0 support varies by processor installed, refer product spec for further details.
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/nvmem2.jpg)
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/nvmem2small.jpg)
LIGHTING
RGB FUSION
RGB FUSION Software
RGB FUSION APP
RGB FUSION 2.0
With B560 Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on B560 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.
With B560 Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
With B560 Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
* Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/RGB_Fusion.png)
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/ledtitle.jpg)
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/ledstrip01.png)
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/ledstrip02.png)
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/RGB_Fusion.png)
With an integrated intuitive user interface, the RGB Fusion 2.0 provides
you a better
solution for customizing the lighting effects across all supported
devices. From
motherboards, graphics cards to the peripheral products, you can
personalize your gaming
rig with your own style and show off your build by sharing the profiles.
In addition,
the new gaming mode makes the lighting effects interactive with selected
games to bring
you the most immersive gaming experience.
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/rgbsoftware-01.jpg)
Sync with one click
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/rgbsoftware-02.jpg)
Individual control as you wish
GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE
RGB Fusion mobile app
users can watch as they control the lighting within their gaming PC. This gives users ease of
access as they try and
adjust colors and speeds for different modes, all this can be achieved away from the keyboard
and monitor of their
PC.
ULTRA DURABLE
Solid Pin
Q-Flash Plus
Anti-Sulfur
Solid Pin Power Connectors
B560 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power
supply during CPU overloading.
Solid Pin Power connector advantages
- Larger contact area for electricity
- More metal quantity to sustain higher power and generated heat
- Ultra durable and longer lifespan
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/Solid-Pin_01.png)
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/Solid-Pin_02.jpg)
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/q-flash-plus.png)
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
With GIGABYTE Q-Flash Plus, you don’t need to install the CPU, memory and
graphics
card nor
enter the BIOS menu to flash
the BIOS. Just download and save a new BIOS file (rename to gigabyte.bin) on
the USB
flash
drive, then press the
dedicated Q-Flash Plus button and you’re good to go!
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/qflashstep1.jpg)
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/qflashstep2.jpg)
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/qflashstep3.jpg)
START SULFURIZATION PROTECTION
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/anti-sulfur_2.png)
Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/anti-sulfur_3.png)
SOFTWARE
BIOS
APP Center
Easy Tune
System Information Viewer
Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
* Photos are for reference only. Product features may vary by model.
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/tabs_dualbios.jpg)
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you
can choose any utility you want to install from APP CENTER and keep updated with the
latest utilities and drivers version.
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/software_appcenter.png)
EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to
fine-tune their system settings or adjust
system and memory clocks and voltages in a Windows environment.
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/software_easytune.png)
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to
your current system status. Monitor components
such as the clocks and processor, set your preferred fan speed profile, create
alerts when temperatures
get too high or record your system's behavior; these are the possibilities of the
System Information
Viewer.
![](/FileUpload/Global/KeyFeature/1793/innergigabyteimages/software_siv.png)
![](/FileUpload/global/Other/11/Photo/hdmi_logo.png)
* Термините HDMI, HDMI High-Definition Multimedia Interface, Търговски облик HDMI и логотипите на HDMI са търговски или регистрирани марки на HDMI Licensing Administrator, Inc.
* Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photographic variables and monitor settings so it may vary from images shown on this site. Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.
