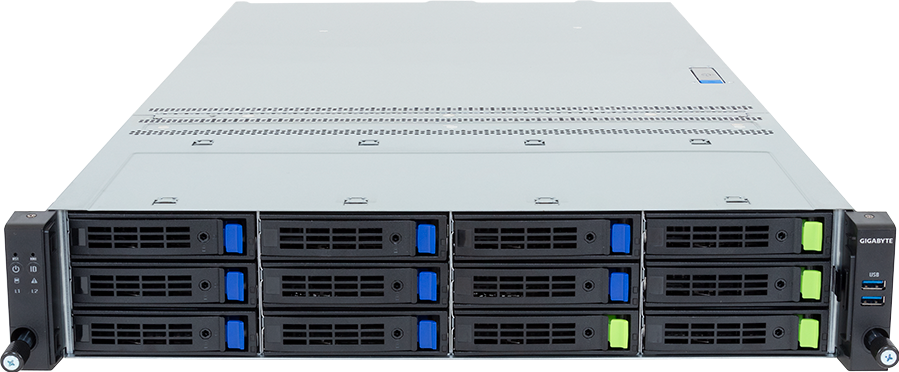

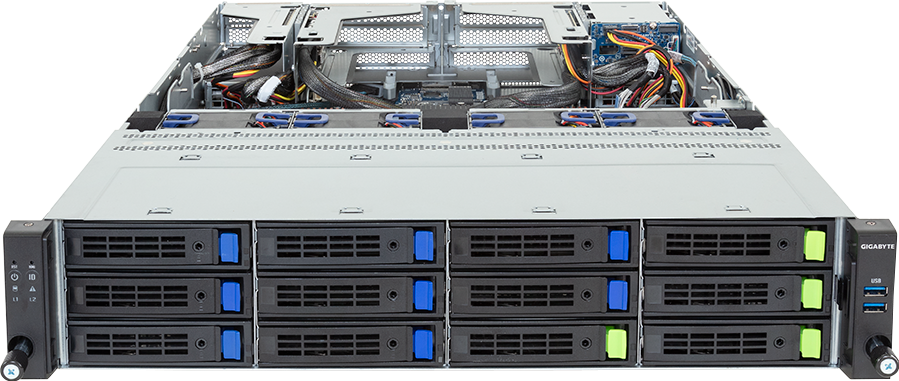

R284-A94-AAL1

Rack Server - Intel^® Xeon^® 6 Processors - 2U DP 12+2-Bay Gen5 NVMe/SATA/SAS-4 with expander

# Networking # Hybrid/Private Cloud Server

Dual Intel^® Xeon^® 6 Processors, LGA 7529
12-Channel DDR5 RDIMM / MRDIMM, 24 x DIMMs
Dual ROM Architecture
2 x 1Gb/s LAN ports via Intel^® I350-AM2
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
8 x 3.5"/2.5" SATA/SAS-4 hot-swap bays
2 x 2.5" SATA/SAS-4 hot-swap bays on the rear side
Onboard 24Gb/s SAS-4 expander
3 x M.2 slots with PCIe Gen5 x4 and x2 interface
6 x FHHL PCIe Gen5 x16 slots
1 x LP PCIe Gen5 x16 slot
2 x OCP NIC 3.0 PCIe Gen5 x16 slots
2 x 2700W 80 PLUS Titanium redundant power supply

Get a Quote

Добавить в список сравнения

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U
438 x 87.5 x 815

Motherboard

MA94-FS0

CPU

Intel^® Xeon^® 6 Processors
- Intel^® Xeon^® 6900-Series Processors

Dual processor, TDP up to 500W

^[Note]If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 7529
Socket BR

Chipset

System on Chip

Memory

24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
MRDIMM supported^[1]
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8800 MT/s

^[1]MRDIMMs are only supported with Intel^® Xeon^® 6 Processors with P-cores.

LAN

Rear (I/O board - CDCR010):
2 x 1Gb/s LAN (1 x Intel^® I350-AM2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
- 1 x Mini-DP

Storage

Front hot-swap:
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4^[1]
8 x 3.5"/2.5" SATA/SAS-4^[1]
- (NVMe from CPU_1)

Rear hot-swap:
2 x 2.5" SATA/SAS-4^[1]

Internal M.2:
2 x M.2 (2280/22110), PCIe Gen5 x4, from CPU_0

Internal M.2 (I/O board - CDCR010):
1 x M.2 (2280), PCIe Gen5 x2, from CPU_0

^[1]Storage card is required to enable SATA and SAS drives.
- Broadcom SAS4x32 expander
- Bandwidth: SATA 6Gb/s or SAS-4 24Gb/s per port

^[Note]Please select verified enterprise SATA devices.

SAS

Supported via storage cards

RAID

Require RAID add-in cards
Onboard VROC key header

PCIe Expansion Slots

PCIe Cable x 5:
- 2 x FHHL x16 (Gen5 x16), from CPU_0
- 2 x FHHL x16 (Gen5 x16), from CPU_1
- 1 x LP x16 (Gen5 x16), from CPU_0

Riser Card CRS101J:
- 1 x FHHL x16 (Gen5 x16), from CPU_0

Riser Card CRS101K:
- 1 x FHHL x16 (Gen5 x16), from CPU_1

1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function

1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function

Front I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

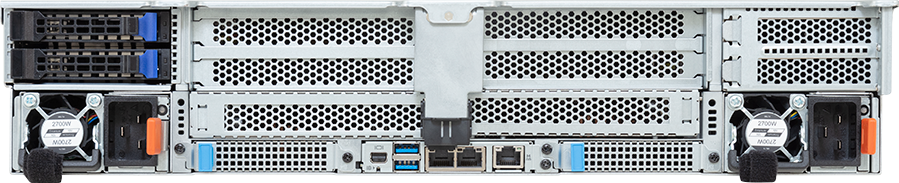

Rear I/O

I/O board - CDCR010:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED

Backplane Board

Speed and bandwidth:
Front side - CBP21C4: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

Power Supply

2 x 2700W 80 PLUS Titanium redundant power supply^[1]

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A

^[1]The system power supply requires C19 power cord.
^[Note][Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

System Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

4 x 80x80x56mm (15,500rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1077 x 679 x 300 mm

Packaging Content

1 x R284-A94-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
2 x Carriers
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR284A94DR000AAL1*
- Motherboard: 9MA94FS0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-553209-M1R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP2025: 9CBP2025NR-00*
- Backplane board with expander - CBP21C4: 9CBP21C4NR-00*
- Fan module: 25ST2-885621-A0R
- Riser card - CRS101J: 9CRS101JNR-00*
- Riser card - CRS101K: 9CRS101KNR-00*
- I/O board with M.2 slot - CDCR010: 9CDCR010NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-227000-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
