The Intel® USB 3.1 controller utilizes 4 PCIe Gen3 lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.
Connecting the Future –
USB Type-C™
USB Type-C™
The World's Next Universal Connector
Reversible USB Type-C™ with USB 3.1
The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-C™.
*Product features may vary by model.

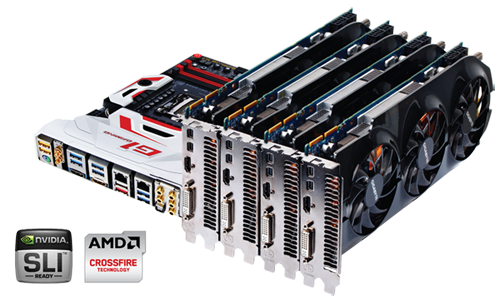

Extreme Multi-GPU Support
Maxed Out Graphics
Unleash the ultimate in graphics configurations.
Support for up to 4 full length discrete VGA cards.
Support for up to 4 full length discrete VGA cards.
Total Realism:
Enjoy the latest gaming titles with maxed out 'Ultra High' settings.
See More Action:
Get smooth frame rates on High Resolution 1440p Displays.
*Product features may vary by model.

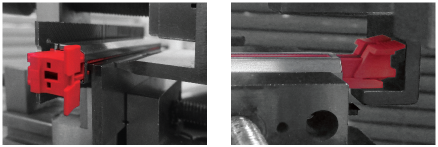

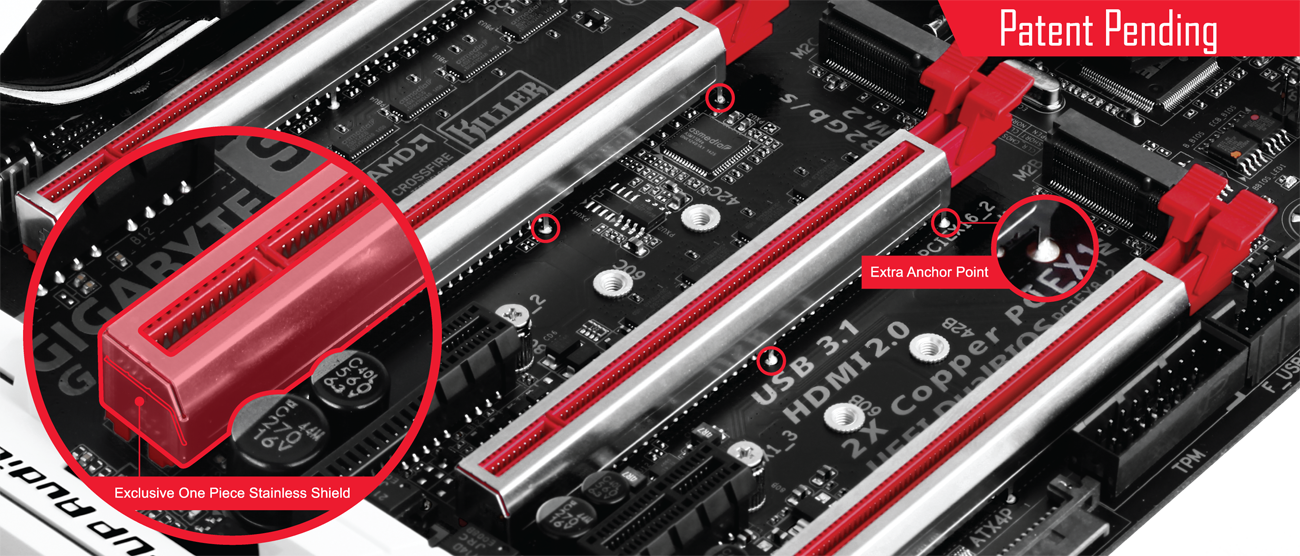

Industry Leading Ultra Durable™ PCIe Metal Shielding
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
* Product features may vary by model.

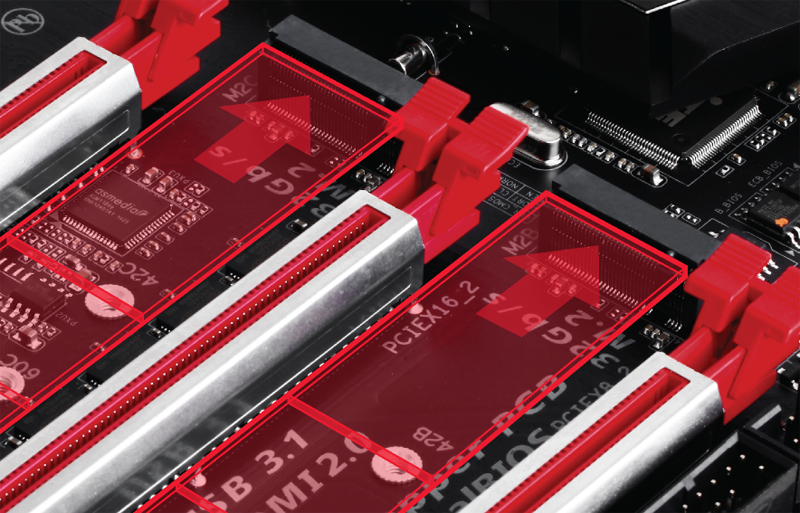

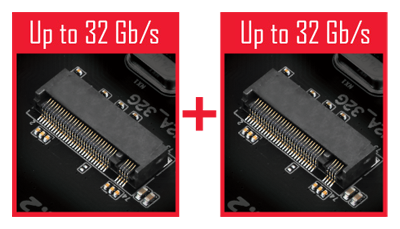

Dual PCIe Gen3 x4 M.2
With two PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.
* Product features may vary by model.
Fast Intel® 750 Series 2.5" SSD Support via M.2 to U.2 Add-in-Card
GIGABYTE Motherboards Support the Latest Consumer NVMe SSD for Truly Amazing Performance
Experience the future of storage performance for desktop client and workstation users with the Intel® SSD 750 Series. The Intel® SSD 750 Series delivers uncompromised performance by utilizing NVM Express over four lanes of PCIe 3.0.

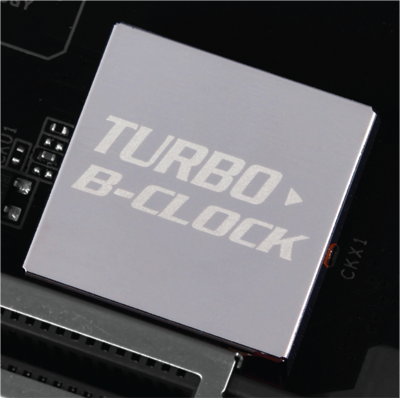

Turbo B-Clock:
Built-in Advanced Performance Tuning IC
Thanks to the onboard TURBO B-Clock Tuning IC, GIGABYTE Motherboards enable Overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 200MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
All New GIGABYTE APP Center Including EasyTune™, Cloud Station™ Utilities and More…

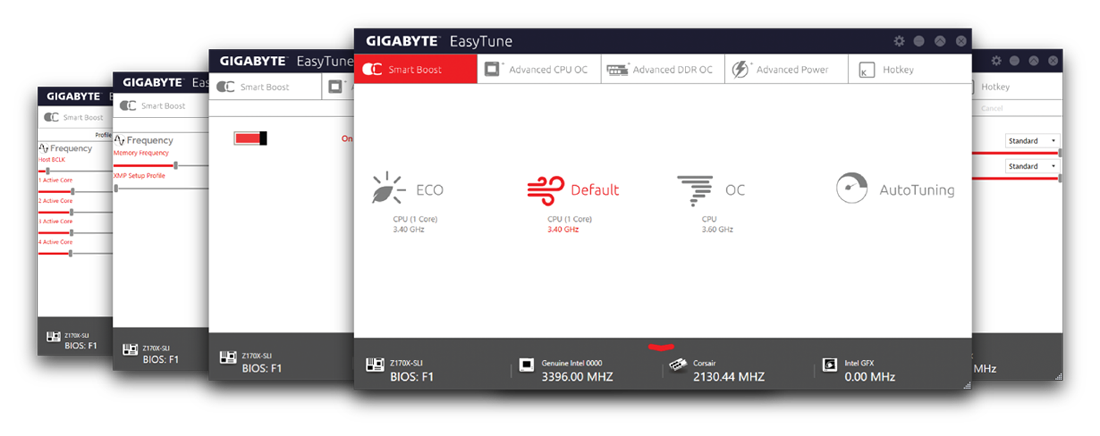

GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

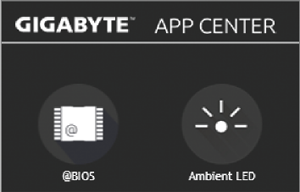

APP Center
GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.
Easy Tune™
Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.
Cloud Station™

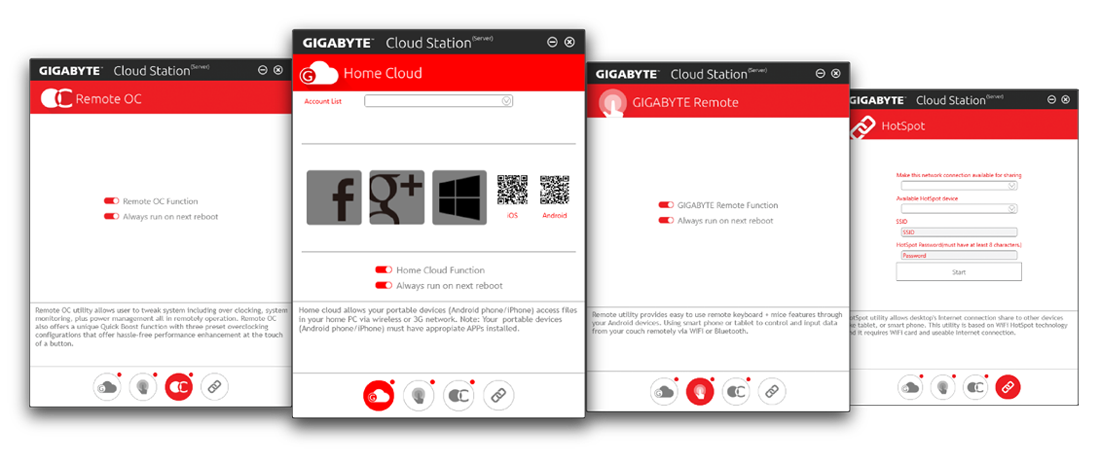

GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

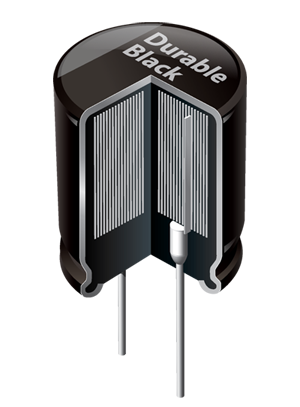

Long Lifespan Durable Black™ Solid Caps
GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.
Q-Flash Plus
GIGABYTE Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the need for CPU or Memory to be installed.
Updating your BIOS on your GIGABYTE motherboard can be done in a flash – even without memory or CPU onboard. Utilizing the EC Controller, the BIOS on your GIGABYTE Motherboard can now be updated through Q-Flash Plus even if your system is unable to boot. An LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally.
* USB thumb drive not included.
* USB thumb drive not included.
22 Phases Digital Power Delivery Design
For its 100 series motherboards, GIGABYTE features a 22 phase power delivery design equipped with 4th gen. IR® digital power controllers and 3rd gen. PowIRstage® ICs featuring Isense technology, which provides more precise current sensing accuracy. This helps evenly distribute the thermal loading between the PowerIRstage® ICs, preventing the overheating of each individual PowerIRstage®, resulting in longer lifespan and better reliability.
