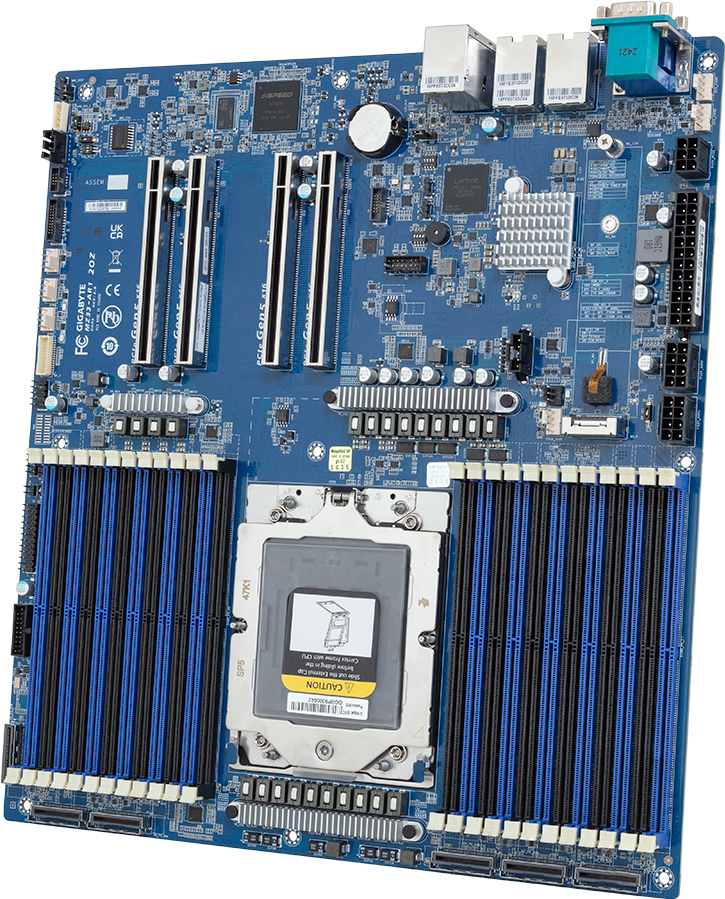

MZ33-AR1
Motherboard - AMD EPYC™ 9005/9004 - E-ATX UP
- Single AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- 2 x 10Gb/s LAN ports via Broadcom® BCM57416
- 2 x MCIO 8i connectors with PCIe Gen5 x8 or SATA interface
- 3 x MCIO 8i connectors with PCIe Gen5 x8 interface
- 1 x MCIO 8i connector with PCIe Gen4 x8 interface
- 1 x M.2 slot with PCIe Gen4 x4 interface
- 4 x PCIe Gen5 x16 expansion slots
Quick Shipping
See More Models
More ready-to-ship models in the MZ33 series.
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SPECIFICATIONS
Form Factor (WxD, mm)
E-ATX
304.8 x 330.2
304.8 x 330.2
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Single processor, cTDP up to 500W
AMD EPYC™ 9004 Series Processors
Single processor, cTDP up to 500W
Socket
1 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 5200 MT/s (1DPC)
RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 5200 MT/s (1DPC)
RDIMM: Up to 4400 MT/s (1R 2DPC), 4000 MT/s (2R 2DPC)
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)
LAN
2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
- 1 x VGA port
Audio
N/A
Storage Interface
MCIO:
2 x MCIO 8i for 4 x Gen5 NVMe or 16 x SATA
3 x MCIO 8i for 6 x Gen5 NVMe
1 x MCIO 8i for 2 x Gen4 NVMe
M.2:
1 x M.2 (2280/22110), PCIe Gen4 x4
2 x MCIO 8i for 4 x Gen5 NVMe or 16 x SATA
3 x MCIO 8i for 6 x Gen5 NVMe
1 x MCIO 8i for 2 x Gen4 NVMe
M.2:
1 x M.2 (2280/22110), PCIe Gen4 x4
RAID
N/A
PCIe Expansion Slots
Slot_7: PCIe x16 (Gen5 x16)
Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16)
Slot_3: PCIe x16 (Gen5 x16)
2 x MCIO 8i (PCIe Gen5 x8 or SATA) [1][2]
3 x MCIO 8i (PCIe Gen5 x8) [1]
1 x MCIO 8i (PCIe Gen4 x8)
[1] Please refer to the optional parts for qualified cables to ensure Gen5 signal quality.
[2] The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS.
Slot_6: PCIe x16 (Gen5 x16)
Slot_4: PCIe x16 (Gen5 x16)
Slot_3: PCIe x16 (Gen5 x16)
2 x MCIO 8i (PCIe Gen5 x8 or SATA) [1][2]
3 x MCIO 8i (PCIe Gen5 x8) [1]
1 x MCIO 8i (PCIe Gen4 x8)
[1] Please refer to the optional parts for qualified cables to ensure Gen5 signal quality.
[2] The connector supports SATA by default. To enable the other option, please refer to the manual and adjust the settings in the BIOS.
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x USB 2.0 header
1 x M.2 slot
6 x MCIO 8i connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM header
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
1 x CPU fan header
5 x System fan headers
1 x USB 3.2 Gen1 x2 header
1 x USB 2.0 header
1 x M.2 slot
6 x MCIO 8i connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x TPM header
Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
1 x VGA port
1 x COM port
2 x RJ45 ports
1 x MLAN port
1 x ID button with LED
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
- Optional TPM2.0 kit: CTM012
OS Supported
Please refer to OS compatibility table in support page
Board Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
PSU Connectors
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
2 x 8-pin ATX 12V power connectors
1 x 6-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MZ33-AR1
1 x I/O shield
1 x Quick start guide
1 x MCIO 8i to 8 x SATA 6Gb/s cable (600mm)
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
1 x I/O shield
1 x Quick start guide
1 x MCIO 8i to 8 x SATA 6Gb/s cable (600mm)
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton
Bulk Packaging Content
10 x MZ33-AR1
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
10 x I/O shields
Carton dimensions: 600 x 473 x 517 mm
Reference Numbers
Retail: 9MZ33AR1MR-000-3*
Bulk: 9MZ33AR1NR-000-3*
Part Numbers:
- I/O shield: 12AIO-MZ33AR-00R
- MCIO 8i to 8 x SATA cable (600mm): 25CF9-600721-M0R
Optional parts:
- MCIO 8i to 2 x MCIO 4i cable (550mm): 25CF9-550700-A4R
Bulk: 9MZ33AR1NR-000-3*
Part Numbers:
- I/O shield: 12AIO-MZ33AR-00R
- MCIO 8i to 8 x SATA cable (600mm): 25CF9-600721-M0R
Optional parts:
- MCIO 8i to 2 x MCIO 4i cable (550mm): 25CF9-550700-A4R
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SUPPORT
Controlador
BIOS
Utilidad
Firmware
OS
- All
- All
- Windows Server 2022
- Windows Server 2019
Chipset
Chipset
Versión
Tamaño
Fecha
Chipset driver for AMD EPYC 9005/9004 series processors
Version : 6.10.07.747
2.82 MB
Oct 29, 2024
S.O.: Windows Server 2019,Windows Server 2022
AMD Chipset Windows Server PSHED Plug-in Device Driver
Version : 6.10.04.235
26.5 MB
Oct 29, 2024
S.O.: Windows Server 2019,Windows Server 2022
LAN
VGA
VGA
Versión
Tamaño
Fecha
ASPEED Graphic Driver
Version : 1.15.01
2.58 MB
Jan 04, 2024
S.O.: Windows Server 2019,Windows Server 2022
BIOS
Descripción
Versión
Tamaño
Fecha
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utilidad
Descripción
Versión
Tamaño
Fecha
GSM CLI
Version : 2.1.78
147.79 MB
Dec 12, 2024
S.O.: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
S.O.: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
S.O.: Linux,Windows Server 2016 64bit,Windows Server 2019
Manual
Descripción
Versión
Tamaño
Fecha
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
English
Descripción
Versión
Tamaño
Fecha
Lista de Soporte para S.O.
Version : R1
0.06 MB
Oct 15, 2024
AMD EPYC™ 9005/9004 Series Processors OS Support List
