Z890 AORUS MASTER AI TOP

Z890 A MASTER AI TOP


AI TOP

Scalability

CONNECTIVITY

Infinite-Memory

THERMAL

DIY-FRIENDLY

ULTRA DURABLE

Key Features
  • Training your own AI on your desk
  • Supports Intel® Core™ Ultra processors (Series 2)
  • Digital 20+1+2 phases VRM solution
  • Ultimate Scalibility : 2*PCIe 5.0 x16 slots for Multi-GPU and 4*PCIe 5.0/4.0 x4 M.2 slots
  • Next-gen Connectivity : Dual Thunderbolt™ 4 Type-C with DP-Alt
  • Blazing Fast Networks : Dual 10GbE LAN & Wi-Fi 7 & directional Ultra-high gain antenna
  • D5 Bionic Corsa for Infinite Memory Performance
  • AORUS AI SNATCH : Auto-Overclocking Software by AI models
  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users
  • Premium Compatibility : 4*DDR5 with XMP Memory Module Support
  • Reinforced Overall Thermal : VRM Thermal Armor Advanced with I/O ZONE AORUS LIGHTING  & M.2 Thermal Guard XL
  • DDR Wind Blade : Enhanced Active Cooling for Memory Modules
  • DTS:X® Ultra Audio : ESS ES9280 and ESS SABRE Hi-Fi 9118 DAC
  • M.2 EZ-Match : Magnetic alignment for easy installation of large heatsinks
  • WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click : M.2 heatsinks with screwless design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • New Power Monitor in HWinfo for real-time monitoring on CPU power phases
  • PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
  • Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
OVERVIEW
Performance
Thermal
Connectivity
DIY Friendly

  • 20+1+2 Digital VRM Design

    • 110A Smart Power Stage
    • 8-Layer PCB
    • Low-Loss PCB
    • 2X Copper PCB
    • Premium Choke and Capacitor

  • I/O ZONE AORUS LIGHTING

    • Immersive AORUS lighting effects for gamers
    • Enhances your gaming setup's visual appeal

  • Full-length PCIe slots

    • 2 x PCIe 5.0 x16 (run x8, x16) with PCIe UD Slot X
    • 1 x PCIe 4.0 x4 Slot with PCIe UD Slot

  • UD Power Connector

    • 24 pin ATX with UD Solid Pin
    • 8+8 pin CPU with UD Solid Pin

  • Intel® Core™ Ultra processors (Series 2) Support

  • 4 x DIMMs, Dual Channel DDR5
    with Memory UD Slot

  • 4 x M.2 Slots

    • 1 x PCIe 5.0 M.2 Slot
    • 3 x PCIe 4.0 M.2 Slots

    • VRM Thermal Armor Advanced

      • 3X Ultimate Heatpipe
      • 12 W/mk Thermal Pad
      • Integrated IO Shield

    • M.2 Thermal Guard XL

    • M.2 Thermal Guard Ext.

    • CPU socket with RL-ILM

      • Q-FLASH PLUS Button

      • Clear CMOS

      • Dual THUNDERBOLT™ 4
        Type-C®with DP-Alt

      • 10 x USB 3.2 Gen 2

      • Dual 10 GbE LAN

      • Wi-Fi 7 with Directional
        Ultra-high gain Antenna

      • WIFI EZ-Plug

      • Front USB-C 20Gb/s

      • 1 x Sensor Panne Link (HDMI)

      • 4 x SATA 6Gb/s

      • Immerse in ESSential Audio

        • ESS ES9280A + ESS 9118
        • Precisión Audio Stream
        • WIMA Audiophile Grade Capacitors

      • RGB FUSION

        • 1 x RGB LED Header
        • 4 x ARGB LED Headers

        • WIFI EZ-Plug

        • M.2 EZ-Latch Plus
          M.2 EZ-Latch Click

        • EZ-Latch Un-Install Angle

        • EZ-Debug Zone

          • Multi-key
          • Power Button
          • 80 port
          • Debug LEDs

        • PCIe EZ-Latch Plus

        • M.2 EZ-Match

          GIGABYTE AI TOP

          Train your own AI on your desk.

          Ultimate scalability and Connectivity​

          Brings you the future-proofing capability.

          Infinite Memory Performance

          D5 Bionic Corsa Technology.

          Steady Power

          Keeps your computing smooth.

          D5 Bionic Corsa

          Advanced AI-enhanced overclocking tech. for DDR5.

          Comprehensive Thermal

          Keep your system cool and efficient.

          Hassle-free Assembly

          Ultimate DIY-Friendly experience.

          Tailored Computing

          More superb, user-friendly, customized BIOS & software.

          Born from Ultra Durable™

          Built for longevity and reliability.

          GIGABYTE AI TOP
          Train your own AI on your desk

          In the age of local AI, GIGABYTE AI TOP is the all-round solution to win advantages ahead of traditional AI training methods. It features a variety of groundbreaking technologies that can be easily adapted by beginners or experts, for most common open-source LLMs, in anyplace even on your desk.

          Supports 236B LLM Local Training
          Intuitive Set-up
          Flexbility & Upgradability
          Privacy & Security
          Suitable for Home Use
          AI TOP Utility 2.0
          Reinventing AI Training

          The all-new AI TOP Utility 2.0 brings enhanced features and broader model support, empowering users from novices to experts to unlock AI's potential right at their desks.

          Learn more

          AI TOP Hardware
          Enhanced Performance for AI Training

          The AI TOP Hardware features a series of GIGABYTE AI TOP products that are optimized in power efficiency and durability for AI training workloads. It includes upgradeable components and is easy to build at home.

          Learn more

          * Images for reference only, system configuration will vary by model.

          Ultimate scalability
          Brings you the future-proofing capability​
          Dual PCIe x 16 slots for Multi-GPU
          4X PCIe 5.0/4.0 M.2 slots

          More

          Dual PCIe x 16 slots for Multi-GPU

          Dual PCIe 5.0 x16 slots (run x16, x8) to deliver premium graphics performance for superior rendering capabilities, more immersive gaming experience, and AI trainings.

          4X PCIe 5.0/4.0 M.2 slots

          The fast storage of four PCIe 5.0/4.0 M.2 support enables local computations to be completed in the shortest possible time.

          Connectivity
          Future Connectivity

          Enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.

          Dual THUNDERBOLT™ 4
          Daul 10GbE LAN
          Wi-Fi 7
          Directional Ultra-high Gain Antenna

          More Connectivity info.

          Dual Thunderbolt™ 4 Compatible USB4

          Boasts 40Gb/s speed, supports DisplayPort 1.4a, and enables connection of up to 10 devices, including 4K/8K displays, all while providing charging capabilities.

          Dual 10G LAN

          The Dual 10G LAN design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.

          Wi-Fi 7 brings you the Ultimate VR experience

          Wi-Fi 7 transforms the VR landscape with its exceptional bandwidth and minimal latency, delivering an unparalleled, seamless immersive VR experience.

          320 / 160 MHz channels

          Wi-Fi 7 introduces support for expansive 320/160 MHz channels, dramatically increasing bandwidth for unprecedented data transfer speeds.

          4K-QAM

          Leveraging 4K-QAM technology, Wi-Fi 7 elevates data throughput, enabling lightning-fast file transfers and buffer-free streaming.

          Multi-link Operation

          Wi-Fi 7's MLO (Multi-Link Operation) technology allows strategic bandwidth allocation - dedicating 2.4GHz for streaming and 5/6GHz for gaming, resulting in a superior and interruption-free network experience.

          Deterministic low latency

          With its deterministic low latency, Wi-Fi 7 minimizes delays, making it the best choice for time-sensitive applications such as video conferencing and competitive online gaming.

          GIGABYTE Directional Ultra-high Gain Antenna

          Boost your signal strength with GIGABYTE's Ultra-high gain Antenna, featuring smart antenna technology for optimized Wi-Fi signal transmission.

          Direction signal
          up to 5dBi

          Omnidirectional signal
          up to 4dBi

          Magnetic Base

          Immerse in ESSential Audio
          ESSential USB DAC
          WIMA Audiophile Grade Capacitors

          More

          Conquer gaming realms with unparalleled audio
          ESS ES9280A DAC-Linear Apodizing

          Utilizing the HyperStream® II by ESS and the innovated HEX DAC design, we immerse you into your favorite games or any sounding scenario like never before.

          ESS 9118
          • ESS SABRE reference DAC (ESS 9118)
          • Hyperstream Dynamic Range (SNR 125dB)
          • High-Res music (32bit, 192KHz PCM)
          • Super low THD+N (THD+N -112db
          Precisión Audio Stream

          TXC OSCILLATOR offers precise timing triggers for Digital-to-Analog Converters, while also providing excellent resistance to corrosion and oxidation.

          Audiophile Grade Capacitors

          WIMA & Premium Grade Audio capacitors ensure consistent power delivery, recreating a professional studio-quality sound experience.

          Hi-Res Audio

          Hi-Res Audio certified, which indicates the product‘s ability to reproduce frequencies up to 40kHz or higher, always ensures the user of the best audio quality.

          DTS :X® Ultra

          DTS Sound Unbound delivers immersive 3D audio for gaming on headphones or speakers. It supports various formats, calibrates devices, and utilizes Microsoft Spatial and DTS Headphone:X for precise and immersive sound. Explore the immersive gaming sound of DTS Sound Unbound at https://dts.com/sound-unbound.

          Memory
          Infinite Memory Performance

          AI TOP motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

          Learn More About BIOS Features

          Effortlessly Boost Your DDR5 Memory Speed

          DDR5 XMP Booster feature offers ready-to-use settings derived from analysis of memory IC and PMIC vendor. This allows users to maximize DDR5 memory performance without the hassle of manual tweaking for overclocked DDR5 memory kits.

          *DDR5 MEMORY UPGRADE involves DDR5 memory overclocking, overclocking capability depends on users' hardware configuration.
          Boost instantly

          Instant memory performance uplift

          Hands-off memory tuning

          Eliminate manual entry of complex memory settings such as clock, voltage, and timings.

          Hassle-free overclocking

          Seamlessly overclock for both standard and XMP 3.0 DDR5 memory frequencies.

          Incorporated database

          Built-in library of pre-optimized configurations for diverse memory chip suppliers

          Boost DDR5 Memory Performance with Optimized Tuning:

          Leverage XMP 3.0 User Profile to fine-tune memory settings for peak system performance.

          Customizable SPD Profiles or retrieve from database:

          Create and transfer two custom SPD profiles between systems.

          Quick Performance Simulator:

          Rapidly assess potential memory performance by entering clock speeds and timing parameters.

          Profile Management:

          Store and retrieve memory configurations for online sharing.

          Unlock non-overclockable DDR5 Potential:

          Enhance clock speeds of non-overclockable DDR5 modules.

          Instant Reset:

          Revert memory settings with a single click.

          QVL List

          *Memory overclocking and XMP support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.

          D5 Bionic Corsa
          AI Overclocking
          For peak performance
          AORUS AI SNATCH

          Auto-Overclocking Software by AI model

          Auto-Overclocking Software by AI model

          Unleash Ultimate Performance with One-Click Activation.

          Auto CPU & DDR5 Memory Boost

          With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.

          One-Click Acceleration:

          Enhance CPU & DDR5 speeds with a single click.

          • Real time Analyze
          • OC accuracy UP
          • EZ to Pro

          Enhanced Computing Power

          Fast AI Performance

          EZ to Peak

          Safe OC

          Less Power Usage

          Fast AI Performance

          Accelerate AI processing for greater performance

          Up to

          11%

          AI Performance*

          • Accelerated AI decision-making
          • Boosted reinforcement learning
          • Streamlined language processing

          *Tested by GeekBench AI PRO

          Boost CPU & Memory Performance

          Raise system speed and performance.

          Up to

          7%

          Memory Performance Boost*

          Up to

          5%

          CPU Performance Boost**

          • Tailored-overclocking for your CPU and memory
          • Faster data transfer and application loading
          • Improved multitasking performance
          • Optimized overall system performance

          *Tested by AIDA64 Memory
          **Tested by R23 Multi Core

          Maximize performance in a snap

          Enable users to easily become overclocking experts through a simple interface.

          EZ to Peak
          Smart & Safe overclocking

          Protect your motherboard through multiple over-temperature and over-current safeguards.

          OTP

          Over Temperature Protection

          OCP

          Over Current Protection

          OVP

          Over Voltage Protection

          OPP

          Over Power Protection

          UVP

          Under Voltage Protection

          SCP

          Short Circuit Protection

          Less Power Usage
          Optimal power-efficiency

          Enhance Up to

          3%

          CP/Per Watt*

          With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.

          *
          AORUS AI SNATCH Tutorial :
          Enhance performance and exceed limits

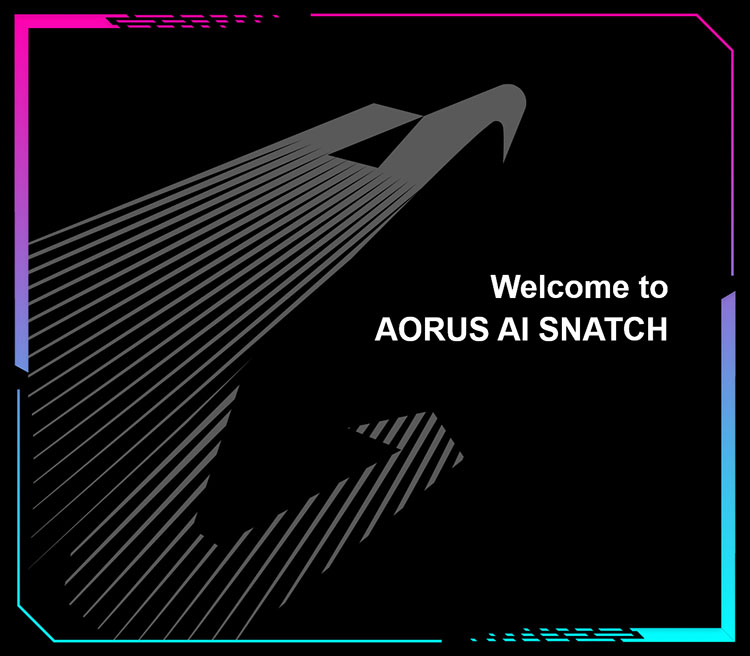

          Show Welcome Page

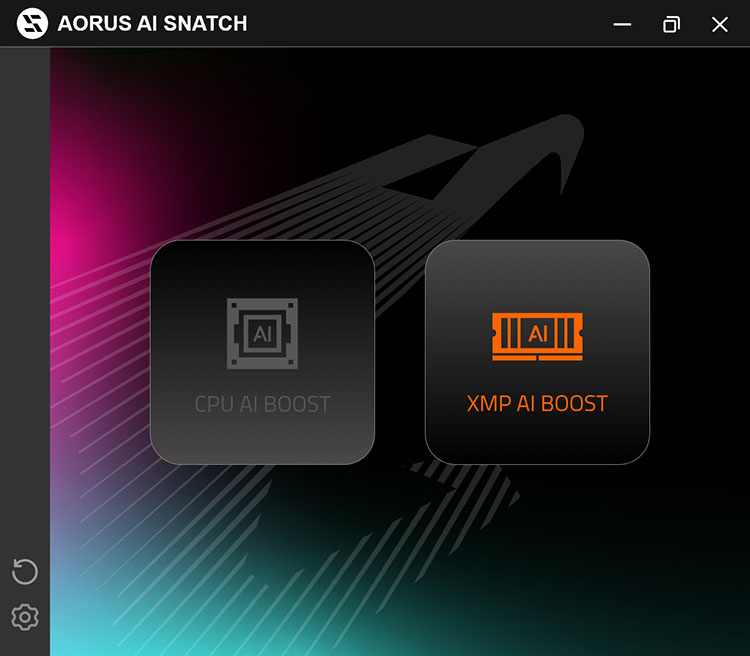

          Step 1: Press the XMP AI BOOST button

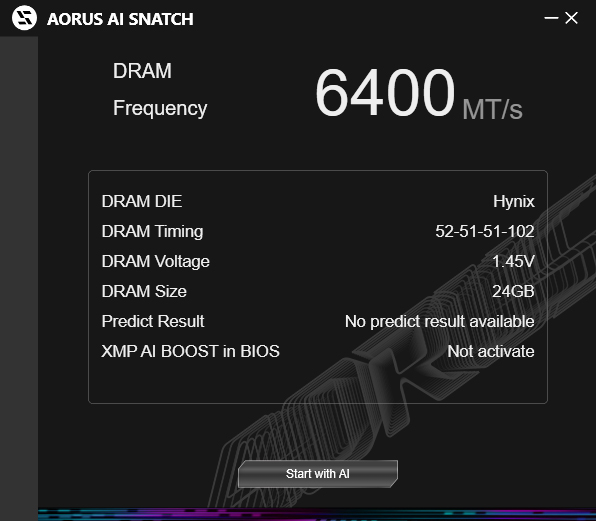

          Step 2: Press Start with AI

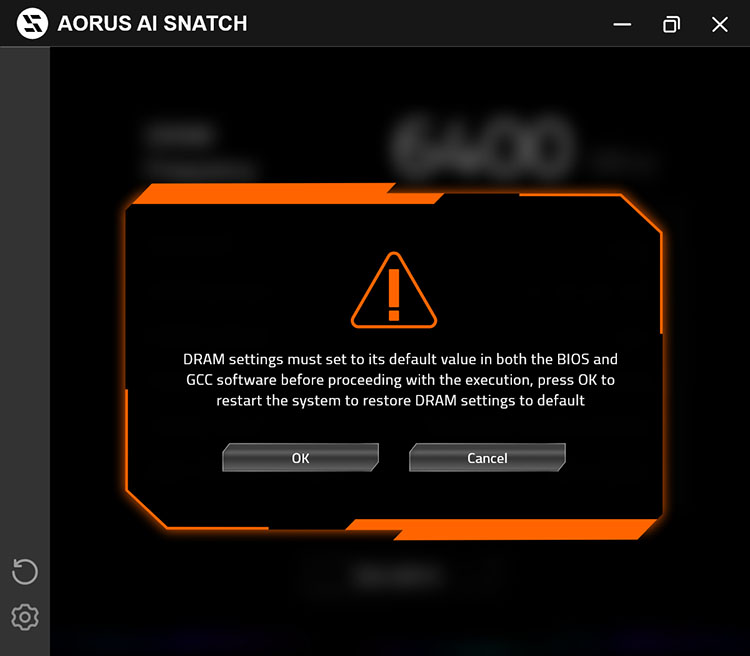

          Step 3: When a notification pops up, press the OK button to continue

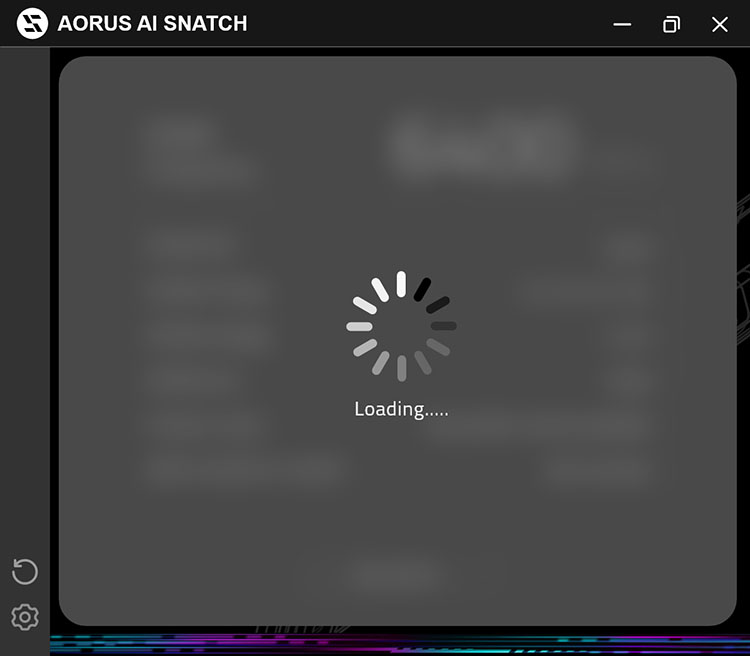

          Loading

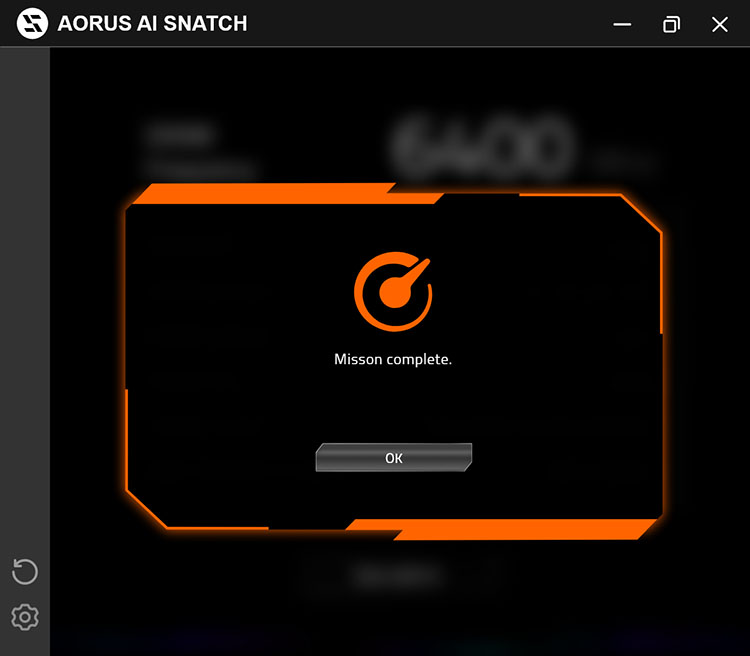

          Mission Complete

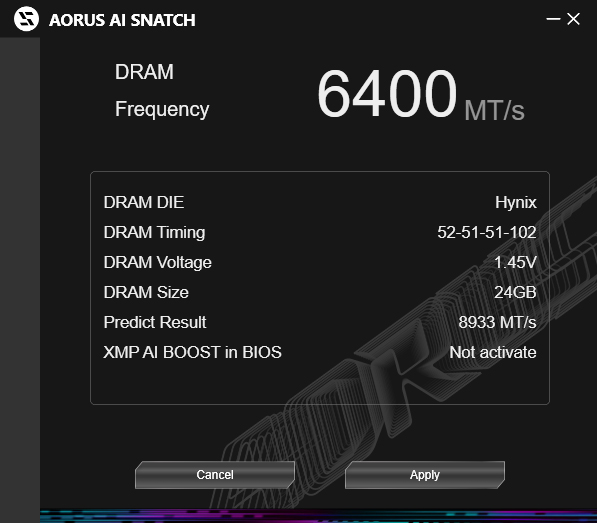

          Step 4: Press the Apply button to agree to the operation

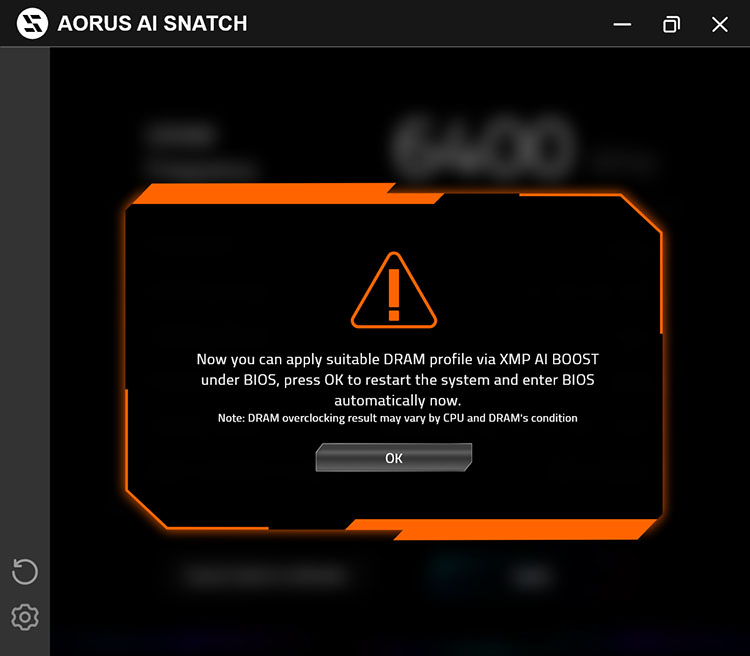

          Step 5: When a notification pops up, press the OK button to continue

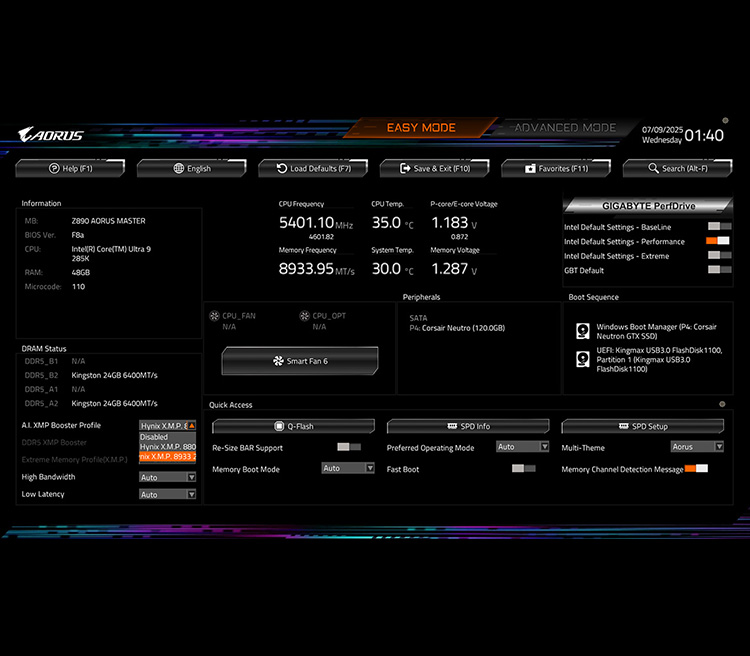

          Step 6: Select preferred XMP Booster Profile in BIOS

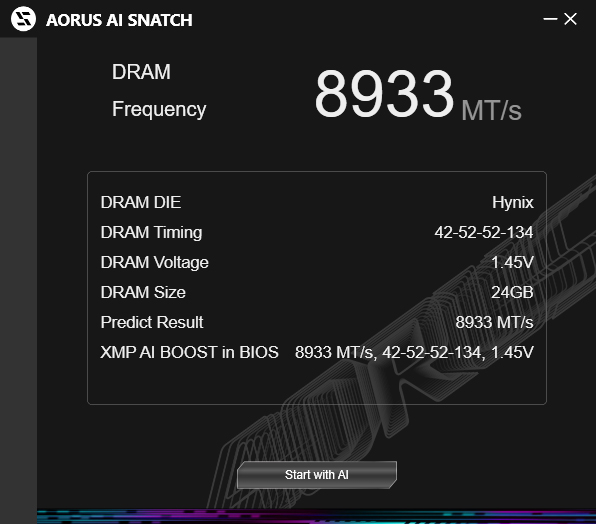

          Step 7: XMP AI BOOST on DRAM frequency accomplished

          AI SNATCH Engine

          Advanced AI Overclocking Model

          AI SNATCH Engine

          The AI model, trained by AI TOP on diverse overclocking datasets, improves precision and stability while optimizing performance. This model serves as the core of AORUS AI Snatch software.

          • OC to 20% higher speed
          • OC Efficiency UP
          • No more try and error
          • Optimal performance-stability balance.
          AI Flow Chart

          Data Augmentation

          • Expands dataset size
          • Reduces overfitting risk
          • Simulate more realistic conditions
          Precise Dataset

          AI-Driven Overclocking Analysis

          • List overclocking parameters
          • Generate OC attribute weights and relevance matrix
          • Create correlation heatmap
          • Identified critical attributes
          AI Design
          For MB signal enhancement
          AI-Driven PCB Design

          Redefining PCB Design with AI

          AI-Driven PCB Technology
          -Redefining PCB Design with Artificial Intelligence

          AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.

          • AI-ViaFusion Technology

            Optimized vias & pads for signal integrity

          • AI-Trace Technology

            Smart routing for peak performance

          • AI-Layer Technology

            Tailored stackups for enhanced functionality

          Key Features:
          AI-Generated Design Recipes
          AI-Driven Simulation
          AI-Powered Signal Verification
          Single and cross-layer signal optimization

          AI-ViaFusion™ Technology - AI-Powered Excellence in Signal Integrity

          Reduction in Signal Reflection Up to 28.2%
          AI-ViaFusion, an AI-assisted via optimization technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods.

          Best-in-class Signal Quality

          • Superior signal transmission efficiency
          • Dramatically reduced signal reflection
          • Elevated signal quality and reliability
          • Enhanced cross-layer PCB signal performance
          AI-ViaFusion Technology - AI-Engineered Via Design Formula

          AI-ViaFusion is a proprietary AI-generated hybrid via structure design. This PCB technology, validated through AI simulations and testing, aims to enhance high-speed signal transmission.

          • Optimized Via Design

            Varied via sizes for optimized signal and power paths

          • Driven Pad Optimization

            Custom pad sizes for performance and production balance

          • Precision Impedance Matching

            Via & pad sizes selected for optimal signal impedance

          Unlock AI-Powered Performance with AI-ViaFusion Technology
          • Minimized Insertion Loss

            Optimized vias reduce signal loss

          • Enhanced Return Loss

            Precision impedance matching reduces reflections

          • Optimized Eye Diagram

            Wider eye opening improves signal integrity

          *Eye Diagram: Signal quality assessment tool in digital communications. Overlays bit cycle waveforms, forming eye-like pattern. Larger, clearer opening indicates better signal quality and transmission reliability.
          AI-ViaFusion Technology - AI-Driven Revolution in PCB Design

          Vias (Vertical Interconnect Access) are critical for multi-layer PCB connectivity. Via size significantly impacts signal integrity, affecting capacitance, reflections, and crosstalk.

          AI-ViaFusion Technology optimizes PCB performance through:

          • Strategic Via Sizing

            Optimized for varied signals across PCB

          • Enhanced Impedance Matching

            Precise control via machine learning

          • Space Optimization

            Maximized layout efficiency with signal integrity

          AI-Trace Technology
          -Revolutionizing PCB Routing with AI

          AI-Trace Technology transforms PCB design by leveraging AI to optimize trace routing, resulting in enhanced performance and signal integrity.

          • Fiber Weave Effect Mitigation

            Optimized signal synchronization

          • Shielded Memory Routing

            Optimized signal shielding and precision

          • Impedance-Optimized Topology

            Refined traces with minimal resistance

          • Isolated Memory Routing

            Optimized trace layout and layer separation

          • Daisy-Chained Routing

            Innovative design eliminates signal bottlenecks

          Experience next-gen PCB routing with GIGABYTE's AI-Trace Technology.

          Mitigating Fiber Weave Effect with AI-Trace Technology

          Fiber Weave Effect in high-speed PCBs stems from varying dielectric constants of epoxy resin and glass fibers, this causes varying signal propagation speeds, leading to signal integrity issues such as crosstalk and jitter. AI-Trace Technology implements innovative routing angles to mitigate this effect.

          Benefits of Mitigation:

          • Reduces signal distortion
          • Improves transmission reliability
          • Supports higher data rates
          • Enhances overall system stability

          AI-Layer Technology -Next-Generation Multi-Layer PCB Design

          AI-Layer Technology creates innovative layer materials for multi-layer PCBs, delivering unparalleled performance.

          Core Innovation:
          AI-Optimized Layer Customized Design

          • AI-optimized layer design
          • Unique material for each layer
          • AI-verified signal integrity
          • Tailored PCB for peak performance

          Key Features:
          AI-optimized PCB layer and design material
          Server-Grade Low Loss PCB*
          Enhanced 2X Copper Technology

          (* Low Loss for 8-layer PCB model only)
          HyperTune BIOS

          AI-Driven Advanced BIOS Optimization Technology

          HyperTune BIOS - AI-Driven Advanced BIOS Optimization Technology
          BIOS Efficiency Boost Up to 95%+

          HyperTune BIOS uses AI to optimize MRC and adapt to signals. Z890 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance.

          AI-Enhanced Performance Optimization
          • AI-driven MRC parameter optimization
          • Adaptive signal strength tuning
          • AI tuning accuracy exceeds 95%
          • Continuous learning advances performance limits

          Experience GIGABYTE's AI-Enhanced HyperTune – Unleashing next-gen BIOS performance.

          HyperTune BIOS - Advanced MRC Optimization

          Memory Reference Code (MRC) is a critical component in BIOS that initializes and configures system memory. HyperTune BIOS leverages AI to optimize MRC, pushing memory performance to new heights while maintaining system stability.

          Benefits of HyperTune BIOS MRC Optimization
          • Boosted memory clock speeds
          • Faster system response
          • Improved stability under load
          • Auto-adapts to memory modules
          Sturdy VRM Design
          Steady Power

          AI TOP Series with steady power keeps your AI operation smooth.

          Digital VRM Design

          Delivers consistent, high-powered performance to elevate your overclocking to the next level.

          20
          VCORE Phases SPS 110A

          Unlock the full power of your multi-core CPU for unmatched performance.

          1
          VCCGT Phase SPS 80A

          Optimized for integrated GPU performance and memory management within the CPU.

          2
          VCCSA Phases SPS 80A

          Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.

          Cooling
          Comprehensive Thermal

          Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient

          Level Up Epic VRM heatsinks for non-stop gaming
          10X
          Massive cooling surface
          3X Ultimate
          Heatpipe
          12 W/mK
          thermal pad
          Premium VRM Thermal Armor for Superior Cooling
          "Stay Cool, Game On"

          High-coverage MOSFETs with integrated molded heatsinks

          10X larger surface area for enhanced heat dissipation
          • With up to 10 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
          True one-piece heatsink design
          • Outperforms competitors' multi-piece solutions
          • Integrated design and expanded surface area deliver exceptional cooling performance
          Multi-cut design with channels for improved airflow
          • More grooves, more airflow.
          • Better airflow, cooler system.
          3X Ultimate Heatpipe for optimal heat transfer
          • Designed for optimal thermal conductivity
          • Ensures efficient heat transfer and maintains system stability
          12 W/mK thermal pad for efficient thermal conductivity
          • High-performance thermal pad
          • Keeps your system cool and running at peak efficiency
          M.2 Thermal Guard XL

          with M.2 Thermal Guard Backplate

          * Test results are for reference only and may vary in different circumstances.
          9x
          optimized heat dissipation
          M.2 Thermal Guard Ext.

          3x M.2
          slots coverage
          DDR Wind Blade

          Active cooling, easy installation.

          * Test results are for reference only and may vary in different circumstances.
          10°C
          lower temperature
          Small Vents,
          Big Cooling Power
          * Test results are for reference only and may vary in different circumstances.
          Up To
          7°C
          lower temperature
          RL-ILM design
          Reduce up to
          4°C

          The RL-ILM (Reduced Load-independent loading mechanisms) significantly improves thermal performance up to 4°C and avoids possible bending of the CPU IHS (integrated heat spreader), allowing overclockers and enthusiasts to push their CPUs beyond the limit without any worries.

          Smart Fan 6

          Cool. Quiet. Customized.

          Smart Fan 6

          Superior cooling performance and whisper-quiet operation for your gaming rig.

          High Current Support
          • Supports both PWM and DC fans, plus water cooling pumps
          • Up to 24W (12V x 2A) capacity per fan header
          • Built-in over-current protection
          Precision Control
          • Multiple temperature and fan speed points
          • Customizable fan curves for optimal performance
          Dual Curve Mode
          • Choose between slope and stair modes
          • Tailor cooling to your specific needs and preferences
          Fan Stop Technology
          • Fans can be completely turned off at low temperatures
          • Ensures silent operation during light loads
          Smart Fan 6 BIOS UI

          Note: Images are for illustrative purposes and may differ based on your model.

          Enhance Fan Curve UI
          • 7 adjustable control points
          • Expanded speed graph for precise adjustments
          Slope/Stair Dual Graph Mode
          • Slope mode: Smooth fan speed curve
          • Stair mode: Steady speeds within temperature ranges
          • Easy switching between modes
          Manual Input
          • Fine-tune fan speeds for optimal performance
          • Precise control for enthusiasts
          EZ Tuning
          • Quick setup with 4 temperature and fan speed points
          • Automatic optimization of fan curve
          Fan Curve Profile
          • Save personalized settings to BIOS ROM
          • Maintain custom settings through BIOS updates
          Easy & Friendly
          Hassle-free Assembly

          Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

          M.2 EZ-Match

          Revolutionary magnetic design for effortless M.2 SSD installation and maintenance.
          -Magnetic attachment system
          -Allows for easy heat sink reattachment
          -Enhances overall system maintenance efficiency

          WIFI EZ-Plug

          The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.

          EZ-Latch Designs

          User-friendly designs simplifying the assembly process.

          * Images for reference only

          M.2 EZ-Latch Click

          screwless installation for M.2 heatsink

          M.2 EZ-Latch Plus

          screwless installation for M.2 SSDs

          PCIe EZ-Latch Plus

          Easy ejection with single click for graphics cards

          Fast-Access Controls

          Handy, Revert, Refresh

          EZ Debug Zone Q-FLASH Auto Scan

          More Quick Control Elements

          EZ Debug Zone

          Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.

          * Photo for reference only.
          Multi-key

          A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.

          RGB Switch

          Disable all light displays on the motherboard.

          Direct-To-BIOS

          Access the BIOS settings directly without keyboard inputs.

          Safe Mode

          Access BIOS safe mode to modify select settings while preserving other configurations.

          Optimal DRAM Installation Indicator

          The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.

          Q-FLASH Auto Scan

          The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.

          Q-FLASH PLUS

          Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.

          STEP 1

          Connect the 24-pin and 8-pin power cables directly to the motherboard.

          STEP 2

          Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.

          STEP 3

          Press the Q-FLASH PLUS button to trigger automatic BIOS updating.

          Ultra Durable™
          Born from Ultra Durable™

          Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. AORUS series motherboards are engineered to endure and excel.

          PCIe UD Slot X

          The latest PCIe UD Slot X offers unparalleled robustness, delivering superior protection for your graphics card.

          10X load-bearing capacity
          integrated, single-piece design anchored to a exclusive backplate
          Inner Lining Rubber Strip
          Safeguards your graphics card's PCB against potential damage
          Zinc Alloy
          Provides effective EMI shielding for high-frequency signals
          Memory UD Slot D5

          employs a unibody, stainless-steel shield design, reinforcing memory slots and optimizing signal integrity and overclocking potential.

          1.3X
          increase in anti-bending
          Withstands 5000+
          insertion and removal cycles
          Employs SMD technology
          to minimize signal degradation
          UD Power Connector

          Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.

          Solid Pins
          Delivers superior conductivity and signal transmission and reduces metal wear from repeated connections.
          Ultra Durable PCIe Armor

          Features a metal reinforcement plate for the PCIe x16 slot, enhancing stability and durability to support large graphics cards.

          Tailored Computing
          Collaborative Excellence in Computing

          GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

          UC BIOS

          Restructured with user-centered and intuitive performance adjustment mechanisms.

          Multi-Theme
          Multiple BIOS skin with newly exclusive grayscale mode
          AIO Fan Control
          Adjust AIO fan speed in the BIOS
          AI PerfDrive
          Learn more
          Multi-Theme

          Now users can choose different BIOS themes with one simple click It not only delivers an immersive user experience but also offers a brand new user-friendly theme: Grayscale.

          AIO Fan Control

          Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.

          * Supports for AORUS WATERFORCE X II series AIO only
          AI PerfDrive

          Featuring " Recommand me profile" function, AI Perfdrive uses the loading tool to make intelligent evaluation and predictions of the optimal usage scenarios for users. Based on the actual temperature performance of the user's system, it can provide users the most optimal and customized "preset profile" recommendations.

          Loading tool

          Refined BIOS Interface

          GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability..

          Quick Access Function

          GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.

          HWiNFO

          Exclusive Partnership

          Power Monitor
          AORUS & HWiNFO Co-branded OSD
          Learn more
          Power Monitor

          The new feature provides real-time monitoring on CPU Vcore power phases.

          • Output current/power in total
          • Output of each power phase
          • Efficiency

          *This feature will be activated only on GIGABYTE AMD and Intel 800 series motherboards with Intersil, Onsemi, and Infineon power controller.

          AORUS & HWiNFO Co-branded OSD

          AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.

          Default AORUS skin

          When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well.

          *AORUS skin auto-applies when detecting a GIGABYTE motherboard.

          Memory Timings Monitor

          Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.

          Detailed BIOS information

          GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.

          GIGABYTE Control Center

          A unified software platform encompassing multiple GIGABYTE product.

          RGB Fusion
          Personalize the RGB illumination on your motherboard and connected peripherals.
          Learn more
          Spotlight your flair

          Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.

          Varnish your shine

          Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.

          *The information provided is for reference; please prioritize your specific setup and specifications.
          1x RGB LED header
          4x ARGB LED headers

          * Термины HDMI, HDMI High-Definition Multimedia Interface, фирменный стиль HDMI и логотип HDMI являются товарными знаками или зарегистрированными товарными знаками компании HDMI Licensing Administrator, Inc.
          * Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photographic variables and monitor settings so it may vary from images shown on this site. Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.
