GB-SBCAP4200 (rev. 1.1)


  • Встроенный 4-ядерный процессор Intel® Pentium™ N4200 (до 2,5 ГГц)
  • Технология GIGABYTE Ultra Durable™, удвоенная толщина слоев меди в цепях питания и заземления PCB
  • Разъем SO-DIMM для модулей ОЗУ DDR3L (одноканальный режим)
  • 2 x RS232/422/485
  • Разъем Mini-PCIe (1/2 длины) для модуля WiFi
  • Разъем Mini-PCIe двойного назначения для модулей mSATA SSD
  • Только твердотельные конденсаторы и печатная плата с защитой от влажности
  • Два контроллера GbE LAN, функции WOL и PXE, защита от электростатики и пробоя

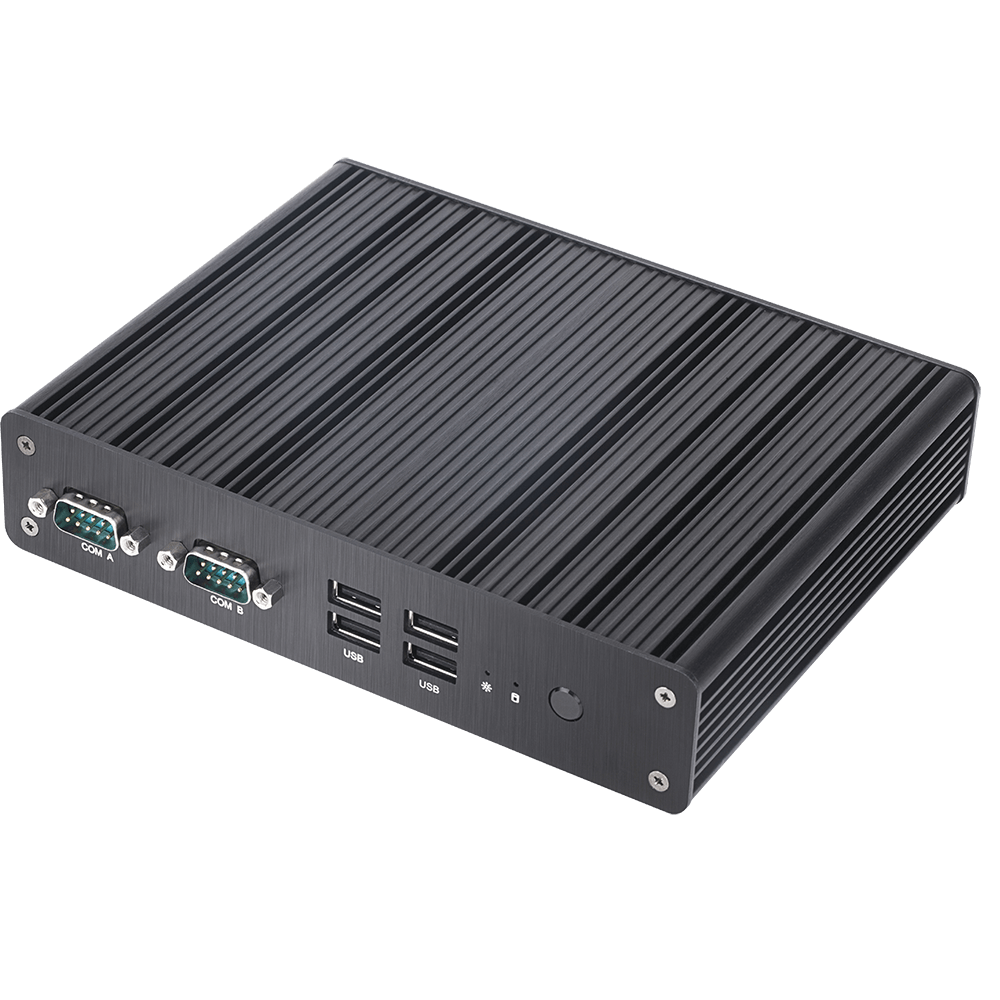

  • Габариты шасси 174 x 135 x 36,9 мм; разъем DC-In для БП 9 ~ 36 В
  • Compatible with GIGABYTE SBC Fanless Chassis
  • Intel® Pentium™ N4200 Processor
    The Intel® Pentium™ N4200 Quad-Core processor is the latest system on chip (SoC) from Intel, combining CPU, graphics and memory controller in one package. Based on the 14nm manufacturing process, the Intel® Pentium™ N4200 uses the smallest package of any desktop processor within a low thermal envelope of on 6 watts. The Intel® Pentium™ N4200 boasts excellent performance including DX12 on Intel® HD Graphics, plus a dedicated HEVC decoder for smooth HD video playback.
  • GIGABYTE Ultra Durable™
    GIGABYTE Ultra Durable™ debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
  • 2x Copper PCB Design (2 oz Copper PCB)
    GIGABYTE's exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.


    *Results based on in-house measurements done with particular test, in specific systems. Differences in hardware, software or configuration will affect actual reading.
  • Humidity Protection
    Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.


  • Electrostatic Protection
    GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.


  • Dual Gigabit LAN with WOL and PXE support


    The Dual Gigabit LAN with WOL and PXE support, deliver better network responsiveness and conveniently user experience in crowded LAN environments, to offer hassle free and high speed network connectivity.
  • 4K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.




  • HDMI™-The Next Generation Multimedia Interface
    HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • GIGABYTE @BIOS
    The new and updated GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers.
