• Supports AMD Athlon™ XP processor
  • GIGABYTE unique Dual Power System (DPS) design
  • Supports Dual Channel DDR333 memory architecture
  • Graphics motherboard with Dual View support.
  • Integrated Serial-ATA interface with RAID 0,1 function
  • Integrated GigaRAID IDE RAID Interface
  • Dual LAN solution with Intel® PRO/1000 CT integrated.
  • Supports 6-channel Dolby Digital audio via S/P-DIF output
  • Introduction

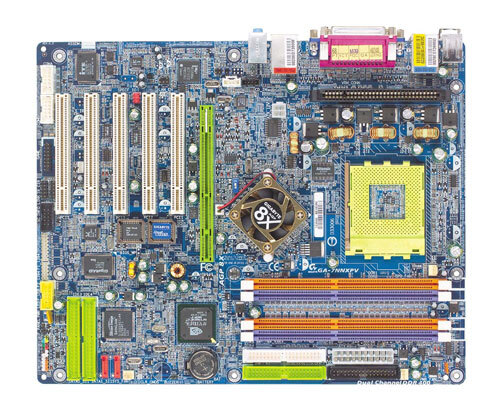

    GA-7NNXPV is the supreme platform for latest AMD Athlon XP processor. Powered by the revolutionary NVIDIA nForce™2 platform processors and industry cutting edge technology, this platform delivers new levels of performance and functionality for today’s most demanded tasks. The nForce™2 platform processors not only carries the new generation architecture consisting of dual channel DDR controller and AGP8X graphics interface, but also integrates the innovative Dynamic adaptive speculative pre-processor (DASP) and HyperTransport Technology to boost the overall system performance. The integrated Geforce4 MX Graphics Processing Unit (GPU) provides high quality graphics to ensure outstanding visual experience, as well as the Dual View for multiple-display capability. The nForceTM2 media and communications processor-turbo (MCP-T) provides full communication suite of Dual LAN, IEEE 1394, and USB2.0 interface for full range of connectivity. The Dolby Digital 3D (AC-3) audio is also furnished for a true cinematic experience. In addition, Serial ATA and IDE RAID provide superior input/output performance and data protection to the system. Gigabyte patented Dual Power System (DPS) further enhances the computing power and system stability. GA-7NNXPV will definitely deliver the uppermost platform with unprecedented computing power and rock-solid stability.
  • Support AMD Athlon XP processor
    Powered by nForce™2 platform processors, this platform supports the latest AMD Athlon XP processor to deliver higher levels of performance and productivity for today's most demanding tasks.
  • Dual Channel DDR memory architecture support
    With the Dual Channel DDR memory architecture, this platform delivers high capacity of 4GB memory and high bandwidth up to 5.4GB/s to ensure greatest memory performance.
  • Superb bandwidth AGP 8X graphics interface
    AGP8X the new generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MHz, AGP8X is twice as fast as AGP4X.
  • GeForce4 MX Graphics motherboard with Dual View support
    Integrated in the Integrated Graphics Processor (IGP), the proven Geforce4 MX Graphics Processing Unit (GPU) provides the best-of-class graphics for high texture content and scene complexity, as well as the Dual View for multiple-display capability.
  • DUAL LAN
    Equipped with Gigabit and Ethernet LAN solution, this platform can be applied as network gateway, managing traffic between two separate networks and ensuring rapid transfer of data from WAN to LAN without any added arbitration or latency.
  • Dual Power System (DPS)
    With the Voltage Regulator Module (VRM), the Dual Power System delivers a total of 6-phase power circuit design to provide more solid and durable power supply for the new generation AMD platform.
  • IEEE1394 FireWire
    The high performance IEEE1394 interface enhances PC connectivity with consumer electronics audio/video (A/V) appliances, and storage peripherals.
  • Serial ATA interface with RAID 0, 1 function
    Serial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility.
  • GigaRAID IDE RAID Controller:
    Supporting RAID (0, 1, 0+1), JBOD function and ATA133 interface, GigaRAID Controller delivers completely solution for storage interface to increase fault tolerance, improve data access performance and provides additional interface for more IDE devices.
  • 6-Channel & Dolby Digital Audio technology
    Integrated Realtek ALC662 audio CODEC chip, enabling users to experience the seamless high quality 6-channel audio while watching movies or gaming
  • GIGABYTE Patent DualBIOS™
    DualBIOS™ prevents BIOS from virus attacks or firmware damage and provides a double security to the system that assures the PC stability
