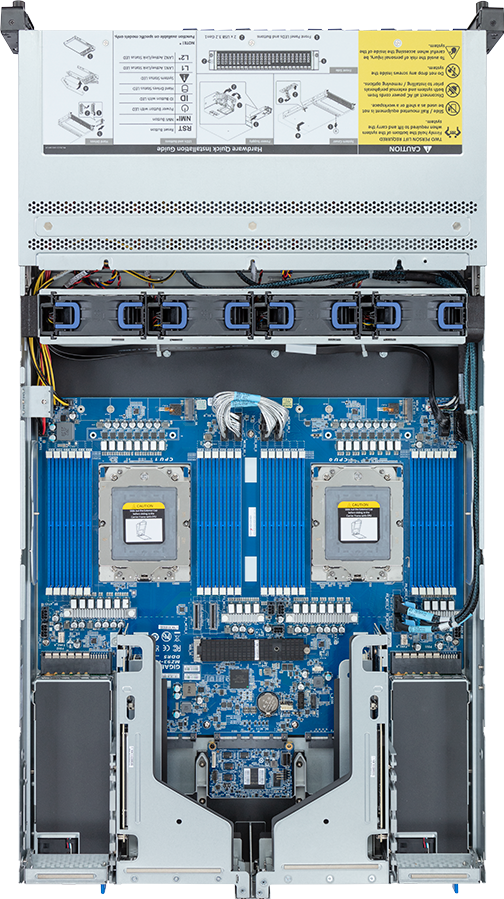

R283-Z92- AAV1

2U
438 x 87 x 815

MZ93-FS0

AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Dual processor, cTDP up to 300W
- EPYC 9654 cTDP up to 400W

^[Note] cTDP supported up to 400W under limited thermal conditions. Please contact our sales representatives for more details.

^[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

2 x LGA 6096
Socket SP5

System on Chip

24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s

Rear (G-SCM board - CDCR114):
2 x 1Gb/s LAN (1 x Intel^® I350-AM2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed^® AST2600
- 1 x Mini-DP

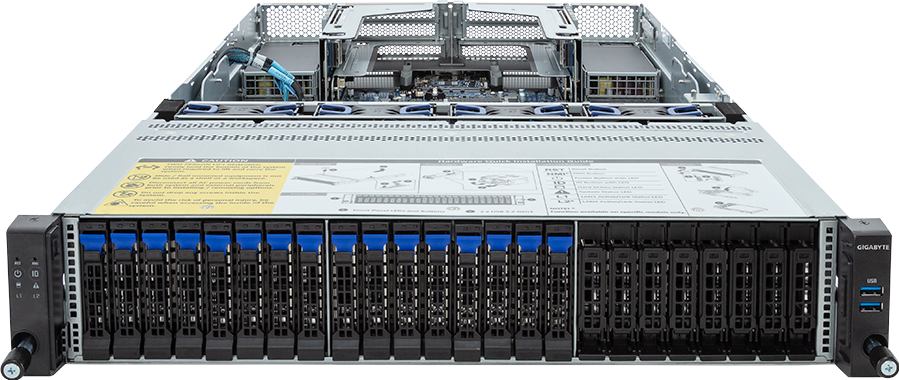

Front hot-swap:
16 x 2.5" SATA/SAS ^[1]
- (SATA from CPU_0)

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x2, from CPU_1

^[1] SAS card is required to support SAS drives.

Require SAS add-in cards

Require RAID add-in cards

Riser Card CRS101T:
- 1 x FHHL x16 (Gen5 x16), from CPU_0

Riser Card CRS101Q:
- 1 x FHHL x16 (Gen5 x16), from CPU_1

Riser Card CRS202M:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
- 1 x PCIe x16, disabled

Riser Card CRS202N:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
- 1 x PCIe x16, disabled

1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function

1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

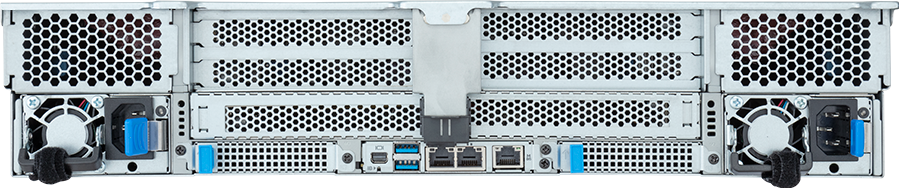

G-SCM board - CDCR114:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Dual 1600W 80 PLUS Titanium redundant power supply

AC Input:
- 100-240V~/ 12-9.5A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 9.5A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 131.2A
+12Vsb/ 3A

^[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Please refer to OS compatibility table in support page

Additional certifications:
Ubuntu 22.04 LTS (x64)
VMware ESXi 8.0 or later
Windows Server 2022 (x64)

4 x 80x80x38mm (18,300rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

1077 x 679 x 300 mm

1 x R283-Z92-AAV1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit

- Barebone package (EPYC 9005/9004): 6NR283Z92DR000ABV1*
- Barebone package (EPYC 9004): 6NR283Z92DR000AAV1*
- Motherboard: 9MZ93FS0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-15320G-A0R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP20O7: 9CBP20O7NR-00*
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS101Q: 9CRS101QNR-00*
- Riser card - CRS101T: 9CRS101TNR-00*
- Riser card - CRS202M: 9CRS202MNR-00*
- Riser card - CRS202N: 9CRS202NNR-00*
- G-SCM board - CDCR114: 9CDCR114NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-21600E-L0S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283Z92SR-RMA-A100
