Single-Phase Immersion Cooling with Asperitas
GIGABYTE has joined forces with Asperitas to offer a Single-Phase Immersion Cooling solution, allowing customers to dramatically reduce their data center energy consumption and improve PUE, radically reducing operating costs and environmental impact.
Email Sales
Introduction
To better fulfill sustainability goals in data centers that are experiencing higher power requirements and subsequent heat generated, immersion cooling offers the chance to operate more green-friendly and can reduce the energy footprint by up to 50%. The solution involves cross-disciplinary technology that pairs specifically designed GIGABYTE immersion servers that are qualified and compatible with Asperitas' single-phase immersion tank, which stands out from the competition by using natural convection to circulate the dielectric liquid for heat transfer. This solution allows the deployment of immersion cooling using warm water cooling and highly-reliable IT equipment thanks to optimized IT equipment.
However, to address global data center challenges regarding sustainability, efficiency, and flexibility, immersion cooling goes far beyond just the technology. It embraces the most efficient model for operating IT equipment, reducing the energy footprint of said equipment by eliminating overhead energy. Moreover, the ability of the liquid to capture all the IT energy combined with warm water cooling enables solutions ready for heat reuse.
However, to address global data center challenges regarding sustainability, efficiency, and flexibility, immersion cooling goes far beyond just the technology. It embraces the most efficient model for operating IT equipment, reducing the energy footprint of said equipment by eliminating overhead energy. Moreover, the ability of the liquid to capture all the IT energy combined with warm water cooling enables solutions ready for heat reuse.
Usage Scenarios
AI & Machine Learning
Training algorithms for AI applications requires a large amount of parallel processing power, delivered by dense GPU deployments. A large number of high powered GPUs produce a lot of heat, requiring high electricity bills for air cooling and air conditioning. Single-phase immersion cooling is a much more cost efficient and environmentally friendly solution.
5G & Edge Computing
The era of 5G will require telcos to invest more in edge computing to reduce data transfer latency. Edge data centers are often located in urban areas and have a restricted amount of space. Single-phase immersion cooling allows for a much greater density of processing capabilities in a restricted space, making it ideal for an edge computing deployment.
Blockchain & Crypto
Blockchain and crypto rely on the verification of each endpoint in a peer-to-peer network to protect information. As more and more machines are connected to the network, authentication becomes frequent and mathematical calculations getting difficult, causing the computer to generate higher heat. Single-phase immersion cooling is a cost effective and environmentally friendly solution.
High-Frequency Trading (HFT)
High-frequency trading requires high-performance computing systems that can provide ultra-low latency to strive for timeliness. The transaction time difference of milliseconds may be profits or losses of millions of dollars. Single-phase immersion cooling can achieve higher overclocking possibilities for these extreme applications.
Advantages of Single-Phase Immersion Cooling
Higher Efficiency
Creating an optimized and efficient data center is the immersion goal, and lowering Power Usage Effectiveness (PUE) achieves it by losing less energy.
Deployment Flexibility
Minimal infrastructure required as cooling infra decreases. It is readily scalable for use in limited spaces through its small, modular tank design.
Higher Compute Density
The liquid in immersion cooling has a higher capacity to transfer heat than air. A densely packed 24U rack has the capacity to cool 44kW workloads.
Improved Reliability
Immersion specific server SKUs without unnecessary fans helps to reduce potential failures, and the operating environment has higher tolerances.
Lower Maintenance Requirement
Passive cooling system means no unnecessary parts to build or service, useful especially for remote locations such as edge computing stations.
Immersion Cooling - Asperitas
Asperitas launched the first solution in 2017 after an extensive R&D phase with an ecosystem of cutting edge partners since 2014. The unique Asperitas data center immersion cooling technology concept, Immersed Computing®, enables sustainable and high density data centers anywhere they are needed to run applications.
The AIC24 integrated immersion cooling solution is designed to ensure the highest possible continuity for the IT equipment. Total immersion cooling ensures no oxygen touches the IT components, thus preventing oxidation. Thermal shock is greatly reduced due to the high heat capacity of liquid. The immersed environment only has minor temperature fluctuations, greatly reducing thermal expansion stress on microelectronics. These factors eliminate the root cause for most of the physical degradation of microelectronics over time.
GIGABYTE has partnered with Asperitas to offer a single-phase immersion cooling solution that delivers ultimate sustainable performance, easy integration, smart precision cooling and carbon neutral computing.
The AIC24 integrated immersion cooling solution is designed to ensure the highest possible continuity for the IT equipment. Total immersion cooling ensures no oxygen touches the IT components, thus preventing oxidation. Thermal shock is greatly reduced due to the high heat capacity of liquid. The immersed environment only has minor temperature fluctuations, greatly reducing thermal expansion stress on microelectronics. These factors eliminate the root cause for most of the physical degradation of microelectronics over time.
Asperitas Immersed Computing® for future ready data centers:
- Natural convection driven
- Plug and play
- Clean & Safe operation
- Flexible deployment - Hyperscale efficiency, any scale, anywhere
- Fully protected, with integrated monitoring and control systems
- Enterprise level quality
| Asperitas AIC24-21" ready | |
|---|---|
| IT Hardware Capacity | 24 U |
| Heat Dissipation Capacity | 44kW |
| Dimensions | 1.5m (L) x 0.75m (W) x 1.5m (H) |
| Weight | Empty: 1000kg |
| Coolant & Tank Capacity | Shell Immersion Cooling Fluid S5X for 550-650 L/tank |
| CDU | Not included |
| PUE | 1.03 |
GIGABYTE has partnered with Asperitas to offer a single-phase immersion cooling solution that delivers ultimate sustainable performance, easy integration, smart precision cooling and carbon neutral computing.
Immersion Cooling Servers with GIGABYTE
GIGABYTE is an industry leader in high-performance computing servers. Due to the high-power consumption and heat generated by high-performance processors or general-purpose computing accelerators, HPC servers and the derived applications are particularly suitable for immersion cooling.
By cooperating with Asperitas to provide standard products compatible with Asperitas' Immersed Computing® solutions, GIGABYTE's modular product design allows us to quickly respond to customer needs and modify other air-cooled servers to be fully compatible with submerged cooling systems or environments.
GIGABYTE Server & Asperitas Cooling Tank Compatibility
1/10
HPC/AI Server - 3rd Gen Intel® Xeon® Scalable - 2U DP 8 x PCIe Gen4 GPUs Immersion
| Application:
AI
,
AI Training
,
AI Inference
,
Visual Computing
&
HPC
2/10
HPC/AI Server - 3rd Gen Intel® Xeon® Scalable - 2U DP 8 x PCIe Gen4 GPUs Immersion
| Application:
AI
,
AI Training
,
AI Inference
,
Visual Computing
&
HPC
3/10
HPC/AI Server - AMD EPYC™ 7003 - 2U DP 8 x PCIe Gen4 GPUs Immersion
| Application:
AI
,
AI Training
,
AI Inference
&
HPC
4/10
HPC/AI Server - AMD EPYC™ 7003/7002 - 2U DP 8 x PCIe Gen4 GPUs Immersion Titanium
| Application:
AI
,
AI Training
,
AI Inference
&
HPC
5/10
HPC Server - AMD EPYC™ 7003/7002 - 2U DP 16 x Gen4 GPUs (Broadcom solution) Immersion
| Application:
AI
,
AI Training
,
AI Inference
&
HPC
6/10
HPC Server - AMD EPYC™ 7003/7002 - 2U DP 16 x Gen4 GPUs (Broadcom solution) Immersion
| Application:
AI
,
AI Training
,
AI Inference
&
HPC
7/10

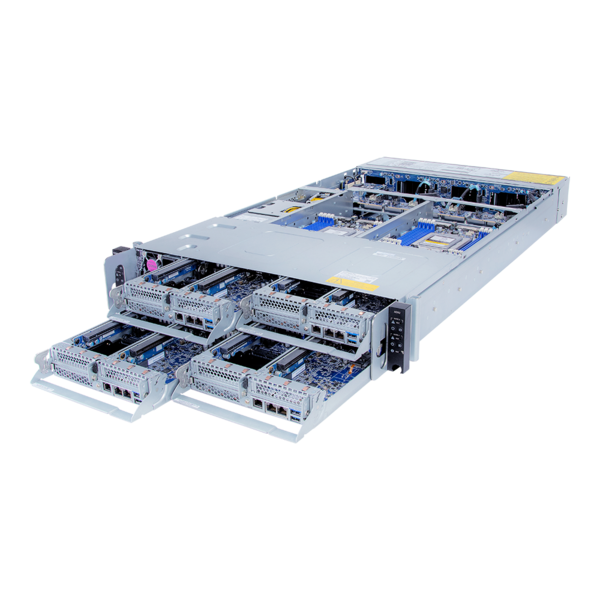

High Density Server - AMD EPYC™ 7003/7002 - 2U 4-Node DP 8-Bay Gen4 NVMe/SATA Immersion
| Application:
HCI
&
Hybrid/Private Cloud Server
8/10
High Density Server - AMD EPYC™ 7003/7002 - 2U 4-Node DP 8-Bay Gen4 NVMe/SATA Immersion
| Application:
HCI
&
Hybrid/Private Cloud Server
What is it? PUE (Power Usage Effectiveness) is the ratio of the total amount of power used by a data center compared to the power that's actually delivered to the computing equipment. An ideal PUE ratio would be 1.0: 100% of the power delivered to the data center is used for computing. However, data centers require cooling systems, lighting, and other equipment that will also consume some of this power. As such, the PUE for a conventional data center will always be greater than 1.0.
Immersion cooling is a type of liquid cooling method where the servers are directly immersed inside a bath of non-conductive, dielectric liquid. Heat given off by the servers' components is transferred to the surrounding liquid. Because of the temperature gradient in the liquid, the heated liquid that is less dense rises to the top. As this occurs, the liquid is removed from the top of the tank and replaced with cooler liquid from the bottom. This heat transfer process is called natural convection. Therefore, the immersion cooling system does not require additional active cooling components, such as fans, and so it can go a long way toward improving your data center's energy efficiency.There are two types of immersion cooling, which work in slightly different ways.●Single-Phase Immersion CoolingIn this process, the coolant will not change its state by evaporating, it always remains a liquid. The warm coolant in the tank is pumped out by the coolant distribution unit (CDU) and the heat is transferred to a heat exchanger, which is a secondary cooling circuit that transfers the heat to facility water or outside air. ●Two-Phase Immersion CoolingThe cooling method in two-phase is similar to single-phase in that the coolant absorbs the heat from the servers or IT components; however, in two-phase immersion cooling, the liquid changes state. As the coolant reaches its ultra-low boiling point, the vapor bubbles rise to the top and enter a gaseous state. After evaporating, the vapor comes in contact with a condenser that returns it back to its liquid state. The fluids flow back into the bath to renew the cycle.
Parallel computing refers to a method of using multiple computing resources at the same time to solve a computational problem. During the process, many instructions are executed simultaneously. The basic concept is to divide the content to be calculated into discrete parts, and then solve the problem by using multiple execution methods.
