High Density Server - AMD EPYC™ 7003/7002 - 2U 4-Node DP 8-Bay Gen4 NVMe/SATA Immersion 2200W
- Immersion Cooling Server
- Hardware-level root of trust support

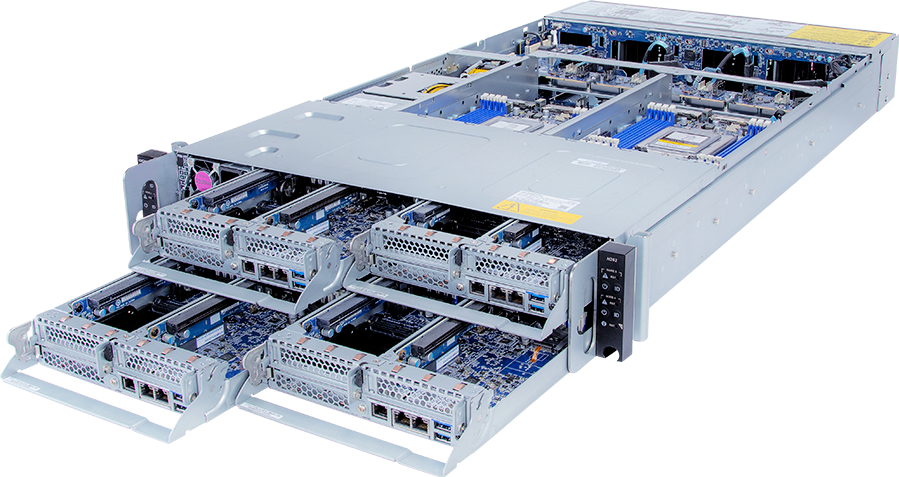

- 2U 4-node front access server system
- Dual AMD EPYC™ 7003/7002 Series Processors per node
- 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs per node
- 8 x 1Gb/s LAN ports via Intel® I350-AM2
- 1 x CMC port
- 8 x 2.5" Gen4 NVMe/SATA hot-swap bays
- 4 x M.2 slots with PCIe Gen4 x4 interface
- 8 x LP PCIe Gen4 x16 slots
- 4 x OCP NIC 3.0 PCIe Gen4 x16 slots
- Dual 2200W 80 PLUS Platinum redundant power supply
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U 4-Node - Front access
440 x 87.5 x 840
440 x 87.5 x 840
Motherboard
MZ62-HD4 Rev. 3.0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor, TDP up to 280W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 7002 Series Processors
Dual processor, TDP up to 280W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
8 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
64 x DIMM slots
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200 MT/s
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200 MT/s
LAN
Top:
8 x 1Gb/s LAN (4 x Intel® I350-AM2)
- Support NCSI function
4 x 10/100/1000 Mbps Management LAN
1 x CMC port
8 x 1Gb/s LAN (4 x Intel® I350-AM2)
- Support NCSI function
4 x 10/100/1000 Mbps Management LAN
1 x CMC port
Video
Integrated in ASPEED® AST2500 x 4
- 4 x Mini-DP
- 4 x Mini-DP
Storage
Bottom hot-swap:
8 x 2.5" Gen4 NVMe/SATA
- (NVMe from CPU_1)
- (SATA from CPU_0)
Internal M.2:
4 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0
8 x 2.5" Gen4 NVMe/SATA
- (NVMe from CPU_1)
- (SATA from CPU_0)
Internal M.2:
4 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0
SAS
N/A
RAID
N/A
PCIe Expansion Slots
Riser Card CRSH01E x 4:
- 4 x LP x16 (Gen4 x16), from CPU_0
Riser Card CRSH01H x 4:
- 4 x LP x16 (Gen4 x16), from CPU_0
4 x OCP NIC 3.0 (Gen4 x16), from CPU_0
- Support NCSI function
- 4 x LP x16 (Gen4 x16), from CPU_0
Riser Card CRSH01H x 4:
- 4 x LP x16 (Gen4 x16), from CPU_0
4 x OCP NIC 3.0 (Gen4 x16), from CPU_0
- Support NCSI function
Top I/O
8 x USB 3.2 Gen1 ports (Type-A)br>
4 x Mini-DP
8 x RJ45 ports
4 x MLAN ports
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
4 x ID LEDs
1 x CMC port
1 x CMC status LED
1 x CMC reset button
8 x RJ45 ports
4 x MLAN ports
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
4 x ID LEDs
1 x CMC port
1 x CMC status LED
1 x CMC reset button
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s
PCIe Gen4 x4 or SATA 6Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 2200W 80 PLUS Platinum redundant power supply [1]
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A
[1] The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A
[1] The system power supply requires C19 power cord.
System Management
ASPEED® AST2500 Baseboard Management Controller
ASPEED® AST2520 Chassis Management Controller
GIGABYTE Management Console web interface
ASPEED® AST2520 Chassis Management Controller
GIGABYTE Management Console web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Operating Properties
Operating coolant temperature: 25°C to 35°C
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1180 x 779 x 300 mm
Packaging Content
1 x H262-Z6B
8 x CPU heatsinks
8 x CPU heatsinks
Part Numbers
- Barebone package: 6NH262Z6BRR000ICU1*
- Motherboard: 9MZ62HD4NR-00*
- CPU heatsink: 25ST1-443109-A3R/25ST1-44310A-A3R
- Backplane board: 9CBPH082NR-00*
- Riser card - CRSH01E: 9CRSH01ENR-00*
- Riser card - CRSH01H: 9CRSH01HNR-00*
- Power supply: 25EP0-22200C-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- M.2 expansion card - CMTP061: 9CMTP061NR-00*
- Ring topology kit: 6NH262Z65SR-00-100
- Motherboard: 9MZ62HD4NR-00*
- CPU heatsink: 25ST1-443109-A3R/25ST1-44310A-A3R
- Backplane board: 9CBPH082NR-00*
- Riser card - CRSH01E: 9CRSH01ENR-00*
- Riser card - CRSH01H: 9CRSH01HNR-00*
- Power supply: 25EP0-22200C-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- M.2 expansion card - CMTP061: 9CMTP061NR-00*
- Ring topology kit: 6NH262Z65SR-00-100
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
