• Form Factor: M.2 2280
  • Interface: PCI-Express 4.0 x4, NVMe 1.3
  • Total Capacity: 1000GB*
  • Sequential Read Speed : up to 5000 MB/s**
  • Sequential Write speed : up to 4400 MB/s**
  • Wear Leveling, Over-Provision technologies
  • TRIM & S.M.A.R.T supported
  • Warranty: Limited 5-years

*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.

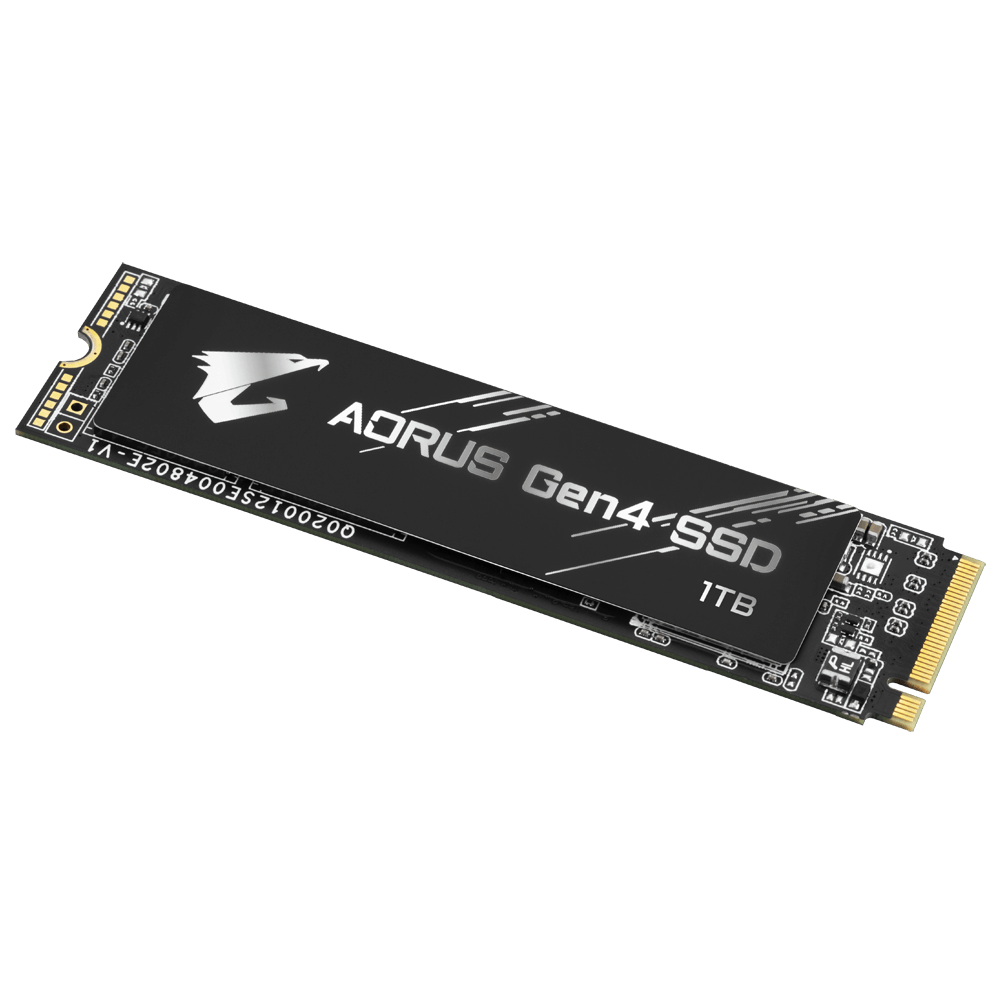

AORUS Gen4 SSD
World First PCIe 4.0x4 Controller
The World First PCIe 4.0x4 Controller, Phison PS5016-E16 controller, made by 28nm manufacturing technology. The advanced fabrication process ensures PS5016-E16 has enough compute power for ECC processing when adopting the latest 3D TLC NAND flash. PS5016-E16 also features eight NAND channels with 32 CE targets, DDR4 DRAM caching, and a PCIe 4.0x4 interface. As for features, the chip supports the NVMe 1.3 protocol, LDPC error correction, and Wear Leveling, Over-Provision technologies to improve reliability and durability of SSDs.
  • PCIe 4.0x4, NVMe 1.3 Interface
  • DDR4 DRAM cache
  • 8 CH with 32 CEs
  • Phison 4th Gen LDPC & RAID ECC
  • Support Pyrite
  • Heat spreader for controller
NAND Flash Selected for High Quality and Performance
Selected High Speed 3D TLC NAND Flash (800MT/s)
The selected and high quality NAND Flash optimizes circuitry and architecture by increasing to 96 layers for higher storage space per unit area. 800MT/s throughput on the AORUS Gen 4 SSD far exceeds that of PCIe 3.0x4 devices for superior storage performance.
AORUS Gen4 SSD
General SSD
Transfer Rate
800 MT/s
400~533 MT/s
Xtreme Storage Performance
With the new PCIe 4.0 controller, AORUS Gen 4 SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 4,400MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 40% faster than PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.
Sequential Read Speed
AORUS Gen4 SSD
Normal PCIe 3.0 SSD
Performance (MB/s)
5000
3500
Sequential Write Speed
AORUS Gen4 SSD
Normal PCIe 3.0 SSD
Performance (MB/s)
4400
3300
SSD Tool Box
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.
SSD tool box function may vary by model
Quality Guaranteed
Extreme Performance
Comes From High Standard Test
Dimension
Capacity*ModelSequential Read MB/s**Sequential Write MB/s**Random Read IOPS**Random Write IOPS**
500GBAORUS Gen4 SSD 500GB
(GP-AG4500G)
5000 MB/s2500 MB/s400k550k
1000GBAORUS Gen4 SSD 1TB
(GP-AG41TB)
5000 MB/s4400 MB/s750k700k
2000GBAORUS Gen4 SSD 2TB
(GP-AG42TB)
5000 MB/s4400 MB/s750k700k
* Note: 1GB = 1 billion bytes. Real useable capacity may vary by models.
** Speeds based on internal testing. Real performance may vary by models.
