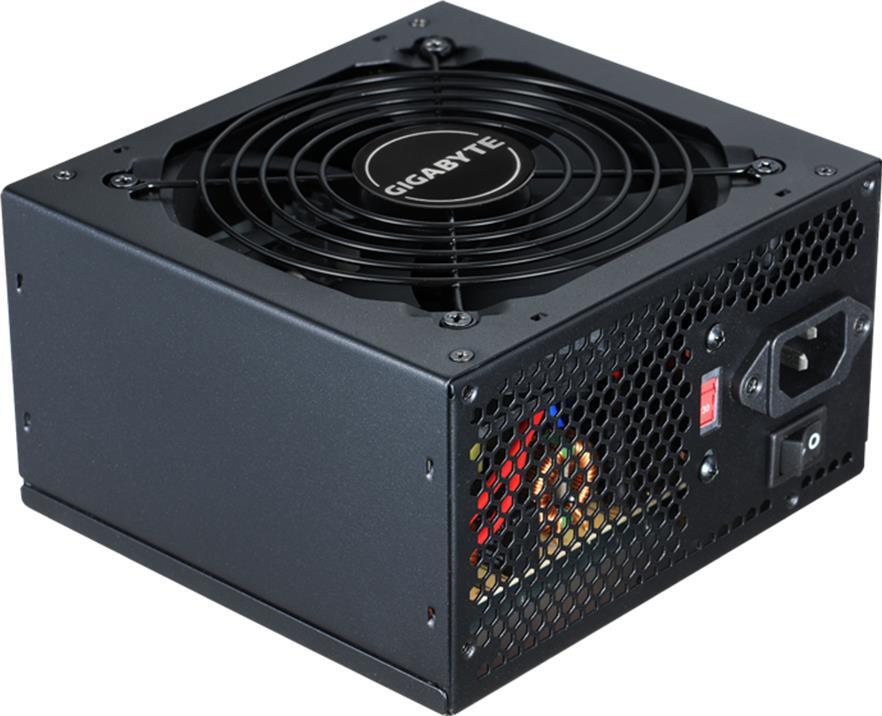

Hercules 500W

Key FeaturesSpecificationsWhere to Buy

Specifications

  • Model
  • GZ-ERS50N-C1
  • Dimensions
  • 140*150*86mm
  • Connectors
  • 24-pin Motherboard Connector 1
    8-pin +12V CPU Connector 1
    (6+2)-pin PCI-E 2.0 Connector 2
    SATA Connectors 6
    4-pin Peripheral Connectors 4
    4-pin Floppy Connector 1
  • Weight
  • 1.384Kg
  • Info
  • AC INPUT 115/230Vac, 8/4A, 50/60Hz
    DC OUTPUT +3.3V +5V +12V1 +12V2 -12V +5Vsb
    Max Output Current 24A 20A 30A 30A 0.5A 2.5A
    Max Combined Wattage 120W 426W
    Total Power 500W
  • Safety Approval
  • CE;CB;TUV;BSMI;EAC
  • Model
  • GZ-ERS50N-C1
  • Dimensions
  • 140*150*86mm
  • Connectors
  • 24-pin Motherboard Connector 1
    8-pin +12V CPU Connector 1
    (6+2)-pin PCI-E 2.0 Connector 2
    SATA Connectors 6
    4-pin Peripheral Connectors 4
    4-pin Floppy Connector 1
  • Weight
  • 1.384Kg
  • Info
  • AC INPUT 115/230Vac, 8/4A, 50/60Hz
    DC OUTPUT +3.3V +5V +12V1 +12V2 -12V +5Vsb
    Max Output Current 24A 20A 30A 30A 0.5A 2.5A
    Max Combined Wattage 120W 426W
    Total Power 500W
  • Safety Approval
  • CE;CB;TUV;BSMI;EAC
