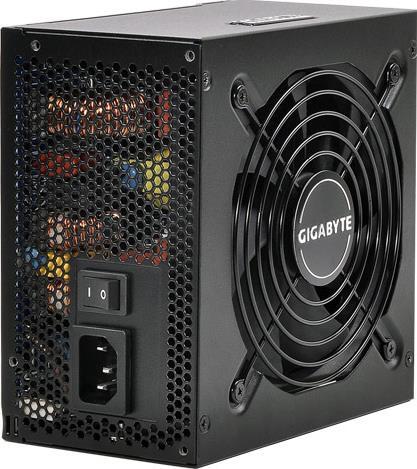

GreenMax 750W

Key FeaturesSpecificationsNews & AwardsWhere to Buy

Specifications

  • Model
  • GE-X750A-C1
  • Dimensions
  • 150 x 150 x 86 mm
  • Connectors
  • 24-pin Motherboard Connector 1
    4+4-pin +12V CPU Connector 1
    (6+2)-pin PCI-E 2.0 Connectors 2
    SATA Connectors 7
    4-pin Peripheral Connectors 5
    4-pin Floppy Connector 1
  • Weight
  • 2.55 kg
  • Info
  • AC INPUT 100-240Vac 12-6.3A
    DC OUTPUT +3.3V +5V +12V1 +12V2 +12V3 +12V4 -12V +5Vsb
    MAX OUTPUT CURRENT 25A 25A 22A 22A 22A 22A 0.3A 2.5A
    MAX COMBINED WATTAGE 190W 718W 3.6W 12.5W
    733.9W 16.1W
    750W
  • Safety Approval
  • CE, CB, cUL, FCC, BSMI, C-Tick, TUV
  • Model
  • GE-X750A-C1
  • Dimensions
  • 150 x 150 x 86 mm
  • Connectors
  • 24-pin Motherboard Connector 1
    4+4-pin +12V CPU Connector 1
    (6+2)-pin PCI-E 2.0 Connectors 2
    SATA Connectors 7
    4-pin Peripheral Connectors 5
    4-pin Floppy Connector 1
  • Weight
  • 2.55 kg
  • Info
  • AC INPUT 100-240Vac 12-6.3A
    DC OUTPUT +3.3V +5V +12V1 +12V2 +12V3 +12V4 -12V +5Vsb
    MAX OUTPUT CURRENT 25A 25A 22A 22A 22A 22A 0.3A 2.5A
    MAX COMBINED WATTAGE 190W 718W 3.6W 12.5W
    733.9W 16.1W
    750W
  • Safety Approval
  • CE, CB, cUL, FCC, BSMI, C-Tick, TUV
