Durable
|
|
|
|





6x (30μ) Gold Plating

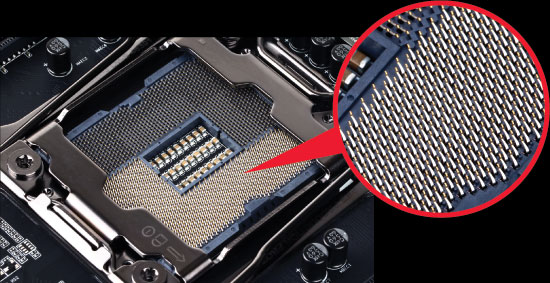

GIGABYTE X99 motherboards come equipped with a 30 micron thick gold plating for the CPU socket, 4 PCIe slots and over the 8 DIMM slots, which means that enthusiasts can enjoy better connectivity, absolute reliability and longevity for the diverse connectors overtime, without having any concerns about corroded pins and bad contacts.



μ = micron


5μ Gold Plated
CPU Socket

Standard Design
Advanced Design
Extreme Design


30μ Gold Plated

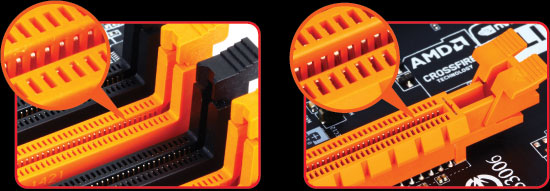

DDR4 slot

30μ Gold Plated
PCIe Slots(x16,x8)

30μ Gold Plating






Long Lifespan Durable Black™ Solid Caps
GIGABYTE X99 series motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. This provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. With ultra-low ESR no matter how high the CPU loading, these exclusive capacitors also come in customized jet black, exclusively on GIGABYTE X99 series motherboards.

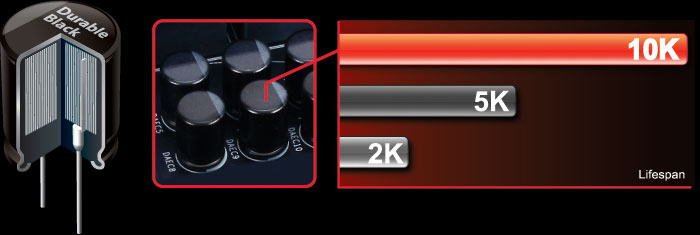

High-End 10K hours Solid Caps
Mainstream 5K hours Solid Caps
Standard 2K hours Solid Caps
Testing result for reference only. Results may differ according to system configuration.






2x Copper PCB Design (2 oz Copper PCB)
GIGABYTE’s exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.


2x Copper PCB
Traditional

PCB layer cross-section image, magnified 200x
PCB (Printed Circuit Board)
2x copper PCB = 2 oz copper PCB = weight of copper layer
30.48 cm x 30.48 cm (1 square foot) PCB is 56.7 g (2 oz)
Copper Layer Thickness

2x copper 0.070mm(70 μm)

1x copper 0.035mm(35 μm)
Lower
Temperature
Better Power
Eciency
Lower EMI
Better
Overclocking
2x Lower
Impedance
Better ESD
Protection




* Photos are for reference only.
** Product features may vary by model.
