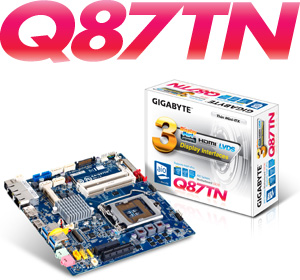

GA-Q87TN
GA-Q87TN
CPU Support
4th generation Intel® Core™ processors
CPU Socket
LGA 1150
Chipset
Intel Q87 Express Chipset
Graphics Interface
1*PCI-E 3.0 x4
Display Interface
LVDS, HDMI, DisplayPort
Memory Type
Dual Channel DDR3 SO DIMM
Memory DIMM
2*DDR3 SO DIMM
Expansion Slots
1*mini PCI-E slot (Half size)
SATA connectors
4*SATA3 + 1*m-SATA
SATA RAID
RAID 0, 1, 5, 10
USB
6*USB3.0 + 5*USB 2.0
Audio LAN
7.1 channel HD / Dual GbE LAN
Form Factor(mm)
170x170mm Thin Mini-ITX

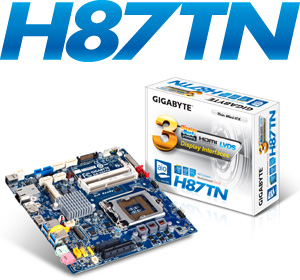

GA-H87TN
GA-H87TN
CPU Support
4th generation Intel® Core™ processors
CPU Socket
LGA 1150
Chipset
Intel H87 Express Chipset
Graphics Interface
1*PCI-E 3.0 x4
Display Interface
LVDS, HDMI, DisplayPort
Memory Type
Dual Channel DDR3 SO DIMM
Memory DIMM
2*DDR3 SO DIMM
Expansion Slots
1*mini PCI-E slot (Half size)
SATA connectors
4*SATA3 + 1*m-SATA
SATA RAID
RAID 0, 1, 5, 10
USB
6*USB3.0 + 5*USB 2.0
Audio LAN
7.1 channel HD / GbE LAN
Form Factor(mm)
170x170mm Thin Mini-ITX

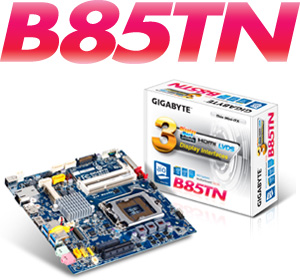

GA-B85TN
GA-B85TN
CPU Support
4th generation Intel® Core™ processors
CPU Socket
LGA 1150
Chipset
Intel B85 Express Chipset
Graphics Interface
1*PCI-E 3.0 x4
Display Interface
LVDS, HDMI, DisplayPort
Memory Type
Dual Channel DDR3 SO DIMM
Memory DIMM
2*DDR3 SO DIMM
Expansion Slots
1*mini PCI-E slot (Half size)
SATA connectors
3*SATA3+1*SATA2 + 1*m-SATA
SATA RAID
NA
USB
4*USB3.0 + 5*USB 2.0
Audio LAN
7.1 channel HD / GbE LAN
Form Factor(mm)
170x170mm Thin Mini-ITX

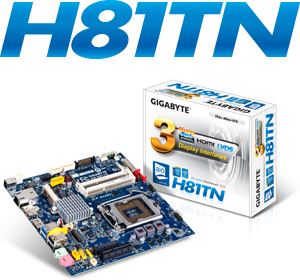

GA-H81TN
GA-H81TN
CPU Support
4th generation Intel® Core™ processors
CPU Socket
LGA 1150
Chipset
Intel H81 Express Chipset
Graphics Interface
1*PCI-E 3.0 x4
Display Interface
LVDS, HDMI, DisplayPort
Memory Type
Dual Channel DDR3 SO DIMM
Memory DIMM
2*DDR3 SO DIMM
Expansion Slots
1*mini PCI-E slot (Half size)
SATA connectors
2*SATA3 + 1*SATA2 + 1*m-SATA
SATA RAID
NA
USB
2*USB3.0 + 7*USB 2.0
Audio LAN
7.1 channel HD / GbE LAN
Form Factor(mm)
170x170mm Thin Mini-ITX
