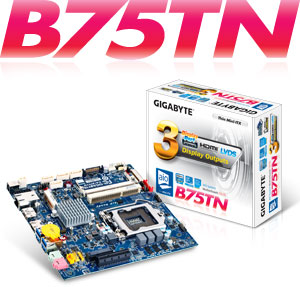

GA-B75TN |
CPU Support |
2nd and 3rd generation Intel Core processor |
CPU Socket |
LGA 1155 |
Chipset |
Intel B75 Express chipset |
Graphics Interface |
1*PCI-E 3.0 x 4 |
Display Interface |
LVDS,HDMI,DisplayPort |
Memory Type |
Dual Channel DDR3 SO DIMM |
Memory DIMM |
2*DDR3 SO DIMM |
Expansion Slots |
1*Mini PCI-Ex1+1*PCI-Ex4+1*mSATA |
SATA connectors |
SATA2*3+SATA3*1 |
USB |
USB 3.0 port x 4 |
LAN |
GbE LAN |
Form Factor(mm) |
170x170mm Thin Mini-ITX |
|
|
|
| |
|
| |
|

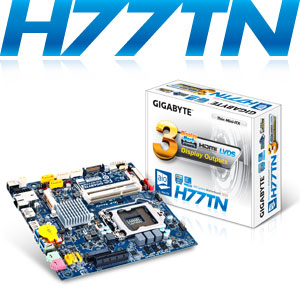

GA-H77TN |
CPU Support |
2nd and 3rd generation Intel Core processor |
CPU Socket |
LGA 1155 |
Chipset |
Intel H77 Express chipset |
Graphics Interface |
1*PCI-E 3.0 x 4 |
Display Interface |
LVDS,HDMI,DisplayPort |
Memory Type |
Dual Channel DDR3 SO DIMM |
Memory DIMM |
2*DDR3 SO DIMM |
Expansion Slots |
1*Mini PCI-Ex1+1*PCI-Ex4+1*mSATA |
SATA connectors |
SATA2*2+SATA3*2 |
SATA RAID |
RAID 0,1,5,10 |
USB |
USB 3.0 port x 4 |
LAN |
GbE LAN |
Form Factor(mm) |
170x170mm Thin Mini-ITX |
|
|
|
|
| |
|
| |
|
|

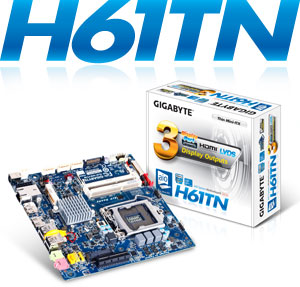

CPU Support |
2nd and 3rd generation Intel Core processor |
CPU Socket |
LGA 1155 |
Chipset |
Intel H61 Express chipset |
Graphics Interface |
1*PCI-E 3.0 x 4 |
Display Interface |
LVDS,HDMI,DisplayPort |
Memory Type |
Dual Channel DDR3 SO DIMM |
Memory DIMM |
2*DDR3 SO DIMM |
Expansion Slots |
1*Mini PCI-Ex1+1*PCI-Ex4+1*mSATA
|
SATA connectors |
SATA2*3 |
USB |
USB 2.0 port x 4 |
Form Factor(mm) |
170x170mm Thin Mini-ITX |
|
|
|
|
|
|
