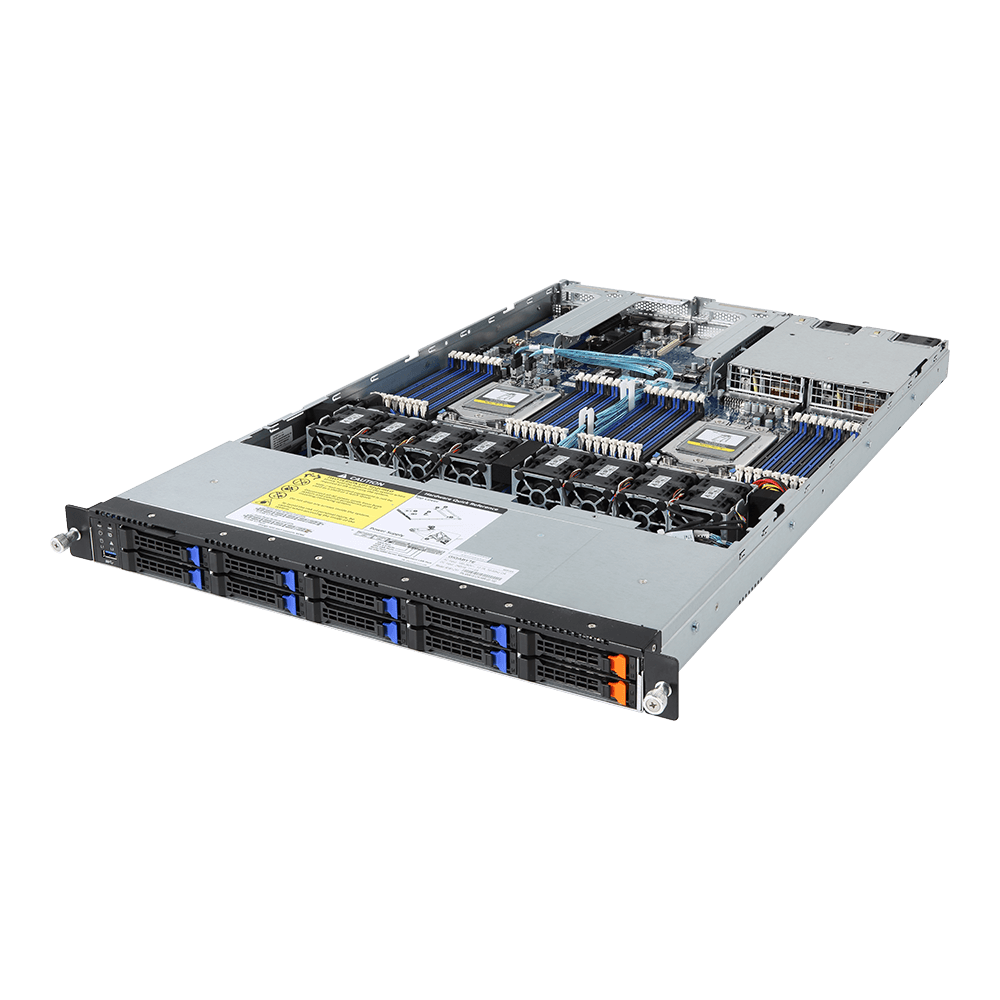

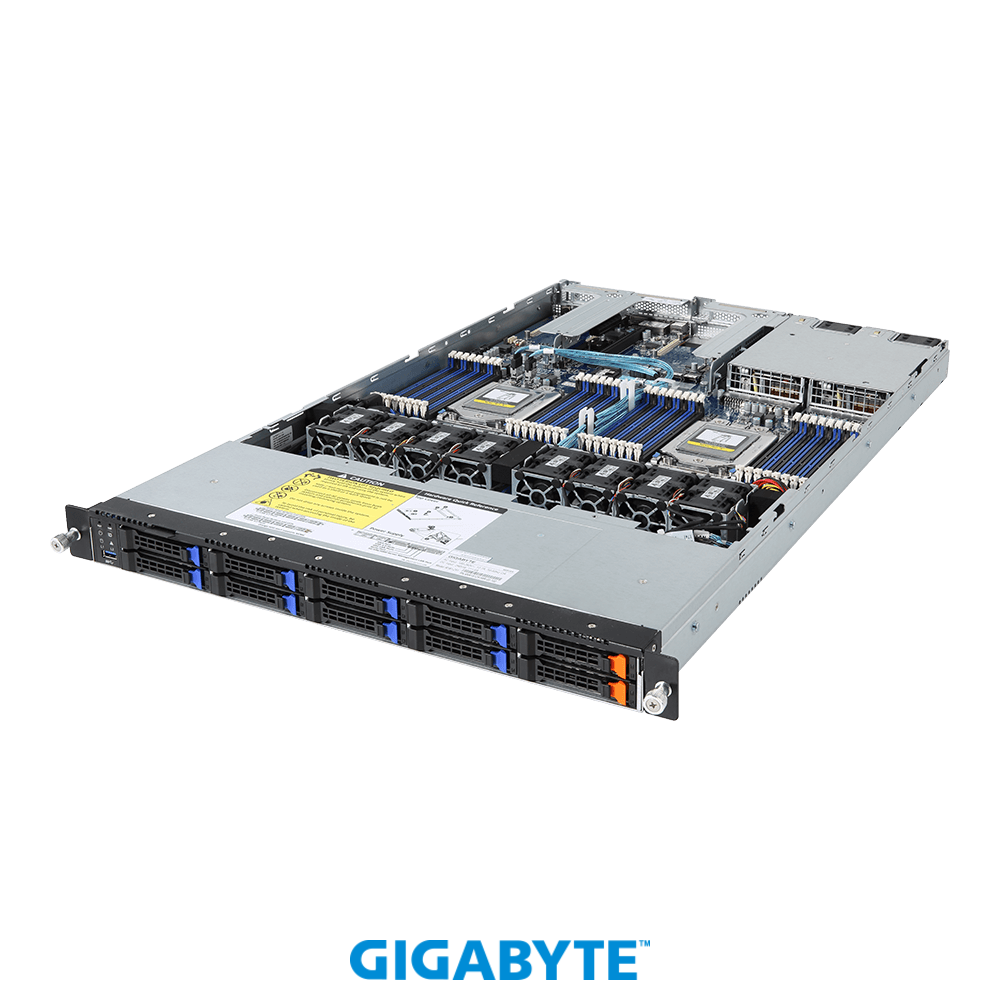

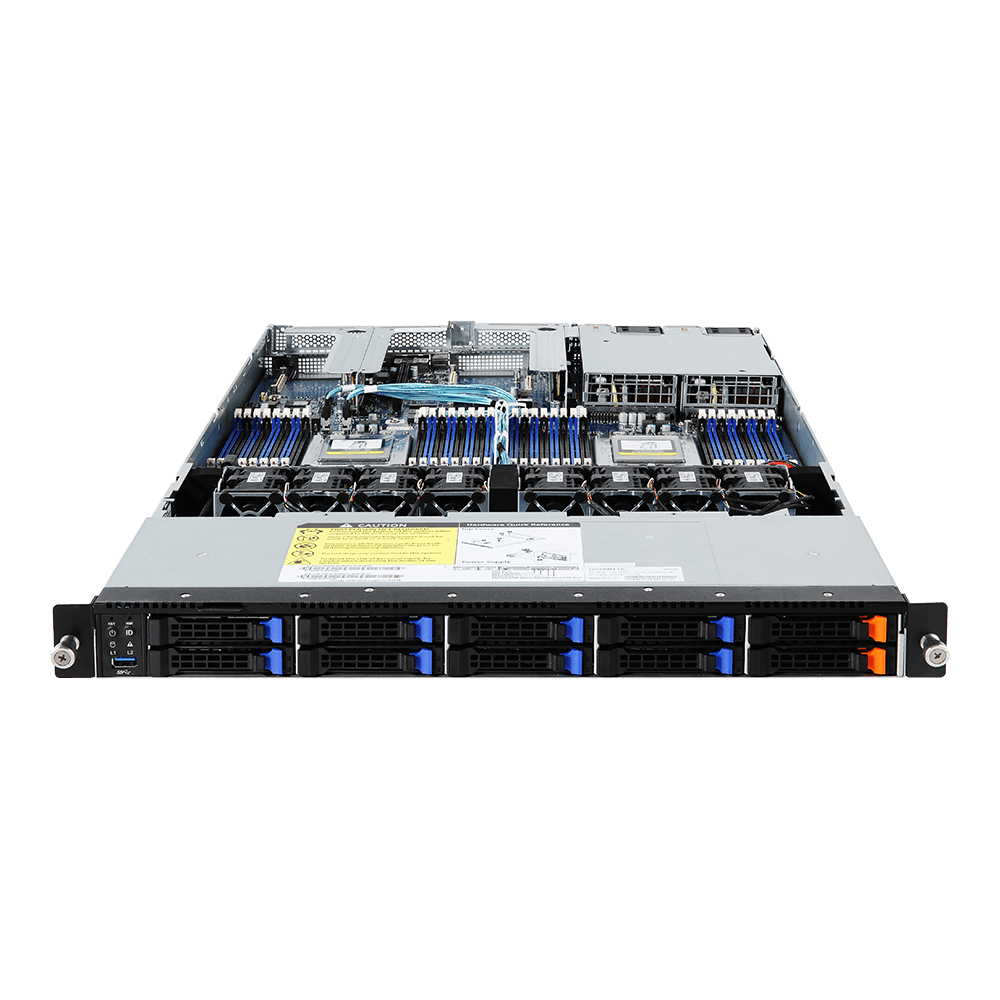

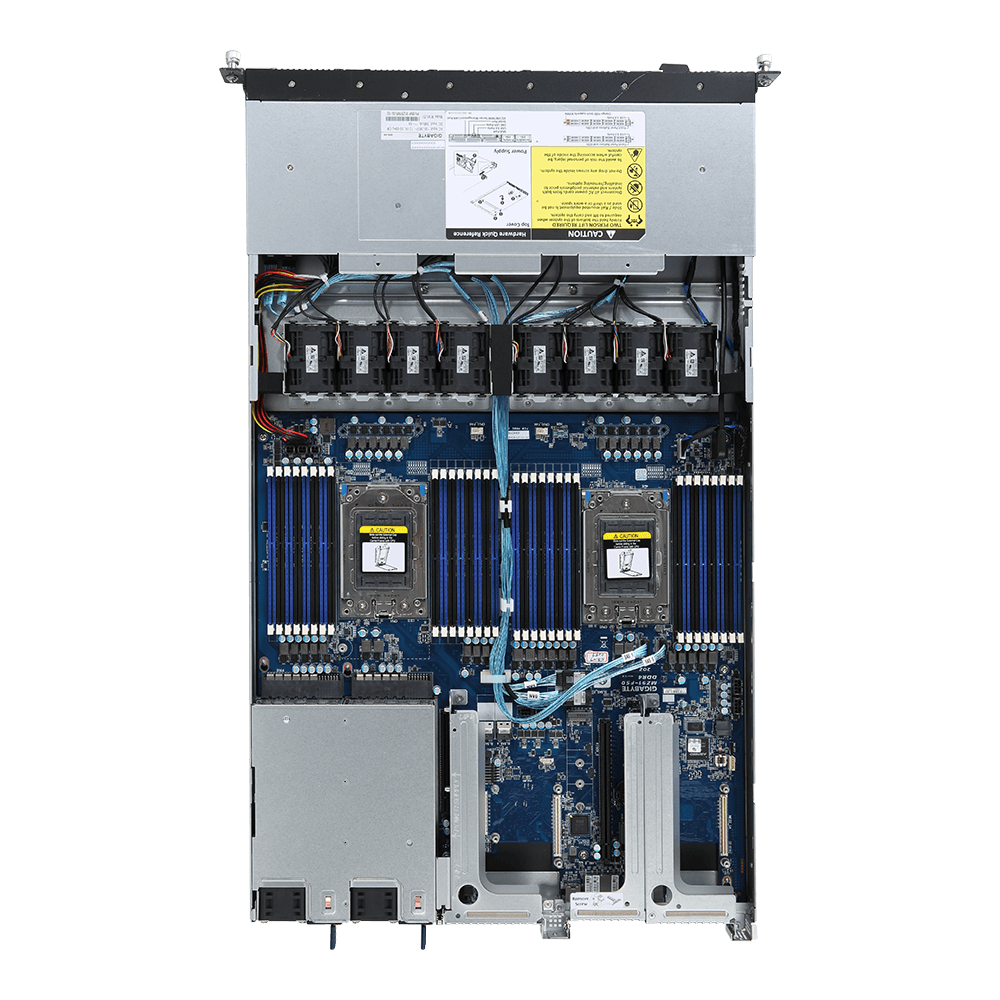

Rack Server - AMD EPYC™ 7003/7002 - 1U DP 10-Bay Gen3 NVMe/SATA/SAS
- Dual AMD EPYC™ 7003/7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 2 x 2.5" Gen3 NVMe hot-swappable bays
- 8 x 2.5" SATA/SAS hot-swappable bays
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 3 x LP PCIe Gen3 x16 and x8 slots
- 2 x OCP Gen3 x16 mezzanine slots
- Dual 1200W 80 PLUS Platinum redundant power supply
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 710
438 x 43.5 x 710
Motherboard
MZ91-FS0 Rev. 3.0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Supports 280W CPU at ambient 30°C
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 225W, cTDP up to 240W
Supports 280W CPU at ambient 30°C
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front side:
2 x 2.5" Gen3 NVMe hot-swappable bays, from CPU_0
8 x 2.5" SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
2 x 2.5" Gen3 NVMe hot-swappable bays, from CPU_0
8 x 2.5" SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
SAS
Depends on SAS add-in cards
RAID
N/A
Expansion Slots
Riser Card CRS1021:
- 2 x PCIe x8 (Gen3 x8) low-profile slots, from CPU_0
Riser Card CRS1015:
- 1 x PCIe x16 (Gen3 x16) low-profile slot, from CPU_1
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0 (Type1, P1, P2, P3, P4)
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_1 (Type1, P1, P2, P3, P4)
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280 cards
- CPU TDP is limited to 180W if using M.2 device
- 2 x PCIe x8 (Gen3 x8) low-profile slots, from CPU_0
Riser Card CRS1015:
- 1 x PCIe x16 (Gen3 x16) low-profile slot, from CPU_1
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_0 (Type1, P1, P2, P3, P4)
1 x OCP mezzanine slot with PCIe Gen3 x16 bandwidth, from CPU_1 (Type1, P1, P2, P3, P4)
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2242/2260/2280 cards
- CPU TDP is limited to 180W if using M.2 device
Internal I/O
6 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
5 x PCIe expansion slots
2 x OCP mezzanine slots
2 x Power supply connectors
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x M.2 slot
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
5 x PCIe expansion slots
2 x OCP mezzanine slots
2 x Power supply connectors
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
Front I/O
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.0
1 x VGA
1 x COM (RJ45 type)
2 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM (RJ45 type)
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen3 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with LPC interface
- Optional TPM2.0 kit: CTM000
- Optional TPM2.0 kit: CTM000
Power Supply
Dual 1200W 80 PLUS Platinum redundant power supply
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
AC Input:
- 100-127V~/ 12.47A, 47-63Hz
- 200-240V~/ 7.08A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 7A
DC Output:
- Max 1000W/ 100-127V~
+12V/ 82A
+12Vsb/ 2A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 98A
+12Vsb/ 2A
System Management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
8 x 40x40x56mm (23,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
985 x 588 x 250 mm
Packaging Content
1 x R181-Z91
2 x CPU heatsinks
1 x Rail kit
2 x CPU heatsinks
1 x Rail kit
Part Numbers
- Barebone package: 6NR181Z91MR-00-B*
- Motherboard: 9MZ91FS0NR-00-3*
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320D-J1R
- Backplane board - CBP10A4: 9CBP10A4NR-00
- Riser card - CRS1021: 9CRS1021NR-00
- Riser card - CRS1015: 9CRS1015NR-00
- Fan module: 25ST2-44562G-D0R
- Power supply: 25EP0-212008-D0S
- Airduct dummy: 25EK4-R18200-S9R
Optional parts:
- RJ45 type COM cable: 25CR0-200400-Y4R
- Motherboard: 9MZ91FS0NR-00-3*
- Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320D-J1R
- Backplane board - CBP10A4: 9CBP10A4NR-00
- Riser card - CRS1021: 9CRS1021NR-00
- Riser card - CRS1015: 9CRS1015NR-00
- Fan module: 25ST2-44562G-D0R
- Power supply: 25EP0-212008-D0S
- Airduct dummy: 25EK4-R18200-S9R
Optional parts:
- RJ45 type COM cable: 25CR0-200400-Y4R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
