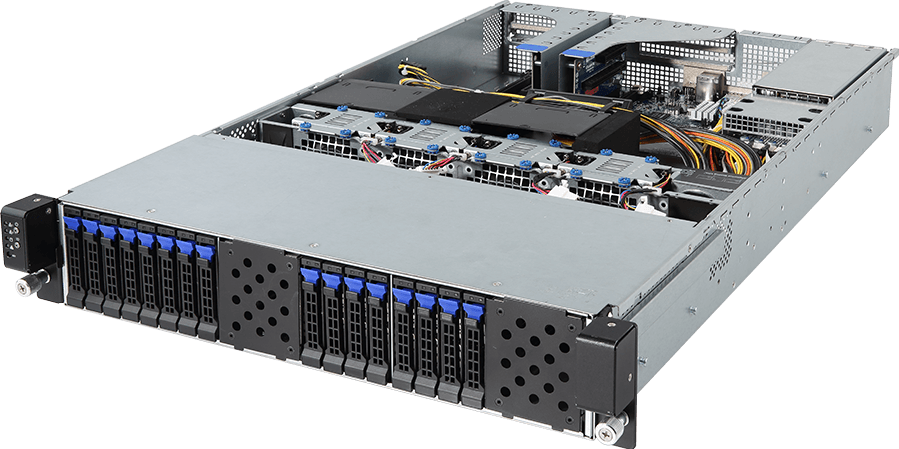

- G221-Z30
- Supports up to 2 x double slot GPU cards
- AMD EPYC™ 7001 series processor family
- 8-Channel RDIMM/LRDIMM DDR4, 16 x DIMMs
- 2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
- 1 x Dedicated management port
- 16 x 2.5" hot-swappable HDD/SSD bays
- Ultra-Fast M.2 with PCIe Gen3 x4 interface
- 4 x PCIe Gen3 expansion slots
- 2 x PCIe Gen3 expansion slots for RAID and LAN cards
- Aspeed® AST2500 remote management controller
- Dual 1200W 80 PLUS Platinum redundant power supply
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
430 x 87 x 710 mm
Motherboard
CPU
AMD EPYC™ 7001 series processor family
Single processor, 14nm, Socket SP3
Up to 32-core, 64 threads
TDP up to 200W
Single processor, 14nm, Socket SP3
Up to 32-core, 64 threads
TDP up to 200W
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: 2667(1DPC)/2400/2133* MHz
- Note:
Memory speed run at 2133MHz when 1R/2R memory modules are fully populated
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 64GB supported
LRDIMM modules up to 128GB supported
Memory speed: 2667(1DPC)/2400/2133* MHz
- Note:
Memory speed run at 2133MHz when 1R/2R memory modules are fully populated
LAN
2 x SFP+ 10Gb/s LAN ports (Broadcom® BCM 57810S)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
N/A
Storage
16 x 2.5" SATA/SAS hot-swappable HDD/SSD bays
SAS
N/A
RAID
N/A
Peripheral Drives
N/A
Expansion Slots
Riser Card CRS2010:
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height full-length
- 1 x PCIe x8 slot (Gen3 x8 or x0), Full height half-length
Riser Card CRS2012:
- 1 x PCIe x8 slot (Gen3 x8 or x0), Full height half-length
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height full-length
2 x PCIe x16 slots (Gen3 x8), Low profile half-length for RAID and LAN HBAs
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height full-length
- 1 x PCIe x8 slot (Gen3 x8 or x0), Full height half-length
Riser Card CRS2012:
- 1 x PCIe x8 slot (Gen3 x8 or x0), Full height half-length
- 1 x PCIe x16 slot (Gen3 x16 or x8), Full height full-length
2 x PCIe x16 slots (Gen3 x8), Low profile half-length for RAID and LAN HBAs
1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports NGFF-2242/2260/2280 cards
Internal I/O
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
2 x CPU fan headers
5 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
2 x LAN activity LED
1 x HDD back plane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper
1 x Buzzer
Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O
2 x USB 3.0
2 x USB 2.0
1 x VGA
1 x COM_1
2 x SFP+
1 x MLAN
1 x ID button with LED
2 x USB 2.0
1 x VGA
1 x COM_1
2 x SFP+
1 x MLAN
1 x ID button with LED
Backplane Board
Backplane P/N: 9CBP20O1NR-00
Speed and bandwidth:
SAS 12Gb/s, SATA 6Gb/s
Speed and bandwidth:
SAS 12Gb/s, SATA 6Gb/s
TPM
1 x TPM header with LPC interface
Optional TPM2.0 kit: CTM000
Optional TPM2.0 kit: CTM000
Power Supply
2 x 1200W redundant PSUs
80 PLUS Platinum
AC Input:
- 100-240V~/ 12-7A, 50-60Hz
DC Input:
- 240Vdc/ 6A
DC Output:
- Max 1000W/ 100-240V~
+ 12V/ 80.5A
+ 12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc Input
+ 12V/ 97A
+ 12Vsb/ 3A
System Management
Aspeed® AST2500 management controller
Avocent® MergePoint IPMI 2.0 web interface:
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Hardware information
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
- Fan profiles
- Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (HTML5)
OS Compatibility
Windows Server 2012 R2 with Update
Windows Server 2016
Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
Windows Server 2016
Red Hat Enterprise Linux 7.4 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 11 SP4 (x64) or later
SUSE Linux Enterprise Server 12 SP3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 16.04 LTS (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.5 Update1 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
System Fans
4 x 80x80x38mm (16300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
22 kg (barebone)
Packaging Dimensions
982 x 588 x 268 (mm)
Packaging Content
1 x G221-Z30 system
1 x CPU heatsink
1 x Rail kit
1 x CPU heatsink
1 x Rail kit
Part Numbers
Rackmount: 6NG221Z30MR-00-1*
Motherboard: 9MZ31AR0NR-00-1*
CPU heatsink: 25ST1-15320D-J1R
Back plane board: 9CBP20O1NR-00
Fan module: 25ST2-883829-D0R
Power supply: 25EP0-212002-F3S
Rail Kit: 25HB2-3A6804-I0R
Motherboard: 9MZ31AR0NR-00-1*
CPU heatsink: 25ST1-15320D-J1R
Back plane board: 9CBP20O1NR-00
Fan module: 25ST2-883829-D0R
Power supply: 25EP0-212002-F3S
Rail Kit: 25HB2-3A6804-I0R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
