E162-220

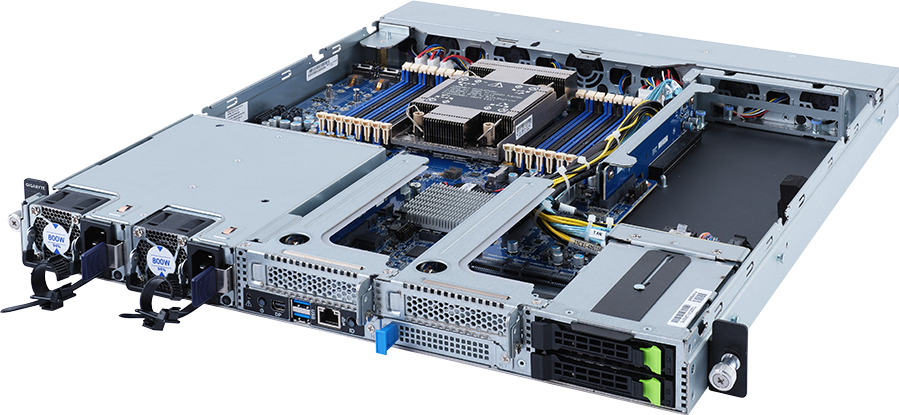

Edge Server - 3rd Gen Intel® Xeon® Scalable - 1U UP 1 x PCIe Gen4 GPU
- NVIDIA-Certified Systems™ - Data Center Servers
- NVIDIA-Certified Systems™ - High-Density VDI Servers
- NVIDIA-Certified Systems™ - Edge Systems
- Supports up to 1 x Dual slot Gen4 GPU
- Single 3rd Gen Intel® Xeon® Scalable Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
- Supports Intel® Optane™ Persistent Memory 200 series
- Dual ROM Architecture
- 2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- 2 x M.2 slots with PCIe Gen4 x4 interface
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 1 x FHFL PCIe Gen4 x16 slot for GPUs
- 2 x LP PCIe Gen4 x16 slots
- 1 x OCP 3.0 Gen4 x16 slot
- Dual 800W 80 PLUS Platinum hot-swap redundant power supply
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 500
438 x 43.5 x 500
Motherboard
ME62-GE0
CPU
3rd Generation Intel® Xeon® Scalable Processors
Single processor, 10nm technology
TDP up to 270W
Single processor, 10nm technology
TDP up to 270W
Socket
1 x LGA 4189
Socket P+
Socket P+
Chipset
Intel® C621A
Memory
16 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
1.2V modules: 3200/2933/2666 MT/s
DDR4 memory supported only
8-channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
1.2V modules: 3200/2933/2666 MT/s
LAN
Front side:
1 x 10/100/1000 Mbps Management LAN
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front side:
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
SAS
Depends on SAS add-in cards
RAID
Intel® SATA RAID 0/1
Expansion Slots
1 x PCIe x16 (Gen4 x16) FHFL slot, for GPUs
2 x PCIe x16 (Gen4 x16) low-profile slots
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth
2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280/22110 cards
2 x PCIe x16 (Gen4 x16) low-profile slots
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth
2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 2280/22110 cards
Internal I/O
2 x SATA ports
1 x TPM header
1 x TPM header
Front I/O
2 x USB 3.0
1 x Mini-DP
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x System status LED
1 x Mini-DP
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x System status LED
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 800W 80 PLUS Platinum hot-swap redundant power supply
AC Input:
- 100-240V~/ 10-5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 4A
DC Output:
- Max 800W
+12V/ 65A
+12Vsb/ 2.1A
AC Input:
- 100-240V~/ 10-5A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 4A
DC Output:
- Max 800W
+12V/ 65A
+12Vsb/ 2.1A
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage/Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced Power Capping
- LDAP/AD/RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Windows Server 2016
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 7.9 or later
Red Hat Enterprise Linux 8.2 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update2 or later
VMware ESXi 8.0 or later
Windows Server 2016
Windows Server 2019
Windows Server 2022
System Fans
6 x 40x40x56mm (29,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 9.4 kg
Packaging Dimensions
786 x 588 x 250 mm
Packaging Content
1 x E162-220
1 x CPU heatsink
1 x GPU power cable (CPU 8pin, 400mm)
*Rail kit not included. Please refer to optional parts for compatible rail kit.
1 x CPU heatsink
1 x GPU power cable (CPU 8pin, 400mm)
*Rail kit not included. Please refer to optional parts for compatible rail kit.
Part Numbers
- Barebone package: 6NE162220MR-00-1*
- Motherboard: 9ME62GE0NR-00
- CPU heatsink: 25ST1-453213-M1R
- Backplane board - CBPE020: 9CBPE020NR-00
- Fan module: 25ST2-405628-S1R
- Riser card - CRSE010: 9CRSE010NR-00
- Riser card - CRSE011: 9CRSE011NR-00
- Riser card - CRSE012: 9CRSE012NR-00
- GPU power cable (CPU 8pin, 400mm): 25CRI-400100-Y4R
- Power supply: 25EP0-208007-F3S
Optional parts:
- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R (MOQ: 500)
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- RMA packaging: 6NE162220SR-RMA-A100
- Motherboard: 9ME62GE0NR-00
- CPU heatsink: 25ST1-453213-M1R
- Backplane board - CBPE020: 9CBPE020NR-00
- Fan module: 25ST2-405628-S1R
- Riser card - CRSE010: 9CRSE010NR-00
- Riser card - CRSE011: 9CRSE011NR-00
- Riser card - CRSE012: 9CRSE012NR-00
- GPU power cable (CPU 8pin, 400mm): 25CRI-400100-Y4R
- Power supply: 25EP0-208007-F3S
Optional parts:
- VROC module: 25FD0-R181N0-10R (Supported for Intel SSD only)
- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R (MOQ: 500)
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- RMA packaging: 6NE162220SR-RMA-A100
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
