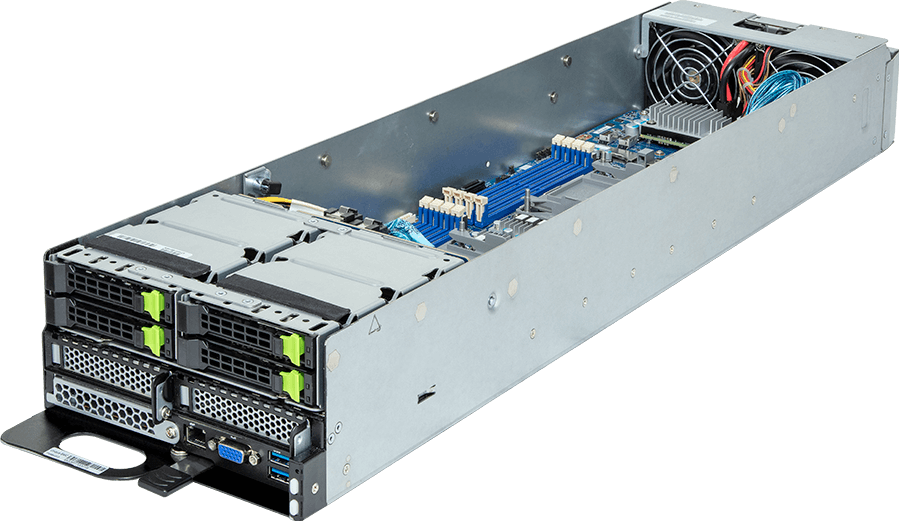

TO23-H60
ORv3 Compute Node - 3rd Gen Intel® Xeon® Scalable - 2OU 3-Node DP 4-Bay Gen4 NVMe/SATA/SAS
- 3rd Gen Intel® Xeon® Scalable Processors
- Dual processor, LGA 4189
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
- 1 x Dedicated management port
- 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
- 2 x LP PCIe Gen4 x16 slots
- 1 x OCP 3.0 Gen4 x16 slot
- 48V DC Bus Bar power solution
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2OU 3-Node
180 x 90 x 740
180 x 90 x 740
Open Rack Version
ORv3
Motherboard
MH62-HD2
CPU
3rd Generation Intel® Xeon® Scalable Processors
Dual processor, 10nm technology
CPU TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Dual processor, 10nm technology
CPU TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Memory
16 x DIMM slots
DDR4 memory supported only
8-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
DDR4 memory supported only
8-channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
1.2V modules: 3200/2933/2666 MHz
LAN
Front side:
1 x 10/100/1000 Management LAN
1 x 10/100/1000 Management LAN
Storage
Front side:
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
SAS card is required for SAS devices support
SAS
Depends on SAS add-in card
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
Riser Card CRSH01E:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
Riser Card CRSH01H:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
NCSI function supported
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
Riser Card CRSH01H:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1 x OCP 3.0 slot with PCIe Gen4 x16 bandwidth, from CPU_0
NCSI function supported
Front I/O
2 x USB 3.2 Gen1
1 x VGA
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x System status LED
1 x VGA
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x System status LED
Power Supply
Supports up to 1600W
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
System Fans
2 x 80x80x38mm (14,900rpm)
Packaging Dimensions
995 x 358 x 270 mm
Packaging Content
1 x TO23-H60
2 x CPU heatsinks
2 x CPU heatsinks
Part Numbers
- Barebone package: 6NTO23H60MR-00-1*
- Motherboard: 9MH62HD2NR-00
- CPU heatsink: 25ST1-35320C-C1R
- Front panel board - COFP212: 9COFP212NR-00
- Backplane board - COBP540: 9COBP540NR-00
- Fan module: 25ST2-883825-S0S
- Riser card - CRSH01E: 9CRSH01ENR-00
- Riser card - CRSH01H: 9CRSH01HNR-00
Optional parts:
- RMA packaging: 6NTO23H60SR-RMA-A100
- Motherboard: 9MH62HD2NR-00
- CPU heatsink: 25ST1-35320C-C1R
- Front panel board - COFP212: 9COFP212NR-00
- Backplane board - COBP540: 9COBP540NR-00
- Fan module: 25ST2-883825-S0S
- Riser card - CRSH01E: 9CRSH01ENR-00
- Riser card - CRSH01H: 9CRSH01HNR-00
Optional parts:
- RMA packaging: 6NTO23H60SR-RMA-A100
No. of Bus Bars
1 x 48V Bus Bar
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Utility
Firmware
QVL
- All
- All
- Windows Server 2022
- Windows Server 2019
- Linux
Chipset
Chipset
Version
Size
Date
Intel® Chipset Driver
Version : 10.1.18807.8279
3.29 MB
Apr 25, 2022
OS: Windows Server 2022
SATA RAID/AHCI
SATA RAID/AHCI
Version
Size
Date
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 7.7.0.1273
7.07 MB
Apr 25, 2022
OS: Windows Server 2022
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 7.7.0.1273
23.58 MB
Apr 25, 2022
OS: Windows Server 2022
BIOS
Description
Version
Size
Date
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.78
147.79 MB
Dec 12, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
Description
Version
Size
Date
GIGABYTE Management Console Web GUI Tool
GCT Diagnostic Analyzer
GCT Diagnostic Analyzer
Version : 1.0
2519.27 MB
Aug 15, 2024
English
Manual
Description
Version
Size
Date
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
English
Description
Version
Size
Date
