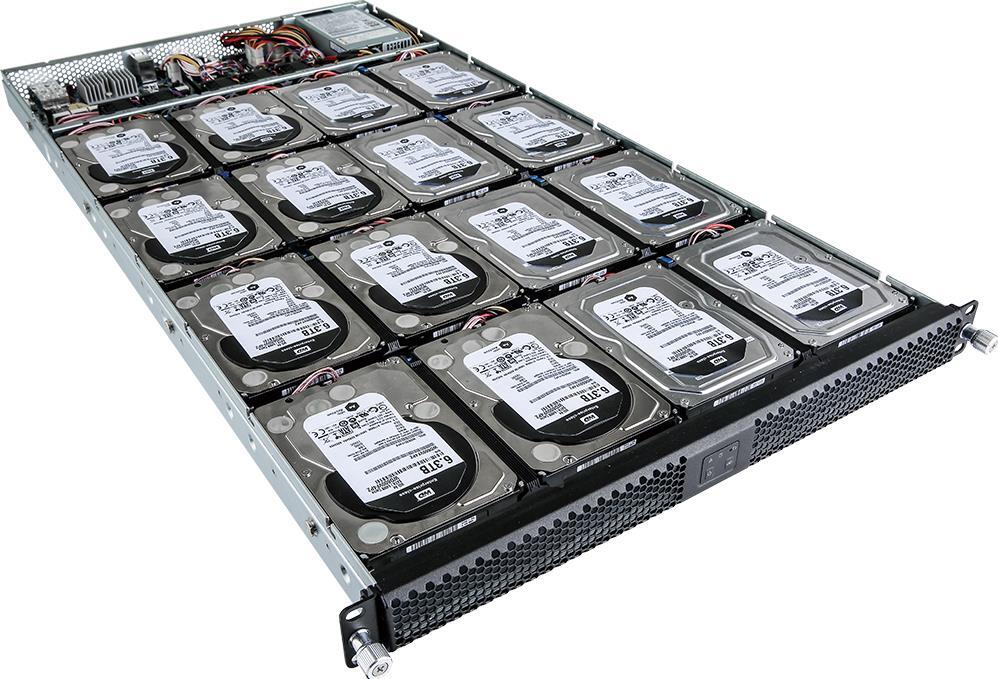

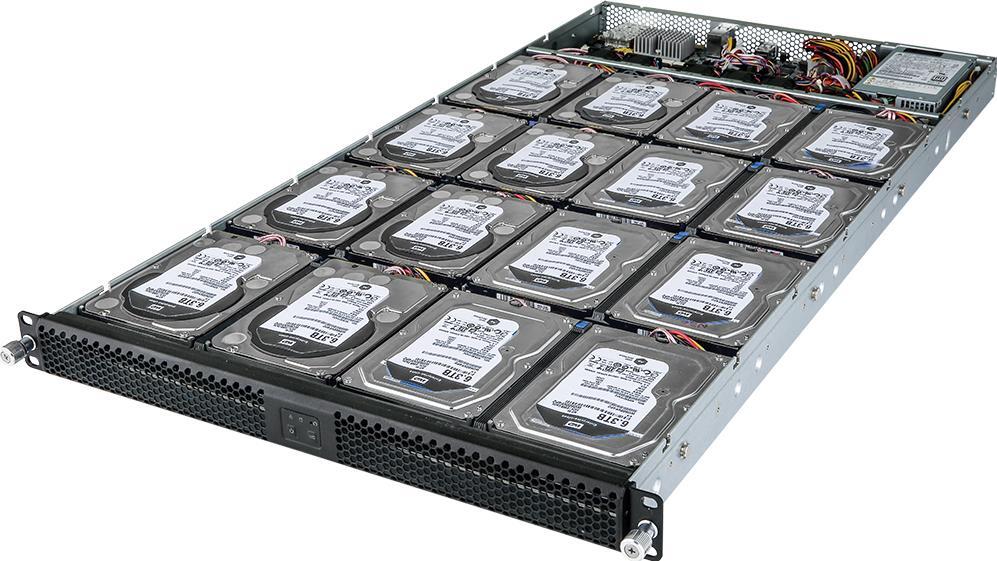

D120-S3G

Discontinued

Rev. A00 Rev. 220

1U ARM Rackmount Cold Storage ( UI Mode)

With GIGABYTE Smart Software Manager
Friendly web browser user interface
Supports RAID /0/1/5/6/10/50/60
Supports Dedicated hot spare, multiple RAID groups
Supports Auto volume rebuilding, online pool expansion, offline pool roaming
Supports Microsoft AD, Windows ACL, LDAP, UnifiedAUTH
Supports SMB 3.0, NFS v3/v4, AFP 3.4, FTP/SFTP, WebDAV, iSCSI target
Supports File and block level snapshot, rsync, remote replication, local clone
Supports Windows, Red Hat, Solaris 10 or later, Mac OS X host OS

SPECIFICATIONS

Dimensions (WxHxD, mm)

1U
438 x 43.5 x 860

Motherboard

ML00-AR0

CPU

Annapurna Labs^® Alpine AL514 processor
ARMv7 architecture
Cortex-A15 quad-core, 1.7GHz

Memory

1 x DIMM slot
RDIMM/ECC-UDIMM modules supported
1600 MHz DDR3/DDR3L memory supported
Support 1Rx8 / 1Rx16 memory modules (max. 4GB)
Support 2Rx8 / 2Rx16 memory modules (max. 8GB)
4GB DDR3L memory pre-installed

LAN

2 x 10GbE SFP+ LAN ports (integrated)
2 x GbE LAN ports (Atheros^® AR8035)
1 x 10/100/1000 management LAN

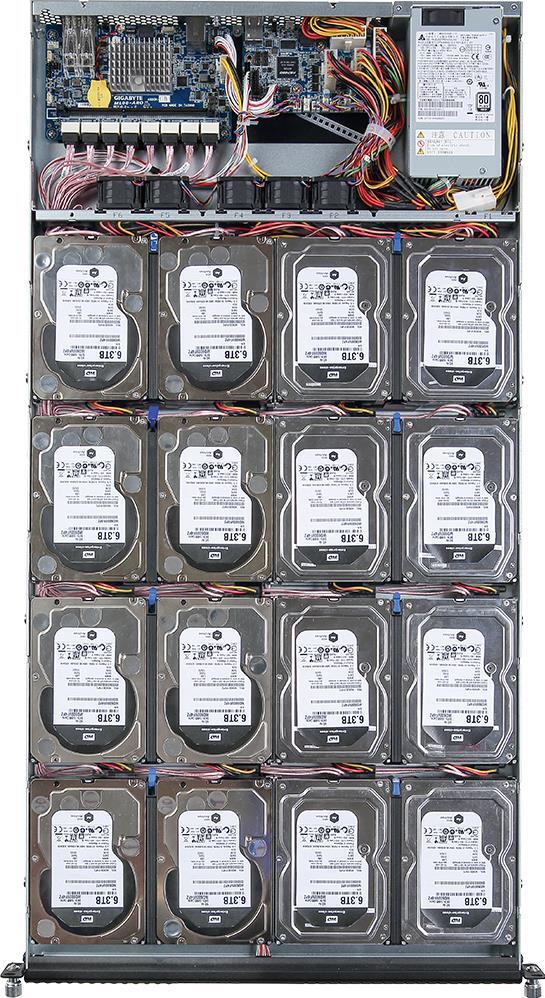

Storage

16 x 3.5” easy swappable HDD bays
Supports SATA III 6Gb/s

RAID

RAID 0/1/5/6/10/50/60

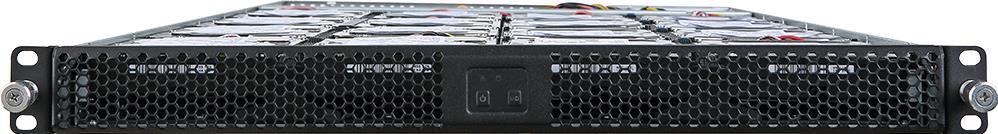

Front I/O

1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x LAN LED
16 x HDD location LEDs
1 x HDD access LED

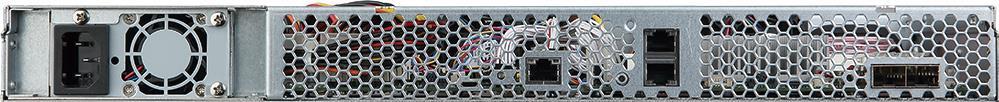

Rear I/O

2 x SFP+
3 x RJ45
1 x Micro USB
1 x Power button with LED
1 x System status LED

Power Supply

1 x 400W PSU
80 PLUS Gold
100~240V AC

System Fans

5 x 40x40x28mm (18’000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Weight

Barebone: 11.4 kg (without drives)
Barebone with packaging: 19.4 kg (without drives)

Packaging Dimensions

1141 x 745 x 259 mm

Packaging Content

1 x D120-S3G
1 x Rail kit
1 x HDD remove tool

Part Numbers

Barebone with rail kit: 6ND120S3GMR-00
Rail kit: 25HB2-3A0201-C0R
Memory module: 25SD5-6004G2-I0R
Fan module: 25ST2-442826-D0R
Power supply: 25EP0-20400H-D0S
