R164-SG2-AAV1

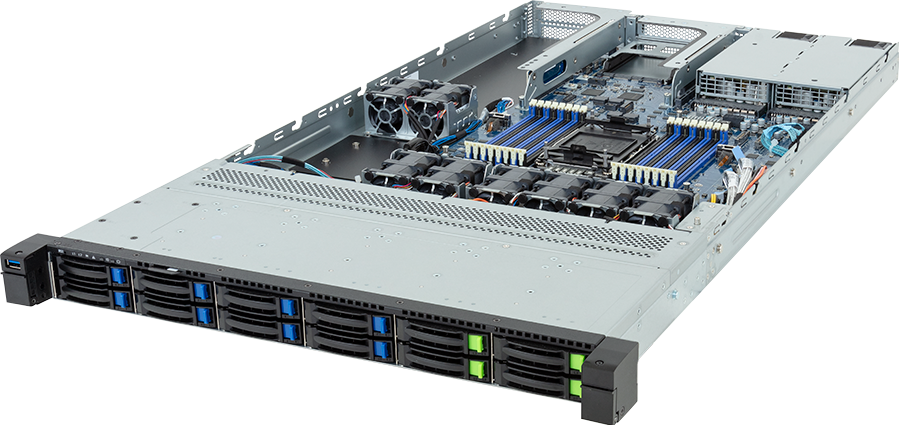

Rack Server - Intel^® Xeon^® 6 Processors - 1U UP 1 x PCIe Gen5 GPU

# AI # AI Inference # Visual Computing # Networking # Hybrid/Private Cloud Server

Supports 1 x Dual slot Gen5 GPU
Single Intel^® Xeon^® 6 Processors, LGA 4710
8-Channel DDR5 RDIMM / MCR DIMM, 16 x DIMMs
Dual ROM Architecture
4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
8 x 2.5" SATA/SAS-4 hot-swappable bays
1 x M.2 slot with PCIe Gen5 x2 interface
1 x FHFL PCIe Gen5 x16 slot for GPUs
1 x FHFL PCIe Gen5 x16 slot
1 x FHHL PCIe Gen5 x16 slot
1 x OCP NIC 3.0 PCIe Gen5 x16 slot
Dual 1600W 80 PLUS Titanium redundant power supply

Get a Quote

So sánh sản

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)

1U
438 x 43.5 x 815

Motherboard

MSG4-GU0

CPU

Intel^® Xeon^® 6 Processors
- Intel^® Xeon^® 6700E-Series Processors
- Intel^® Xeon^® 6700P-Series Processors (available Q1'25)
- Intel^® Xeon^® 6500P-Series Processors (available Q1'25)

Single processor, TDP up to 350W

Socket

1 x LGA 4710
Socket E2

Chipset

System on Chip

Memory

16 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MCR DIMM supported^[1]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

^[1]MCR DIMMs are only supported with Intel^® Xeon^® 6 Processors with P-cores and in a 1DPC configuration.

LAN

Rear:
1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
- 1 x Mini-DP

Storage

Front hot-swap:
4 x 2.5" Gen5 NVMe/SATA/SAS-4^[1]
8 x 2.5" SATA/SAS-4^[1]

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2, disabled for SATA

^[1]SAS card is required to support SAS drives.

SAS

Require SAS add-in cards

RAID

Require RAID add-in cards
Onboard VROC key header

PCIe Expansion Slots

Riser Card CRS102B:
- 1 x FHFL x16 (Gen5 x16), for GPUs
- 1 x FHFL x16 (Gen5 x16)^[1]

Riser Card CRS101U:
- 1 x FHHL x16 (Gen5 x16)

1 x OCP NIC 3.0 (Gen5 x16)
- Supports NCSI function

^[1]Blocked when a Dual slot GPU is installed.

Front I/O

1 x USB 3.2 Gen1 port (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs (disabled)
1 x Storage activity LED
1 x System status LED

Rear I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x MLAN port
1 x ID LED

Backplane Board

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

Power Supply

Dual 1600W 80 PLUS Titanium redundant power supply

AC Input:
- 100-240V~/ 12-9.5A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 9.5A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 131.2A
+12Vsb/ 3A

System Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

8 x 40x40x56mm (32,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1038 x 588 x 238 mm

Packaging Content

1 x R164-SG2-AAV1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 550mm)
2 x Carriers
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR164SG2DR000AAV1*
- Motherboard: 9MSG4GU0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-4Z3200-S7R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1030: 9CFP1030NR-00*
- Backplane board - CBP10C2: 9CBP10C2NR-00*
- Fan module: 25ST2-40562H-A0R
- Riser card - CRS101U: 9CRS101UNR-00*
- Riser card - CRS102B: 9CRS102BNR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 550mm): 25CRI-550107-Y4R
- Power supply: 25EP0-21600E-L0S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
