E263-Z30- AAD1

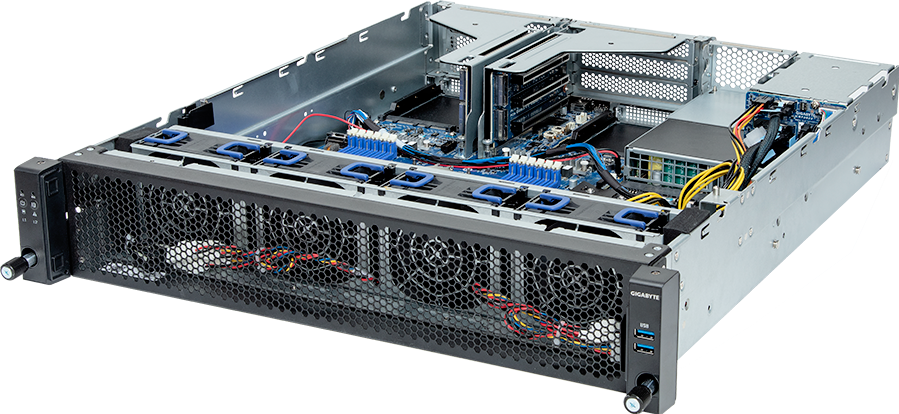

Edge Server - AMD EPYC™ 9004 - 2U UP 2 x PCIe Gen5 GPUs Platinum

# AI # AI Training # AI Inference # Visual Computing # Networking # Edge # Hybrid/Private Cloud Server

Supports up to 2 x Dual slot Gen5 GPUs
Single AMD EPYC™ 9004 Series Processors
12-Channel DDR5 RDIMM, 12 x DIMMs
Dual ROM Architecture
1 x 1Gb/s LAN port via Intel^® I210-AT
2 x 2.5" Gen4 NVMe/SATA/SAS hot-swap bays on the rear side
1 x M.2 slot with PCIe Gen3 x4 interface
2 x FHFL PCIe Gen5 x16 slots for GPUs
2 x OCP NIC 3.0 PCIe Gen5 x16 slots
1+1 1600W 80 PLUS Platinum redundant power supplies

Get a Quote

So sánh sản

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U
438 x 87.5 x 520

Motherboard

MZ33-DC0

CPU

AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Single processor, cTDP up to 300W
- At ambient 30°C, cTDP up to 400W^[1]

^[1]Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.

Socket

1 x LGA 6096
Socket SP5

Chipset

System on Chip

Memory

12 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s

LAN

Rear:
1 x 1Gb/s LAN (1 x Intel^® I210-AT)
- Supports NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
- 1 x Mini-DP

Storage

Rear hot-swap:
2 x 2.5" Gen4 NVMe/SATA/SAS^[1]

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4

^[1]SAS card is required to support SAS drives.

SAS

Require SAS add-in cards

RAID

Require RAID add-in cards

PCIe Expansion Slots

Riser Card CRS201H:
- 1 x FHFL x16 (Gen5 x16), for GPUs

Riser Card CRS201M:
- 1 x FHFL x16 (Gen5 x16), for GPUs

2 x OCP NIC 3.0 (Gen5 x16)
- Support NCSI function

^[Note]Please refer to optional parts for H100/A100/MI210 power cables.

Front I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x LAN activity LED
1 x Storage activity LED
1 x System status LED

Rear I/O

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x RJ45 port
1 x MLAN port
1 x ID button with LED

Backplane Board

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

Security Modules

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Power Supply

1+1 1600W 80 PLUS Platinum redundant power supplies

AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A

^[Note]GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

System Management

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

4 x 80x80x38mm (18,300rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Weight

Net Weight: 16 kg
Gross Weight: 19 kg

Packaging Dimensions

732 x 588 x 285 mm

Packaging Content

1 x E263-Z30-AAD1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (2x PCIe 8pin, 350mm)
1 x GPU power cable (2x PCIe 8pin, 480mm)

^[Note]Rail kit not included. Please refer to optional parts for compatible rail kit.

Part Numbers

- Barebone package (EPYC 9005/9004): 6NE263Z30DR000ABD1*
- Barebone package (EPYC 9004): 6NE263Z30DR000AAD1*
- Motherboard: 9MZ33DC0UR-000*
- CPU heatsink: 25ST1-553201-M1R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP2022: 9CBP2022NR-00*
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS201H: 9CRS201HNR-00*
- Riser card - CRS201M: 9CRS201MNR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (2x PCIe 8pin, 350mm): 25CRI-350305-Y4R
- GPU power cable (2x PCIe 8pin, 480mm): 25CRI-480300-Y4R
- Power supply: 25EP0-216008-L0S

Optional parts:

- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R (MOQ: 500)
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
- A100/MI210 power cable (CPU 8pin, 350mm): 25CRI-350100-Y4R
- A100/MI210 power cable (CPU 8pin, 480mm): 25CRI-480101-Y4R
- H100 power cable (12VHPWR, 360mm): 25CRI-360102-Y4R
- H100 power cable (12VHPWR, 490mm): 25CRI-490102-Y4R
