G492-ZL2
Discontinued

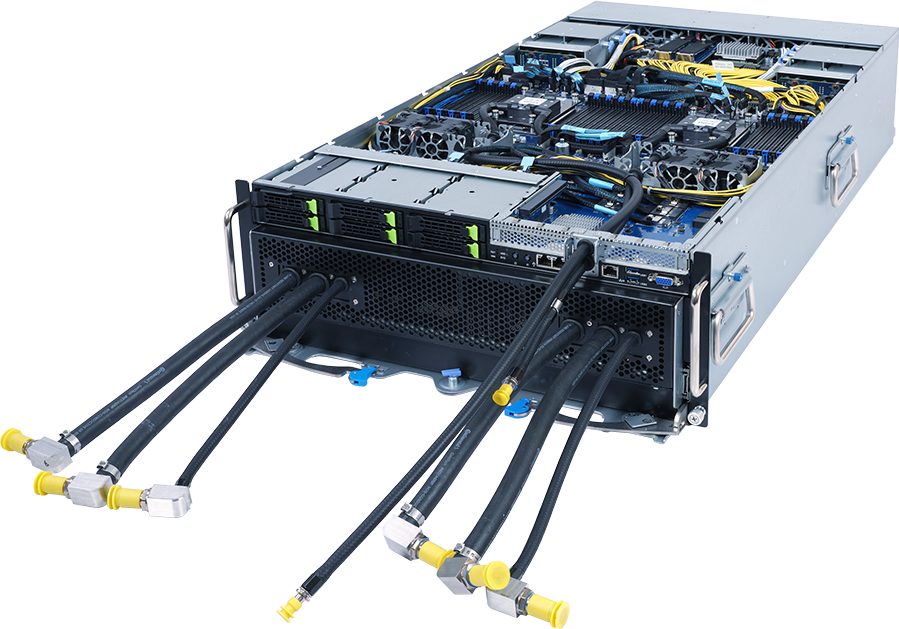

HPC/AI Server - AMD EPYC™ 7003 - 4U DP HGX™ A100 8-GPU DLC
- CPU+GPU Direct liquid cooling solution
- Liquid cooled NVIDIA HGX™ A100 with 8 x SXM4 GPUs
- NVIDIA® NVLink® and NVSwitch™ technology
- Up to 600GB/s GPU to GPU interconnection
- AMD EPYC™ 7003 Series processors
- AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
- Dual processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 32 x DIMMs
- 2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
- 1 x Dedicated management port
- 6 x 2.5" Gen4 NVMe/SATA hot-swappable bays
- 2 x M.2 slots with PCIe Gen4 x4 interface
- 10 x LP PCIe Gen4 x16 slots
- 3+1 3000W 80 PLUS Platinum redundant power supplies
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
4U
448 x 175.2 x 900
448 x 175.2 x 900
Motherboard
MZ52-G41 Rev. 3.1
CPU
AMD EPYC™ 7003 Series processors
AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7002 Series processors
AMD EPYC™ 7003 Series processors with AMD 3D V-Cache™ Technology
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
cTDP up to 280W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Compatible with AMD EPYC™ 7002 Series processors
Socket
2 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz
*Follow BIOS setting and memory QVL if running 3200 Mhz with 2DPC
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200*/2933 MHz
*Follow BIOS setting and memory QVL if running 3200 Mhz with 2DPC
LAN
Front side:
2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
NCSI function supported
1 x 10/100/1000 Management LAN
2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)
NCSI function supported
1 x 10/100/1000 Management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Storage
Front side:
6 x 2.5" Gen4 NVMe/SATA hot-swappable bays
- (NVMe from PEX88096, SATA from CPU_0)
6 x 2.5" Gen4 NVMe/SATA hot-swappable bays
- (NVMe from PEX88096, SATA from CPU_0)
SAS
N/A
RAID
N/A
Expansion Slots
Liquid cooled NVIDIA HGX™ A100 8-GPU 40GB/80GB module
8 x PCIe x16 (Gen4 x16) low-profile slots on rear side, from PEX88096
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_1
2 x M.2 slots (CMTP063):
- M-key
- PCIe Gen4 x4, from PEX88096
- Supports 2242/2260/2280/22110 cards
8 x PCIe x16 (Gen4 x16) low-profile slots on rear side, from PEX88096
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot on front side, from CPU_1
2 x M.2 slots (CMTP063):
- M-key
- PCIe Gen4 x4, from PEX88096
- Supports 2242/2260/2280/22110 cards
Internal I/O
1 x TPM header
1 x Front panel header
1 x Front panel header
Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x Storage activity LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
1 x System status LED
1 x Storage activity LED
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s
PCIe Gen4 x4 or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
3+1 3000W 80 PLUS Platinum redundant power supplies
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input:
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+ 54V/ 26.6A
+ 12Vsb/ 3A
- Max 2900W/ 200-220V~
+ 54V/ 53.4A
+ 12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+ 54V/ 55.6A
+ 12Vsb/ 3A
Note: The system power supply requires C19 power cord.
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input:
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+ 54V/ 26.6A
+ 12Vsb/ 3A
- Max 2900W/ 200-220V~
+ 54V/ 53.4A
+ 12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+ 54V/ 55.6A
+ 12Vsb/ 3A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage/Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later
SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later
Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Citrix Hypervisor 8.2.0 or later
System Fans
6 x 80x80x80mm (17,000rpm)
4 x 40x40x56mm (23,000rpm)
4 x 40x40x28mm (25,000rpm)
4 x 40x40x56mm (23,000rpm)
4 x 40x40x28mm (25,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Note: In the event that the room's relative humidity exceeds 60% then the inlet water temperature must be set between 40° to 45°C to avoid condensation and to keep the system running optimally.
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Note: In the event that the room's relative humidity exceeds 60% then the inlet water temperature must be set between 40° to 45°C to avoid condensation and to keep the system running optimally.
Packaging Dimensions
1176 x 782 x 822 mm
Packaging Content
1 x G492-ZL2
1 x L-shape Rail kit
1 x L-shape Rail kit
Part Numbers
- Barebone package with 40GB module: 6NG492ZL2MR-00-A*
- Barebone package with 80GB module: 6NG492ZL2MR-00-G*
- Motherboard: 9MZ52G41NR-00
- L-shape Rail kit: 25HB2-A96101-K0R
- Front panel board - CFPG430: 9CFPG430NR-00
- Backplane board - CBPG060: 9CBPG060NR-00
- Fan module (40x40x28mm): 25ST2-44282D-D0R
- Fan module (40x40x56mm): 25ST2-445627-D0R
- Fan module (80x80x80mm): 25ST2-808037-S1R
- M.2 expansion board - CMTP063: 9CMTP063NR-00
- Power supply: 25EP0-230003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- RMA packaging: 6NG492ZL2SR-RMA-A100
- Barebone package with 80GB module: 6NG492ZL2MR-00-G*
- Motherboard: 9MZ52G41NR-00
- L-shape Rail kit: 25HB2-A96101-K0R
- Front panel board - CFPG430: 9CFPG430NR-00
- Backplane board - CBPG060: 9CBPG060NR-00
- Fan module (40x40x28mm): 25ST2-44282D-D0R
- Fan module (40x40x56mm): 25ST2-445627-D0R
- Fan module (80x80x80mm): 25ST2-808037-S1R
- M.2 expansion board - CMTP063: 9CMTP063NR-00
- Power supply: 25EP0-230003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- RMA packaging: 6NG492ZL2SR-RMA-A100
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
Driver
BIOS
Tiện ích
Firmware
QVL
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 64bit
Chipset
Chipset
Phiên bản
Kích cở
Ngày
AMD Chipset Driver
For AMD EPYC 7002/ 7003
For AMD EPYC 7002/ 7003
Version : 2.10.09.156
17.22 MB
Mar 05, 2021
OS: Windows Server 2016 64bit,Windows Server 2019
Broadcom PCIe Switch Driver
Version : F18
3.56 MB
Dec 15, 2021
OS: Windows Server 2016 64bit,Windows Server 2019
LAN
BIOS
Mô tả
Phiên bản
Kích cở
Ngày
1. Added G492-ZL2 SKU
2. Adjusted the G492-ZD2 re-driver (2022/05/19)
2. Adjusted the G492-ZD2 re-driver (2022/05/19)
Version : M06_R04
34.34 MB
Jun 21, 2022
Updated AGESA Milan 1.0.0.6
See Release Note for more details
See Release Note for more details
Version : M05_R03
33.47 MB
Nov 22, 2021
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Cảnh báo:
Do việc flash BIOS chứa đựng rủi ro, nếu bạn không gặp vấn dề với BIOS cũ, bạn không nên flash BIOS. Để flash BIOS, hãy cẩn thận. Quá trình flash BIOS có thể dẫn đến trục trặc hệ thống.
Thế nào là BETA?
BETA là mô tả phiên bản mới đáng tin cậy, nhưng vẫn chưa đầy đủ các tính năng cuối cùng. Trong giai đoạn này chúng tôi xem trước các tính năng mới và thu thập ý kiến của khác hàng để đảm bảo sàn phẩm của chúng tôi, cung cấp những kinh nghiệm tốt nhất có thể.
Do việc flash BIOS chứa đựng rủi ro, nếu bạn không gặp vấn dề với BIOS cũ, bạn không nên flash BIOS. Để flash BIOS, hãy cẩn thận. Quá trình flash BIOS có thể dẫn đến trục trặc hệ thống.
Thế nào là BETA?
BETA là mô tả phiên bản mới đáng tin cậy, nhưng vẫn chưa đầy đủ các tính năng cuối cùng. Trong giai đoạn này chúng tôi xem trước các tính năng mới và thu thập ý kiến của khác hàng để đảm bảo sàn phẩm của chúng tôi, cung cấp những kinh nghiệm tốt nhất có thể.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Tiện ích
Mô tả
Phiên bản
Kích cở
Ngày
GSM CLI
Version : 2.1.78
147.79 MB
Dec 12, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
Firmware
Mô tả
Phiên bản
Kích cở
Ngày
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
(AST2500 AMI)
Version : 12.61.21
105.38 MB
Apr 11, 2024
Tiếng Anh
Hướng dẫn
Mô tả
Phiên bản
Kích cở
Ngày
User Guide - GIGABYTE Management Console (AMI)
Version : 1.0
14.16 MB
Jun 10, 2020
Tiếng Anh
Mô tả
Phiên bản
Kích cở
Ngày
RESOURCES
Success Case
Articles
Solutions
Success Case | June 06, 2023
CSR and ESG in Action: GIGABYTE Helps NCKU Train Award-Winning Supercomputing Team
GIGABYTE Technology is not only a leading brand in high-performance server solutions—it is also an active force for good when it comes to CSR and ESG activities. Case in point: in 2020, GIGABYTE provided four G482-Z50 servers to Taiwan’s Cheng Kung University. The servers were used to train a team of talented students, who went on to take first place in that year’s APAC HPC-AI Competition in Singapore. The parallel computing performance of the servers’ processors, the seamless connectivity between the servers, and the servers’ unrivalled reliability are the reasons why GIGABYTE servers are ideal for educating the next generation of supercomputing experts. GIGABYTE is happy to give back to society and contribute to human advancement through high tech solutions.
Success Case | May 25, 2023
Máy chủ ARM của GIGABYTE thúc đẩy phát triển giải pháp giao thông thông minh lên 200%
Một nhóm các nhà khoa học tại NTU đã sử dụng máy chủ G242-P32 của GIGABYTE và Bộ công cụ dành cho nhà phát triển Arm-HPC để tạo ra “mô hình luồng giao thông chính xác cao” - một giải pháp giao thông thông minh có thể được sử dụng để kiểm tra các phương tiện tự hành và xác định các đoạn đường dễ xảy ra tai nạn để khắc phục ngay lập tức.
Tech Guide | May 31, 2022
What is Private Cloud, and is it Right for You?
In the era of cloud computing, just about everyone has heard of the terms “private cloud” and “public cloud”. Chances are, you are using one or both of them in your everyday life—but how much do you really know about them? If you had the chance, could you build a private cloud for yourself or your organization? GIGABYTE Technology, an industry leader in server solutions used by global cloud service providers, is pleased to present our latest Tech Guide. We will examine the difference between private and public clouds, introduce the private cloud’s advantages and limitations, and then introduce GIGABYTE products that may help you build and operate a private cloud of your own.
Tech Guide | March 16, 2022
What is Big Data, and How Can You Benefit from It?
You may be familiar with the term, “big data”, but how firm is your grasp of the concept? Have you heard of the “5 V’s” of big data? Can you recite the “Three Fundamental Steps” of how to use big data? Most importantly, do you know how to reap the benefits through the use of the right tools? GIGABYTE Technology, an industry leader in high-performance server solutions, is pleased to present our latest Tech Guide. We will walk you through the basics of big data, explain why it boasts unlimited potential, and finally delve into the GIGABYTE products that will help you ride high on the most exciting wave to sweep over the IT sector.
Tech Guide | February 11, 2022
The Advantages of ARM: From Smartphones to Supercomputers and Beyond
Processors based on the ARM architecture, an alternative to the mainstream x86 architecture, is gradually making the leap from mobile devices to servers and data centers. In this Tech Guide, GIGABYTE Technology, an industry leader in high-performance server solutions, recounts how ARM was developed. We also explain the various benefits of ARM processors and recommend ARM servers for different sectors and applications.
News
News | September 21, 2022
GIGABYTE Shares Sessions at GTC and Shows Support for Arm CPU and NVIDIA GPU Validation
News | May 30, 2022
GIGABYTE Joins ISC High Performance 2022 to Promote Emerging Enterprise Technologies, Including Accelerated Computing
News | May 24, 2022
GIGABYTE Joins Computex to Promote Emerging Enterprise Technologies including Accelerated Computing
New Technologies for Fast-approaching Data Centers
News | March 29, 2022
GIGABYTE Servers Are on the Cusp of a New Era in Data Centers with Liquid Immersion Cooling
Others
Back to G492-ZL2
