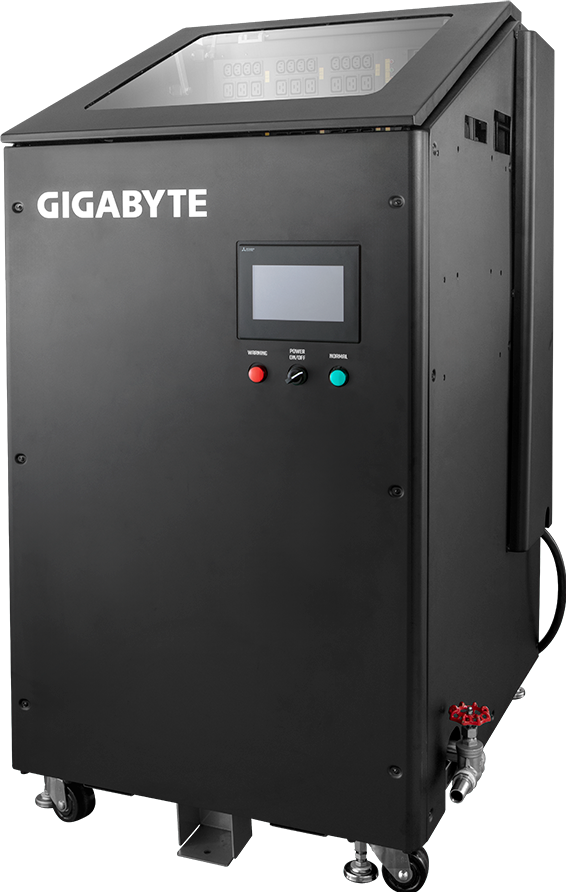

A1P0-EA0
12U EIA Tank
- Supports up to 12U EIA servers
- Minimum PUE reaching 1.02
- Up to 40kW of heat dissipation capacity
- Supports server length up to 900 mm
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Hardware Capacity
12U
Heat Dissipation Capacity
40 kW with 20℃ inlet water
Dimensions (L x W x H)
Tank (1.2m x 0.87m x 1.56m)
Tank + Switch (1.2m x 0.93m x 1.56m)
Tank + Switch (1.2m x 0.93m x 1.56m)
Weight
Tank: 300 kg (w/o coolant)
CDU Power Consumption
0.6 kW
Coolant Volume
400 L
Electrical Connection
PDU: IEC 60309 32A-3P+N+E, 6H, Plug x2
Footprint
1.1m x 0.86m
Server Depth Supported
900mm
Cooling Water Inlet
20-35°C
Water Flow Rate
100 LPM
PUE
1.02
Ordering Information
Tank: 9NA1P0EA0MR-000-001*
IT Lift: 25FT3-000000-T0R
IT Dry Rack: 25FT5-000000-U0R
Drain Oil Pump: 25FT4-000000-K0R
IT Lift: 25FT3-000000-T0R
IT Dry Rack: 25FT5-000000-U0R
Drain Oil Pump: 25FT4-000000-K0R
