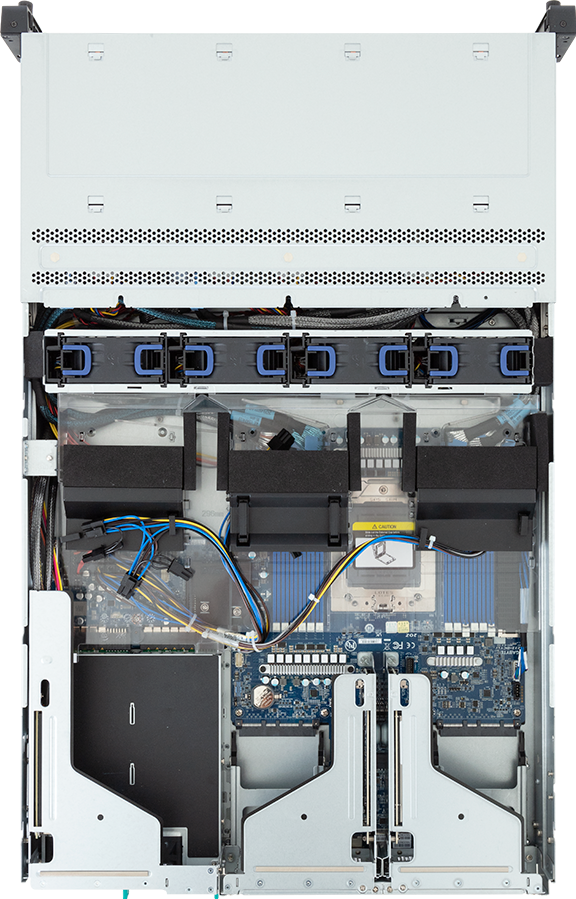

- R263-Z35-AAL1
- Supports up to 3 x Dual slot Gen5 GPUs
- Single AMD EPYC™ 9004 Series Processors
- 12-Channel DDR5 RDIMM, 12 x DIMMs
- Dual ROM Architecture
- 1 x 1Gb/s LAN port via Intel® I210-AT
- 8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 4 x 3.5"/2.5" SATA/SAS-4 hot-swap bays
- 1 x M.2 slot with PCIe Gen3 x4 interface
- 3 x FHFL PCIe Gen5 x16 slots for GPUs
- 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
- 1+1 2700W 80 PLUS Titanium redundant power supplies
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 710
438 x 87.5 x 710
Motherboard
MZ33-DC1
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Single processor, cTDP up to 300W
[Note] cTDP supported up to 400W under limited thermal conditions. Please contact our sales representatives for more details.
AMD EPYC™ 9004 Series Processors
Single processor, cTDP up to 300W
[Note] cTDP supported up to 400W under limited thermal conditions. Please contact our sales representatives for more details.
Socket
1 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
12 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
LAN
Rear:
1 x 1Gb/s LAN (1 x Intel® I210-AT)
- Supports NCSI function
1 x 10/100/1000 Mbps Management LAN
1 x 1Gb/s LAN (1 x Intel® I210-AT)
- Supports NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front hot-swap:
8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
4 x 3.5"/2.5" SATA/SAS-4 [1]
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4
[1] SAS card is required to support SAS drives.
8 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
4 x 3.5"/2.5" SATA/SAS-4 [1]
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4
[1] SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
PCIe Expansion Slots
Riser Card CRS201H:
- 1 x FHFL x16 (Gen5 x16), for GPUs
Riser Card CRS201M:
- 1 x FHFL x16 (Gen5 x16), for GPUs
PCIe Cable:
- 1 x FHFL x16 (Gen5 x16), for GPUs
2 x OCP NIC 3.0 (Gen5 x16)
- Support NCSI function
- 1 x FHFL x16 (Gen5 x16), for GPUs
Riser Card CRS201M:
- 1 x FHFL x16 (Gen5 x16), for GPUs
PCIe Cable:
- 1 x FHFL x16 (Gen5 x16), for GPUs
2 x OCP NIC 3.0 (Gen5 x16)
- Support NCSI function

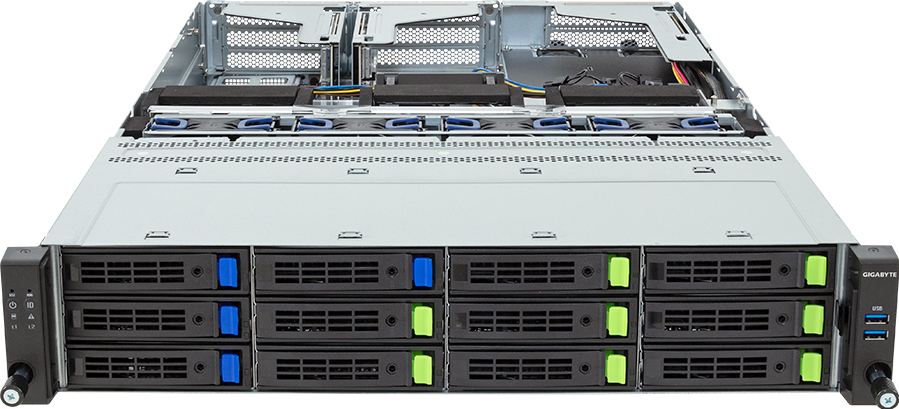

Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (1 x LED disabled)
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (1 x LED disabled)
1 x Storage activity LED
1 x System status LED

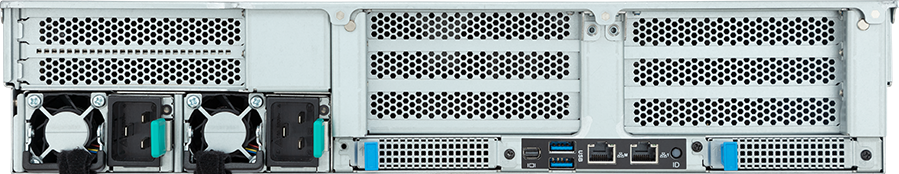

Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x RJ45 port
1 x MLAN port
1 x ID button with LED
1 x Mini-DP
1 x RJ45 port
1 x MLAN port
1 x ID button with LED
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 2700W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
4 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
989 x 594 x 279 mm
Packaging Content
1 x R263-Z35-AAL1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
2 x GPU power cables (12VHPWR, 360mm)
1 x GPU power cable (12VHPWR, 490mm)
1 x 2-Section Rail kit
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
2 x GPU power cables (12VHPWR, 360mm)
1 x GPU power cable (12VHPWR, 490mm)
1 x 2-Section Rail kit
Part Numbers
- Barebone package (EPYC 9005/9004): 6NR263Z35DR000ABL1*
- Barebone package (EPYC 9004): 6NR263Z35DR000AAL1*
- Motherboard: 9MZ33DC1UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-553201-M1R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP20C7: 9CBP20C7NR-00*
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS201H: 9CRS201HNR-00*
- Riser card - CRS201M: 9CRS201MNR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 360mm): 25CRI-360102-Y4R
- GPU power cable (12VHPWR, 490mm): 25CRI-490102-Y4R
- Power supply: 25EP0-227000-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- A100/MI210 power cable (CPU 8pin, 350mm): 25CRI-350100-Y4R
- A100/MI210 power cable (CPU 8pin, 480mm): 25CRI-480101-Y4R
- Barebone package (EPYC 9004): 6NR263Z35DR000AAL1*
- Motherboard: 9MZ33DC1UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-553201-M1R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP20C7: 9CBP20C7NR-00*
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS201H: 9CRS201HNR-00*
- Riser card - CRS201M: 9CRS201MNR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 360mm): 25CRI-360102-Y4R
- GPU power cable (12VHPWR, 490mm): 25CRI-490102-Y4R
- Power supply: 25EP0-227000-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- A100/MI210 power cable (CPU 8pin, 350mm): 25CRI-350100-Y4R
- A100/MI210 power cable (CPU 8pin, 480mm): 25CRI-480101-Y4R
