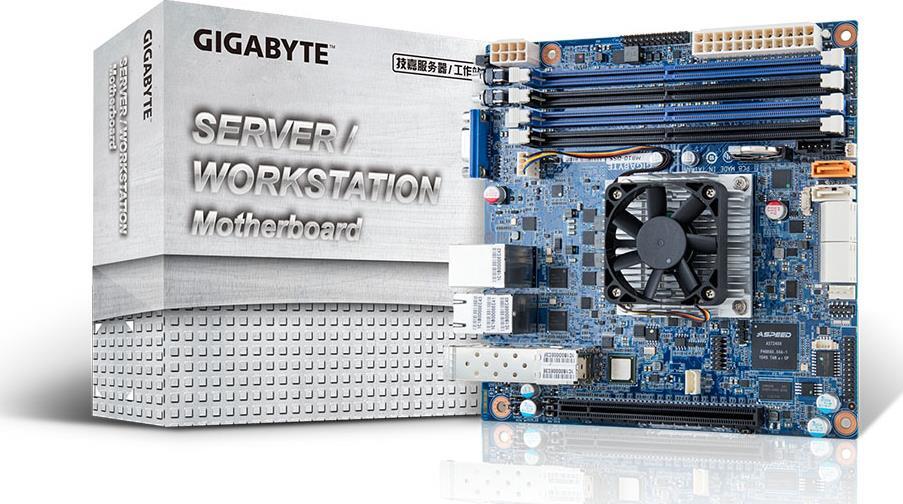

- MB10-DS4
MB10-DS4
Discontinued
Intel® Xeon D-1521 SoC
- Mini-ITX form factor
- Intel® Xeon® D-1521 processor
- 4 x RDIMM/UDIMM slots, DDR4 2133MHz
- 2 x 10GbE SFP+ LAN ports (Intel® X552)
- 2 x GbE LAN ports (Intel® I210)
- 6 x SATA III 6Gb/s
- Aspeed® AST2400 remote management controller
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
Mini-ITX
170W x 170D (mm)
170W x 170D (mm)
CPU
Intel® Xeon® D-1521 processor 2.4GHz
Up to 2.7GHz with Intel® Turbo Boost Technology
4 cores, 8 threads 6MB cache 45W TDP
4 cores, 8 threads 6MB cache 45W TDP
Socket
FCBGA 1667
Chipset
-
Memory
4 x DIMM slots
Supports 1.2V DDR4 memory
Single & dual rank modules supported
ECC & non-ECC modules supported
RDIMM supported up to 32GB per module
UDIMM supported up to 16GB per module
1600/1866/2133 MHz
Supports 1.2V DDR4 memory
Single & dual rank modules supported
ECC & non-ECC modules supported
RDIMM supported up to 32GB per module
UDIMM supported up to 16GB per module
1600/1866/2133 MHz
LAN
2 x 10GbE SFP+ LAN ports (Intel® X552)
2 x GbE LAN ports (Intel® I210)
1 x 10/100/1000 management LAN
1 x 10/100/1000 management LAN
Video
Integrated in Aspeed® AST2400
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Audio
-
NVMe
-
SAS
-
SATA
6 x SATA III 6Gb/s ports
SATA DOM supported
SATA DOM supported
RAID
-
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x CPU fan header
1 x System fan headers
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x JTAG BMC header
1 x Clear CMOS jumper
1 x IPMB connector
1 x PMBus connector
1 x COM (RS-232)
1 x 8-pin ATX 12V power connector
6 x SATA III 6Gb/s ports
1 x CPU fan header
1 x System fan headers
1 x TPM header
1 x Front panel header
1 x HDD back plane board header
1 x JTAG BMC header
1 x Clear CMOS jumper
1 x IPMB connector
1 x PMBus connector
1 x COM (RS-232)
Rear I/O
2 x USB 3.0
1 x VGA
2 x SFP+
3 x RJ45
1 x ID button with LED
1 x Power button with LED
1 x Status LED
1 x VGA
2 x SFP+
3 x RJ45
1 x ID button with LED
1 x Power button with LED
1 x Status LED
TPM
1 x TPM header
OS Supported
Windows Server 2008 R2
Windows Server 2012 R2
Windows Server 2016
Red Hat Enterprise Linux 7.1 (x64) SUSE Linux Enterprise Server 12 (x64) Ubuntu 14.04.2 LTS Fedora 22 CentOS 7.1
Red Hat Enterprise Linux 7.1 (x64) SUSE Linux Enterprise Server 12 (x64) Ubuntu 14.04.2 LTS Fedora 22 CentOS 7.1
Board Management
Aspeed® AST2400 management controller
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
Avocent® MergePoint IPMI 2.0 web interface:
- Network settings
- Network security settings
- Users control
- Services settings
- IPMI settings
- Sessions control
- LDAP settings
- Power control
-Voltages, fans and temperatures monitoring
- System event log
- Events management (platform events, trap settings, email settings)
- Serial Over LAN
- vKVM & vMedia (launch, configuration)
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Retail Packaging Content
1 x MB10-DS4
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables (600mm)
Box dimensions: 233 x 214 x 62 mm
1 x I/O shield
1 x Quick start guide
4 x SATA III 6Gb/s cables (600mm)
Box dimensions: 233 x 214 x 62 mm
Bulk Packaging Content
10 x MB10-DS4
10 x I/O shields
Carton dimensions: 421 x 292 x 268 mm
10 x I/O shields
Carton dimensions: 421 x 292 x 268 mm
Reference Numbers
Retail: 9MB10DS4MR-00
Bulk: 9MB10DS4NR-00
Bulk: 9MB10DS4NR-00
