- MDH11BM
MDH11BM
Discontinued

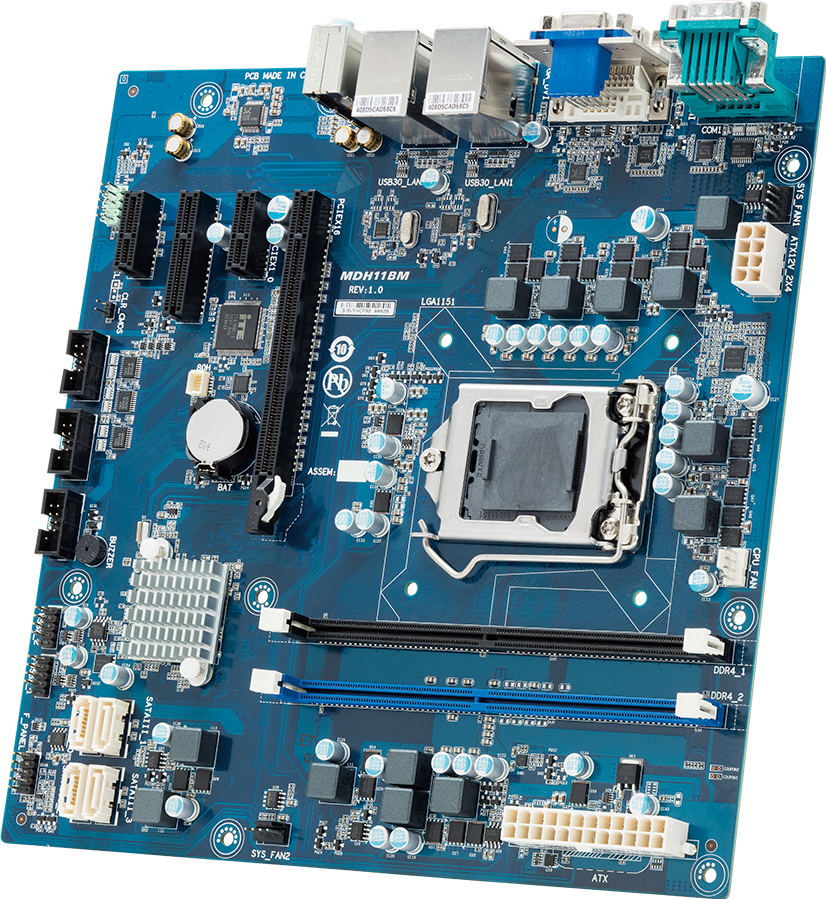

Intel® H110 Chipset
- Micro ATX form factor
- Supports 7th / 6th Generation Intel® Core™ Processors
- Intel® H110
- Dual Channel DDR4, 2 x DIMMs
- HDMI 1.4, DVI-D, D-Sub ports for multiple display
- 2 x GbE LAN ports
- 4 x COM ports
- 4 x SATA III 6Gb/s ports
-
SuperSpeed USB 3.0
![]()
With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices. -
High-Definition Everywhere
![]()
HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Form Factor
Micro ATX
244W x 244D (mm)
244W x 244D (mm)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
CPU
Supports for Intel® Core™ i7 processors
Intel® Core™ i5 processors
Intel® Core™ i3 processors
Intel® Pentium® processors
Intel® Celeron® processors
L3 cache varies with CPU
Intel® Core™ i5 processors
Intel® Core™ i3 processors
Intel® Pentium® processors
Intel® Celeron® processors
L3 cache varies with CPU
Socket
1 x LGA 1151
Chipset
Intel® H110 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 2133 MHz memory modules
Dual channel memory architecture
Support for DDR4 2133 MHz memory modules
LAN
2 x GbE LAN port (Intel® I219LM and Realtek® RTL8111HS)
Video
Integrated Graphics Processor - Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
* Support up to 2 displays at the same time
* Support for HDMI 1.4 version
* The DVI-D port does not support D-Sub connection by adapter
* Maximum shared memory of 1024 MB
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
* Support up to 2 displays at the same time
* Support for HDMI 1.4 version
* The DVI-D port does not support D-Sub connection by adapter
* Maximum shared memory of 1024 MB
Audio
Realtek ALC888S codec
High Definition Audio
High Definition Audio
SATA
4 x SATA 6Gb/s ports
RAID
-
Expansion Slots
1 x PCIe x16 (Gen3 x16 bus) slot
1 x PCIe x4 (Gen2 x2 bus) slot
2 x PCIe x1 (Gen2 x1 bus) slot
1 x PCIe x4 (Gen2 x2 bus) slot
2 x PCIe x1 (Gen2 x1 bus) slot
Internal I/O
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x System fan header
1 x Front panel header
1 x Front panel audio header
2 x USB 2.0/1.1 headers
3 x COM headers
1 x Clear CMOS jumper
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
2 x System fan header
1 x Front panel header
1 x Front panel audio header
2 x USB 2.0/1.1 headers
3 x COM headers
1 x Clear CMOS jumper

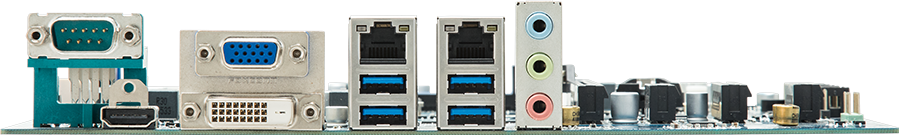

Rear I/O
3 x Audio jacks (Line in, Line out, Mic in)
1 x COM
1 x HDMI
1 x DVI-D
1 x D-Sub
2 x RJ45
4 x USB3.0
1 x COM
1 x HDMI
1 x DVI-D
1 x D-Sub
2 x RJ45
4 x USB3.0
TPM
SECURITY TPM SLB9665VQ2.0
OS Supported
Windows 10 (x64)
Windows 8.1 (x64)
Windows 8.1 (x64)
PSU Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Packaging Content
Capacity: 20pcs
Carton size: 609*581*362 (mm)
Content:
IO Shield*1 (12AIO-MDH112-00R)
Carton size: 609*581*362 (mm)
Content:
IO Shield*1 (12AIO-MDH112-00R)
Ordering Information
Motherboard: 9MDH11BMNR-SI
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
