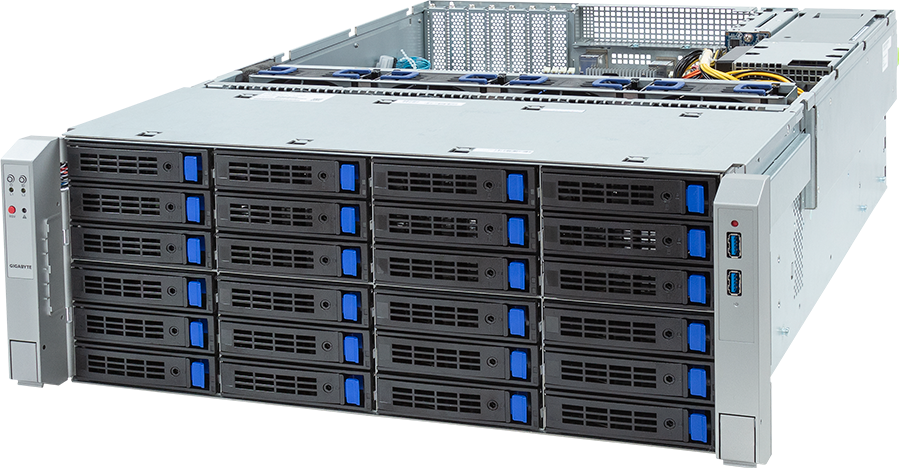

S453-S70-AAV1
Storage Server - 5th/4th Gen Intel® Xeon® Scalable - 4U DP 36+2-Bay SATA/SAS
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- 8-Channel DDR5 RDIMM, 16 x DIMMs
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 2 x 1Gb/s LAN ports via Intel® I210-AT
- 24 x 3.5"/2.5" SATA/SAS hot-swappable bays on the front side
- 12 x 3.5"/2.5" SATA/SAS hot-swappable bays on the rear side
- 2 x 2.5" SATA/SAS bays on rear side for boot drives
- SAS expander with 12Gb/s transfer speed
- 2 x M.2 slots with PCIe Gen4 x4 interface
- 6 x LP PCIe Gen5 x16 slots
- Dual 1600W 80 PLUS Titanium redundant power supply
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
4U
482.6 x 177 x 625
482.6 x 177 x 625
Motherboard
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Dual processor, TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
4th Generation Intel® Xeon® Scalable Processors
Dual processor, TDP up to 270W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4677
Socket E
Socket E
Chipset
Intel® C741
Memory
16 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported*
5th Gen Intel® Xeon®: Up to 5600 MT/s
4th Gen Intel® Xeon®: Up to 4800 MT/s
*Total memory supports up to 512GB with 1600W power supply. Please select 2000W power supply for higher memory configuration.
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported*
5th Gen Intel® Xeon®: Up to 5600 MT/s
4th Gen Intel® Xeon®: Up to 4800 MT/s
*Total memory supports up to 512GB with 1600W power supply. Please select 2000W power supply for higher memory configuration.
LAN
Rear side:
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
Support NCSI function (by switch setting)
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN ports (1 x Intel® X710-AT2)
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
Support NCSI function (by switch setting)
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
24 x 3.5"/2.5" SATA/SAS hot-swappable bays, connected to expander
Rear side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays, connected to expander
2 x 2.5" SATA/SAS bays for boot drives, from onboard connector
- (Additional SAS card is required for SAS support on boot drives)
1 x Broadcom SAS35x48 expanders
Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
SAS card is required to enable the drive bays
Recommended SAS cards:
CSA4710
CRA4760
CRA4761
24 x 3.5"/2.5" SATA/SAS hot-swappable bays, connected to expander
Rear side:
12 x 3.5"/2.5" SATA/SAS hot-swappable bays, connected to expander
2 x 2.5" SATA/SAS bays for boot drives, from onboard connector
- (Additional SAS card is required for SAS support on boot drives)
1 x Broadcom SAS35x48 expanders
Bandwidth: SATA 6Gb/s or SAS 12Gb/s per port
SAS card is required to enable the drive bays
Recommended SAS cards:
CSA4710
CRA4760
CRA4761
SAS
Supported
RAID
Depends on SAS add-in cards
Expansion Slots
6 x PCIe x16 (Gen5 x16) low-profile slots
2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Support 2280/22100 cards
2 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Support 2280/22100 cards
Internal I/O
1 x TPM header
1 x VROC connector
1 x VROC connector
Front I/O
2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.2 Gen1
1 x VGA
1 x COM
4 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
1 x COM
4 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
Front side - CBPD4O0: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBPD0C0: SATA 6Gb/s or SAS 12Gb/s
Front side - CBPD4O0: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBP2021: SATA 6Gb/s or SAS 12Gb/s
Rear side - CBPD0C0: SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 1600W 80 PLUS Titanium redundant power supply
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 8A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 132A
+12.2Vsb/ 3A
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 8A
DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 132A
+12.2Vsb/ 3A
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
4 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
843 x 610 x 290 mm
Packaging Content
1 x S453-S70-AAV1
2 x CPU heatsinks
6 x Carriers
1 x 3-Section Rail kit
2 x CPU heatsinks
6 x Carriers
1 x 3-Section Rail kit
Part Numbers
- Barebone package (5th/4th Gen): 6NS453S70MR000ABV1*
- Barebone package (4th Gen): 6NS453S70MR000AAV1*
- Motherboard: 9MS73HB0NR-000
- 3-Section Rail kit: 25HB2-3A6104-I0R
- CPU heatsink: 25ST1-323208-A0R
- Backplane board - CBP2021: 9CBP2021NR-00
- Backplane board - CBPD0C0: 9CBPD0C0NR-00
- Backplane board - CBPD4O0: 9CBPD4O0NR-00
- Fan module: 25ST2-883829-D0R
- 1600W power supply: 25EP0-21600D-G1S
Optional parts:
- 2000W power supply (GosPower): 25EP0-22000L-G1S
- 2000W power supply (LITEON): 25EP0-22000M-L0S
- Barebone package (4th Gen): 6NS453S70MR000AAV1*
- Motherboard: 9MS73HB0NR-000
- 3-Section Rail kit: 25HB2-3A6104-I0R
- CPU heatsink: 25ST1-323208-A0R
- Backplane board - CBP2021: 9CBP2021NR-00
- Backplane board - CBPD0C0: 9CBPD0C0NR-00
- Backplane board - CBPD4O0: 9CBPD4O0NR-00
- Fan module: 25ST2-883829-D0R
- 1600W power supply: 25EP0-21600D-G1S
Optional parts:
- 2000W power supply (GosPower): 25EP0-22000L-G1S
- 2000W power supply (LITEON): 25EP0-22000M-L0S
