Dimensions (WxHxD, mm)
2U
448 x 87.5 x 800
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Single processor, cTDP up to 300W [1]
[1] The EPYC 9005 series processors with a cTDP of 300W are supported only under ambient temperatures of 30°C.
Socket
1 x LGA 6096
Socket SP5
Memory
12 x DIMM slots
DDR5 memory supported
12-Channel memory per processor
AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
LAN
Rear:
2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
Storage
Front hot-swap:
4 x 2.5" Gen5 NVMe/SATA/SAS [1]
4 x 2.5" SATA/SAS [1]
Internal M.2:
2 x M.2 (2280/22110), PCIe Gen5 x4
[1] SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
PCIe Expansion Slots

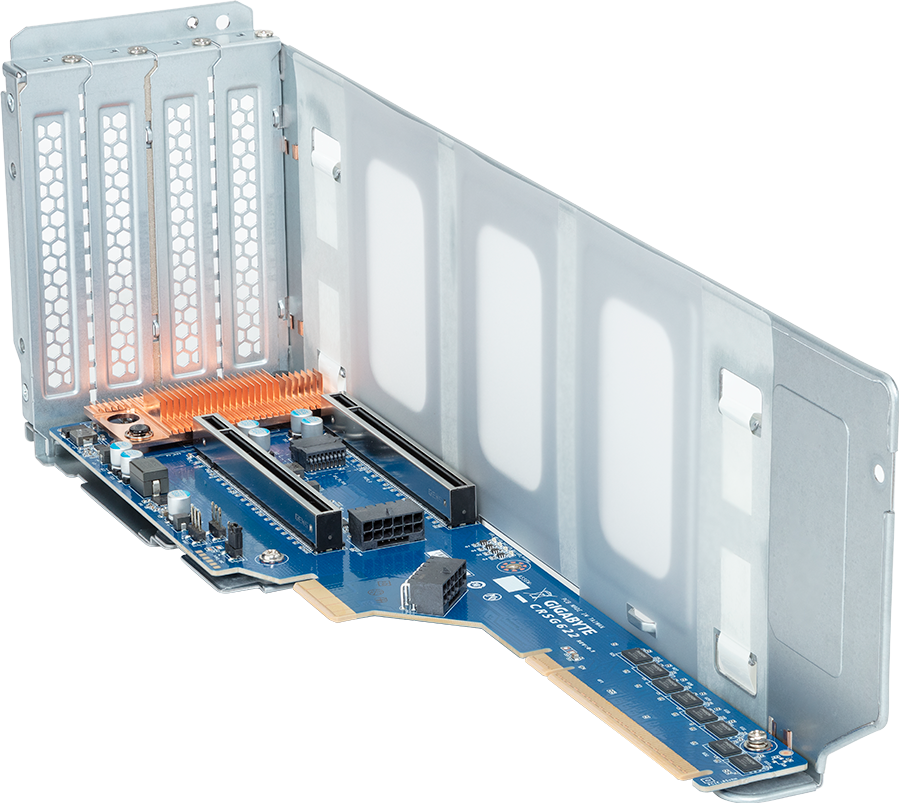

Riser Card CRSG622 x 2:
- 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs

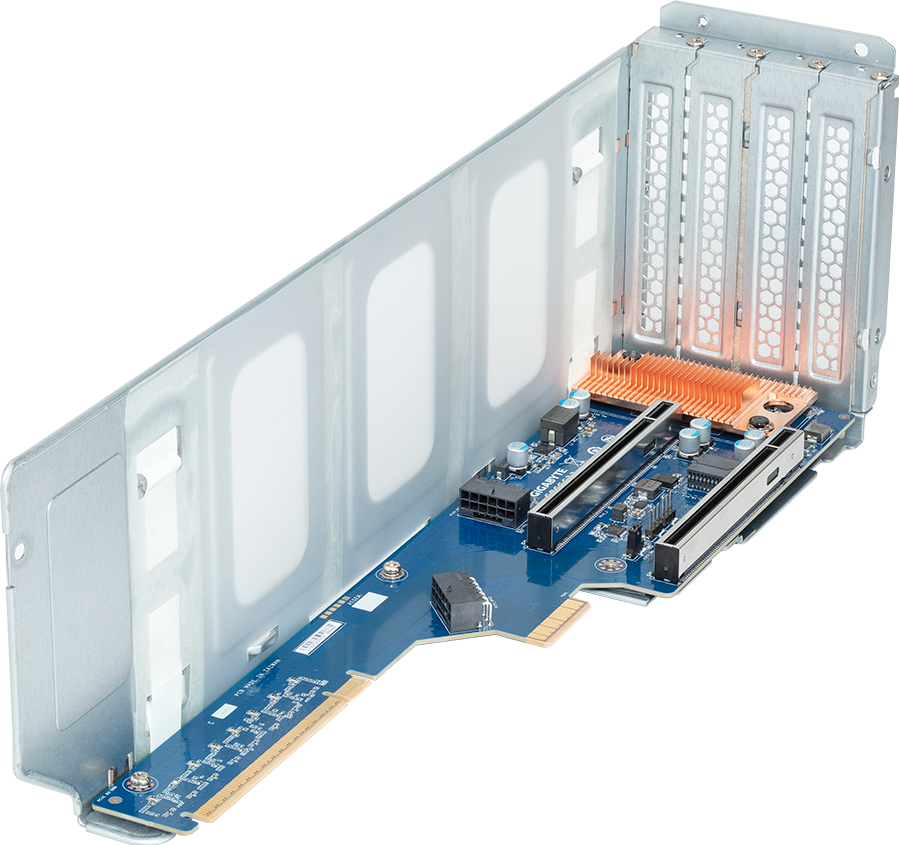

Riser Card CRSG623 x 2:
- 4 x FHFL x16 (Gen5 x16), from PEX89048, for GPUs
Riser Card CRSG01F x 2:
- 2 x LP x16 (Gen5 x16), from CPU
[Note] Maximum GPU dimensions (LxWxH): 285 x 111.5 x 39.5mm.
[Note] The system is only validated with a uniform GPU model.

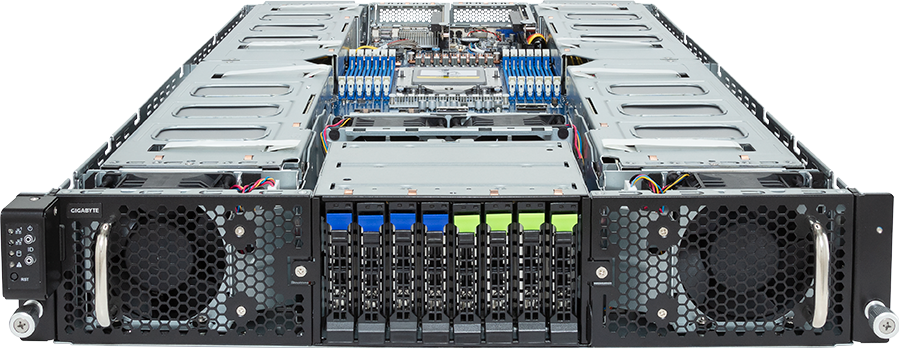

Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

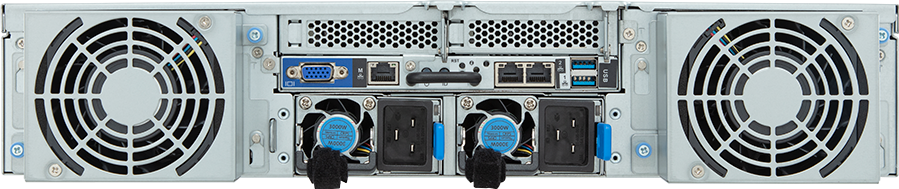

Rear I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
Security Modules
1 x TPM header with SPI interface
-
Optional TPM2.0 kit:
CTM010
Power Supply
Dual 3000W 80 PLUS Titanium redundant power supply [1]
AC Input:
- 100-127V~/ 14.5A, 50/60Hz
- 200-220V~/ 16A, 50/60Hz
- 220-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
System Management
Aspeed
® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022
System Fans
8 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1133 x 724 x 261 mm
Packaging Content
1 x G293-Z22-AAP1
1 x CPU heatsink
4 x GPU power cables (12VHPWR, 250mm)
4 x GPU power cables (12VHPWR, 280mm)
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG293Z22DR000ACP1*
- Motherboard: 9MZ23G20UR-000-3*
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-25320N-M1R
- Backplane board - CBPG086: 9CBPG086NR-00*
- Fan module: 25ST2-88382R-S1R
- Riser card - CRSG01F: 9CRSG01FNR-00*
- Riser card - CRSG622: 9CRSG622NR-00*
- Riser card - CRSG623: 9CRSG623NR-00*
- GPU power cable (12VHPWR, 250mm): 25CRI-250107-Y4R
- GPU power cable (12VHPWR, 280mm): 25CRI-300102-Y4R
- Power supply: 25EP0-23000C-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG293Z22SR-RMA-A100
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
