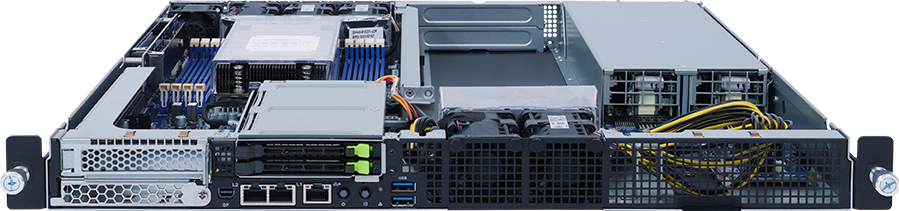

E152-ZE1
Edge Server - AMD EPYC™ 7003/7002 - 1U UP 2 x PCIe Gen4 GPUs
- Supports 1 x Dual slot or 2 x Single slot Gen4 GPUs
- Single AMD EPYC™ 7003/7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 8 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 2 x 2.5" Gen4 NVMe/SATA hot-swap bays
- 2 x M.2 slots with PCIe Gen4 x4 interface
- 2 x FHFL PCIe Gen4 x16 slots for GPUs
- 1 x LP PCIe Gen4 x16 slot
- 1 x OCP NIC 3.0 PCIe Gen4 x16 slot
- 1+1 1000W 80 PLUS Platinum redundant power supplies
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
1U
438 x 43.5 x 400
438 x 43.5 x 400
Motherboard
MZE2-G10
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Single processor, cTDP up to 240W
AMD EPYC™ 7002 Series Processors
Single processor, cTDP up to 240W
Socket
1 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
8 x DIMM slots
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200/2933 MT/s
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200/2933 MT/s
LAN
Front:
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front hot-swap:
2 x 2.5" Gen4 NVMe/SATA [1]
Internal M.2 (CMTP182):
2 x M.2 (2280/22110), PCIe Gen4 x4
[1] Supports 7mm drives only.
2 x 2.5" Gen4 NVMe/SATA [1]
Internal M.2 (CMTP182):
2 x M.2 (2280/22110), PCIe Gen4 x4
[1] Supports 7mm drives only.
SAS
N/A
RAID
Require RAID add-in cards
PCIe Expansion Slots
1 x FHFL x16 (Gen4 x16), for GPUs
1 x FHFL x16 (Gen4 x16), for GPUs [1]
1 x LP x16 (Gen4 x16)
1 x OCP NIC 3.0 (Gen4 x16)
- Supports NCSI function
[1] Blocked when a Dual slot GPU is installed.
1 x FHFL x16 (Gen4 x16), for GPUs [1]
1 x LP x16 (Gen4 x16)
1 x OCP NIC 3.0 (Gen4 x16)
- Supports NCSI function
[1] Blocked when a Dual slot GPU is installed.
Front I/O
2 x USB 3.0 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x System status LED
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x System status LED
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s
PCIe Gen4 x4 or SATA 6Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
1+1 1000W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-127V~/ 15A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Output:
- Max 1000W
+12V/ 83.3A
+12Vsb/ 3A
AC Input:
- 100-127V~/ 15A, 50-60Hz
- 200-240V~/ 8A, 50-60Hz
DC Output:
- Max 1000W
+12V/ 83.3A
+12Vsb/ 3A
System Management
ASPEED® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage/Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP/AD/RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later
Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
1 x 40x40x28mm (25,000rpm)
5 x 40x40x56mm (25,000rpm)
5 x 40x40x56mm (25,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 7.7 kg
Gross Weight: 11.72 kg
Gross Weight: 11.72 kg
Packaging Dimensions
628 x 549 x 200 mm
Packaging Content
1 x E152-ZE1
1 x CPU heatsink
[Note] Rail kit not included. Please refer to optional parts for compatible rail kit.
1 x CPU heatsink
[Note] Rail kit not included. Please refer to optional parts for compatible rail kit.
Part Numbers
- Barebone package: 6NE152ZE1MR-00-A*
- Motherboard: 9MZE2G10NR-00*
- CPU heatsink: 25ST1-453211-A3R
- Backplane board - CBPH022: 9CBPH022NR-00*
- Fan module 40x40x28mm: 25ST2-442827-D0R
- Fan module 40x40x56mm: 25ST2-44562M-D0R
- Fan module 40x40x56mm: 25ST2-44562N-D0R
- M.2 riser card - CMTP182: 9CMTP182NR-00*
- Riser card - CRSE020: 9CRSE020NR-00*
- Riser card - CRSH01H: 9CRSH01HNR-00*
- NVMe card - CNV3152: 9CNV3152NR-00*
- Power supply: 25EP0-210000-D0S
Optional parts:
- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R (MOQ: 500)
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
- Motherboard: 9MZE2G10NR-00*
- CPU heatsink: 25ST1-453211-A3R
- Backplane board - CBPH022: 9CBPH022NR-00*
- Fan module 40x40x28mm: 25ST2-442827-D0R
- Fan module 40x40x56mm: 25ST2-44562M-D0R
- Fan module 40x40x56mm: 25ST2-44562N-D0R
- M.2 riser card - CMTP182: 9CMTP182NR-00*
- Riser card - CRSE020: 9CRSE020NR-00*
- Riser card - CRSH01H: 9CRSH01HNR-00*
- NVMe card - CNV3152: 9CNV3152NR-00*
- Power supply: 25EP0-210000-D0S
Optional parts:
- 2-Section Rail kit (385-480mm): 25HB2-3A0204-K0R (MOQ: 500)
- 2-Section Rail kit (660-840mm): 25HB2-3A0203-K0R
