G494-SB3-AAP1
To be released

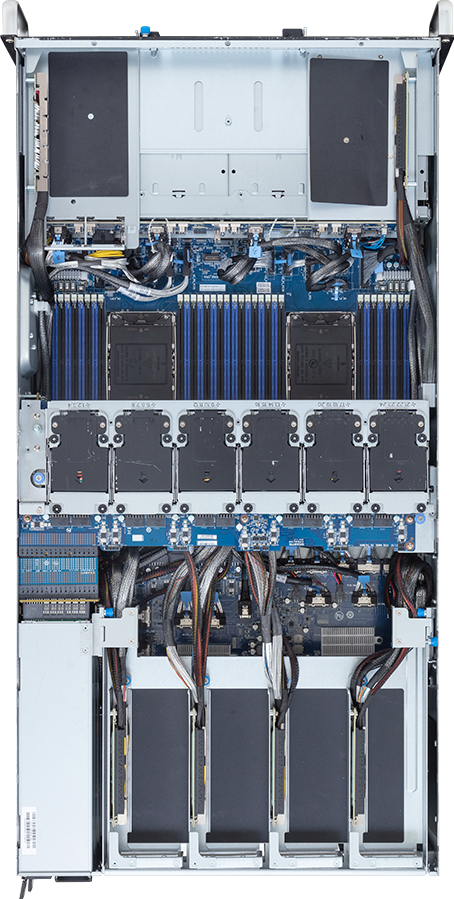

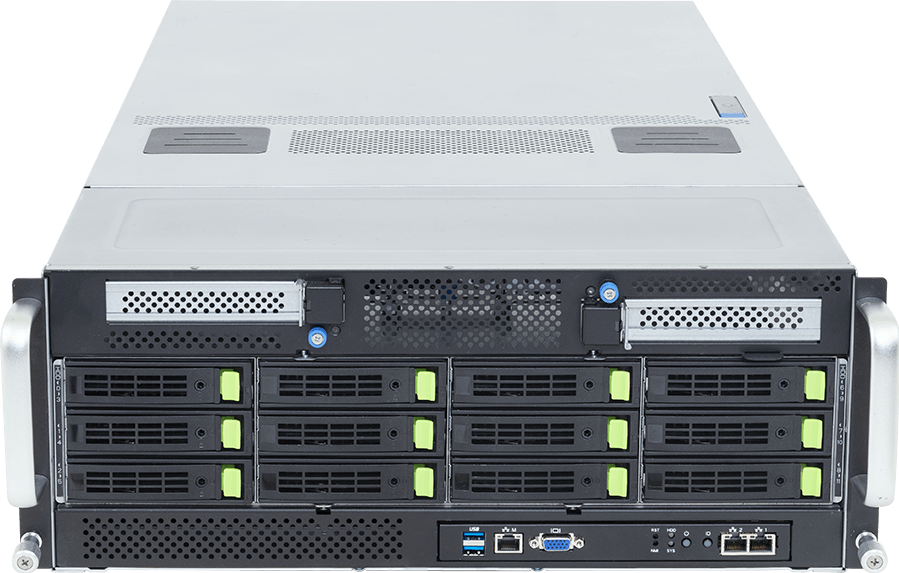

HPC/AI Server - Intel® Xeon® 6 Processors - 4U DP 8 x PCIe Gen5 GPUs (2 x Root Ports)
- Supports up to 8 x Dual slot Gen5 GPUs
- Dual Intel® Xeon® 6 Processors, LGA 4710
- 8-Channel DDR5 RDIMM / MRDIMM, 32 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 12 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 8 x FHFL PCIe Gen5 x16 slots for GPUs
- 8 x LP PCIe Gen5 x16 slots
- 2 x FHHL PCIe Gen5 x16 slots on the front side
- 4 x 3000W 80 PLUS Titanium redundant power supplies
SPECIFICATIONS
Dimensions (WxHxD, mm)
4U
448 x 176 x 880
448 x 176 x 880
Motherboard
MSB4-G40
CPU
Intel® Xeon® 6 Processors
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors (available Q1'25)
- Intel® Xeon® 6500P-Series Processors (available Q1'25)
Dual processor, TDP up to 350W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors (available Q1'25)
- Intel® Xeon® 6500P-Series Processors (available Q1'25)
Dual processor, TDP up to 350W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4710
Socket E2
Socket E2
Chipset
System on Chip
Memory
32 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
MRDIMM supported [1]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s
[1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.
DDR5 memory supported
8-Channel memory architecture
MRDIMM supported [1]
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MRDIMM: Up to 8000 MT/s
[1] MRDIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.
LAN
Front:
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
12 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (6 x NVMe from CPU_0, 6 x NVMe from CPU_1)
[1] Storage card is required to support SATA and SAS drives.
12 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (6 x NVMe from CPU_0, 6 x NVMe from CPU_1)
[1] Storage card is required to support SATA and SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
Onboard VROC key headers
Onboard VROC key headers

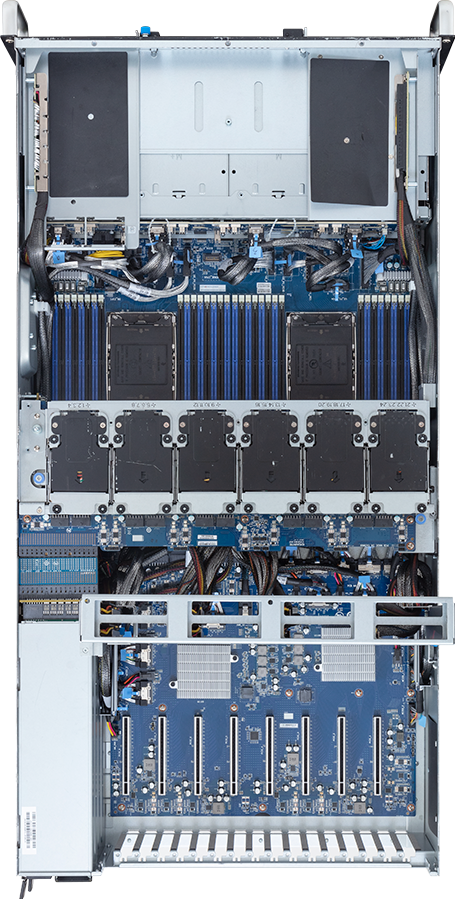

PCIe Expansion Slots
Rear:
PCIe Switch Board- CPB4AG0:
- 4 x FHFL x16 (Gen5 x16), from PEX89144_0, for GPUs
- 4 x FHFL x16 (Gen5 x16), from PEX89144_1, for GPUs
PCIe Cable x 8:
- 4 x LP x16 (Gen5 x16), from PEX89144_0
- 4 x LP x16 (Gen5 x16), from PEX89144_1
Front:
PCIe Cable x 2:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
- 1 x FHHL x16 (Gen5 x16), from CPU_1
[Note] The system is only validated with a uniform GPU model.
PCIe Switch Board- CPB4AG0:
- 4 x FHFL x16 (Gen5 x16), from PEX89144_0, for GPUs
- 4 x FHFL x16 (Gen5 x16), from PEX89144_1, for GPUs
PCIe Cable x 8:
- 4 x LP x16 (Gen5 x16), from PEX89144_0
- 4 x LP x16 (Gen5 x16), from PEX89144_1
Front:
PCIe Cable x 2:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
- 1 x FHHL x16 (Gen5 x16), from CPU_1
[Note] The system is only validated with a uniform GPU model.

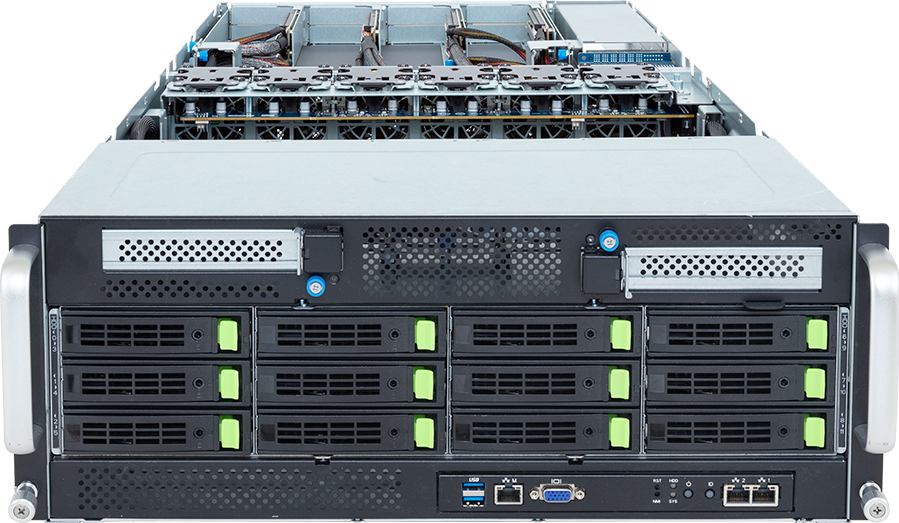

Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
1 x VGA port
2 x RJ45 ports
1 x MLAN port
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012
1 x PRoT connector (only enabled on RoT SKU)
- Optional TPM2.0 kit: CTM012
1 x PRoT connector (only enabled on RoT SKU)

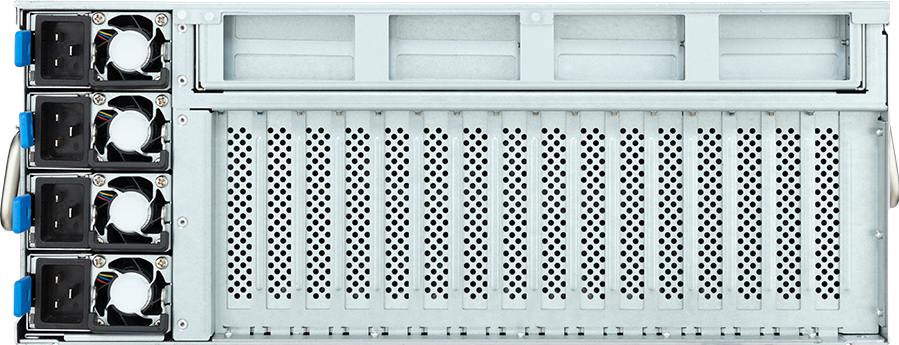

Power Supply
4 x 3000W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 100-127V~/ 14.5A, 50/60Hz
- 200-220V~/ 16A, 50/60Hz
- 220-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 14.5A, 50/60Hz
- 200-220V~/ 16A, 50/60Hz
- 220-240V~/ 16A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
TBD
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1200 x 800 x 444 mm w/ pallet
Packaging Content
1 x G494-SB3-AAP1
2 x CPU fansinks
8 x GPU power cables (12VHPWR, 150mm)
4 x Carriers
1 x L-shape Rail kit
2 x CPU fansinks
8 x GPU power cables (12VHPWR, 150mm)
4 x Carriers
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG494SB3DR000AAP1*
- Motherboard: 9MSB4G40UR-000*
- L-shape Rail kit: 25HB2-A96100-K0R
- Motherboard: 9MSB4G40UR-000*
- L-shape Rail kit: 25HB2-A96100-K0R
