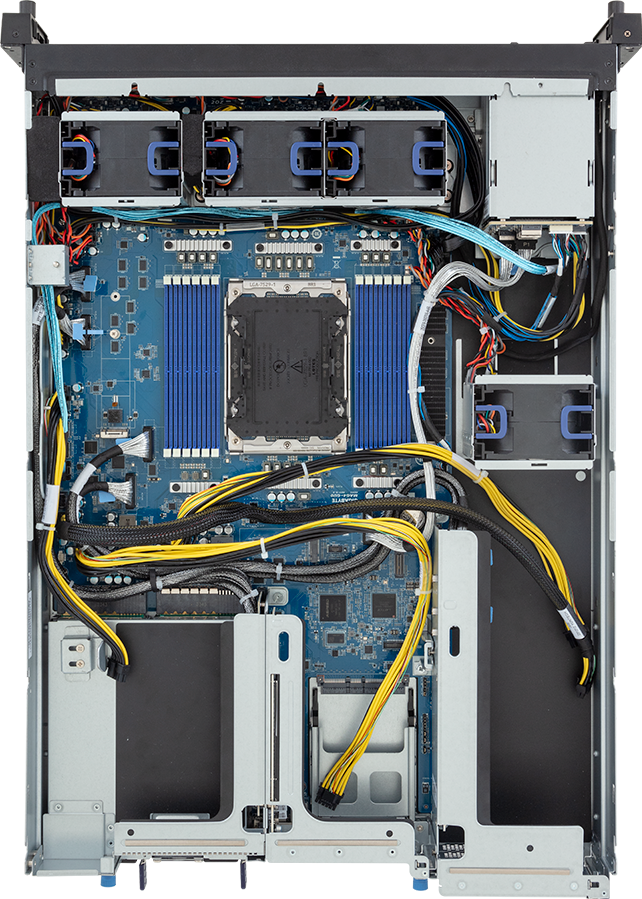

E264-AG0-AAS1

2U
438 x 87.5 x 620

MAG4-GU0

Intel^® Xeon^® 6 Processors
- Intel^® Xeon^® 6900-Series Processors

Single processor, TDP up to 500W

1 x LGA 7529
Socket BR

System on Chip

12 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
MRDIMM supported ^[1]
RDIMM: Up to 6400 MT/s
MRDIMM: Up to 8800 MT/s

^[1] MRDIMMs are only supported with Intel^® Xeon^® 6 Processors with P-cores.

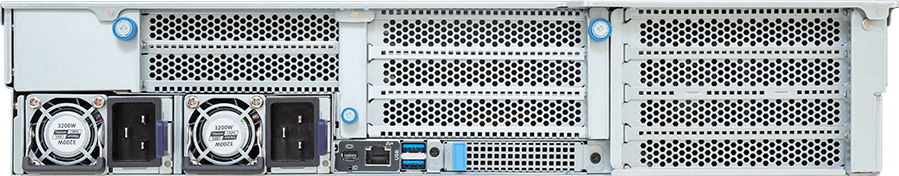

Rear:
1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed^® AST2600
- 1 x Mini-DP

Front hot-swap:
2 x 2.5" Gen5 NVMe/SATA/SAS-4 ^[1][2]
2 x 2.5" SATA/SAS-4 ^[1][2]

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen5 x2
1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA <sup>[3]

[1]</sup> SAS card is required to support SAS drives.
^[2] Only support SSDs.
^[3] To enable the M.2 slot, please adjust the switch according to the manual for proper support.

Require SAS add-in cards

Require RAID add-in cards
Onboard VROC key header

Riser Card CRC2023:
- 2 x FHFL x16 (Gen5 x16), for GPUs

Riser Card CRS202Q:
- 1 x FHFL x16 (Gen5 x16), for GPUs

Riser Card CRS201K:
- 1 x FHFL x16 (Gen5 x16), for GPUs

1 x OCP NIC 3.0 (Gen5 x16)
- Supports NCSI function

2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (disabled)
1 x Storage activity LED
1 x System status LED

2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x MLAN port
1 x ID LED

Speed and bandwidth:
Gen5 NVMe or SATA 6Gb/s or SAS-4 24Gb/s

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

1 x PRoT connector (only enabled on RoT SKU)

2 x 3200W 80 PLUS Titanium redundant power supply ^[1]

AC Input:
- 100-127V~/ 16A, 50-60Hz
- 200-220V~/ 16A, 50-60Hz
- 220-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1300W/ 100-127V~
+12.2V/ 106.6A
+12.2Vsb/ 3A
- Max 3000W/ 200-220V~
+12.2V/ 246A
+12.2Vsb/ 3A
- Max 3200W/ 220-240V~ or 240Vdc Input
+12.2V/ 262.3A
+12.2Vsb/ 3A

^[1] The system power supply requires C19 power cord.
^[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.

Aspeed^® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

Please refer to OS compatibility table in support page

4 x 80x80x56mm (15,500rpm)

Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

927 x 603 x 300 mm

1 x E264-AG0-AAS1
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 250mm)
2 x GPU power cables (12VHPWR, 450mm)
1 x GPU power cable (12VHPWR, 550mm)
1 x Carrier
1 x 2-section Rail kit

- Barebone package: 6NE264AG0DR000AAS1*
- Motherboard: 9MAG4GU0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-35310E-M1R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBPE640: 9CBPE640NR-00*
- Fan module: 25ST2-885621-A0R
- Riser card - CRC2023: 9CRC2023NR-00*
- Riser card - CRS201K: 9CRS201KNR-00*
- Riser card - CRS202Q: 9CRS202QNR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 250mm): 25CRI-2503B3-Y4R
- GPU power cable (12VHPWR, 450mm): 25CRI-4500B0-Y4R
- GPU power cable (12VHPWR, 550mm): 25CRI-5500B1-Y4R
- Power supply: 25EP0-232000-G1S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-A56120-K0R
- Cable Management Arm: 25HBZ-R18100-K0R
